Understanding the CVT Gearbox

The Inner Workings of a CVT Gearbox Revealed

The acronym CVT stands for Continuously Variable Transmission. This sophisticated type of gearbox offers a unique approach to power delivery, often found in a variety of vehicles, though it's particularly prevalent in smaller, more economical cars. Its appeal lies in its compact design and straightforward construction, making it a more budget-friendly option compared to traditional automatic gearboxes. Manufacturers such as Toyota, Nissan, and Honda frequently incorporate CVTs into their model ranges, while Audi's Multitronic transmission is a notable variation of this technology.

In many respects, a CVT shares similarities with conventional automatic transmissions. For instance, there's no clutch pedal in a CVT-equipped car, meaning you can operate it with an automatic-only UK driving licence. You'll also notice that cars offered with a CVT are typically priced higher than their manual counterparts, mirroring the pricing strategy of regular automatic vehicles. If you were to conduct a direct comparison, the manual version would likely boast superior claimed fuel economy, a characteristic shared with traditional automatic gearboxes.

The concept of the CVT, and its various iterations, has been around since the early days of motoring. However, it was the introduction of the Variomatic gearbox by the Dutch car manufacturer DAF in the 1950s that truly propelled CVT technology into the mainstream automotive market. DAF's Variomatic laid the groundwork for subsequent CVT designs, and the fundamental principles remain remarkably consistent in the versions available today.

How Does a CVT Actually Function?

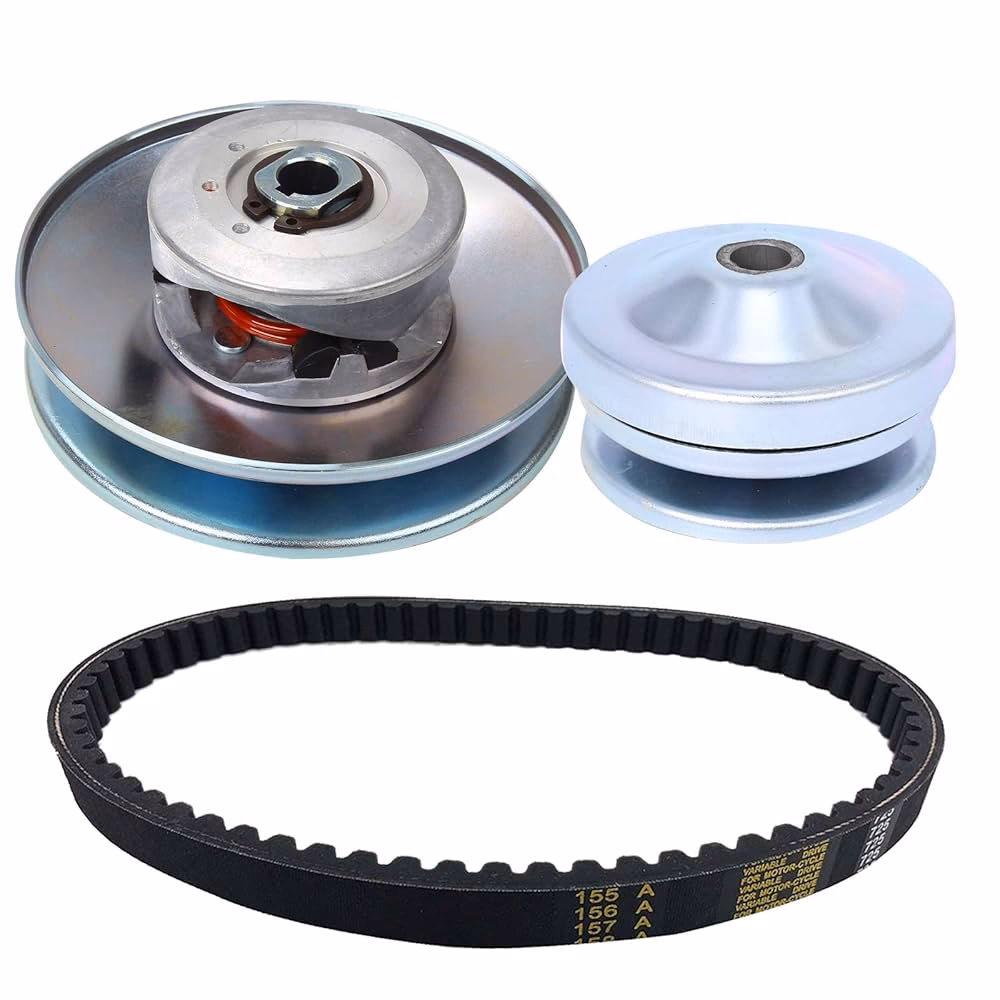

At its core, a CVT gearbox features a relatively uncomplicated mechanism comprising two cone-shaped pulleys connected by a V-shaped drive belt. One pulley is directly linked to the engine's crankshaft, while the other is connected to the vehicle's wheels. When you depress the accelerator pedal, the engine increases its revolutions, causing the cones to adjust their positions based on the demand for power. The second cone mirrors these adjustments to maintain consistent tension on the drive belt, and this interplay is what dictates the car's acceleration profile.

The independent movement of these two cones means that there are no fixed gear ratios, unlike those found in conventional manual or automatic transmissions. Consequently, a CVT functions as a single-speed unit, but with the capability of providing an infinite range of gear ratios. This is also the reason why cars equipped with CVTs often exhibit a distinctive, high-revving engine characteristic, as the engine's revolutions are not directly tethered to the vehicle's speed in the same way as in geared transmissions.

The Advantages of CVT Technology

One of the primary benefits of a CVT is its ability to keep the engine operating within its most efficient RPM range for a given speed. This often translates into improved fuel economy, especially during steady-state cruising or gentle acceleration. The seamless transition between ratios also contributes to a smoother driving experience, free from the noticeable shifts experienced in traditional automatic transmissions. This smoothness can significantly enhance driver comfort, particularly in stop-and-go traffic.

Furthermore, the constant availability of the optimal gear ratio allows for more responsive acceleration. When you need to overtake or quickly increase speed, the CVT can immediately adjust to provide the necessary power without the delay associated with downshifting in a conventional gearbox. This can make the car feel more agile and eager to respond to driver input. The simpler mechanical design can also lead to lower manufacturing costs, which can be passed on to consumers in the form of more affordable vehicles.

Potential Drawbacks to Consider

Despite its advantages, CVT technology is not without its critics. One common complaint is the "rubber band effect," where the engine revs rise quickly and stay high while the car's speed catches up. This can create a sensation of disconnect between the engine noise and the actual acceleration, which some drivers find disconcerting. While modern CVTs have made strides in mimicking traditional gear shifts to create a more familiar feel, this characteristic can still be present.

Another concern can be the long-term durability and repair costs of CVT units. While generally reliable, if a CVT does fail, the repairs can be significantly more expensive than those for a conventional automatic gearbox. This is partly due to the complexity of the internal components and the specialised knowledge required for their repair. It's always advisable to check the service history of a used car with a CVT and to understand the warranty implications.

CVT vs. Traditional Automatic Gearboxes: A Comparison

To better understand the CVT, let's compare it to a conventional automatic gearbox:

Frequently Asked Questions About CVTs

Q1: Is a CVT more fuel-efficient than a manual gearbox?
In many scenarios, particularly during steady driving, a CVT can achieve better fuel economy by keeping the engine in its most efficient operating range. However, under aggressive driving conditions or for drivers who prefer a more engaged driving experience, a manual might offer comparable or even better efficiency depending on driving style.

Q2: Will a CVT car feel different to drive?
Yes, a CVT can feel different. The most noticeable difference is the lack of distinct gear changes. Instead, the engine revs may climb and hold steady as the car accelerates. Some drivers find this sensation unusual, while others appreciate the smoothness it provides.

Q3: Are CVTs reliable?
Modern CVTs are generally reliable, but like any complex mechanical system, they require proper maintenance. Following the manufacturer's recommended service schedule is crucial. Some older CVT designs had more issues, but advancements in technology have significantly improved their dependability.

Q4: Can I tow with a CVT?
While some CVTs are designed to handle towing, it's essential to check your vehicle's manual and specifications. Towing can put extra strain on the transmission, and exceeding the recommended towing capacity could lead to damage. It's often advisable to use a manual or a traditional automatic for heavy towing duties.

Q5: What maintenance does a CVT require?
CVTs typically require regular transmission fluid changes, similar to other automatic transmissions. The type of fluid and the service interval will be specified by the manufacturer. It's important to use the correct fluid as specified in your owner's manual, as using the wrong type can cause serious damage.

The Future of CVT Technology

CVT technology continues to evolve. Manufacturers are constantly refining the control software and improving the durability of the belt and pulley systems. Some newer CVTs incorporate simulated gear shifts to provide a more traditional driving feel, aiming to bridge the gap between the efficiency of a CVT and the driver engagement of a conventional gearbox. As the automotive industry pushes towards greater efficiency and lower emissions, the CVT is likely to remain a significant player in the transmission market, particularly in the realm of smaller, eco-friendly vehicles.

Understanding how your CVT works can help you appreciate its unique benefits and ensure you maintain it correctly. The continuous variation of gear ratios offers a distinct driving experience and potential fuel savings, making it a compelling choice for many drivers seeking a smooth and efficient ride. Always refer to your vehicle's owner's manual for specific maintenance requirements and driving tips related to your CVT.
