Servicing Your Z-Force 48 Hydrostatic Transmission

So, you've just acquired a 2014 Cub Cadet Z-Force 48 mower, a robust machine designed for serious lawn care. You've commendably tackled the initial maintenance – new blades, choke cable, and general servicing – but now you're eyeing the hydrostatic transmission. You're right to be proactive; with nearly 300 hours on the clock, servicing this crucial component is paramount for longevity and performance. The good news is, as you've observed, it absolutely can be serviced, complete with filters and an expansion tank. The challenge, as many DIY enthusiasts discover, often lies in finding precise, model-specific information. This guide aims to bridge that gap, providing you with the knowledge and confidence to perform this vital maintenance task correctly.

The hydrostatic transmission is the heart of your zero-turn mower's drive system, translating engine power into smooth, variable speed, and directional control. Neglecting its maintenance can lead to sluggish performance, increased noise, overheating, and ultimately, costly repairs. Understanding its function and the proper service procedure is key to keeping your Z-Force 48 operating at its peak efficiency for many years to come.

Why Hydrostatic Transmission Service is Crucial

Unlike a traditional geared transmission, a hydrostatic system uses fluid pressure to transfer power. This fluid not only transmits force but also lubricates and cools the internal components. Over time, this fluid degrades due to heat, friction, and contamination from microscopic wear particles. When the fluid breaks down, its ability to lubricate and dissipate heat diminishes, leading to increased wear on pumps, motors, and bearings. Filters, while capturing larger particles, can only do so much. Regular fluid and filter changes ensure that your transmission operates with clean, high-quality fluid, preserving its internal components and maintaining optimal performance. Think of it as the lifeblood of your mower's drive system.

Identifying Your Z-Force 48's Hydrostatic Transaxle Model

This is perhaps the most critical first step. While your mower is a Cub Cadet Z-Force 48, the hydrostatic transaxle units themselves are typically manufactured by specialist companies like Hydro-Gear or Tuff Torq. Cub Cadet integrates these components into their design. The reason this distinction is so important is that the specific fluid type, capacity, and even the exact bleeding procedure can vary significantly between different transaxle models. Without knowing the exact model, you're essentially guessing, which can lead to costly mistakes.

To find your transaxle model, you'll need to locate the identification tags on each hydrostatic unit. These tags are usually small, metallic or sticker labels affixed directly to the transaxle housing. You may need to clean off dirt and debris to read them clearly. Look for model numbers (e.g., 'ZT-2800', 'ZT-3100', 'K66', 'K72') and serial numbers. Once you have these numbers, you can then search the respective manufacturer's (Hydro-Gear or Tuff Torq) website for their service manuals or specifications.

Fluid Specifications: The Right Choice is Key

Once you've identified your transaxle model, consulting the manufacturer's specifications for that specific unit is paramount. Do not assume that all hydrostatic fluids are interchangeable. Using the wrong type of fluid can cause irreparable damage to your transmission. Common recommendations include:

• 20W-50 Motor Oil: Some older or lighter-duty hydrostatic transmissions may specify a multi-grade engine oil like 20W-50. Ensure it's a high-quality, non-detergent oil if specified, though modern recommendations often lean towards specific hydraulic fluids.
• Hydrostatic Transmission Fluid (HTF): Many manufacturers, particularly Hydro-Gear, produce their own branded HTF (e.g., Hydro-Gear Hypr-Oil 500). These fluids are specifically formulated for the demands of hydrostatic systems, offering superior lubrication, heat dissipation, and anti-wear properties.
• Specific Hydraulic Fluids: Some transaxles might recommend a specific type of hydraulic fluid, often denoted by an ISO viscosity grade (e.g., ISO 46, ISO 68).

Crucially, never mix different types of hydraulic fluids or motor oils unless explicitly stated by the manufacturer. Different fluid formulations can react negatively, leading to performance issues or component damage. Always buy enough of the specified fluid to completely drain and refill both transaxles and the expansion tank.

Tools and Materials Required

Before you begin, gather everything you'll need:

• New hydrostatic transmission filters (one for each transaxle unit). Ensure these are the correct filters for your specific transaxle model.
• Specified hydrostatic transmission fluid (enough to fill both units and the expansion tank). Check your transaxle's capacity.
• Drain pans (large enough to catch all the old fluid from both units).
• Socket set or wrenches (for drain plugs and filter removal).
• Clean rags or shop towels.
• Funnel with a flexible spout.
• Gloves and safety glasses.
• Suitable lifting equipment (your chain fall is perfect for getting the rear of the mower safely in the air).
• Optional: Torque wrench (for re-tightening drain plugs and filters to specification).
• Optional: Fluid pump (can make refilling easier, especially if access is tight).

The Hydrostatic Transmission Service Procedure (Step-by-Step)

This process requires patience and attention to detail. Work in a clean area to prevent contamination.

Step 1: Preparation and Safety First

1. Warm-Up: Run the mower for 5-10 minutes to warm up the hydrostatic fluid. Warm fluid flows more easily, ensuring a more complete drain.
2. Park Safely: Park the mower on a level surface. Engage the parking brake.
3. Safety Disconnect: Turn off the engine and remove the spark plug wire(s) or disconnect the battery to prevent accidental starting.
4. Lift the Mower: Using your chain fall, carefully and securely lift the rear of the mower until the wheels are off the ground and you have clear access to the underside of the transaxles. Ensure the mower is stable and supported.
5. Clean Around Components: Before loosening anything, thoroughly clean the areas around the fill caps, drain plugs, and filters on both transaxles and the expansion tank. This prevents dirt and debris from entering the system during the service.

Step 2: Draining the Old Fluid

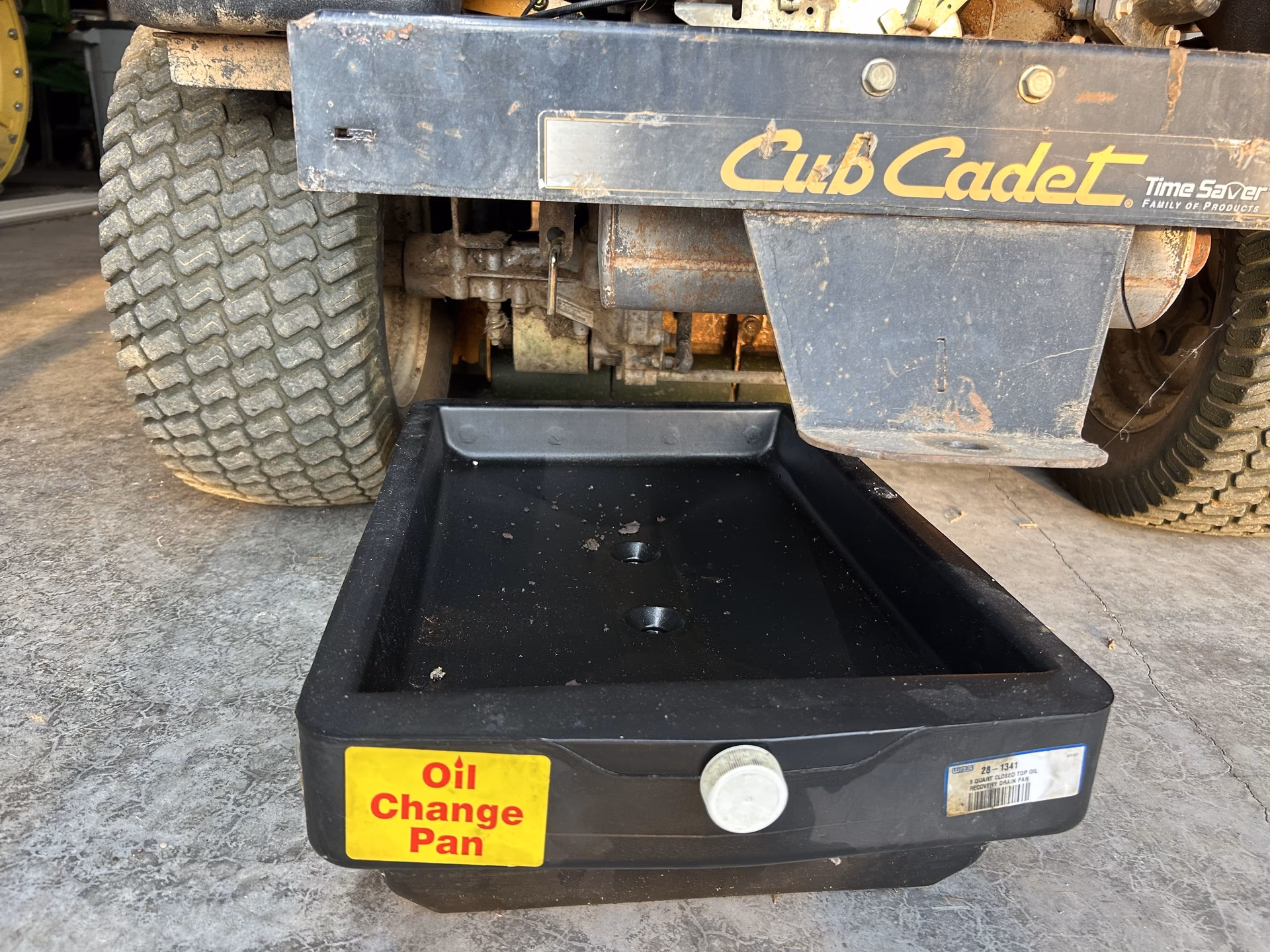

1. Position Drain Pans: Place your drain pans directly underneath each transaxle unit. There might also be a drain plug on the expansion tank, so be prepared for that as well.
2. Loosen Drain Plugs: Carefully locate and loosen the drain plugs on the bottom of each hydrostatic transaxle. Some models may have a single drain plug, while others have separate plugs for different compartments. Be ready for the fluid to gush out once the plug is removed.
3. Remove Fill Caps/Vent Plugs: To facilitate a faster and more complete drain, remove the fill caps or vent plugs on top of each transaxle unit and the expansion tank. This allows air to enter as fluid drains.
4. Allow to Drain Completely: Let the fluid drain completely. This can take some time, especially if the fluid is cold or thick. You might gently rock the mower (if safely secured) to help dislodge any remaining fluid.
5. Inspect Old Fluid: Briefly examine the drained fluid. It should ideally be translucent, though dark in colour. If it's milky (indicating water contamination) or contains excessive metal shavings, it could signal a more serious internal issue.

Step 3: Replacing Filters

1. Remove Old Filters: Once the fluid has drained, carefully unscrew the old hydrostatic filters from each transaxle unit. Be prepared for a small amount of residual fluid to drip out.
2. Clean Filter Mounting Surface: Use a clean rag to wipe the filter mounting surface on the transaxle, ensuring it's free of old gasket material or dirt.
3. Prepare New Filters: Apply a thin film of new hydrostatic fluid to the rubber gasket of each new filter. This helps ensure a good seal.
4. Install New Filters: Screw on the new filters hand-tight until the gasket makes contact with the mounting surface, then tighten an additional 1/2 to 3/4 turn (or as specified by the filter or transaxle manufacturer). Do not overtighten, as this can damage the filter or housing.

Step 4: Refilling with New Fluid

1. Replace Drain Plugs: Reinstall the drain plugs on both transaxles and the expansion tank. Tighten them securely, ideally to the manufacturer's specified torque.
2. Slow Refill: Using your funnel, slowly add the new, specified hydrostatic fluid into each transaxle unit through the fill opening. Fill each unit to the recommended level. This level is often indicated by a fill line, a specific distance from the top, or a dipstick. Consult your transaxle manual for exact capacities and fill procedures.
3. Fill Expansion Tank: If your system has an expansion tank, fill it to the recommended level (usually between 'Min' and 'Max' marks).
4. Allow to Settle: Give the fluid a few minutes to settle and for any trapped air to rise. Top up if necessary.
5. Reinstall Fill Caps: Securely replace the fill caps or vent plugs on both transaxles and the expansion tank.

Step 5: Bleeding the System

This is a critical process to remove any air trapped in the hydrostatic system after a fluid change. Air in the system can lead to erratic operation, weak drive, and damage to components. The exact bleeding procedure can vary, but generally involves:

1. Release Bypass Levers: Locate and release the bypass levers on each transaxle. These levers allow the mower to be pushed manually when the engine is off. Releasing them puts the transaxles in 'neutral' for bleeding.
2. Start Engine: Reconnect the spark plug wires/battery. Start the mower's engine. Let it idle at a low RPM.
3. Engage/Disengage PTO: With the engine running, engage and disengage the Power Take-Off (PTO) clutch several times (if applicable). This helps circulate fluid through the auxiliary circuits.
4. Slow Forward/Reverse Cycles: Slowly move the motion control levers (steering levers) to their full forward and full reverse positions, holding for a few seconds in each direction. Do this several times (e.g., 5-10 times for each direction). Start with the drive wheels still off the ground.
5. Check Fluid Levels: Stop the engine and recheck the fluid levels in both transaxles and the expansion tank. Top up as needed.
6. Repeat and Test: Lower the mower to the ground. Carefully test drive the mower in an open area. Start with slow, gentle movements forward and reverse. You might notice some jerky movements or weak drive initially. Repeat the slow forward/reverse cycles on the ground.
7. Final Check: After operating the mower for a few minutes, stop, allow it to cool slightly, and recheck all fluid levels. Top up if necessary. The system should now operate smoothly without hesitation or unusual noises.

Maintenance Schedule

While the user manual for your Cub Cadet Z-Force 48 will provide the primary maintenance schedule, a general guideline for hydrostatic transmission service is:

Adhering to this schedule will significantly extend the life of your transmission.

Troubleshooting Common Hydrostatic Issues Post-Service

If you encounter issues after servicing, here are a few common culprits:

• Weak Drive or Jerky Movement: This is almost always an indication of trapped air in the system. Re-perform the bleeding process thoroughly, ensuring you go through the full range of motion slowly and repeatedly.
• Unusual Noises (Whining, Gurgling): Also often caused by air in the system or low fluid levels. Recheck levels and re-bleed. If the noise persists, it could indicate a more serious internal issue.
• Overheating: Ensure fluid levels are correct and the transaxle cooling fins are clean and free of debris. Air in the system can also cause overheating.
• Leaking: Double-check that all drain plugs and filters are tightened correctly (but not overtightened) and that the filter gaskets are properly seated.

Frequently Asked Questions (FAQs)

Q1: How often should I change the hydrostatic fluid in my Z-Force 48?

A1: It's generally recommended every 200-300 operating hours or annually, whichever comes first. Heavy use, especially in hot or dusty conditions, might warrant more frequent changes.

Q2: Can I use any hydraulic fluid for my hydrostatic transmission?

A2: Absolutely not. You must use the specific fluid type recommended by the transaxle manufacturer (e.g., Hydro-Gear or Tuff Torq) for your particular transaxle model. Using the wrong fluid can cause severe damage.

Q3: What are the signs that my hydrostatic fluid needs changing?

A3: Signs include decreased drive power, sluggish or jerky operation, increased noise from the transmission, or discoloured/burnt-smelling fluid.

Q4: Why is bleeding the hydrostatic system so important after a fluid change?

A4: Bleeding removes trapped air from the system. Air in the fluid can cause erratic operation, cavitation (which damages components), and reduced power. A properly bled system ensures smooth, consistent power delivery.

Q5: Where can I find the model number for my hydrostatic transaxle?

A5: The model number is typically found on a small identification tag or sticker directly on the housing of each hydrostatic transaxle unit. You may need to clean it to read it clearly.

By following these detailed steps, you should be able to successfully service the hydrostatic transmission on your 2014 Cub Cadet Z-Force 48 mower. Remember, patience and attention to detail are key, especially when identifying the correct fluid and performing the bleeding process. With proper care, your Z-Force 48 will continue to be a reliable workhorse for your lawn care needs.
