Cub Cadet PTO Clutch: Location, Care & Troubleshooting

The Power Take-Off (PTO) clutch is an indispensable component of your Cub Cadet riding mower, responsible for engaging and disengaging the mower blades or other attachments. When this vital part isn't functioning correctly, your mowing tasks can quickly grind to a halt. Understanding its location, knowing how to maintain it, and being prepared to troubleshoot common issues are crucial skills for any Cub Cadet owner. This comprehensive guide will walk you through everything you need to know to keep your PTO clutch in top condition, ensuring your mower operates efficiently and reliably.

Understanding Your Cub Cadet PTO Clutch: Location and Function

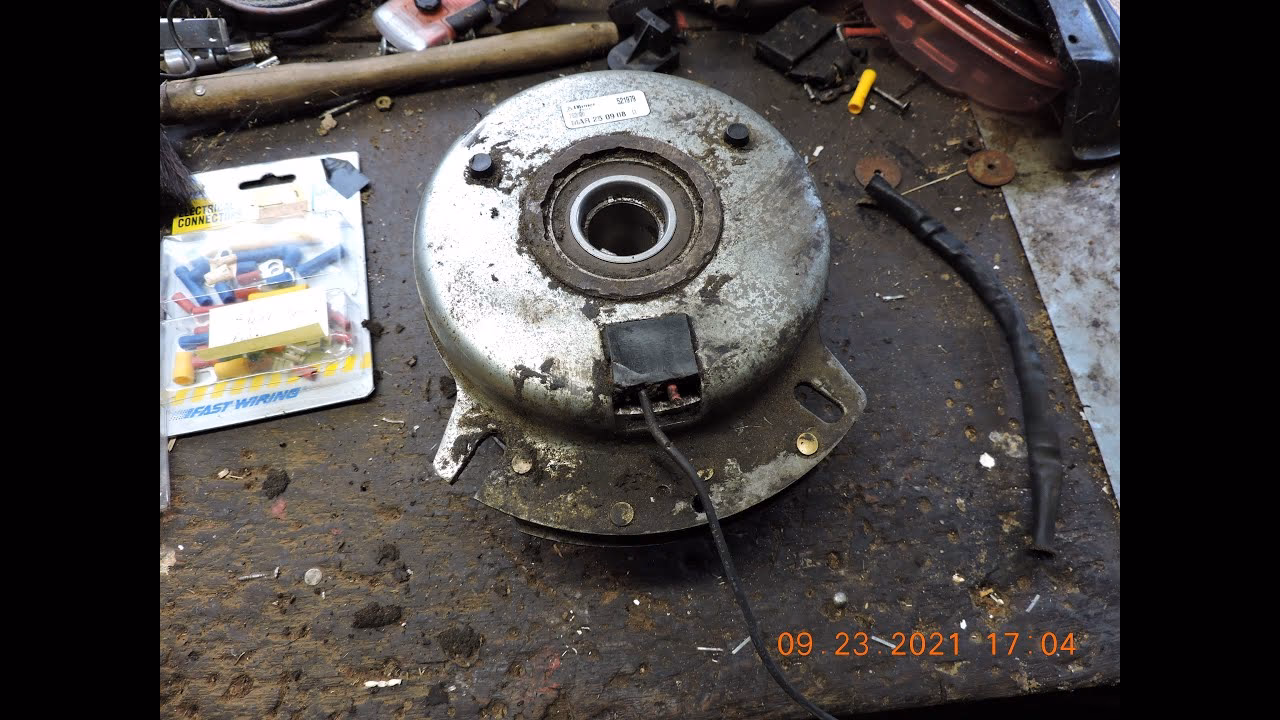

Identifying the exact location of your Cub Cadet PTO clutch is the first step towards proper maintenance and troubleshooting. On most Cub Cadet riding mowers, especially those featuring an electric PTO, the clutch is typically front-mounted and situated beneath the engine's hood. It sits directly in front of the engine assembly, often visible once the engine cover is lifted. For older or specific models, you might find the PTO clutch housed within a small bell housing located on the underside of the Briggs & Stratton engine.

This electric PTO clutch serves as the critical link that transfers power from the engine to the mower deck's blades. When you activate the PTO switch from your operator's panel, an electromagnetic field is generated within the clutch, engaging it and allowing the blades to spin. Conversely, disengaging the switch deactivates the field, causing the blades to stop. Proper function of this clutch is paramount for efficient cutting and safe operation.

Keeping Your Blades Spinning: A Guide to Cleaning Your PTO Clutch

Regular cleaning and adjustment of your PTO clutch can significantly extend its lifespan and prevent common operational issues. Debris, grass clippings, and general grime can accumulate around the clutch, impeding its function. Here's a step-by-step guide to cleaning and basic adjustment:

1. Step 1: Prepare Your Mower for Safety
   Always begin by ensuring your Cub Cadet lawn mower is parked on a level surface with the engine completely cut. Engage the parking brake to prevent any accidental movement. Safety is paramount before performing any maintenance.
2. Step 2: Disconnect the Ignition for Absolute Safety
   Open the Cub Cadet lawn mower's engine cover. Locate the spark plug on the side of the engine assembly and carefully remove the ignition wire from it. This prevents the engine from accidentally starting while you are working on the PTO clutch, eliminating the risk of injury.
3. Step 3: Locate and Clean the PTO Clutch
   Once the engine cover is open and the ignition is disabled, find the small bell housing, typically located on the underside of your Cub Cadet's Briggs & Stratton engine. This housing encases the PTO clutch. Using a sturdy wire brush, thoroughly clean the PTO clutch to remove any accumulated debris, dirt, or grass clippings. Follow this with a clean cloth to wipe the clutch surface, ensuring it is free from any remaining grime. A clean clutch operates more efficiently and generates less heat.
4. Step 4: Check and Measure Adjustment Slots
   The Cub Cadet PTO features three long, rectangular adjustment slots. These slots are crucial for maintaining the correct gap between the rotor and armature face, which directly impacts clutch engagement. You will need a filler gauge for this step. Insert the filler gauge into the first slot. You should feel the rotor and armature face pressing tightly against the inserted gauge. There should be no room for the gauge to wiggle, nor should you be able to measure any significant gap. This tightness ensures proper engagement and prevents slippage.
5. Step 5: Adjust the First Slot as Necessary
   If your filler gauge indicates too much room or a noticeable gap within the first adjustment slot, you'll need to tighten it. Take a socket wrench and carefully tighten the bolt on that particular adjustment slot. Continue tightening until you can distinctly feel the rotor and armature pressing firmly against the gauge. This precise adjustment is critical for optimal clutch performance.
6. Step 6: Repeat for Remaining Adjustment Slots
   With the first slot properly adjusted, repeat the measurement and tightening process for the other two adjustment slots on your Cub Cadet lawn mower. Ensure all three slots provide the same snug fit against the filler gauge. Consistent adjustment across all slots ensures even wear and reliable clutch operation.
7. Step 7: Reassemble and Test
   Once all adjustments are complete, reinsert the ignition wire back onto the spark plug. Carefully set the engine's hood back into its proper place, ensuring all latches are secured. You can now start your mower and test the PTO engagement to confirm the cleaning and adjustments have resolved any issues.

Essential Tools for PTO Clutch Cleaning and Adjustment

To perform the cleaning and adjustment process effectively, ensure you have the following tools readily available:

• Wire brush
• Clean cloth
• Filler gauge (specific thickness may vary by model, consult your manual)
• Socket wrench set (for tightening adjustment bolts)

Beyond the Mower Deck: Exploring Rear PTO Options for Cub Cadets

While the front-mounted PTO clutch primarily serves the mower deck, some Cub Cadet models, particularly older ones, could be fitted with a rear PTO for powering other implements. These rear PTO systems, often utilising a Hub City gearbox, were quite versatile. Historically, these gearboxes could adapt the Cub Cadet's engine output to a standard ASAE 1-3/8" six-spline shaft, commonly found on agricultural equipment.

Interestingly, while a standard farm tractor PTO typically turns clockwise (looking from the rear), early Cub Cadets, due to their internal gearing (a 7:1 reduction in front of the rearend in 70/100 and newer CCs), would turn counter-clockwise at around 515 RPM. The Hub City gearbox could correct this rotation and even speed it up to a more standard 540 RPM for compatibility with various attachments, such as hydraulic pumps for log splitters. These rear PTO setups are considered quite rare today, akin to collector's items, but demonstrate the versatility Cub Cadet tractors could achieve.

Troubleshooting Your Cub Cadet PTO: When the Blades Won't Engage

One of the most frustrating issues a Cub Cadet owner can face is a PTO that refuses to engage, or engages only intermittently. This problem can prevent your mower blades from spinning or cause them to disengage prematurely. Understanding the potential causes and having a systematic troubleshooting approach can save you time and money.

Common Causes of PTO Engagement Problems

If your Cub Cadet PTO isn't engaging, the problem most commonly stems from one of the following:

• Insufficient Power Supply: The clutch isn't receiving enough electrical power to engage fully. This could be due to a weakly charged or dead internal battery, or wiring issues.
• Worn-Out Clutch Components: Over time, the clutch plates or other mechanical parts can wear down, leading to poor engagement or slippage.
• Defective Clutch Solenoid: The solenoid is responsible for activating the clutch. If it's faulty, the clutch won't receive the necessary signal to engage.
• Improper Installation or User Misuse: Incorrect initial setup or aggressive operation can lead to premature failure or engagement issues.
• PTO Switch Malfunction: The switch itself might be faulty, failing to complete the electrical circuit required for engagement. This is a very common culprit.

Step-by-Step Troubleshooting Guide for PTO Engagement Issues

Before assuming a major mechanical failure, it's wise to perform a thorough diagnostic check, starting with the PTO switch. Here's a systematic approach:

1. Step 1: Checking the PTO Switch
   Start by accessing the PTO switch itself. Gently pull the switch out from your Cub Cadet's dash. With the switch removed, turn on the ignition key. You should hear a distinct click from the fuel solenoid at the bottom of the carburetor. Now, pull up your Cub Cadet PTO lever (or push the switch to the 'On' position) and observe if there's any response from the clutch. If there's no click or engagement, proceed to the next step.
2. Step 2: Testing Continuity of the Cub Cadet PTO Switch
   If the PTO isn't responding, the next crucial step is to test the switch's electrical continuity using a decent digital multimeter or voltmeter. Set your multimeter to the continuity setting. The Cub Cadet PTO switch typically has multiple pins. Connect the meter's probes across the relevant pins (consult your mower's wiring diagram if unsure). When the switch is in the 'Off' position, there should be no continuity across the engagement pins. When you move the switch to the 'On' position, continuity should be present. Test all relevant pin combinations. If the switch shows no continuity when it should, or constant continuity when it shouldn't, it's likely faulty. Also, carefully inspect the switch for any visible signs of burning or melting, which indicates an internal short or overload.
3. Step 3: Mounting & Removing the Cub Cadet PTO (for inspection)
   If the switch tests fine, or if you suspect the clutch itself is the issue (perhaps due to signs of burning on the switch indicating a bad clutch drawing too much current), you'll need to access the PTO clutch. For comfortable access to the underside of your mower, it's highly recommended to tilt your Cub Cadet mower upward using a sturdy 2-ton chain hoist. Once underneath, carefully disconnect the wiring harness from the PTO clutch. These connections can sometimes be very tight, so proceed with caution. Clean out the terminals on both the clutch and the wiring harness. While disconnected, you can also check the resistance of the PTO clutch itself using your multimeter. Consult your Cub Cadet owner's manual for the specific resistance specifications, which are typically in the range of 2 to 4 Ohms. A reading outside this range indicates a problem with the clutch coil. For example, a reading of 3.3 Ohms would be perfectly within spec.
4. Step 4: Changing the PTO Switch (if faulty)
   If your continuity test confirmed the PTO switch is defective, replacing it is the solution. Acquire a new, compatible PTO switch for your Cub Cadet model. To install, simply plug the new switch into the wiring harness. Many switches have tabs that snap securely into the plastic dash. You might need a small screwdriver to gently pry up the old tabs if they're stuck. Once the new switch is securely in place, remember to perform a final test to ensure it functions correctly before fully reassembling your mower. Always double-check continuity on a new switch before installation, as configurations can sometimes vary between manufacturers.

Tools Required for PTO Troubleshooting

Having the right tools is essential for safe and effective troubleshooting:

Removing Your Cub Cadet PTO Clutch: A Detailed Procedure

There might come a time when your PTO clutch is beyond repair and requires complete removal for replacement. This is a more involved process than cleaning or troubleshooting the switch, requiring careful attention to detail. Always prioritise safety goggles and gloves, and ensure you have sufficient lighting and space to work.

1. Step 1: Gather Your Tools and Ensure Safety
   Before you begin, gather all necessary tools. These will typically include various sockets, wrenches, screwdrivers, and potentially an air-hammer or even a welding machine for stubborn fasteners. Ensure your Cub Cadet is on a stable, level surface, the engine is off, and the ignition wire is disconnected from the spark plug.
2. Step 2: Switching Off, Removing Side Panels & Disconnecting Headlights
   Place your mower in a secure area where you have ample room to work. Confirm the engine is completely off. Begin by carefully removing the side panels of the mower's cowling. These are usually secured with clips or screws. If your model has headlights integrated into these panels or nearby, disconnect their wiring harnesses to allow for full panel removal.
3. Step 3: Removing Buffer Up, Grip, Disc & Nuts
   Locate the buffer assembly, which is often attached to two shocks on either side. Use a 9/16 socket to carefully remove the bolts securing these shocks and the buffer. Next, you'll need to remove any grip components and the disc that may be obstructing access to the clutch. There will be several nuts and pins holding these parts in place. Exercise caution during this step. If any nuts or grips are tarnished or seized, you might need to apply heat using a welding machine (with extreme caution and proper ventilation, wearing all necessary PPE) to soften them for easier removal. The heat helps to break the bond of rust or corrosion.
4. Step 4: Removing PTO Clutch
   Once the surrounding components are clear, you will gain full access to the PTO clutch. You'll find a cable connection leading to the clutch; this needs to be carefully disconnected. Look for several washer-screws or bolts securing the clutch to its mounting point. Use appropriate sockets or an air-hammer for stubborn bolts. Once all fasteners are removed and the cable is disconnected, you should be able to carefully lower and remove the PTO clutch assembly from the mower.

Throughout this entire removal process, extreme caution is advised. A small mistake can lead to significant damage or injury. If you are unsure at any point, it is always best to consult your Cub Cadet service manual or seek assistance from a qualified mechanic. Regular inspection of all components, even small instruments, can help identify potential issues before they escalate into major repairs.

Frequently Asked Questions About Cub Cadet PTO Clutches

What causes a Cub Cadet PTO to not engage?

The primary reasons for a Cub Cadet PTO failing to engage include incorrect installation or adjustments, aggressive use or owner misuse, insufficient power to the clutch, a worn-out clutch, a defective solenoid, or a lack of electrical continuity within the PTO switch itself. A thorough investigation is often required to pinpoint the exact cause.

Where is the PTO switch located on a Cub Cadet?

The PTO switch on a Cub Cadet is typically located on the operator's control panel, usually near the steering wheel or dashboard. To locate the PTO clutch itself, open the engine cover, disconnect the ignition wire from the spark plug, and then find the small bell housing on the underside of your Cub Cadet’s engine; this housing contains the PTO clutch.

How do you engage PTO on Cub Cadet?

To engage the PTO on your Cub Cadet mower, locate the blade or PTO lever (often coloured yellow) on your control panel. Thrust this lever forward or pull it up into the 'On' position. If your mower's PTO system is in good working condition, it should engage immediately, usually accompanied by a distinct click sound as the clutch activates.

How tight should a Cub Cadet slip clutch be?

On average, the adjustment for a Cub Cadet slip clutch should result in a gap of approximately 14 thousandths of an inch. This specific measurement ensures proper slippage when overloaded, protecting the PTO system, while still allowing for effective power transfer during normal operation. Always refer to your specific model's service manual for precise specifications.

Why won’t my Cub Cadet blades not engage?

If your Cub Cadet blades won't engage, beyond PTO clutch or switch issues, a common reason can be a weakly charged or completely dead internal battery. The electric PTO clutch requires a sufficient power supply from the battery to actuate. Other reasons could include a faulty PTO switch, a damaged PTO belt, or issues with the clutch itself, such as wear or a defective solenoid.

Conclusion

The PTO clutch is a critical, yet often overlooked, component of your Cub Cadet riding mower. By understanding its location, performing regular cleaning and adjustments, and knowing how to troubleshoot common engagement issues, you can significantly prolong the life of your mower and ensure consistent, reliable performance. Whether you're dealing with a simple cleaning task or a more complex clutch removal, always prioritise safety and consult your owner's manual for model-specific instructions. Proactive maintenance is the key to keeping your Cub Cadet's blades spinning efficiently for many seasons to come.
