Fixing Your Craftsman YT 3000's Wobbly Wheels

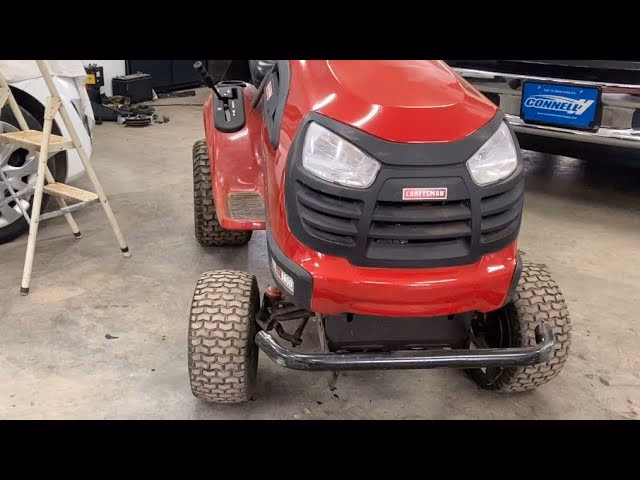

For many proud owners of a Craftsman YT 3000 lawn tractor, the joy of a well-maintained garden can often be overshadowed by a persistent and infuriating problem: the dreaded 'toe-out' steering issue, frequently compounded by the alarming tendency of front wheels to simply detach mid-mow. If you've experienced the frustration of repeated repairs that only offer fleeting relief, or the sheer panic of a wheel making an unscheduled departure, you're not alone. This article delves into a robust, long-term solution that addresses the fundamental flaws in the original steering and wheel retention mechanisms, providing a permanent fix that will restore your confidence and efficiency.

The standard steering linkage on many Sears and Craftsman lawn tractors, including the YT 3000, typically consists of a long link connecting to the steering gear and a shorter linkage running from a plate attached to the front axle directly to the front wheel. While this setup functions adequately when new, the inherent design, coupled with material choices, means that over time, significant play develops within these linkages. This looseness manifests as the notorious 'toe-out' problem, where the front wheels splay outwards, leading to erratic steering, uneven tyre wear, and increased strain on components. Many owners attempt to resolve this by simply replacing the worn linkages. However, as experience has shown, this is often a temporary reprieve. The new linkages, made from similar materials and with identical connection hardware, will inevitably loosen again as they age, bringing the problem right back to your lawn. This cycle of replacement and recurrence can be incredibly frustrating and costly in the long run.

Beyond the steering woes, an equally alarming issue is the failure of the E-clips that are designed to hold the front wheels onto the axle. These small, seemingly insignificant fasteners are simply not robust enough to withstand the stresses of regular lawn tractor operation. It's a common tale: one moment you're mowing, the next you're dragging a wheel-less axle across your lawn, followed by an inconvenient 'tow-in' and yet another repair. This recurring problem highlights a critical design flaw that demands a more permanent and secure solution than simply re-attaching a new E-clip.

The Superior Solution: Embracing Rod Ends for Steering Precision

The key to a lasting fix for your Craftsman YT 3000's steering lies in a fundamental upgrade to the linkage system: the incorporation of rod ends. These precision mechanical components, typically used in high-performance applications, are designed to provide a much tighter, more durable, and fully adjustable connection than the original factory setup. By eliminating the inherent play found in standard linkages, rod ends offer unparalleled steering precision and significantly enhanced durability, ensuring your adjustments last for years, not just weeks.

Phase 1: Reinforcing the Short Linkage

The shorter linkage, running from the axle pivot plate to the front wheel, is often the first point of failure for toe-out issues. To transform this weak link into a robust connection, you'll need a 3/8-inch stainless steel threaded rod, along with 3/8-inch machine bolts and appropriate nuts. The modification involves replacing the entire short linkage assembly with a custom-fabricated rod end setup. You'll need to increase the overall length of this linkage slightly to accommodate the rod ends and provide the necessary adjustability. This might require adding a small piece to the existing pivot plate connected to the axle to achieve the correct geometry and secure the new, longer threaded rod. The beauty of this approach is that the 3/8-inch machine bolts fit perfectly into the existing factory connection point holes, meaning you won't have to modify any of your tractor's original hardware. Just replacing this short linkage with rod ends and the threaded rod often resolves the majority of the toe-out problem, providing a solid foundation for finer adjustments.

Phase 2: Tackling the Long Linkage

The long linkage, extending from the steering gear to the front axle, presents a slightly greater challenge due to its multiple minor bends. The original text suggests that these bends make it impractical to simply thread the ends of the existing rod. Therefore, the most effective solution is to undertake some fabrication: bending new linkage rods. For this, 5/8-inch rods are recommended, though 1/2-inch rods could also be used. You'll need a bender capable of creating the precise curves necessary to match the original linkage's path, ensuring proper clearance and function. Once the new rods are bent to shape, rod ends can be fitted to each end. Because you're likely using 5/8-inch rods with rod ends designed for them, but connecting to 3/8-inch bolt shafts at the tractor's connection points, some bushings will be required to bridge this size difference, allowing the larger rod ends to work seamlessly with the smaller bolts. This comprehensive upgrade to both linkages ensures that virtually all play is eliminated from your steering system, providing a consistently straight and responsive ride.

Securing Your Wheels: A Permanent Fix for Detaching Wheels

The issue of falling wheels, commonly attributed to the inadequacy of E-clips, can be resolved with a simple yet incredibly effective modification. After enduring multiple 'tow-ins' and temporary repairs, the ultimate solution involves securing the wheel to the axle with a spring pin. This method provides a far more robust and reliable connection than any E-clip ever could.

To implement this fix, you'll need to drill a 1/8-inch hole directly through the axle. It's crucial to note that lawn tractor axles are typically case-hardened, meaning they are extremely tough. You will absolutely require a carbide drill bit for this task; standard drill bits will simply dull or break without making any progress. Once the hole is drilled, a sturdy spring pin (readily available from agricultural supply stores like TSC, if you're in the UK, look for similar industrial hardware suppliers) can be inserted through the hole. This simple yet ingenious addition creates a positive, mechanical lock that prevents the wheel from sliding off the axle, regardless of bumps, turns, or general wear. Since implementing this fix, the original source states that no wheels have been lost, a testament to its long-term durability and effectiveness. Furthermore, the reduction in side play and force on the wheel, courtesy of the steering linkage upgrade, further contributes to the longevity of this wheel retention solution.

Refining Your Ride: Steering Stop Adjustments

With the significant improvements to your steering linkage and wheel retention, you might find that your Craftsman YT 3000 can now turn much sharper than before. While this improved manoeuvrability is generally a benefit, it's wise to consider extending the steering stops slightly. This limits the maximum turning angle, preventing the wheels from turning too sharply and potentially causing binding or undue stress on other components. This minor adjustment ensures that your upgraded steering system operates within safe and optimal parameters.

DIY Cost Analysis and Best Practices

Undertaking this DIY repair for your Craftsman YT 3000 is surprisingly cost-effective, especially when compared to the recurring expenses of constantly replacing worn-out factory parts or professional repair bills. Excluding the cost of specialised tools like a bender or a carbide drill bit (which are one-time investments for future projects), the materials for this modification typically range from £20 to £40. This small investment yields significant returns in terms of reliability, safety, and peace of mind.

A crucial piece of advice for any DIY enthusiast: when undertaking such modifications, always strive to maintain the original connection points and other hardware. This foresight ensures that if, for any unforeseen reason, your custom fix doesn't work as intended, you can always revert to the old linkage. Furthermore, be wary of 'adjustable linkages' sold as direct replacements. While they sound promising, they often feature the same type of loose connection hardware as the non-adjustable linkages, meaning you'll still be constantly adjusting their length as the connections inevitably loosen up. The rod end solution provides a fundamentally superior, tighter connection that truly eliminates play.

Comparative Analysis: Original vs. Modified Linkage

To truly appreciate the transformation this modification brings to your Craftsman YT 3000, let's look at a direct comparison:

Frequently Asked Questions (FAQs)

Q: Is this fix specific to the Craftsman YT 3000?

A: While the detailed solution was developed on a 54-inch cut Sears lawn tractor, the underlying principles of addressing loose steering linkages with rod ends and securing wheels with spring pins are broadly applicable to many Craftsman and Sears lawn tractor models experiencing similar 'toe-out' and wheel detachment issues. However, specific linkage designs may vary, so some adaptation might be necessary for your particular model.

Q: What tools are essential for this modification?

A: Beyond standard hand tools, you will definitely need a carbide drill bit for drilling through the case-hardened axles. For the long linkage modification, a bender capable of shaping metal rods will be required if you choose to fabricate new rods.

Q: Why can't I just replace the worn parts with new standard ones?

A: As discussed, simply replacing worn factory linkages with new standard ones provides only a temporary fix. The design flaws and material limitations that led to the original wear will cause the new parts to loosen over time, leading to a recurrence of the 'toe-out' problem and continued frustration. The rod end modification offers a permanent and superior solution.

Q: How much does this DIY fix typically cost?

A: Excluding specialised tools, the cost of parts and materials for this comprehensive fix typically ranges from £20 to £40. This is a small investment for the significant long-term benefits in terms of reliability and reduced future repair costs.

Q: Is it difficult to drill through the axle?

A: Drilling through the case-hardened axle requires the correct tool – a carbide drill bit – and patience. With the right bit, it is certainly achievable for a competent DIY enthusiast. Without a carbide bit, however, it will be impossible.

Conclusion

The frustrations of a wobbly Craftsman YT 3000 with a persistent 'toe-out' problem and wheels that threaten to abandon ship are entirely understandable. However, by understanding the limitations of the original design and embracing a more robust, engineered solution, you can permanently resolve these issues. Upgrading your steering linkages with rod ends and securing your wheels with a simple yet effective spring pin offers a level of precision, durability, and peace of mind that standard repairs simply cannot match. This DIY approach, while requiring a bit of fabrication and the right tools, is a highly rewarding investment that will transform your lawn tractor into a more reliable, safer, and efficient machine, ensuring years of trouble-free mowing. Say goodbye to frustrating adjustments and alarming detachments, and hello to a solid, dependable ride.
