Craftsman T110: Oil Filter Guide

When it comes to maintaining your lawn and ensuring your machinery runs smoothly, understanding the components of your riding mower is crucial. The Craftsman T110, a popular front-engine riding mower, is known for its power, durability, and user-friendly design. A key aspect of any engine's longevity and performance is its lubrication system, and a critical component within this system is the oil filter. This article aims to clarify whether the Craftsman T110 is equipped with an oil filter and to delve into the significance of this part for your mower's health.

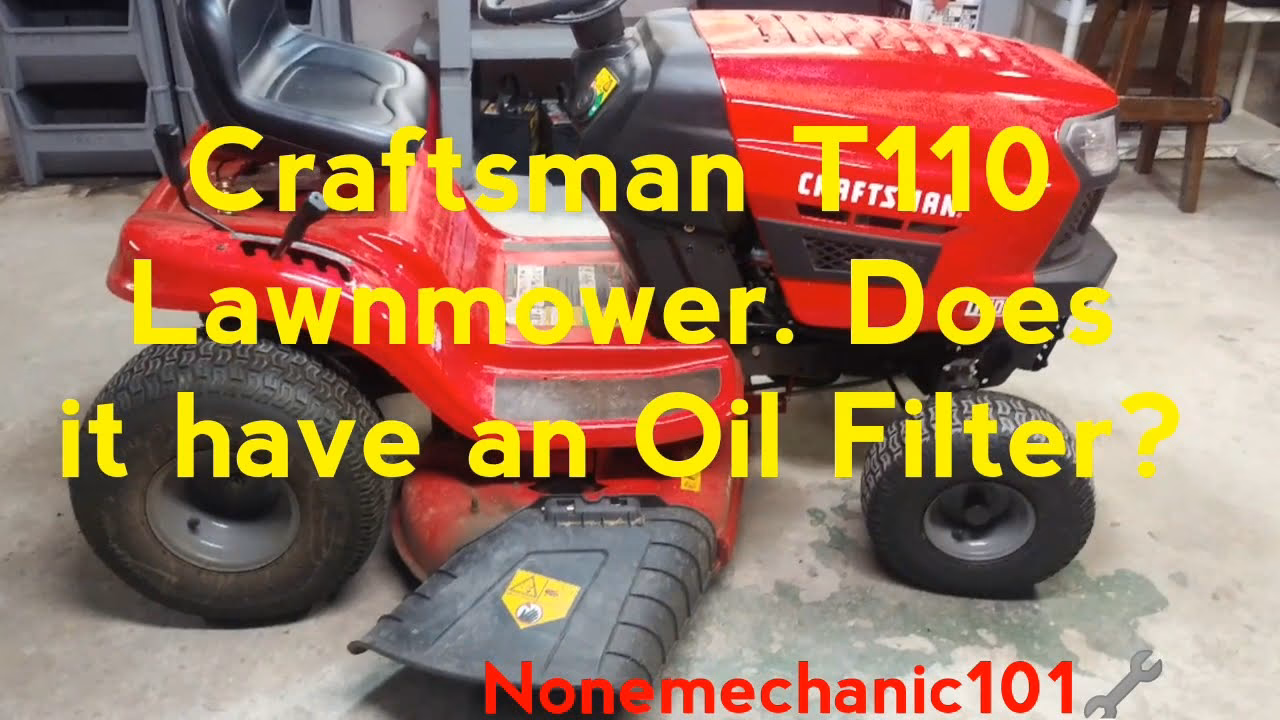

Understanding the Craftsman T110

The Craftsman T110 is a robust riding mower designed for tackling medium-sized lawns, capable of mowing up to 1.5 acres. It's powered by a 17.5 HP Briggs and Stratton single-cylinder engine, coupled with a 7-speed transmission for efficient operation. Its 42-inch steel deck is built for durability, and features like an 18-inch turning radius and Turf Saver wheels make manoeuvring around obstacles a breeze. Comfort is also a consideration, with a low-back seat enhancing the user experience during longer mowing sessions. The T110 also offers versatility with optional mulching kits and bagging attachments.

Does the Craftsman T110 Have an Oil Filter?

Yes, the Craftsman T110 riding mower does have an oil filter. The provided product information explicitly lists an 'oil filter (43522)' as a replacement part for this model. This confirms that the engine is designed to utilize an oil filter as part of its lubrication system. An oil filter is a vital component responsible for removing contaminants from the engine oil, ensuring that the oil circulating through the engine remains clean and effective.

The Importance of the Oil Filter

Engine oil is the lifeblood of your mower's engine. It lubricates moving parts, reduces friction, dissipates heat, and helps to clean the engine. However, as the oil circulates, it picks up microscopic particles of metal shavings from wear and tear, carbon deposits from combustion, and other debris. If these contaminants are not removed, they can act like sandpaper, causing accelerated wear on critical engine components such as bearings, pistons, and cylinder walls. This is where the oil filter plays its crucial role. An oil filter contains a special filtering material that traps these harmful particles, allowing only clean oil to pass through to lubricate the engine. By regularly replacing the oil filter, you are essentially safeguarding your engine against premature wear and potential damage, thereby extending its operational life and maintaining its performance. For the Craftsman T110, like any engine equipped with one, the oil filter is an essential maintenance item.

Engine Oil and Filter Maintenance Schedule

Regular maintenance is key to ensuring your Craftsman T110 operates at its best. A critical part of this is the oil change, which should always include replacing the oil filter. While the specific schedule can vary depending on usage, operating conditions, and manufacturer recommendations, a general guideline for most riding mowers, including the T110, is to change the oil and filter after every 50 hours of operation or at least once a year, whichever comes first. It's always best to consult your owner's manual for the most accurate and detailed maintenance schedule. The manual will specify the correct type and quantity of engine oil to use, as well as the part number for the oil filter. For the Craftsman T110, the manual indicates part number 43522 for the oil filter.

How to Change the Oil Filter on a Craftsman T110

While it's always recommended to refer to your specific owner's manual for detailed instructions, here's a general guide on how to change the oil filter on your Craftsman T110:

1. Gather Supplies: You will need a new oil filter (Craftsman part number 43522), the correct type and amount of engine oil (check your manual for specifications), a wrench for the drain plug, an oil filter wrench, a drain pan, rags or shop towels, and gloves.
2. Warm Up the Engine: Run the engine for a few minutes to warm the oil. Warm oil flows more easily, making it easier to drain. However, do not let the engine get too hot.
3. Locate the Drain Plug and Filter: Identify the oil drain plug and the oil filter on your engine. They are usually located on the bottom of the engine block.

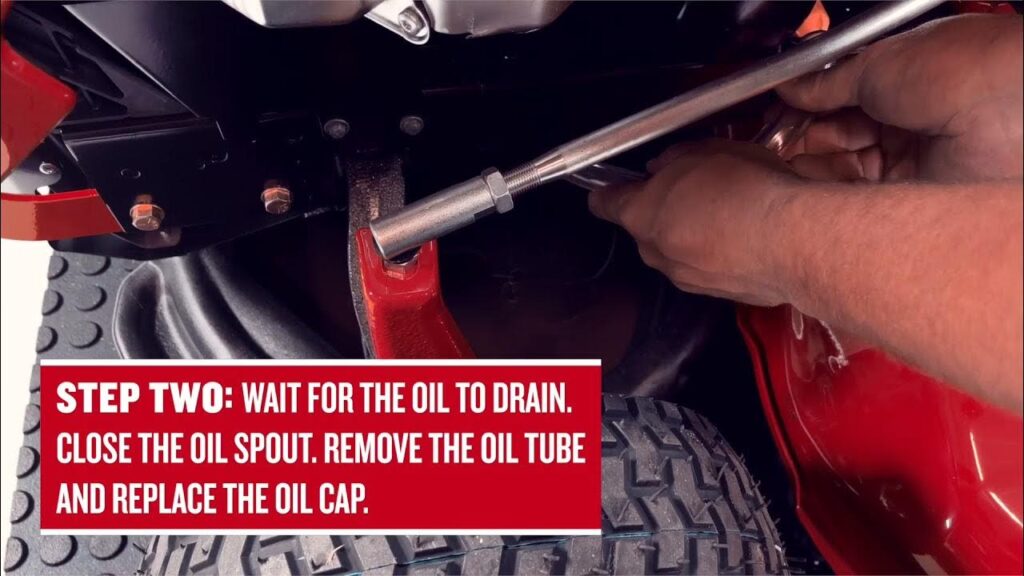

4. Drain the Old Oil: Place the drain pan beneath the drain plug. Use a wrench to carefully loosen and remove the drain plug. Allow all the old oil to drain completely into the pan. Once drained, clean and replace the drain plug, tightening it securely.
5. Remove the Old Oil Filter: Position the drain pan under the oil filter, as some oil will likely spill out. Use an oil filter wrench to loosen the old filter by turning it counter-clockwise. Once loose, unscrew it by hand.
6. Prepare the New Oil Filter: Before installing the new filter, dip your finger in clean engine oil and lubricate the rubber gasket on the new filter. This helps to create a good seal and prevents the gasket from sticking on future changes.
7. Install the New Oil Filter: Carefully screw the new oil filter onto the engine by hand, turning it clockwise. Once the gasket makes contact with the engine mounting surface, tighten it an additional three-quarters of a turn to one full turn by hand. Do not overtighten.
8. Add New Oil: Locate the oil fill cap. Remove it and add the correct amount and type of new engine oil as specified in your owner's manual.
9. Check the Oil Level: Replace the oil fill cap. Start the engine and let it run for a minute or two. Check for any leaks around the drain plug and oil filter. Shut off the engine, wait a few minutes for the oil to settle, and then check the oil level using the dipstick. Add more oil if necessary to reach the recommended level.

Troubleshooting Common Oil Filter Issues

While oil filters are generally reliable, occasional issues can arise:

• Leaking Filter: This is often due to an improperly installed filter, a damaged gasket, or an overtightened filter. Ensure the mounting surface is clean, the gasket is lubricated, and the filter is hand-tightened correctly.
• Wrong Filter: Using an incorrect oil filter can lead to poor filtration or even damage. Always use the specified part number for your Craftsman T110 (43522).
• Clogged Filter: If the filter is not changed regularly, it can become clogged, restricting oil flow and potentially causing engine damage. Adhering to the maintenance schedule is crucial.

Frequently Asked Questions

Q1: What happens if I don't change the oil filter on my Craftsman T110?
If you don't change the oil filter, it can become clogged with debris. This restricts oil flow, potentially leading to increased engine wear, overheating, and eventual engine failure.

Q2: Can I reuse an old oil filter?
No, you should never reuse an old oil filter. Its filtering capacity is exhausted, and it can no longer effectively remove contaminants from the oil.

Q3: How often should I check the oil level in my Craftsman T110?
It's a good practice to check the oil level before each use, especially if you've been mowing for extended periods or in demanding conditions.

Q4: What type of oil is recommended for the Craftsman T110?
Consult your owner's manual for the specific oil viscosity (e.g., SAE 30 or 10W-30) and type recommended for your Craftsman T110's Briggs and Stratton engine. This information is critical for optimal engine performance and protection.

Q5: Where can I purchase a replacement oil filter for my Craftsman T110?
You can typically purchase the correct oil filter (part number 43522) from authorized Craftsman dealers, hardware stores, or online retailers specializing in lawn mower parts.

Conclusion

In summary, the Craftsman T110 riding mower is indeed equipped with an oil filter (part number 43522). This component is vital for maintaining the cleanliness of your engine oil and, consequently, for the longevity and performance of your mower's engine. By understanding the importance of the oil filter and adhering to a regular maintenance schedule that includes its replacement along with oil changes, you can ensure your Craftsman T110 continues to provide reliable service for many mowing seasons to come. Proper maintenance is an investment in the health and efficiency of your lawn care equipment.
