The Bosch CP3 Injection Pump: An In-Depth Guide

The landscape of diesel engine technology has been revolutionised over the past two decades, largely thanks to the advent of high-pressure common-rail injection systems. This groundbreaking innovation has allowed engine manufacturers to achieve previously unimaginable injection pressures, soaring to over 29,000 psi in some of the latest engines like the LML Duramax and 6.7L Power Stroke. The benefits are profound: significantly increased fuel efficiency, a drastic reduction in harmful emissions, and the ability to perform multiple injection events per combustion cycle, leading to quieter, smoother running diesels. As a delightful bonus, these cleaner-burning engines also produce substantially more power than their predecessors.

At the very core of many of these pioneering common-rail systems, particularly in the ’01-to-’10 Duramax and ’03-to-present Cummins engines, lies the formidable Bosch CP3 injection pump. Unlike the complex, multi-tasking injection pumps of the pre-common-rail era, the CP3 was designed with a singular, crucial purpose: to generate and precisely regulate the immense high-pressure fuel required by the common rail. It's not mechanically timed with the engine's crankshaft or camshaft, simplifying its operation and enhancing its reliability. The fact that the CP3 originated from Bosch’s heavy-duty line of injection pumps speaks volumes about its inherent robustness and durability, engineered to play a vital role in engines designed to cover a million miles or more.

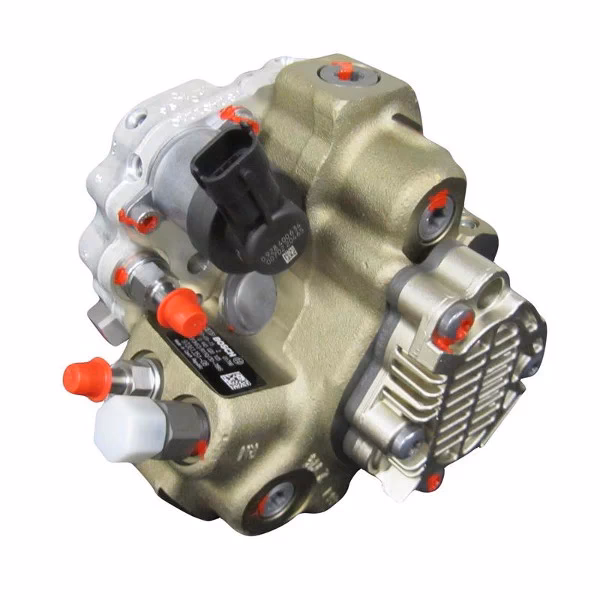

Understanding the Bosch CP3: Its Core Function

To truly appreciate the Bosch CP3, one must understand its fundamental departure from older pump designs. In a common-rail system, the CP3 acts purely as a high-pressure generator. It takes low-pressure fuel from the vehicle's lift pump (or in-tank supply pump) and compresses it to extremely high pressures, then delivers this pressurised fuel to a common rail, a reservoir that supplies all the injectors. The engine's Electronic Control Module (ECM) then precisely commands the injectors to open and close, delivering fuel into the cylinders at the exact moment and duration required for optimal combustion. This separation of pressure generation from injection timing is what gives common-rail systems their remarkable flexibility and control.

The Inner Workings: Deconstructing the CP3's Fuel Circuits

The CP3 pump operates through two distinct, yet interconnected, fuel circuits: the low-pressure circuit and the high-pressure circuit. Understanding how fuel flows through these stages is key to grasping the pump's overall functionality.

The Low-Pressure Circuit

The journey of fuel within the CP3 begins in its low-pressure circuit, which typically resides on one side of the pump. This circuit ensures a steady and controlled supply of fuel to the high-pressure pumping elements. Here’s a breakdown of its key components:

• Gear Pump: Low-pressure fuel first enters this internal gear pump. Its primary function is to draw fuel from the vehicle's supply system and feed it into the high-pressure section of the CP3. It acts as the initial stage of the fuel delivery process within the pump itself.
• Calibrated Suction Throttle: To prevent the gear pump from being overloaded and to manage its maximum flow rate, a calibrated suction throttle is in place. This precisely engineered restriction helps maintain stable conditions within the low-pressure circuit.
• Overflow Valve: This valve plays a crucial role in managing excess fuel. It returns any surplus fuel back to the gear pump inlet. This recirculation serves multiple purposes: it prevents excessive pressure build-up, provides continuous lubrication for the internal components of the pump, and helps maintain a constant, regulated pressure upstream of the metering unit.
• Metering Unit: Also widely known as the MPROP, FCA (Fuel Control Actuator), or fuel pressure regulator, this is a highly critical component. The Metering Unit precisely regulates the quantity of fuel that is allowed to proceed to the high-pressure pumping elements. By controlling this flow, it dictates the maximum amount of fuel the CP3 delivers to the common rail, thereby controlling rail pressure.
• Zero Delivery Throttle: This ingenious component handles the small amount of fuel that is designed to leak out of the metering unit when it is in its closed position (i.e., when no additional fuel is required in the rail). Instead of allowing this leaked fuel to interfere with the high-pressure plungers, the zero delivery throttle routes it away, typically back to the gear pump inlet.

It's worth noting a subtle but significant difference between CP3 pumps used in Duramax engines versus those in Cummins applications regarding the zero delivery throttle. On a Cummins CP3, this orifice routes the leaked fuel back to the main fuel return line, whereas on a Duramax CP3, it returns the fuel to the gear pump inlet. This minor design variation can sometimes influence diagnostic procedures or aftermarket modifications.

The High-Pressure Circuit

Once the fuel has passed through the metering unit and been precisely measured, it enters the CP3's high-pressure circuit, where the real work of pressure generation occurs. This circuit typically consists of three radial pumping elements.

• Suction Valves: As the plungers retract, these valves open, allowing the precisely metered fuel to enter each of the pump's three cylinders. They are critical for ensuring the cylinders are completely filled with fuel before compression.
• Plungers: These are the workhorses of the high-pressure circuit. As the shaft rotates, a polygonal ring acts upon the plungers, forcing them inwards to compress the fuel within their respective cylinders. There are typically three plungers, working in sequence to provide continuous high-pressure output.
• High-Pressure Valves: Once the fuel within the cylinder reaches the target high pressure, these valves open, allowing the pressurised fuel to exit the pump and flow directly to the common rail.

The continuous, rapid action of these plungers, driven by the engine, is what allows the CP3 to maintain the incredibly high pressures required by modern diesel injectors.

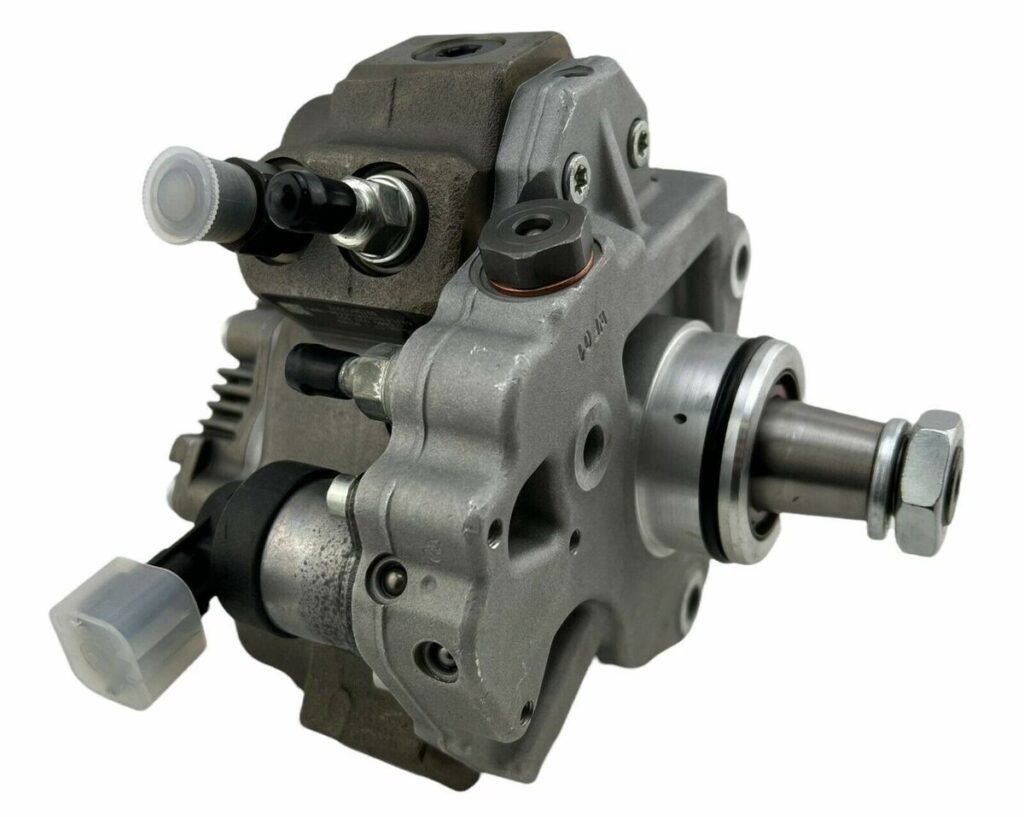

Vital Components of the Bosch CP3

Beyond the functional circuits, several key physical components contribute to the CP3’s robust design and operation:

1. Flange: The mounting point that secures the pump to the engine.
2. Shaft: The central rotating component that drives the internal gear pump and the polygonal ring for the high-pressure plungers.
3. Polygonal Ring: A crucial internal component that converts the rotational motion of the shaft into the reciprocating motion of the plungers.
4. Housing: The main body of the pump, containing all internal components.
5. Gear Pump: As discussed, the initial low-pressure fuel pump.
6. Overflow Valve: Regulates low-pressure circuit flow and provides lubrication.
7. Low-Pressure Inlet: Where fuel first enters the pump from the vehicle's supply system.
8. Metering Unit (MPROP/FCA): Controls the volume of fuel entering the high-pressure side.
9. Backflow Connector: Routes return fuel or leaked fuel back to the tank or inlet.
10. High-Pressure Connector: The outlet where highly pressurised fuel leaves the pump for the common rail.
11. Plunger: The reciprocating piston that compresses fuel.
12. Bucket: A component at the tip of each plunger that rides on the polygonal ring, absorbing pressure and preventing side loading.
13. Suction Valve: Allows fuel into the plunger cylinders.
14. High-Pressure Valve: Releases pressurised fuel to the rail.

Boosting Performance: Upgrading Your CP3 Injection Pump

For enthusiasts and professionals looking to extract more power from their diesel engines, upgrading the CP3 is a popular and effective modification. These enhanced pumps, often referred to as "stroker pumps," are designed to deliver a greater volume of high-pressure fuel, enabling higher horsepower outputs. Increasing the displacement of any pump, engine, or injector fundamentally comes down to two factors: bore and stroke.

Stroker Pump Ingredient 1: Increased Stroke

The most common and impactful method for boosting the CP3’s displacement is to increase the stroke of its internal plungers. A stock CP3 typically has an 8.2 mm stroke. Aftermarket companies commonly modify this to around 10 mm. This increase allows the plungers to draw in and compress a greater volume of fuel with each cycle. Pushing much beyond 10 mm of stroke often means that genuine Bosch original equipment (OE) polygonal rings can no longer be used, which can impact reliability and component sourcing. The goal is to maximise fuel delivery while retaining as much OEM part compatibility as possible for reliability.

Stroker Pump Ingredient 2: Machined Buckets

With an increased plunger stroke, the associated buckets (which ride on the polygonal ring) require modification. The bottom of these buckets is typically machined to be shorter. This ensures that even with the plunger travelling a greater distance, the bucket maintains proper contact and function. While shortening the plunger itself is an option for pump builders, Bosch advises against it due to potential significant losses in pump efficiency.

Stroker Pump Ingredient 3: Modified Suction Valves

In a stock CP3, the suction valves can be a limiting factor for fuel flow, particularly at higher RPMs or when greater fuel volumes are demanded. When the stroke is increased, the suction valves are also positively affected; they are able to open further from their seat, allowing a much greater volume of fuel to enter the cylinders during the intake phase of the plunger's cycle. While this modification significantly boosts flow, it's important to note a potential trade-off: the increased travel and seating pressure can lead to accelerated wear on the valve seats, potentially reducing the overall longevity of the suction valve assembly. However, the pump will still last a considerable time, making it a worthwhile compromise for high-performance applications.

Stroker Pump Ingredient 4: Metering Unit Modifications

The metering unit (MPROP/FCA) is crucial because it controls the quantity of diesel supplied to the high-pressure side of the pump. Modifying this component is very common in high-performance builds. A typical modification involves porting the valve piston within the metering unit. This allows for a greater flow rate of fuel into the pump's high-pressure section. The ultimate objective of these modifications, which can also include proprietary internal adjustments, is to ensure the plungers are as full of fuel as possible during their intake stroke while still allowing for precise regulation of rail pressure.

Other Low-Pressure Circuit Upgrades

Beyond the primary stroker modifications, some builders also perform additional enhancements to the low-pressure circuit. These can include enlarging the ports on the internal gear pump to improve its flow capacity and modifying the overflow valve to increase the internal pressure within the low-pressure circuit, ensuring optimal feeding of the high-pressure elements.

CP3 Displacement, Flow, and Model Differences

While all factory CP3 pumps share the same fundamental displacement, there are slight variations in their real-world flow rates right out of the box, primarily due to minor efficiency differences. Here's a comparison:

As the table illustrates, an average aftermarket stroker CP3 can yield a substantial 30 to 35 percent more fuel flow than a standard stock pump, translating to an approximate 22 percent increase in displacement. While these percentages might seem modest on paper, in the context of high-pressure fuel delivery, they represent a significant boost in performance, often with remarkably little compromise to the pump's renowned reliability.

It is crucial to understand that CP3 pumps are not designed to be rebuilt in the traditional sense. Due to the precision tolerances and high pressures involved, only brand-new pumps or good, carefully inspected used core units can be successfully transformed into high-performance stroker pumps. Attempting to rebuild a worn-out pump with generic parts is not advisable.

CP3 vs. CP4: A Brief Comparison

While this article focuses on the CP3, it's worth briefly touching upon the CP4 injection pump, which succeeded the CP3 in some applications. The CP4 is also a high-pressure common-rail pump, but it operates on a different principle, typically using two pumping elements (compared to the CP3's three radial plungers). While designed to be more compact and potentially more fuel-efficient in certain operating conditions, the CP4 has, unfortunately, gained a reputation for reliability issues, particularly in certain Ford and VW applications, often related to lubrication and material failures under sustained stress. The CP3, by contrast, is widely regarded as a significantly more robust and durable pump, a testament to its heavy-duty origins.

Troubleshooting Common-Rail Injector and CP3 Pump Issues

The high-pressure fuel system is a highly sophisticated and precise mechanism. When issues arise, they can manifest in various ways, from a simple hard start to significant engine performance problems. Proper diagnosis is crucial, and it's imperative to always prioritise safety due to the extremely high pressures involved (up to 26,000 PSI). Never use your fingers to check for leaks, as high-pressure fuel entering the bloodstream can cause severe injury or even limb amputation.

Understanding Rail Pressure

The system is designed to build high pressure, which is then delivered by the CP3 pump to the common fuel rail manifold. From there, it flows through injector lines and connector tubes to the individual injectors. The metering unit (FCA) on the CP3 pump controls the rail pressure. Injectors contain a hollow check ball that holds this rail pressure until the fuel solenoid is actuated by the ECM, allowing the check ball to lift and an injection event to occur.

To start the engine, approximately 4,000 PSI of rail pressure is typically required. The system operates with fuel pressures ranging from this minimum up to 26,000 PSI or more during operation.

No Start or Hard Start Scenarios

• Low Fuel Supply Pressure: At idle, there should be 10 to 15 PSI of fuel supply pressure to the CP3 pump. If this is low or absent, the CP3 cannot receive enough fuel to generate high pressure.
• Insufficient Rail Pressure During Cranking: Monitor rail pressure using a scan tool. If it doesn't exceed 4,000 PSI during cranking, one or more injectors could be faulty (leaking connector tubes or check balls). If you don't see smoke from the tailpipe after 10 seconds of cranking, it usually indicates a lack of fuel reaching the cylinders.
• Injector Connector Tube Issues: If an injector high-pressure connector tube or feed tube isn't properly seated, is faulty, or has improper torque (should be 37 ft. lbs. final torque), it will leak, preventing rail pressure from building.
• High-Pressure Limit Valve Leaks: This valve should not leak at idle or during cranking. A leak here will prevent pressure build-up.
• CP3 Pump Output Volume: To verify the CP3's ability to build pressure, you can cap off all injectors and monitor how quickly the rail pressure climbs. If it struggles, the CP3 itself may be the culprit.
• Shorted Fan Clutch: Unplugging the fan clutch and attempting to start the engine can rule out issues related to codes like P0483 or P2509, which can sometimes prevent starting.

Black Smoke

Black smoke typically indicates incomplete combustion due to too much fuel or not enough air. On DPF-equipped trucks, you might need to disconnect the exhaust or temporarily install a test pipe for accurate diagnosis.

• Cylinder Cut-Out Test: Use a scan tool to perform a cylinder cut-out test at idle to see if the smoke disappears, helping to isolate a faulty injector.
• Air Filter: A dirty or clogged air filter restricts airflow, leading to a rich mixture. Clean or replace as needed.
• Boost/Exhaust Leaks: High-pitched squealing under load can indicate boost leaks (not enough air) or exhaust leaks (affecting turbo performance).
• VGT Turbo Issues: A Variable Geometry Turbo (VGT) sticking open or closed will directly impact boost pressure and can cause black smoke.

Engine Miss

An engine miss can stem from several issues:

• Injector Connector Tube: Poor quality or unsuitable connector tubes can lead to inconsistent fuel delivery.
• Missing/Damaged Chamber Gasket: Can affect combustion sealing.
• Low Compression: A fundamental engine issue that prevents proper combustion.
• Excessive Valve Lash: Incorrect valve clearances can affect cylinder sealing and airflow.
• Bad Dual Mass Flywheel: While not a fuel system issue, a faulty dual mass flywheel can cause engine shaking that might be perceived as a miss.

Knocking Sounds

Engine knocking can point to fuel delivery or control problems:

• Low/No Fuel Supply Pump Pressure: Insufficient low-pressure fuel to the CP3 can cause a surge at idle and lead to knocking.
• Faulty FCA (Fuel Control Actuator): If the actual rail pressure deviates significantly from the desired rail pressure, a bad FCA could be causing knocking.

Slow Deceleration

If the engine hangs at a higher RPM or is slow to decelerate, it's frequently a sign of injector wear leading to excessive fuel return. In such cases, replacing the injectors is typically the necessary solution.

Blue/White Smoke at Idle When Cold

Blue/white smoke, especially when cold and with a burning sensation in the eyes, indicates unburnt fuel. On DPF trucks, this might require exhaust disconnection for diagnosis. It's normal for this smoke to clear within a minute, depending on temperature and altitude. Persistent blue/white smoke can indicate:

• Cold Combustion: High altitude, cold temperatures, and considerable idle time all contribute to cold combustion, leading to unburnt fuel.
• Bad Injectors: Check nozzle tips for signs of leakage.
• Temperature Sensors: Ensure coolant, intake air, inlet air, and battery temperatures display normal ambient readings when cold.
• Intake Heater Operation: Check its function when cold.
• Rail Pressure (Engine Off): It should be around zero PSI (±500 PSI). Deviations can indicate leaks.
• Low/No Supply Pressure: Issues with the supply pump or fuel filter can starve the CP3.
• Excessive Idle Time: More than 20% idle time is considered excessive and can lead to carbon build-up on injector tips, causing DPF plugging and frequent regeneration cycles.

Fuel Dilution Issues

Fuel dilution of engine oil can be a serious problem, often indicating fuel leaking past internal seals or cracks:

• Bad/Unsealed Upper Injector O-ring: Allows fuel to leak into the engine.
• Cracked Injector: A crack in the injector body will cause fuel to leak.
• High-Pressure Pump Drive Shaft Seal Leak: Fuel can leak past this seal into the engine's lubrication system.

Fuel Supply Pump Problems

Most 6.7 Liter engines (and later 5.9 Liter Cummins) use an in-tank style supply pump. If this pump fails, the CP3 will be starved of low-pressure fuel. Aftermarket frame-rail mounted options like FASS pumps are available as replacements or upgrades.

High-Pressure Injection Pump (CP3 Pump) Specific Issues

While injectors are often the primary cause of low-pressure starting problems (due to check ball seat erosion), the CP3 itself can fail. If you unplug the fuel control actuator, the rail pressure should default to a maximum of around 26,107 PSI. If the pump cannot build adequate pressure even with no system leaks, it likely needs replacement. Contamination (dirt or water) is a common cause of CP3 failure, though injectors are usually affected first. For certain engines, the CP3 must be "phased" or "timed" during installation to curtail injector cackle; consult service information for the specific procedure.

Maintaining Your CP3 Fuel System

To ensure the longevity and optimal performance of your CP3 injection pump and the entire common-rail system, regular maintenance is paramount. This includes:

• Regular Fuel Filter Replacement: High-pressure fuel systems are extremely sensitive to contamination. Always use high-quality fuel filters and replace them according to your vehicle's maintenance schedule, or more frequently if you suspect fuel quality issues.
• Use of Quality Fuel: Always fill up with clean, reputable diesel fuel. Water and particulate contamination are the biggest enemies of high-pressure pumps and injectors.
• Fuel Additives: Consider using a high-quality diesel fuel additive, especially one that offers lubrication and water separation properties, to protect your fuel system components.
• Prompt Diagnosis of Issues: Do not ignore symptoms like hard starting, black smoke, or knocking. Early diagnosis and repair can prevent more costly damage to the CP3 or injectors.

Frequently Asked Questions About the Bosch CP3 Injection Pump

What is the primary function of a Bosch CP3 injection pump?

The primary function of a Bosch CP3 injection pump is to generate and regulate extremely high fuel pressure for a common rail diesel injection system. Unlike older pumps, it does not time the injection events; its sole job is pressure generation.

How much pressure can a CP3 system generate?

A CP3 common-rail system can generate very high pressures, typically ranging from about 4,000 PSI to start the engine, up to 26,000 PSI or more during normal operation, and even higher in some modern applications.

Can a stock CP3 pump support high horsepower?

While a stock CP3 is very capable, for significantly increased horsepower (e.g., beyond 500-600 HP in many applications), an upgraded "stroker" CP3 or a dual-pump setup is often necessary to provide the required volume of high-pressure fuel.

What are the signs of a failing CP3 pump?

Signs of a failing CP3 pump can include a hard start or no start condition (especially if rail pressure doesn't build sufficiently), a surge at idle, knocking sounds, or a loss of overall engine power. However, these symptoms can also indicate injector issues, so proper diagnosis is essential.

Are CP3 pumps repairable?

Generally, CP3 pumps are not designed to be rebuilt with standard repair kits due to their precision and high operating pressures. Aftermarket "stroker" pumps are typically built from new or good used core units with specific internal modifications, rather than being a "rebuild" of a failed pump.
