The Cosworth Vega: A Performance Enigma

In the mid-1970s, as American automotive manufacturers tentatively explored the realm of emissions-friendly performance, Chevrolet ventured into uncharted territory with the introduction of the Cosworth Vega. While the standard Vega, launched in 1970, enjoyed a seven-year production run, its high-performance counterpart was a fleeting two-year wonder, gracing showrooms only in 1975 and 1976. This potent, albeit short-lived, iteration of the econobox represented a significant leap for Chevrolet, boasting several groundbreaking features for the marque. Chief among these was its 16-valve, twin-cam engine, a compact powerhouse complemented by factory-installed stainless-steel exhaust headers and the pioneering use of electronic fuel injection in a Chevrolet production car.

The Genesis of a Performance Icon

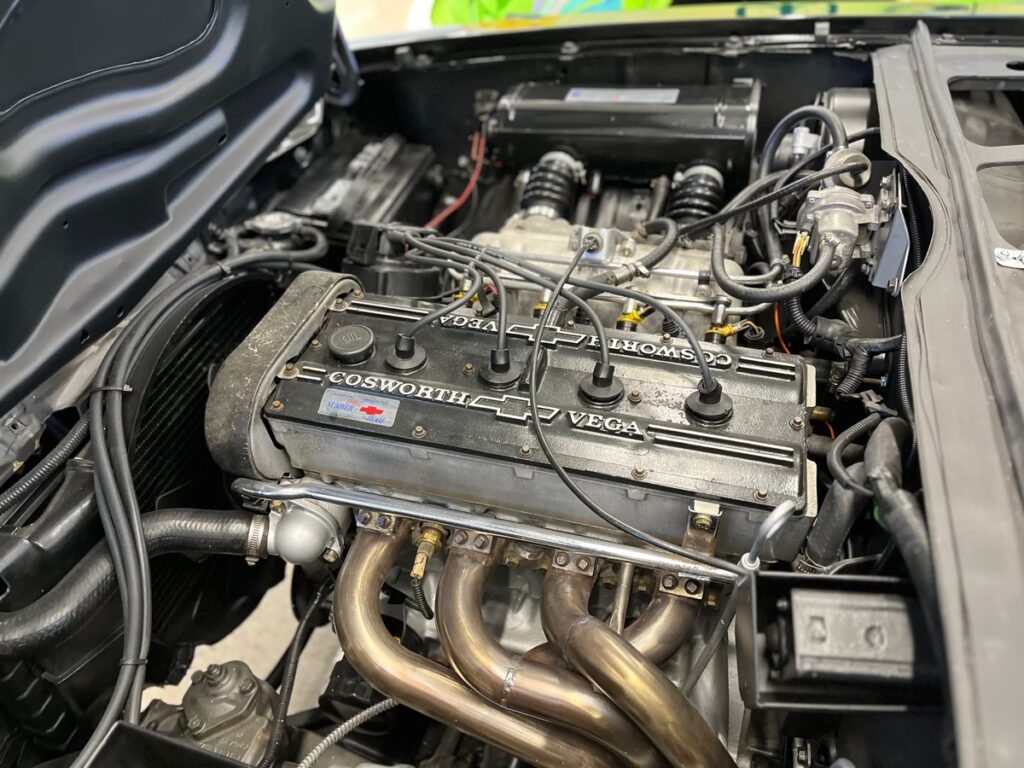

The concept for the Cosworth Vega was born four years prior to its 1975 release. In 1971, Chevrolet's then General Manager, John DeLorean, approached Cosworth Engineering in England with a vision. Inspired by the success of the Pontiac GTO, DeLorean aimed to imbue the stylish Vega GT coupe with a potent surprise under the bonnet. This collaboration led to the development of a race-inspired version of the standard Vega's four-cylinder engine. Cosworth Engineering played a pivotal role in designing the innovative 16-valve, aluminium-alloy cylinder head. This sophisticated unit featured sintered-iron valve seats and cast-iron valve guides. The two overhead camshafts were housed within a removable cam-carrier, which also served as a guide for the lifters. Powering these cams, the water pump, and the fan was a cogged rubber belt. To achieve its performance goals, the original 140 cubic-inch Vega engine was de-stroked to 122 cubic inches. Internally, it featured chrome-plated piston rings and forged-aluminium pistons, with a crankshaft and connecting rods forged from steel, suggesting a robust construction.

Challenges and Compromises

The release of the Cosworth Vega coincided with a period when the standard Vega lineup desperately needed a shot in the arm. Early Chevrolet marketing had boldly proclaimed the Vega as "the highest-quality product ever built by Chevrolet." However, the innovative all-aluminium engine, a joint venture with Reynolds Aluminum, proved problematic. Initial testing indicated promising erosion properties, but accelerated cylinder wear became apparent after approximately 40,000 miles. This inherent weakness in the aluminium block was a significant concern. DeLorean's initial collaboration with Cosworth was focused on creating a competitive SCCA "B" Production class and European two-litre sports car engine, capable of producing a formidable 290 horsepower at 9,000 rpm, utilising dual 40 DCOE Weber side-draft carburetors. To meet homologation rules, 1,000 units were to be built. However, the Cosworth package pushed the limits of the Vega's engine block, and the high 12.0:1 compression ratio led to block cracking. As Cosworth's interest waned, DeLorean sought to adapt the engine for street use. The Weber carburetors, however, posed an emissions challenge. Electronic fuel injection was proposed as the solution, with Bendix ultimately winning the contract over GM's Rochester Division.

Emissions and Power Reductions

Timing, as they say, is everything. Unfortunately for DeLorean, the tightening of emissions regulations for 1974 necessitated a significant revision of the Cosworth's engine. While the projected 290 horsepower would have been exhilarating in such a small car, the need to comply with new emissions standards required a drastic reduction in the compression ratio from 12.0:1 to 8.5:1. This single change effectively halved the power output, reducing it to a more modest 110 horsepower. In hindsight, given the known cylinder wear issues with the aluminium engine, this reduction in stress might have been a fortuitous development.

Distinctive Styling and Pricing

DeLorean's initial vision for the Cosworth Vega's appearance was a silver exterior with a black interior. However, by its 1975 release, this plan had evolved. All 1975 Cosworth Vegas were exclusively painted in black, accented with distinctive gold trim, a colour scheme unique to this model. The Cosworth package came at a substantial premium, with the car costing twice as much as a standard Vega, making it the second most expensive Chevrolet model of that year. An advertisement from 1975 boldly proclaimed: "Cosworth. One Vega for the price of two." Production of the Cosworth Vega ceased in 1976, with a total of only 3,508 units produced.

Technical Specifications and Performance

Despite its hefty price tag, the Cosworth Vega offered buyers a hand-built, fuel-injected, 16-valve, dual-overhead cam engine. The reported horsepower output was 110 hp at 5,200 rpm, delivered through a four-speed gearbox, though some reports suggest it was closer to 100 hp. The chassis featured a heavy-duty suspension with front and rear sway bars, and unique gold alloy wheels shod with Goodyear radial tyres. The interiors were predominantly black, and the comprehensive dashboard, finished in engine-turned gold, included a numbered plaque, signifying its special status.

Market Reception and Sales Shortfall

Chevrolet had ambitious sales targets, aiming to sell 5,000 units of this performance compact. However, only 2,061 were sold in 1975. To bolster sales in 1976, marketing efforts were intensified, with seven additional exterior colours introduced, a redesigned grille, and larger taillights. A five-speed manual gearbox was also added to the options list. Unfortunately, these changes did little to reverse the declining fortunes. Sales in 1976 dropped to 1,447 units, leaving approximately 1,492 surplus engines in warehouses. These engines were eventually used for parts or scrapped in the mid-1980s.

A Survivor's Story

Paul Chicky of North Carolina is a testament to the enduring appeal of the Cosworth Vega. While not a 1976 buyer, he developed a fondness for this unique performance car. His Cosworth Vega, built in March 1976, was purchased from an individual who had worked at the Lordstown plant during the 1970s. Remarkably, Paul's car remains entirely original, including the tyres, earning it recognition from the Cosworth Vega Association as a benchmark for originality. This car's pristine condition is a testament to the care it received from previous owners and has been awarded First Place at the Cosworth National Concours in 2009.

Key Technical Specifications of the Cosworth Vega

The Cosworth Vega was a significant engineering undertaking, blending American manufacturing with British racing expertise. Here's a breakdown of its key technical specifications:

Frequently Asked Questions

How much horsepower did the Cosworth Vega have?

The Chevrolet Cosworth Vega was officially rated at 110 net horsepower at 5,600 rpm. Some sources suggest the actual output might have been slightly higher or lower depending on the specific engine and testing conditions.

What made the Cosworth Vega special?

The Cosworth Vega was distinguished by its sophisticated 16-valve, dual-overhead cam engine developed in conjunction with Cosworth Engineering. It also featured electronic fuel injection, stainless steel exhaust headers, a sport-tuned suspension, and unique styling cues, making it a significant departure from the standard Vega.

Why was the Cosworth Vega discontinued?

Several factors contributed to the Cosworth Vega's short production run. High production costs led to a significantly higher retail price compared to the standard Vega, limiting its market appeal. Additionally, the engine faced development hurdles, and sales figures failed to meet Chevrolet's expectations, leading to its discontinuation after just two model years.

Is the Cosworth Vega a collectible car?

Yes, the Cosworth Vega is considered a collectible and somewhat rare car, particularly in original, well-preserved condition. Its unique engineering and limited production numbers make it a sought-after vehicle among automotive enthusiasts and collectors of American performance cars.

What were the main differences between the standard Vega and the Cosworth Vega?

The most significant difference was the engine: the Cosworth Vega featured a 16-valve DOHC unit, while the standard Vega used an 8-valve SOHC engine. The Cosworth also boasted electronic fuel injection, a stiffer suspension, distinctive gold wheels, and specific cosmetic enhancements like gold pinstriping and a unique grille. The Cosworth was also considerably more expensive.

Conclusion

The Chevrolet Cosworth Vega stands as a fascinating chapter in American automotive history. It represented a bold attempt by Chevrolet to inject genuine performance and advanced engineering into its compact offerings. Despite its technical merits and the prestige of the Cosworth name, market realities, pricing challenges, and the evolving automotive landscape ultimately limited its success. Today, the Cosworth Vega is remembered as a unique and capable, albeit brief, performance machine, a testament to a time when American manufacturers were willing to experiment with cutting-edge technology in pursuit of automotive excitement.
