Cosworth: A Legacy of Automotive Power

Cosworth, a name synonymous with high-performance automotive engineering, has a rich and storied history dating back to its founding in 1958 by Mike Costin and Keith Duckworth. Born from a passion for motorsport and a relentless pursuit of power, Cosworth has consistently pushed the boundaries of engine design, leaving an indelible mark on both the racing circuits and the open roads. From the iconic Formula 1 victories to groundbreaking road car applications, Cosworth engines are celebrated for their innovation, reliability, and sheer performance. This article delves into the fascinating evolution of Cosworth engines, exploring their diverse range of designs, technological advancements, and the enduring legacy they represent.

The Genesis of Cosworth: Humble Beginnings and Early Innovations

Founded in 1958, Cosworth's initial focus was on modifying existing engines, primarily for the burgeoning motorsport scene. The company's early work involved modifying Ford Kent engine cylinder heads, with notable exceptions like the Mk.XVII and MAE engines, which featured early Cosworth design elements. The MAE, in particular, gained significant traction in Formula 3, dominating the category with its 1,000 cc engine and intake restrictor plates. This success, however, highlighted a challenge: meeting the overwhelming demand. This experience proved invaluable, shaping future contracts and emphasizing the importance of clear responsibilities for development and manufacturing, a lesson that would be crucial for future collaborations, notably with Ford.

The SCA Series: A Glimpse of Future Potential

Introduced in 1964, the SCA series marked a significant step for Cosworth, featuring their first entirely Cosworth-designed head. Based on the Ford Cortina 116E block, this 997 cc single overhead cam (SOHC) engine was developed for Formula 2. The SCA showcased innovative features such as a gear-driven camshaft and a reverse-flow design, drawing parallels with the Coventry Climax FWE. Initially equipped with Weber twin-choke downdraft carburettors, the SCA was later upgraded with Lucas fuel injection, boosting its power output. Its victory at the 1964 Pau Grand Prix in the hands of Jim Clark cemented its status as a competitive force in Formula 2 and a precursor to the groundbreaking engines that would follow.

The FVA and FVC: Dominating the Tracks

Building on the success of the SCA, Cosworth introduced the FVA (Four Valve Type A) in 1966. Developed for the new 1.6-litre Formula 2 regulations, the FVA was a 16-valve, twin-overhead camshaft engine driven by a complex gear train. Featuring Lucas mechanical fuel injection and a crossflow cylinder head, the FVA produced an impressive 225 bhp at 9000 rpm. It dominated its class until 1971 and was also adapted for sports car racing as the 1.8-litre FVC. The FVA's cylinder head design incorporated many of Keith Duckworth's pioneering ideas, which would later be instrumental in the development of the legendary DFV engine. Further iterations, like the larger displacement FVD designed for endurance racing, demonstrated Cosworth's adaptability and commitment to diverse motorsport categories.

The DFV: A Formula 1 Legend is Born

Arguably Cosworth's most celebrated creation, the Ford-Cosworth DFV (Double Four Valve) V8 engine, revolutionised Formula 1. Commissioned by Colin Chapman of Lotus and backed by Ford, the DFV was a lightweight, 3,000 cc powerhouse that debuted in 1967. Its ingenious design, featuring a Cosworth cylinder block and crankcase with cylinder heads similar to Duckworth's FVB prototype, created a legend. The DFV's impact was profound; it powered a quarter of a century of racing, securing 167 Grand Prix victories and establishing Cosworth Engineering as a global powerhouse. Its success was so widespread that it became the engine of choice for most Formula 1 teams throughout the 1970s, a testament to its superior power-to-weight ratio, despite not always having the highest peak horsepower compared to its V12 rivals. The DFV's influence extended beyond its original F1 application, with derivatives like the DFW for Tasman Series racing and the DFX, which dominated IndyCar racing for years by incorporating turbocharging.

DFV Derivatives and Evolution

The DFV's versatility led to several important derivatives. The DFW, a 2,500 cc version, catered to the Tasman Series. More significantly, the DFX, introduced in 1975, transformed IndyCar racing. By destroking the engine to 2,650 cc and adding a turbocharger, the DFX ended the reign of the Offenhauser and became the standard for years. While the DFS was an interim update merging DFR technology, the DFL was developed for endurance racing in 3.3-litre and 3.9-litre variants. The DFL found particular success in the C2 class of Group C racing, achieving multiple class wins at the 24 Hours of Le Mans. Even the venerable DFV found a new life in the hands of classic F1 enthusiasts, proving its enduring appeal.

The BDA Series: Rallying and Road Performance

Cosworth solidified its relationship with Ford in 1969 with the development of the BDA (Belt Drive A type) engine. Designed initially for homologation purposes for the Ford Escort, this 1601 cc twin-overhead camshaft, 16-valve inline-four engine was a departure from Ford's iron blocks, featuring a toothed belt drive for the camshafts. The BDA was a formidable competitor in rallying and touring car racing, eligible for overall victories in its class. Its success spawned numerous variants, including the BDB, BDC (with fuel injection), BDE, BDF, and the highly successful BDG, which eventually featured an aluminium block. Smaller displacements like the BDD for Formula Atlantic and the BDJ and BDH for SCCA racing further showcased the BDA series' versatility. The turbocharged BDT, famously powering the Ford RS200 rally car, reached astonishing power levels in its 'Evolution' form (BDT-E), producing over 600 bhp in racing trim, highlighting Cosworth's expertise in forced induction.

The GA/GAA V6: A Powerful European Contender

Commissioned by Ford in 1972, the GA/GAA V6 engine was a significant undertaking. Based on the Ford Essex V6 block, this belt-driven, DOHC, 4-valve per cylinder engine featured Lucas mechanical fuel injection and a dry sump lubrication system. Developed for the Ford Capri's Group 2 racing efforts, the 3,412 cc GA produced an impressive 420 bhp in its initial tests, exceeding Ford's expectations. In race tune, it reached approximately 462 bhp at 9000 rpm, proving highly competitive against BMW in the European Touring Car Championship. Ford Motorsport also supplied these rare and expensive engines, with many finding their way into Formula 5000 cars.

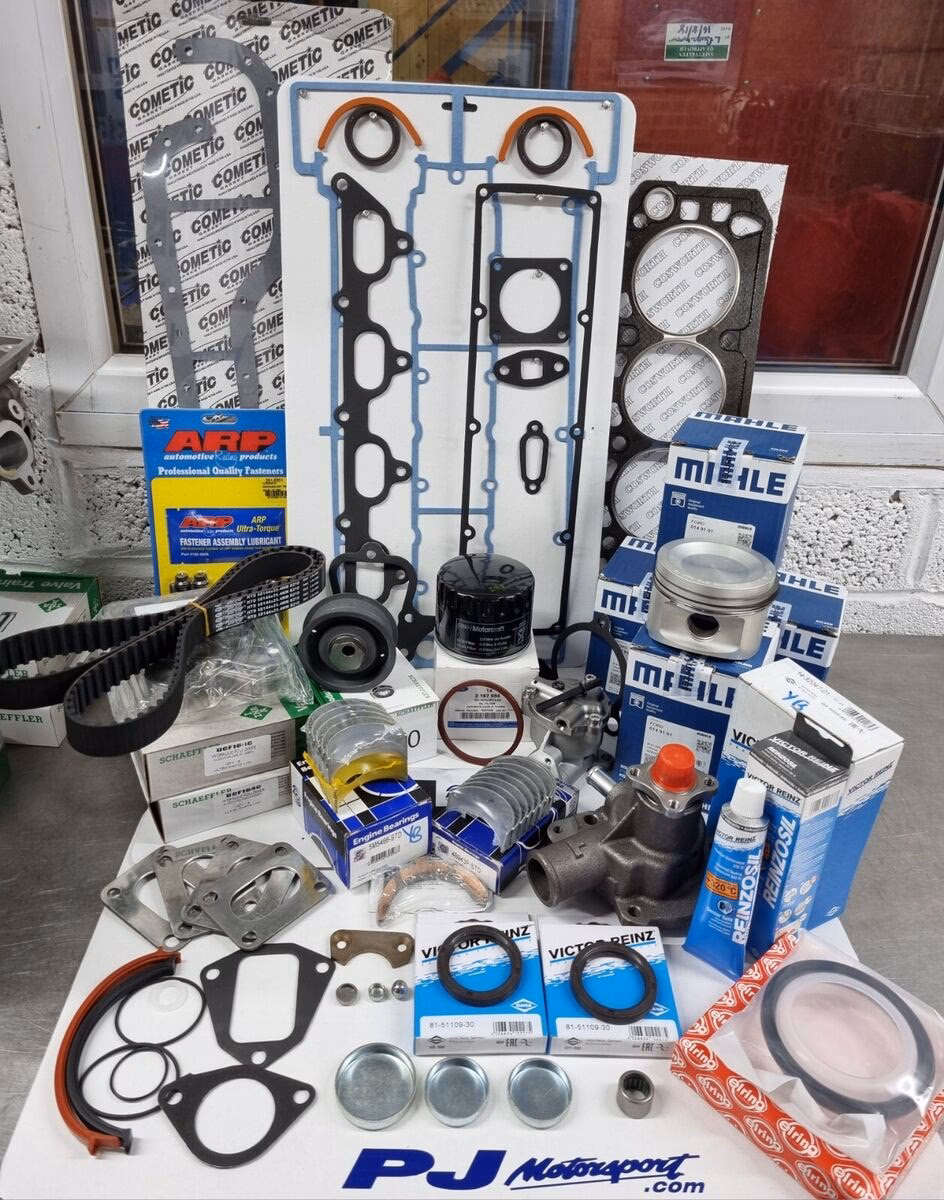

The YB Series: Iconic Road and Rally Power

The 1,993 cc YB series of inline-four engines became synonymous with performance Ford models. Introduced in the 1986 Ford Sierra RS Cosworth, the YB produced 204 PS in its road-going form. However, its racing derivatives were significantly more potent. The Sierra RS500, a homologation special, featured a larger turbo and produced around 470 hp, later climbing to 550 hp in racing trim. The RS500 dominated touring car racing in the late 1980s and early 1990s. Even more extreme were the Group A rally versions, with Australian teams reportedly extracting around 600 bhp from the turbocharged YB engines. The YBD engine in Dick Johnson's qualifying Sierra RS500 for the 1992 Bathurst 1000 was rumoured to produce as much as 680 bhp, showcasing the extreme tuning potential of this robust powerplant. The YB series also found its way into the Escort RS Cosworth, further cementing its legendary status.

The GBA V6: Formula 1 Turbo Power

In the era of turbocharged Formula 1, Cosworth responded with the GBA V6 engine. Initially conceived as a turbocharged derivative of the BDA, the project evolved into an all-new 1,500 cc V6. Despite initial scepticism about Duckworth's willingness to embrace turbocharging, the GBA was developed for the Haas Lola team in 1986 and later the Benetton team in 1987. Producing approximately 900 bhp, the GBA represented Cosworth's most powerful Formula 1 engine. While its development was curtailed by the FIA's push towards naturally aspirated engines, it achieved notable results, including podium finishes with Benetton, demonstrating Cosworth's ability to compete in the high-stakes world of F1 turbocharging.

The HB V8: A New Era of F1 Performance

Replacing the DFV/DFZ/DFR lineage, the HB series V8 engine marked a new chapter for Cosworth in Formula 1. Introduced in 1989 with the Benetton team, this 3,498 cc V8 was initially rated at around 630 bhp. Its lighter weight and better fuel economy compared to rival V10 and V12 engines gave it a competitive edge. The HB series evolved through various specifications, with customer units supplied to Jordan, Lotus, and most notably, McLaren. In 1993, the McLaren MP4/8, powered by the customer HBA7 and later HBA8, achieved five Grand Prix victories with Ayrton Senna, a remarkable feat that underscored the HB's prowess. A Jaguar-badged version also found success in sports car racing.

The EC, ECA, ED, EDM and ED 2/4 V8: Adapting to New Regulations

As Formula 1 regulations shifted, Cosworth adapted its V8 designs. The EC V8, badged as the Ford Zetec-R, produced around 740 bhp and was famously used by Michael Schumacher to win his first World Championship with Benetton in 1994. For the 1995 season, new regulations mandated a 3-litre displacement, leading to the development of the ECA, which produced between 600 and 630 bhp. Cosworth also supplied customer engines, designated ED, EDB, EDC, EDD, and EDM, to teams like Simtek, Pacific Racing, Forti, and Minardi. The ED 2/4 variant powered the Tyrrell team until the end of the 1997 season, showcasing Cosworth's continued engineering support across the F1 grid.

The JD, VJ and VJM V10: Pushing RPM Limits

To achieve higher power at higher revolutions, Cosworth introduced a completely new 2,992 cc JD V10 engine for 1996. This 72° V10 produced around 670 bhp at a staggering 15,800 rpm. Further developed into the VJ and VJM specifications, these engines reached 720 bhp for racing and 730 bhp for qualifying at 16,500 rpm. Badged as Ford Zetec-R, these V10s powered several teams, with notable success for the fledgling Stewart Grand Prix team, including Rubens Barrichello's second place at Monaco in 1997. The evolution continued with the CR-1 engines used by Stewart Grand Prix and later Jaguar Racing, reaching 770 bhp by 2001.

Modern Formula 1 and Beyond: V8s and Future Concepts

Cosworth continued its Formula 1 presence with the CA2006 2.4-litre V8 engine, which produced approximately 755 bhp at 19,250 rpm. This engine powered the Williams team in 2006 and was re-tuned for the 18,000 rpm limit in 2010 for Williams and new teams like Hispania Racing, Lotus Racing, and Virgin Racing. While Cosworth's direct F1 involvement waned after 2007, the company's engineering prowess extended to other motorsport disciplines and road car collaborations. Their recent work includes the groundbreaking hybrid powertrain for the Aston Martin Valkyrie, featuring a naturally aspirated 6.5-litre V12 producing 1,000 hp, and the V12 for Gordon Murray Automotive's T.50. Furthermore, Cosworth is developing a V16 engine for the Bugatti Tourbillon, signalling a commitment to pushing the boundaries of automotive performance into the future.

Road Car Collaborations: Bringing Performance to the Streets

Cosworth's influence isn't limited to the racetrack. The company's collaboration with Ford on models like the Sierra RS Cosworth and Escort RS Cosworth brought motorsport-derived performance to the road, creating iconic vehicles that are highly sought after by enthusiasts. In the US, the Chevrolet Vega received a Cosworth-assisted DOHC 16-valve, aluminium cylinder head, producing 110 bhp in its production form. Cosworth's engineering input has also been vital for manufacturers like Opel, Mercedes-Benz, and Audi, contributing to iconic models such as the Opel Ascona 400, Mercedes-Benz 190 E 2.3-16, and various Audi RS models. These collaborations highlight Cosworth's ability to translate racing technology into compelling road-going experiences.

Conclusion: A Legacy of Power and Innovation

From its inception, Cosworth has been at the forefront of engine development, consistently delivering groundbreaking designs that have shaped the automotive landscape. Their engines have not only dominated motorsport for decades but have also graced some of the world's most desirable road cars. The legacy of Mike Costin and Keith Duckworth lives on through Cosworth's unwavering commitment to engineering excellence, innovation, and the relentless pursuit of power. As the automotive industry continues to evolve, Cosworth remains a pivotal player, poised to define the next generation of high-performance powertrains.

Key Cosworth Engine Series and Notable Power Outputs:

Frequently Asked Questions about Cosworth Engines:

• Who makes Cosworth engines? Cosworth is a British engineering company that designs and manufactures high-performance engines.
• What is the most famous Cosworth engine? The Ford-Cosworth DFV V8 is widely considered its most famous and successful engine, dominating Formula 1 for decades.
• Did Cosworth make engines for road cars? Yes, Cosworth has a long history of collaborating with manufacturers like Ford, Mercedes-Benz, and Aston Martin to produce powerful road car engines.
• How much power do Cosworth engines typically produce? Power outputs vary significantly depending on the engine series and application, ranging from around 110 bhp in some road cars to over 900 bhp in Formula 1 applications and even higher in specialized racing engines.
• What made Cosworth engines so successful in motorsport? Their success stemmed from innovative design, meticulous engineering, a focus on reliability, and a strong understanding of performance optimization, often in collaboration with major automotive manufacturers.
