Ignition & Ground Strap Basics

Understanding the intricate workings of your car's electrical system can often feel like deciphering a complex puzzle. Two often-overlooked yet crucial components are the ignition cables and ground straps. While they perform vastly different functions, both are essential for the smooth operation of your vehicle. Let's delve into what these parts are, why they matter, and what to do when they start to cause trouble.

What is an Ignition Cable?

In many automobile engines, ignition cables, also known as spark plug wires, play a critical role in the combustion process. Their primary function is to connect the ignition coil (or distributor in older vehicles) to the spark plugs located in the engine cylinders. The ignition system generates a high-voltage electrical spark, and it is through these cables that this powerful spark travels to ignite the air-fuel mixture within the combustion chamber. This ignition event is what ultimately powers your engine.

The construction of an ignition cable is designed to handle these high voltages safely and efficiently. Typically, they feature a conductive core, often made of copper or a resistive material like carbon or fiberglass. This core is then encased in a robust insulator, usually made of silicone or rubber. The insulator is several times thicker than the core to prevent voltage leakage and protect against the extreme heat and vibrations found in the engine bay. A well-functioning set of ignition cables ensures that the spark reaches the spark plugs with the correct timing and intensity, leading to efficient combustion and optimal engine performance.

The Essential Role of Ground Straps

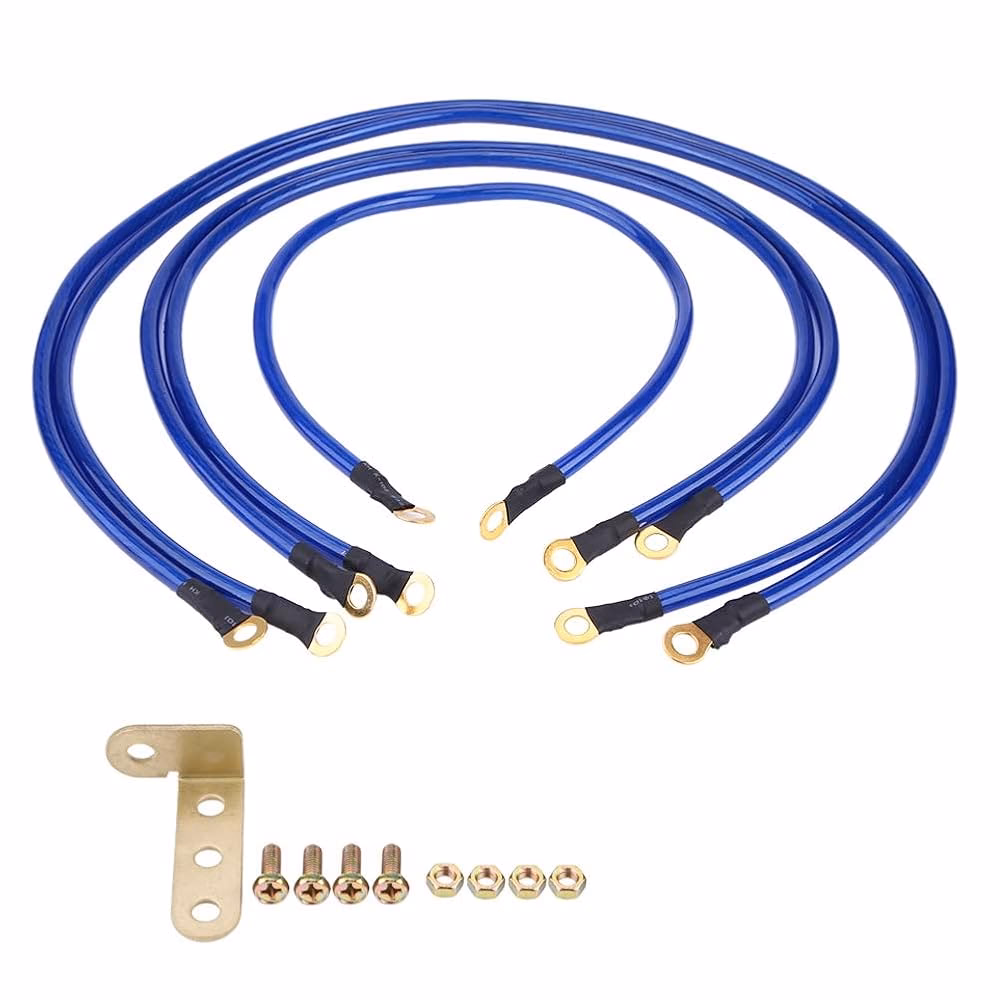

While ignition cables deal with delivering a high-voltage spark, ground straps are fundamental to the entire electrical system of your vehicle. A ground strap (also referred to as a ground cable, engine ground, or earth strap) is essentially a thick cable designed to provide a return path for electrical current. Every electrical component in your car requires a complete circuit to function – power flows from the positive terminal of the battery, through the component, and then needs a reliable way to return to the negative terminal of the battery. This return path is the 'ground'.

Ground straps establish this vital connection by linking key components like the engine block, the vehicle's chassis, and various electrical systems back to the battery's negative terminal. Without a proper ground connection, electrical current cannot flow correctly, leading to a cascade of problems.

Common Ground Strap Locations

Your vehicle likely has several ground straps strategically placed to ensure all electrical systems operate optimally. Some of the most common locations include:

• Battery to Chassis: A large, thick cable directly connecting the battery's negative terminal to the vehicle's frame or chassis. This is the primary ground for the entire electrical system.
• Engine to Chassis: Often a substantial braided cable connecting the engine block (usually near the transmission or starter motor) to the vehicle's chassis. This is crucial because the engine is a major electrical consumer and needs a solid connection to ground.
• Body Panel Grounds: Smaller straps that connect components like the hood, trunk lid, or doors to the chassis. These help prevent static electricity buildup and ensure proper grounding for features like lighting and power accessories within these panels.
• Component-Specific Grounds: Dedicated ground wires for major electrical components such as the alternator, starter motor, Engine Control Unit (ECU), and other modules. These ensure each component has a direct and clean ground connection for optimal performance.

The presence of multiple ground points highlights the importance of a robust grounding network. Even the most advanced components will falter if they cannot complete their electrical circuit properly.

Signs of a Failing Ground Strap

When ground straps corrode, break, or develop loose connections, electrical current is impeded. This forces electricity to find alternative, often higher-resistance paths through other metal components, leading to voltage drops and erratic behaviour across various systems. Recognizing these symptoms early can save you significant expense and frustration:

1. Dim or Flickering Lights: Headlights that dim when you turn on the air conditioning or radio, or dashboard lights that flicker, are classic signs of poor grounding. This occurs because the electrical load increases, and the compromised ground cannot supply sufficient voltage. You might also notice headlights brighten or dim with engine RPMs, indicating a voltage fluctuation tied to the engine's operation and its grounding.
2. Starting and Charging Issues: A bad ground strap can lead to slow cranking, clicking sounds when you turn the key, or a complete failure to start, even with a healthy battery. Charging problems are also common; the alternator may not charge the battery effectively, leading to a dead battery. Conversely, overcharging can also occur, damaging the battery. The alternator itself might overheat as it struggles to compensate for the poor ground connection.
3. Intermittent Electrical Problems: This is perhaps the most maddening symptom. Power windows might work one day and not the next, the radio could cut out randomly, or the air conditioning might stop working intermittently. These issues often worsen with vibrations from driving over rough roads, as loose connections are disturbed. Tapping on components might temporarily fix the problem, but it's a clear indicator of a loose or corroded connection.
4. Engine Performance Problems: While seemingly unrelated, poor grounding can significantly impact engine performance. Modern engines rely heavily on sensors and the ECU. If these components receive faulty voltage signals due to grounding issues, the ECU can make incorrect decisions about fuel injection and ignition timing, leading to rough idling, stalling, or hesitation during acceleration. These symptoms can easily be mistaken for more expensive fuel system or sensor problems.
5. Strange Electrical Behaviour: Bizarre occurrences like a fuel gauge reading empty when the tank is full, a jumpy speedometer, or random warning lights illuminating can all be attributed to grounding faults. Electronic systems might reset themselves, or dashboard displays could flicker. These anomalies are often exacerbated in damp or cold weather, where corrosion is more prevalent.
6. Overheating Components: When electrical paths are restricted, components can generate excess heat as they work harder. You might notice that battery terminals, cables, or the alternator housing feel unusually hot to the touch after driving. This excess heat not only shortens the lifespan of components but can also pose a fire risk.

Why Do Ground Straps Fail?

Ground straps are exposed to harsh environmental conditions, leading to their deterioration over time. The primary culprits include:

• Corrosion: Exposure to road salt, moisture, and humidity is a major factor. The metal connections can literally rust away, creating high resistance that impedes electrical flow.
• Vibration and Age: Constant engine vibration and road shock can loosen connections or cause internal breaks within the cable. Heat from the engine bay also accelerates the degradation process.
• Physical Damage: Ground straps are often routed in vulnerable locations and can be damaged by road debris, during maintenance, or in an accident.
• Improper Installation: Sometimes, a ground strap might be accidentally disconnected during other repairs and not reconnected properly, or the wrong type of cable might be used, leading to premature failure.

Ground Strap Replacement Cost

The cost of replacing a ground strap can vary depending on the location and accessibility of the strap, as well as where the work is done.

Professional Replacement Cost

At an independent repair shop, replacing a ground strap typically costs between $100 and $200. This estimate includes parts and labour. The labour portion usually ranges from $75 to $150, as the job itself is often straightforward and can take anywhere from 30 minutes to an hour. Dealerships may charge more, but this is generally a repair that doesn't require highly specialized tools or expertise.

It's important to consider the cost of inaction. Ignoring faulty ground straps can lead to the premature failure of more expensive components such as alternators (which can cost $400-$1,000), batteries ($150-$250), or various electronic control modules that can run into hundreds or even thousands of pounds. Furthermore, attempting to diagnose electrical gremlins without addressing grounding issues can lead to replacing perfectly good parts, wasting money and time.

The complexity of the replacement can also influence the price. Battery and engine grounds are usually easy to access. However, body panel grounds might require removing interior trim panels or other components, which will increase the labour time and, consequently, the cost.

DIY Replacement Cost

If you're comfortable with basic auto maintenance, replacing a ground strap yourself can be a significant cost-saver. You can expect to pay between $10 and $50 for a replacement strap, depending on your vehicle and the specific ground strap you need. The main battery-to-chassis or engine-to-chassis grounds tend to be more expensive than smaller body panel ground straps.

Most ground strap replacements are not overly complicated and require only basic tools like wrenches and sockets. This DIY approach can save you a substantial amount on labour costs.

Ignition Cable Maintenance and Replacement

Ignition cables, like all components in a car, have a finite lifespan. While specific replacement intervals can vary by manufacturer and driving conditions, it's generally recommended to inspect them periodically, especially if you notice any of the symptoms associated with ignition system problems.

Signs of Bad Ignition Cables

Symptoms of failing ignition cables often overlap with other ignition system issues but can include:

• Misfires: The engine may run rough, hesitate, or even stall. You might feel a distinct shudder or lack of power.
• Poor Fuel Economy: Inefficient combustion due to weak or intermittent sparks leads to increased fuel consumption.
• Check Engine Light: Many modern vehicles will illuminate the Check Engine light if the ignition system is not functioning correctly, often with specific misfire codes.
• Difficulty Starting: Weak spark can make it harder for the engine to start, especially in cold weather.
• Engine Knocking or Pinging: Incorrect ignition timing or incomplete combustion can cause these undesirable noises.

When to Replace Ignition Cables

It's a good practice to inspect your ignition cables during regular maintenance. Look for signs of:

• Cracking or Brittleness: The rubber or silicone insulation can become hard and crack with age and heat exposure.
• Burns or Melting: Proximity to hot engine components or electrical shorts can cause damage.
• Corrosion: The terminals at either end of the cable can corrode, hindering electrical contact.
• Loose Fit: Cables that are not securely attached to the spark plugs or ignition coil can lead to intermittent connection.

Replacement Cost for Ignition Cables

Replacing ignition cables can range from $150 to $400 or more, depending on the vehicle and whether you opt for OEM (Original Equipment Manufacturer) parts or aftermarket alternatives. Labour costs at a garage typically add $75 to $150 to the total, as it's a relatively straightforward replacement procedure for most mechanics.

DIY replacement is also feasible for many car owners, with the cost of a set of ignition cables typically falling between $50 and $200.

Conclusion

Both ignition cables and ground straps are unsung heroes of your vehicle's electrical system. While ignition cables are directly responsible for initiating combustion, ground straps provide the essential foundation for all electrical operations. Regularly inspecting these components, being aware of the signs of failure, and addressing issues promptly can prevent costly repairs and ensure your vehicle runs reliably and efficiently. Don't underestimate the power of a good connection!
