Toyota Corolla Brake Replacement Guide

Replacing the brakes on your 2005 Toyota Corolla is a crucial maintenance task that ensures your vehicle's safety and optimal performance. Worn brake pads and rotors can lead to reduced stopping power, longer braking distances, and potentially more costly damage to your braking system. While it might seem daunting, with the right tools and a bit of patience, this is a job that most DIY enthusiasts can tackle. This guide will walk you through the process step-by-step, covering everything from identifying the need for new brakes to the final checks after installation. We'll also touch upon choosing the right brake pads for your Corolla.

When to Replace Your Brakes

Several signs indicate that your Toyota Corolla's brakes need attention. The most common is a squealing or grinding noise when you apply the brakes. This is usually caused by the wear indicator hitting the rotor. If you hear a high-pitched squeal, it's likely the wear indicator. A deeper grinding sound often means the pads are completely worn down, and you might be damaging your rotors. Another indicator is a spongy or soft brake pedal; this can suggest air in the brake lines or a problem with the master cylinder. If you notice your car pulling to one side when braking, it could be due to uneven wear on the brake pads or a sticking caliper. Finally, visually inspecting the brake pads is essential. You should be able to see at least 1/4 inch (about 6mm) of pad material. If it's less than that, it's time for a replacement.

Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials to ensure a smooth and efficient replacement process. Having everything ready will prevent you from having to stop mid-job to search for a missing item.

Essential Tools:

• Jack and Jack Stands: For safely lifting and supporting the vehicle. Never rely solely on a jack.
• Lug Wrench: To remove the lug nuts from the wheels.
• Socket Set: Including metric sizes, specifically for caliper bolts and bracket bolts (typically 14mm and 17mm for a 2005 Corolla).
• Wrench Set: For various nuts and bolts.
• C-Clamp or Brake Pad Spreader Tool: To compress the brake caliper piston.
• Wire Brush: For cleaning brake components.
• Brake Cleaner: To remove grease and brake dust.
• Gloves: To protect your hands from brake dust and grease.
• Safety Glasses: Crucial for protecting your eyes.
• Torque Wrench: To ensure bolts are tightened to the manufacturer's specifications.
• Flathead Screwdriver or Pry Bar: May be needed to help remove old pads.

Materials:

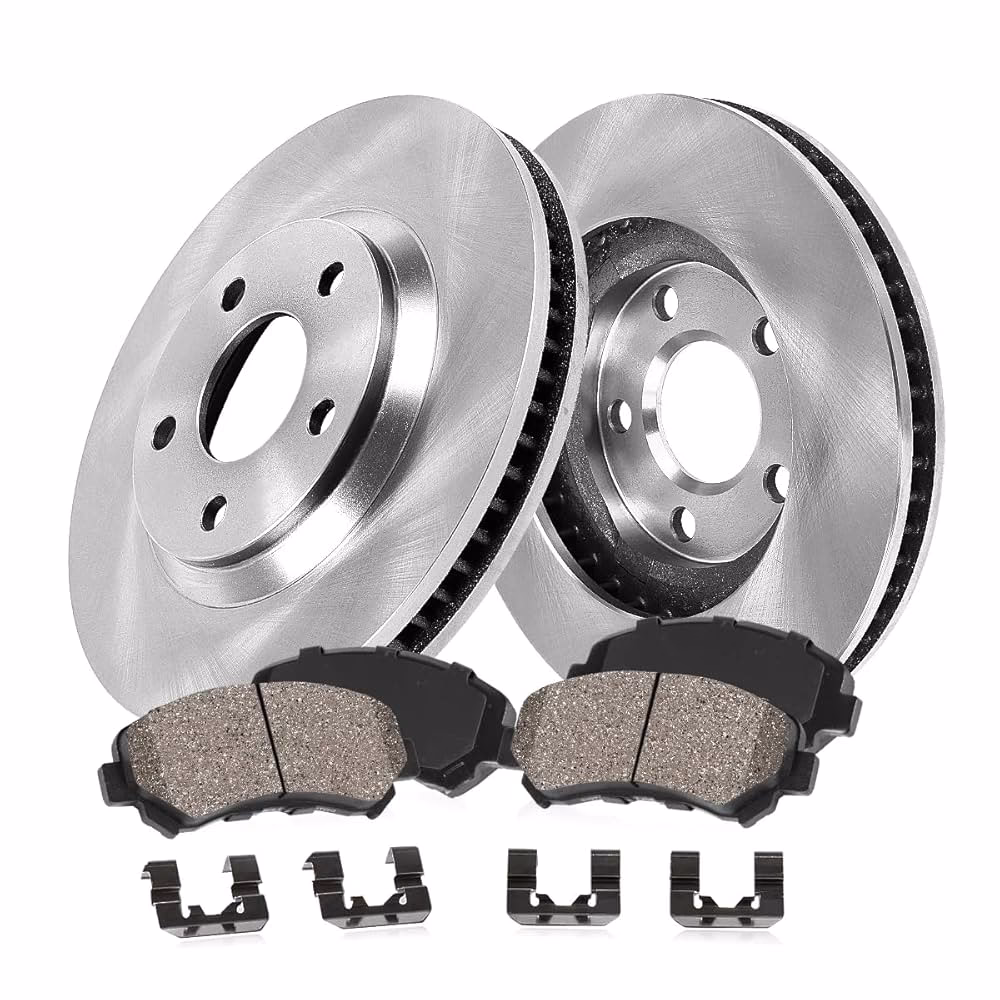

• New Brake Pads: Ensure they are the correct type for your 2005 Toyota Corolla.
• New Brake Rotors (Optional but Recommended): If your current rotors are worn, grooved, or warped, it's best to replace them.
• Brake Lubricant/Grease: For lubricating the caliper slide pins and pad backing plates.
• Brake Fluid (if needed): Only if you suspect a leak or need to top up. Use the correct DOT specification.

Step-by-Step Replacement Process

1. Prepare the Vehicle

Park your Corolla on a level surface and engage the parking brake. Loosen the lug nuts on the wheel you'll be working on by about half a turn. Do not remove them completely yet. Then, use your jack to lift the front or rear of the car (depending on which axle you're working on) and place jack stands securely under the designated support points. Lower the vehicle onto the jack stands. Once the car is stable, remove the lug nuts and the wheel.

2. Access the Brake Caliper

You'll see the brake caliper covering the rotor. The caliper is held in place by two bolts, often referred to as caliper bracket bolts or slider pin bolts. These are typically located on the back of the caliper assembly. Use your socket set to remove these bolts. You might need to hold the slider pin with a wrench to prevent it from spinning while you loosen the bolt. Once the bolts are removed, you should be able to pivot the caliper upwards or remove it completely. If it's stuck, a gentle tap with a rubber mallet might help. Hang the caliper from the suspension using a piece of wire or a bungee cord; do not let it hang by the brake hose, as this can damage the hose.

3. Remove Old Brake Pads

With the caliper out of the way, the old brake pads are now accessible. They are usually held in place by small clips or simply slide out. You might need to use a flathead screwdriver or pry bar to gently lever them out. Note how the old pads are positioned, especially any shims or anti-rattle clips, as you'll need to install the new ones in the same way.

4. Inspect and Replace Rotors (If Necessary)

If you're replacing the rotors, you'll need to remove the caliper bracket. This is a larger, more robust piece that the caliper bolts into. It's typically held by two bolts that are usually tighter than the caliper bolts. Remove these bolts. The rotor then slides off the wheel hub. If it's stuck, you might need to tap it with a hammer or use a rubber mallet. Clean the wheel hub surface with a wire brush and brake cleaner before installing the new rotor. Ensure the new rotor is seated correctly on the hub.

5. Compress the Caliper Piston

Before you can fit the new, thicker brake pads, you need to push the caliper piston back into its bore. This is where your C-clamp or brake pad spreader tool comes in handy. Place an old brake pad against the piston to protect it, then use the clamp or tool to slowly and steadily push the piston back until it's flush with the caliper housing. Be aware that as you push the piston back, the brake fluid level in the master cylinder reservoir will rise. Ensure it doesn't overflow; you may need to remove some fluid using a turkey baster or syringe if it gets too high. Keep the master cylinder cap slightly loose or removed to allow fluid to move back up. Never push brake fluid back into the master cylinder if it's contaminated.

6. Install New Brake Pads

Clean the caliper bracket where the brake pads sit using a wire brush. Apply a small amount of brake lubricant to the areas where the brake pads will slide and to the back of the pads where they contact the caliper piston and bracket. This helps prevent noise and ensures smooth operation. Slide the new brake pads into the caliper bracket, ensuring they are seated correctly and facing the right direction, mimicking the old ones. Reinstall any anti-rattle clips or shims.

7. Reassemble the Caliper

Carefully place the caliper back over the new brake pads and rotor. Align the caliper mounting holes with the bracket holes. Reinstall the caliper bolts and tighten them to the manufacturer's recommended torque specification. If you removed the caliper bracket bolts, reinstall and torque them as well. This is a critical step for safety; consult your owner's manual or a service manual for the correct torque values.

8. Reinstall the Wheel and Lower the Vehicle

Place the wheel back onto the hub and thread the lug nuts on by hand. Snug them up. Carefully lower the vehicle off the jack stands using the jack. Once the wheel is on the ground, use your lug wrench to tighten the lug nuts in a star pattern to ensure the wheel is seated evenly. Torque the lug nuts to the manufacturer's specification using your torque wrench.

9. Repeat for the Other Side

It's crucial to replace brake pads and rotors in pairs (both front wheels or both rear wheels) to ensure even braking performance. Repeat steps 1 through 8 for the other side of the same axle.

10. Final Checks and Bedding In

Before driving, pump the brake pedal several times until it feels firm. This seats the caliper piston against the new pads. Check the brake fluid level in the master cylinder reservoir and top up if necessary with the correct type of fluid. Now, it's time to 'bed in' your new brakes. This process conditions the pads and rotors for optimal performance. Drive the car gently at low speeds and perform several moderate stops (not hard emergency stops). Avoid prolonged braking. After a few stops, you can try slightly firmer braking at higher speeds. Consult the brake pad manufacturer's instructions for specific bedding-in procedures. Proper bedding-in is essential for longevity and performance.

Choosing the Best Brake Pads for Your Toyota Corolla

Selecting the right brake pads can significantly impact your driving experience, from stopping power to noise levels and lifespan. For a 2005 Toyota Corolla, you generally have three main types of brake pads to consider:

1. Ceramic Brake Pads

Ceramic pads are a popular choice for many daily drivers. They are known for being quiet, producing very little dust, and offering a good balance of performance and longevity. They tend to be gentler on rotors compared to metallic pads and perform well across a wide range of temperatures. If you prioritize a clean wheel and a quiet ride, ceramic pads are an excellent option for your Corolla.

2. Semi-Metallic Brake Pads

Semi-metallic pads are made from a mixture of metal fibres (like copper, iron, and steel) and other compounds. They offer excellent stopping power and dissipate heat well, making them suitable for more spirited driving or heavier loads. However, they tend to produce more brake dust, can be noisier than ceramic pads, and may wear rotors slightly faster. If you do a lot of stop-and-go driving or occasionally drive more aggressively, semi-metallic pads might be a good fit.

3. Organic (Non-Asbestos Organic - NAO) Brake Pads

Organic pads are the most budget-friendly option. They are made from a blend of fibres, fillers, and resins. They are typically very quiet and gentle on rotors. However, they wear out much faster than ceramic or semi-metallic pads and don't offer the same level of stopping power, especially under heavy braking or in extreme temperatures. For a standard Toyota Corolla, they are a functional, albeit less durable, choice.

For most 2005 Toyota Corolla owners, ceramic brake pads offer the best all-around performance, comfort, and low maintenance. However, if your driving habits lean towards more demanding conditions, semi-metallic might be worth considering. Always ensure the pads you purchase are specifically designed for your vehicle's year, make, and model.

Frequently Asked Questions (FAQs)

Q1: How long does it take to replace brakes on a Toyota Corolla?

For an experienced DIYer, replacing the front or rear brakes can take about 1-2 hours per axle. For a first-timer, it might take 2-4 hours per axle as you work through the process carefully.

Q2: Can I replace just the brake pads?

While you can replace just the pads, it's highly recommended to replace the rotors at the same time if they show signs of wear, such as grooving, scoring, or being below the minimum thickness specification. Replacing worn rotors with new pads can lead to suboptimal braking performance and premature wear of the new pads.

Q3: What torque should I use for the lug nuts and caliper bolts?

Lug nut torque for a 2005 Toyota Corolla is typically around 76 ft-lbs (103 Nm). Caliper bolt and bracket bolt torque specifications vary, but they are generally in the range of 20-30 ft-lbs (27-40 Nm) for caliper bolts and higher for bracket bolts (around 50-70 ft-lbs or 68-95 Nm). Always refer to a service manual for exact figures.

Q4: Why is my brake pedal soft after replacing the pads?

A soft brake pedal after replacement usually indicates air in the brake lines. This can happen if the brake system was opened and not properly bled, or if the master cylinder reservoir was allowed to run dry. You may need to bleed the brake system.

Q5: What is 'bedding in' brakes?

Bedding in, or burnishing, is a process to properly mate the new brake pads to the rotors. It involves a series of moderate stops to transfer a thin, even layer of pad material onto the rotor surface, ensuring optimal friction and preventing noise and premature wear.

By following these steps and tips, you can confidently replace the brakes on your 2005 Toyota Corolla, ensuring your vehicle remains safe and reliable on the road. Regular maintenance of your braking system is paramount for your safety and the safety of others.
