Choosing the Right Brake Caliper for Your Electric Scooter

Ensuring your electric scooter has reliable braking power is paramount for your safety on the road. The brake caliper is a critical component in your scooter's stopping system, directly responsible for clamping down on the brake disc and bringing you to a halt. Choosing the correct brake caliper isn't just about finding a replacement; it's about optimising your scooter's performance and, most importantly, your personal safety.

Many electric scooter riders overlook the importance of their braking system until a problem arises. A worn-out, incompatible, or poorly chosen brake caliper can lead to extended stopping distances, unpredictable braking, and ultimately, dangerous situations. This comprehensive guide will walk you through everything you need to know to select the ideal brake caliper for your electric scooter, ensuring you maintain optimal control and peace of mind during your journeys.

Understanding Electric Scooter Brake Systems

Before diving into caliper specifics, it's essential to understand the common braking systems found on electric scooters. While some scooters might use drum brakes or even regenerative braking as their primary or secondary stopping mechanism, the most prevalent and effective system, especially for the front and rear wheels, is the disc brake. Disc brakes consist of a rotor (or disc) attached to the wheel and a caliper that clamps brake pads onto this rotor to create friction and slow the scooter down.

The caliper itself houses the brake pads and a mechanism (either cable-actuated or hydraulic fluid-actuated) that pushes these pads against the disc. The efficiency and feel of your braking largely depend on the type and quality of this caliper.

Types of Brake Calipers for Electric Scooters

Electric scooters primarily utilise two main types of disc brake calipers:

Mechanical Disc Calipers

Mechanical disc calipers are actuated by a traditional brake cable, similar to those found on many bicycles. When you squeeze the brake lever, the cable pulls a lever on the caliper, which in turn pushes one or both brake pads against the rotor. They are generally simpler in design and often found on entry-level or mid-range electric scooters due to their lower cost and easier maintenance for basic adjustments.

• Pros: Simpler to install and maintain, lower cost, less prone to fluid leaks.
• Cons: Less powerful braking, can offer less precise modulation (the ability to control braking force smoothly), often only one piston moves, leading to uneven pad wear over time.

Hydraulic Disc Calipers

Hydraulic disc calipers operate using a sealed system of hydraulic fluid. When you squeeze the brake lever, it pushes a piston in the master cylinder, which forces fluid through the brake line to the caliper. This fluid pressure then pushes one or more pistons within the caliper, clamping the brake pads onto the rotor. Hydraulic systems are common on higher-end electric scooters and offer superior performance.

• Pros: Significantly more powerful braking, excellent modulation for precise control, typically feature dual pistons for even pad wear and consistent performance, lighter lever feel.
• Cons: Higher cost, more complex installation and maintenance (requiring bleeding the system), susceptible to fluid leaks or air bubbles in the line.

Key Factors When Choosing a Replacement Brake Caliper

Selecting the correct brake caliper is not a 'one size fits all' scenario. Several critical factors must be considered to ensure proper fitment, optimal performance, and continued safety.

1. Scooter Model Compatibility

This is arguably the most important factor. Many electric scooters use proprietary or semi-proprietary components. Always check your scooter's manufacturer specifications or user manual for recommended brake caliper types and sizes. If you're replacing an existing caliper, try to find the exact same model or a directly compatible aftermarket alternative. Look for brand names and model numbers stamped on your current caliper.

2. Brake Disc Type and Size

The caliper you choose must be compatible with your scooter's brake disc (rotor). Discs come in various diameters (e.g., 120mm, 140mm, 160mm) and thicknesses. A caliper designed for a 160mm disc will not work correctly with a 120mm disc without an adapter, and even then, the performance might be compromised. Ensure the caliper's opening is wide enough for your disc's thickness. Most scooter discs are relatively thin, but some heavy-duty or performance models might have thicker rotors.

3. Mounting Standard

Brake calipers attach to the scooter's frame or fork using specific mounting standards. The two most common are:

• Post Mount (PM): The caliper bolts directly to threaded posts on the fork or frame. The bolts run parallel to the wheel axle. This is very common on electric scooters.
• International Standard (IS): The caliper bolts to a separate adapter, which then bolts to the frame/fork. The bolts run perpendicular to the wheel axle. Less common on scooters but still found.

You need to know the distance between the mounting holes on your current caliper or the scooter's frame. Measure centre-to-centre. Common mounting hole distances for scooter calipers are 51mm, 54mm, or 74mm. Getting this wrong means the caliper simply won't bolt on.

4. Piston Count and Actuation

As mentioned, mechanical calipers often use a single moving piston (or a single pad moving towards a fixed one), while hydraulic calipers typically use dual pistons. Dual-piston calipers offer more even pressure distribution on both sides of the rotor, leading to better braking power and more consistent pad wear. If upgrading, consider a dual-piston hydraulic system for superior performance.

5. Brake Pad Compatibility

While not strictly about the caliper itself, the type of brake pads it uses is important. Different calipers use different pad shapes and compounds (e.g., resin/organic, metallic/sintered). Ensure the replacement caliper is compatible with readily available and suitable brake pads for your riding conditions. Organic pads offer good initial bite and less noise, while metallic pads are more durable and perform better in wet conditions, albeit with more noise and rotor wear.

6. Brand Reputation and Quality

Opting for reputable brands (like Zoom, Nutt, Shimano, Tektro, Magura for some higher-end systems) often guarantees better build quality, reliability, and performance. Cheap, unbranded calipers might seem like a bargain but can compromise your safety and lead to premature failure or poor braking.

How to Identify Your Current Brake Caliper

If you're replacing a faulty caliper, the easiest way to ensure compatibility is to identify your existing one. Here's how:

1. Visual Inspection: Look closely at the caliper. Many manufacturers stamp model numbers, brand names, or other identifying codes directly onto the body.
2. Measure Mounting Holes: Use a caliper (measuring tool, not brake part!) or a ruler to measure the centre-to-centre distance between the two mounting bolts. This is crucial for matching the mounting standard.
3. Check Disc Size: Your brake disc often has its diameter stamped on it (e.g., '140mm'). Note this down.
4. Check Actuation Type: Is there a cable leading directly into the caliper, or is there a hydraulic line? This tells you if it's mechanical or hydraulic.
5. Consult Manual/Manufacturer: If all else fails, refer to your scooter's user manual or contact the scooter manufacturer with your model number. They can usually provide details on original equipment components.

Mechanical vs. Hydraulic: A Comparative Overview

Here's a quick comparison to help you weigh the pros and cons when considering an upgrade or replacement:

Installation Considerations

Once you've chosen the correct caliper, installation is the next step. While replacing a mechanical caliper can be relatively straightforward for a competent DIY enthusiast, upgrading to or replacing a hydraulic system is significantly more complex. Hydraulic systems require careful bleeding to remove air from the lines, a process that can be tricky without the right tools and experience. If you are unsure, it is always recommended to seek professional assistance from a qualified scooter or bicycle mechanic to ensure your brakes are installed and adjusted correctly for maximum safety.

Maintaining Your Brake Caliper

Proper maintenance extends the life of your brake caliper and ensures consistent performance:

• Regular Cleaning: Keep the caliper body and pistons clean from dirt and grime. Use a suitable brake cleaner.

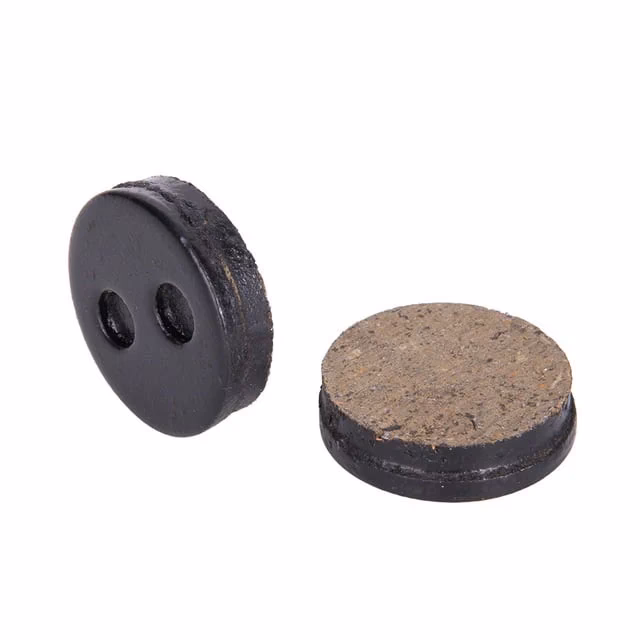

• Pad Replacement: Regularly inspect your brake pads for wear. Replace them before they wear down to the metal backing plate.
• Rotor Inspection: Check your brake disc for warping, excessive wear, or contamination.
• Cable Inspection (Mechanical): Ensure brake cables are free of fraying, rust, or excessive friction. Lubricate or replace as needed.
• Fluid Check (Hydraulic): For hydraulic systems, regularly check the fluid level in the reservoir and look for any leaks. Hydraulic fluid should be replaced periodically as per manufacturer recommendations.
• Piston Movement: Periodically check that the pistons move freely. Sticking pistons can lead to uneven braking or constant rubbing.

Frequently Asked Questions About Electric Scooter Brake Calipers

Can I upgrade my mechanical brakes to hydraulic brakes on my electric scooter?

Yes, it is often possible to upgrade from mechanical to hydraulic brakes. However, this is not a simple swap. You'll need to replace the entire system: the brake levers, the brake lines, and the calipers. You'll also need to ensure the new hydraulic calipers are compatible with your scooter's frame mounting points and disc size. This upgrade typically requires professional installation due to the complexity of bleeding hydraulic lines.

How often should I replace my brake pads?

Brake pad life varies greatly depending on your riding style, terrain, weight, and the quality of the pads. As a general rule, inspect your pads every 100-200 miles or monthly. Replace them when the friction material is worn down to approximately 1mm or less, or if you notice a significant decrease in braking performance or hear a grinding noise.

What are the signs of a failing brake caliper?

Common signs include a spongy or unresponsive brake lever, reduced braking power, unusual noises (squealing, grinding, or clunking) when braking, uneven pad wear, the wheel not spinning freely (caliper sticking), or visible fluid leaks (for hydraulic systems).

Are all brake calipers universal for electric scooters?

Absolutely not! As discussed, calipers vary significantly in terms of mounting type (Post Mount, IS), mounting hole distance (e.g., 51mm, 74mm), disc compatibility (diameter, thickness), and actuation type (mechanical, hydraulic). Always verify compatibility with your specific scooter model and brake disc.

Does a larger brake rotor (disc) require a different caliper?

Not necessarily a different *type* of caliper, but it might require a different caliper *adapter* if your current caliper is designed for a smaller rotor. Some calipers are designed to work with a range of rotor sizes by using specific adapters. However, the caliper itself must be able to accommodate the rotor's diameter and thickness. Upgrading to a larger rotor can significantly improve braking performance by providing more leverage and better heat dissipation.

Conclusion

Choosing the right brake caliper for your electric scooter is a decision that directly impacts your safety and the overall enjoyment of your ride. By understanding the different types of calipers, considering critical factors like scooter compatibility, disc size, and mounting standards, and committing to regular maintenance, you can ensure your electric scooter's braking system is always in top condition. Don't compromise on quality when it comes to your brakes; invest in the correct components and enjoy safer, more controlled journeys.
