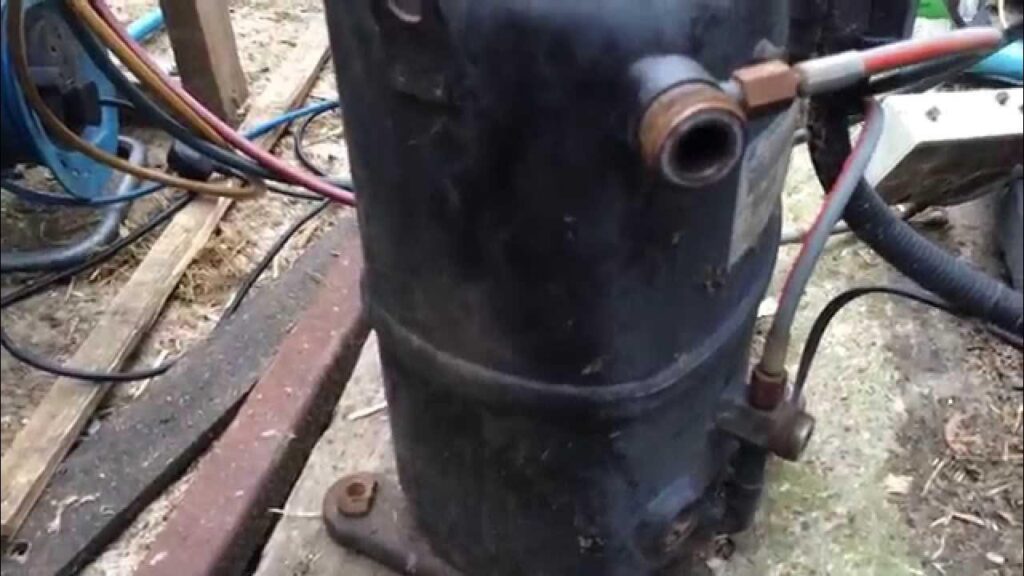

Mounting a Scroll Compressor

Scroll compressors are a cornerstone of modern refrigeration and air conditioning systems, prized for their efficiency, reliability, and quiet operation. However, the performance and lifespan of these sophisticated machines are heavily influenced by the quality of their installation, particularly the mounting process. A poorly mounted compressor can lead to excessive vibration, premature wear, system imbalance, and ultimately, costly failures. This guide delves into the intricacies of how to mount a scroll compressor, providing a comprehensive overview for technicians and engineers.

Understanding the Importance of Proper Mounting

Before we dive into the 'how,' it's crucial to understand the 'why.' Scroll compressors, while inherently balanced due to their design, still generate some level of vibration during operation. The mounting system's primary role is to isolate this vibration from the surrounding structure, preventing it from propagating and causing noise or damage. Furthermore, a secure mount ensures the compressor remains stable, preventing movement that could stress refrigerant lines or electrical connections. It also plays a vital role in maintaining the alignment of the compressor within the system, which is critical for efficient energy transfer and preventing internal component damage.

Key Considerations Before Mounting

Several factors must be considered before you even begin the physical mounting process:

• Manufacturer's Guidelines: Always, without exception, refer to the specific installation manual provided by the compressor manufacturer. These manuals contain critical, model-specific information regarding mounting orientations, vibration isolation requirements, and torque specifications.
• Mounting Location: The chosen location should be structurally sound, provide adequate clearance for maintenance and airflow, and be free from excessive heat or moisture. Consider accessibility for future servicing.
• Vibration Isolation: The type of vibration isolators (mounts) required will depend on the compressor's size, weight, and the expected vibration levels. These are typically made of rubber, spring, or a combination of both. The isolators must be rated to support the compressor's weight and effectively dampen vibrations at its operating frequencies.
• Level Surface: The mounting surface must be perfectly level and rigid. Any deviation can lead to misalignment and increased stress on the compressor.
• Environmental Factors: Consider the operating environment. If the compressor is in an area prone to seismic activity, specialized mounting hardware might be necessary.

Types of Scroll Compressor Mounting

Scroll compressors can be mounted in various orientations, but the most common are:

• Vertical Mounting: This is often the preferred orientation for many applications, especially in smaller HVAC units. The compressor sits upright on its base.
• Horizontal Mounting: Some larger or specialized compressors may be designed for horizontal mounting. This requires careful consideration of oil management within the compressor.
• Angled Mounting: While less common, some systems might utilise angled mounting. This is highly application-specific and demands strict adherence to manufacturer guidelines regarding oil circulation.

Mounting Hardware and Components

The correct hardware is essential for a secure and effective mount. You will typically need:

• Mounting Bracket/Base: A sturdy base or bracket to which the compressor will be affixed. This might be integrated into the system chassis or a separate component.
• Vibration Isolators (Mounts): As mentioned, these are crucial. They can be threaded studs with rubber bushings, spring isolators with mounting plates, or specialized dampening pads.
• Fasteners: Appropriate bolts, nuts, and washers, usually made of high-tensile steel, to secure the compressor to the mounting bracket and the bracket to the system.
• Locking Mechanisms: Lock washers or nylock nuts are recommended to prevent loosening due to vibration.

Step-by-Step Mounting Procedure

Here's a general procedure for mounting a scroll compressor. Remember to always consult your specific manufacturer's manual for precise instructions.

Step 1: Prepare the Mounting Surface

Ensure the mounting surface is clean, flat, and structurally sound. If the surface is not level, use shims to achieve a perfect horizontal plane. The mounting bracket, if separate, should be securely fastened to this surface according to its own installation requirements.

Step 2: Attach Vibration Isolators

The vibration isolators are typically attached to the base of the compressor or to the mounting bracket. Follow the manufacturer's instructions for the correct placement and orientation of these isolators. For rubber mounts, ensure they are seated correctly within any designated grooves or mounting holes. For spring mounts, ensure the compressor is placed onto the spring-loaded feet or that the mounting plate is secured to the spring assembly.

Step 3: Position the Compressor

Carefully lift and place the scroll compressor onto the prepared mounting surface, aligning its mounting holes with the corresponding holes or studs on the mounting bracket or isolators. If using vibration-isolating bolts that pass through rubber bushings, ensure the bolts are inserted correctly. Do not overtighten at this stage.

Step 4: Secure the Compressor

Insert the appropriate fasteners (bolts, nuts, washers) through the compressor's mounting feet and the mounting bracket/isolators. Start all fasteners by hand to avoid cross-threading. Once all fasteners are in place, begin tightening them in a star pattern (or criss-cross pattern) to ensure even pressure distribution. This is crucial for preventing stress on the compressor casing. Tighten the fasteners to the torque specifications provided by the manufacturer. Over-tightening can damage the compressor's mounting flange or the isolators, while under-tightening will not provide adequate security and vibration damping.

Torque Specifications: This is a critical parameter. Always use a calibrated torque wrench. The correct torque ensures the compressor is held firmly without deforming its base or crushing the vibration isolators. Refer to the compressor's datasheet for these values. For example, a typical torque for a medium-sized scroll compressor might range from 20-40 Nm, but this can vary significantly.

Step 5: Verify Alignment and Stability

Once tightened, double-check that the compressor is perfectly level and stable. Gently try to rock the compressor; there should be no movement or play. Ensure that refrigerant lines and electrical connections can be made without putting stress on the compressor's ports or terminals due to misalignment.

Step 6: Final Checks

Inspect all mounting hardware to ensure it is correctly installed and tightened. Verify that no tools, debris, or foreign objects are left in or around the compressor. Ensure adequate clearance is maintained around the compressor for airflow and servicing.

Common Mistakes to Avoid

Even experienced technicians can make mistakes. Here are some common pitfalls when mounting scroll compressors:

• Overtightening or Undertightening Fasteners: Both extremes can lead to serious issues, from cracked casings to excessive vibration.
• Skipping Vibration Isolators: Mounting directly to a rigid surface without proper isolation will transfer all vibrations, leading to noise and premature wear.
• Using Incorrect Isolators: Isolators must be rated for the compressor's weight and operating frequency. Using generic or undersized mounts is a recipe for disaster.
• Mounting on an Uneven Surface: This is a fundamental error that compromises alignment and introduces stress.
• Ignoring Manufacturer's Instructions: Every compressor model is different. Generic advice is not a substitute for specific, model-relevant guidelines.
• Allowing Stress on Refrigerant Lines: Ensure that the piping does not pull or push on the compressor's suction or discharge ports after mounting. Use appropriate pipe supports and offsets.

Table: Vibration Isolator Selection Guide (General)

The selection of the correct vibration isolator is paramount. While specific calculations are complex and depend on compressor dynamics and system design, this table provides a general guideline. Always consult specialist charts or the manufacturer for precise selection.

Frequently Asked Questions (FAQs)

Q1: Can I mount a scroll compressor horizontally if it's designed for vertical mounting?

Generally, no. Scroll compressors are designed with specific oil management systems. Mounting them in an orientation other than what the manufacturer specifies can lead to oil logging or starvation, damaging the compressor.

Q2: How important is the "star pattern" tightening?

It's extremely important. Tightening in a star pattern ensures that the compressor is evenly seated against the mounting surface and the vibration isolators. This prevents uneven stress on the compressor casing and ensures the isolators function as intended.

Q3: What happens if I overtighten the mounting bolts?

Overtightening can deform the compressor's base or mounting flange, potentially causing internal damage or reducing the effectiveness of the vibration isolators by crushing them. It can also strip threads.

Q4: Do I need to consider the operating temperature when selecting mounts?

Yes, especially for rubber mounts. High operating temperatures can degrade rubber over time, reducing its effectiveness and lifespan. Ensure the isolator material is rated for the expected operating temperatures.

Q5: How can I tell if my compressor is vibrating excessively after mounting?

Listen for unusual noises, feel for excessive shaking of the unit or surrounding structure. A properly mounted compressor should operate smoothly and quietly with minimal perceptible vibration transferred to the surrounding environment.

Conclusion

The mounting of a scroll compressor is a critical step in the installation process that directly impacts the system's performance, efficiency, and longevity. By understanding the principles of vibration isolation, carefully selecting the appropriate hardware, and meticulously following the manufacturer's guidelines, technicians can ensure a secure, stable, and effective installation. Prioritising these details during the mounting phase will prevent common issues, reduce the likelihood of premature failure, and contribute to a reliable and efficient operation of the entire system. Remember, proper installation is the foundation of a well-performing compressor.
