Continental IO-360 Fuel System Explained

The Continental IO-360 engine is a popular powerplant found in a wide array of general aviation aircraft. Understanding its fuel and ignition systems is paramount for pilots and mechanics alike, ensuring safe and efficient operation. This article delves into the specifics of the IO-360's fuel injection, ignition, and the critical operating instructions that govern its maintenance and use.

Fuel Injection System: CMI Mechanical Excellence

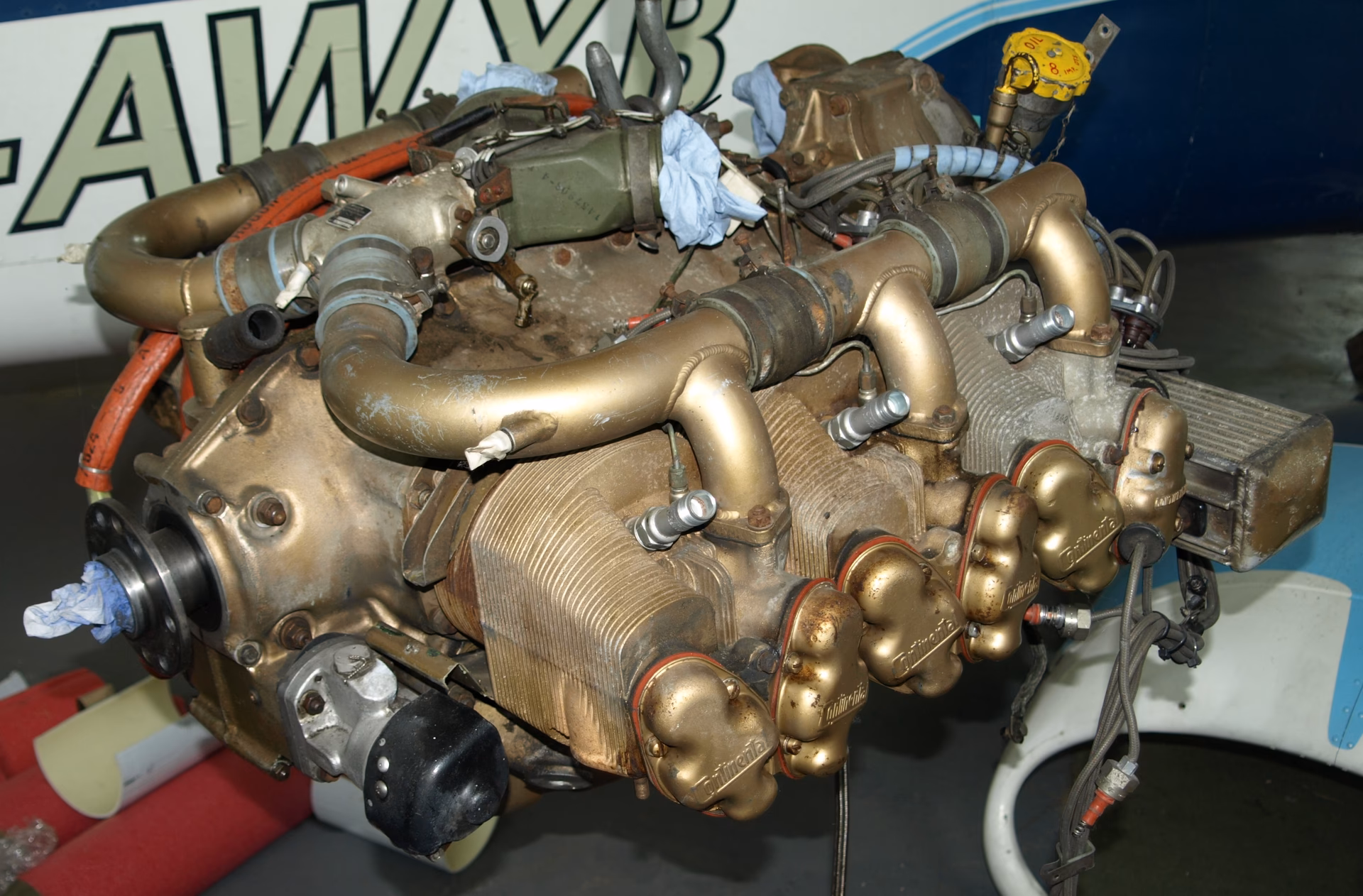

At the heart of the Continental IO-360's fuel delivery lies its mechanical CMI fuel injection system. Unlike more modern electronic fuel injection (EFI) systems, the CMI system relies on mechanical components to accurately meter fuel to each cylinder. This robust and time-tested design has been a staple in aviation for decades, valued for its reliability and relative simplicity.

The CMI system operates on a principle of pressure and flow. Fuel is supplied from the aircraft's tanks to the engine-driven fuel pump, which then pressurises it. This pressurised fuel is directed to the fuel control unit (FCU). The FCU, a sophisticated mechanical device, regulates the amount of fuel delivered to the engine based on pilot throttle input and engine operating conditions. From the FCU, fuel is distributed to the individual cylinders via fuel nozzles. These nozzles atomise the fuel, creating a fine spray that mixes with the incoming air for efficient combustion.

One of the key characteristics of mechanical fuel injection is its direct correlation between throttle movement and fuel flow. While this offers a predictable feel for the pilot, it also means that adjustments for altitude and temperature are managed through the mechanical linkages and the inherent design of the system, rather than electronic sensors and computers.

Ignition System: Dual Magneto Reliability

Complementing the fuel system is the IO-360's two magneto ignition system. This is a crucial safety feature in aviation. Each cylinder is equipped with at least one spark plug, and often two for enhanced combustion efficiency and redundancy. The magnetos are independent devices that generate high voltage to fire the spark plugs at precisely the right moment in the combustion cycle.

Having two magnetos provides a significant safety margin. If one magneto fails, the other can continue to power the ignition system, allowing the engine to continue running, albeit potentially with reduced power. Pilots are trained to check the magnetos during engine run-up by selecting each magneto individually (Left, Right, Both) to ensure both are functioning correctly. Any significant drop in RPM when switching to a single magneto can indicate an issue with that particular unit.

The timing of the spark is critical for optimal engine performance. The magnetos are carefully timed during engine installation and maintenance to ensure the spark occurs before the piston reaches the top of its compression stroke, allowing the combustion process to build pressure effectively.

Fuel Requirements: Aviation Gasoline Specifications

The Continental IO-360 engine is designed to run on Aviation Gasoline (Avgas). The minimum acceptable grade is typically 91 octane or the equivalent UL91 unleaded aviation fuel where available. It is absolutely critical to use the correct grade of fuel as specified by the engine manufacturer and the aircraft's type certificate. Using a lower octane fuel can lead to detonation or pre-ignition, causing severe engine damage.

The choice between leaded Avgas (e.g., 100LL) and unleaded Avgas (UL91/UL94) can depend on availability and specific engine or aircraft approvals. While leaded fuels have historically been the standard, the aviation industry is moving towards unleaded alternatives due to environmental and health concerns. Always consult your aircraft's Pilot's Operating Handbook (POH) and the engine manufacturer's documentation for the approved fuel types and grades.

Continental Motors Operating Instructions: The Crucial Context

It is vital to understand that Continental Motors operating instructions are developed using factory-controlled parameters. These factory specifications are designed to ensure the engine performs optimally when tested on a factory test stand or within a controlled environment. However, they are not necessarily the same as those specifications required to satisfy a specific aircraft installation.

This distinction is of utmost importance. An aircraft manufacturer will take the base Continental engine and integrate it into a specific airframe. This integration involves numerous factors, including the aircraft's cooling system, fuel system plumbing, exhaust system, cowling design, and the aircraft's intended operating envelope. As a result, the aircraft manufacturer will publish specific operating instructions and limitations in the aircraft's Pilot's Operating Handbook (POH) or Aircraft Flight Manual (AFM). These POH/AFM specifications supersede the general factory instructions for that particular aircraft.

For instance, while Continental might specify a certain maximum cylinder head temperature (CHT) or oil temperature on the test stand, the POH for a specific aircraft might have a slightly different CHT limit based on the cooling airflow provided by the aircraft's cowling. Similarly, fuel flow settings or recommended leaning procedures might be tailored to the aircraft's specific fuel system and performance characteristics.

Table: Key System Components and Functions

Frequently Asked Questions (FAQs)

Q1: Can I use automotive gasoline in my Continental IO-360?

A: Absolutely not. The Continental IO-360 is designed and certified to operate on Aviation Gasoline (Avgas) only. Automotive gasoline has different octane ratings, additives, and vaporisation characteristics that can cause severe engine damage, including detonation and component failure. Always use the specified grade of Avgas.

Q2: What is the difference between the Continental factory instructions and the aircraft's POH?

A: The Continental factory instructions detail the engine's performance and operation as tested by the manufacturer. The aircraft's Pilot's Operating Handbook (POH) or Aircraft Flight Manual (AFM) provides specific operating procedures, limitations, and performance data for that engine *as installed* in a particular aircraft model. The POH/AFM is the definitive guide for operating that specific aircraft and its engine.

Q3: How does the CMI fuel injection system differ from electronic fuel injection (EFI)?

A: The CMI system is purely mechanical, relying on fuel pressure, flow dividers, and linkages to control fuel delivery. EFI systems use electronic sensors (like manifold pressure, temperature, and throttle position sensors) to feed data to an Electronic Control Unit (ECU), which then precisely controls fuel injectors. EFI systems can often offer better fuel economy, smoother operation, and easier altitude/temperature compensation, but mechanical systems are known for their robustness and simplicity.

Q4: What should I do if I suspect a problem with my magnetos?

A: During your pre-flight run-up, check the magnetos by switching between 'BOTH', 'LEFT', and 'RIGHT' settings. You should see a slight drop in RPM when switching to a single magneto, typically no more than 50-75 RPM, and the engine should run smoothly on either magneto. If you experience a significant RPM drop, rough running, or no change in RPM, do not fly the aircraft. Have the ignition system inspected and serviced by a qualified A&P mechanic immediately.

Conclusion

The Continental IO-360, with its CMI mechanical fuel injection and dual magneto ignition system, is a reliable workhorse in general aviation. Understanding its fuel requirements, the function of its core systems, and the critical importance of adhering to the aircraft's specific operating instructions found in the POH/AFM is fundamental for safe flight operations. Always prioritise the aircraft manufacturer's data when it comes to operating parameters and fuel choices to ensure the longevity and performance of your engine.
