Fuel Hoses: Your Diesel Engine's Lifeline

The fuel system of any vehicle is a complex network, and within it, fuel hoses play an often-underestimated yet critical role. For diesel engines, in particular, the integrity of these hoses is paramount to ensuring efficient starting, smooth running, and overall engine health. At Darwen Diesels, we understand the importance of these components and stock a comprehensive selection to meet the needs of diesel vehicle owners and mechanics alike. This article delves into the types of fuel hoses we supply, the symptoms of their failure, and why choosing the right replacement is crucial.

The Importance of Fuel Hoses in Diesel Engines

Fuel hoses are the arteries that carry diesel fuel from the tank to the engine and, crucially, manage the return flow of fuel. Unlike petrol engines, diesel engines operate under higher compression ratios, and the fuel delivery system is designed for robustness. However, even the most robust systems rely on flexible connections, and this is where fuel hoses come in. They need to withstand constant exposure to fuel, varying temperatures, and engine vibrations. A failure in these hoses can lead to a range of problems, from inconvenient starting issues to potentially dangerous fuel leaks.

Common Symptoms of Fuel Hose Problems

One of the most prevalent issues associated with deteriorating fuel hoses, particularly the leak off pipes, is prolonged cranking times when starting the engine. This problem is often exacerbated in colder weather. The reason behind this is that worn or perished leak off pipes can allow diesel fuel to drain back into the fuel tank when the engine is switched off. Although these are low-pressure lines, and they rarely leak significantly while the engine is running, they can still draw air into the fuel system when the engine is stationary. This ingress of air means that on the next start, it takes considerably longer for the fuel to be drawn from the tank and reach the engine's injection system, leading to that frustratingly long cranking period. Replacing these seemingly minor components can often be a surprisingly inexpensive and straightforward solution to this common starting woe.

Why a Competent Mechanic Checks the Hoses First

A skilled and experienced mechanic will always conduct a thorough inspection of the fuel system when faced with starting or running issues. Before jumping to conclusions about the fuel pump, fuel filter, or even the fuel tank, they will meticulously check the condition of all fuel hoses. A damaged or leaky fuel hose can not only negatively impact the engine's starting and running characteristics, but it also presents a significant fire risk. Fuel is highly flammable, and a persistent leak, however small, can lead to dangerous situations, especially in the heat generated by an engine bay. Therefore, the integrity of these hoses is a primary concern for any professional diagnosing a diesel engine problem.

Darwen Diesels: Our Comprehensive Fuel Hose Stock

At Darwen Diesels, we pride ourselves on offering a wide and varied selection of fuel hoses and associated fittings, catering to the diverse needs of the diesel automotive market. Our stock includes:

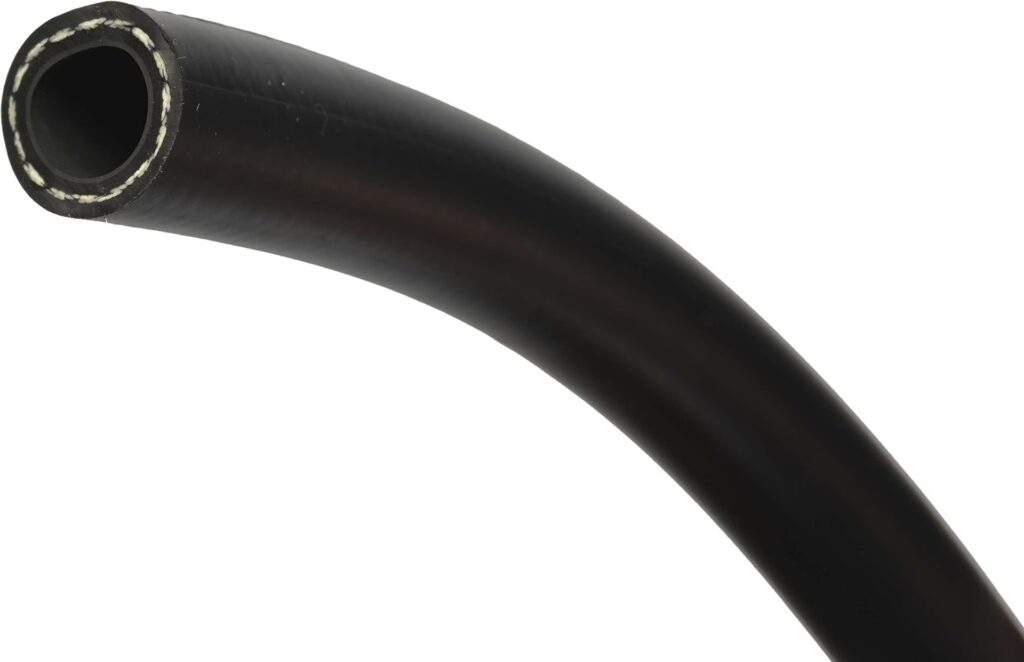

• Cotton Over Braided Fuel Hoses: These high-quality hoses are reinforced with a cotton braid, offering excellent durability and resistance to fuel degradation. They are suitable for both unleaded petrol and diesel fuels, making them a versatile choice.
• Smooth Fuel Hoses: Similar to the braided hoses, our smooth fuel hoses are also designed for longevity and compatibility with petrol and diesel. Their smooth finish can be beneficial in certain applications for ease of routing.
• High-Pressure Steel Pipe: For applications requiring superior strength and resistance to extreme pressures, we stock a comprehensive range of high-pressure steel piping. This is essential for certain sections of the fuel delivery system where flexibility is not required.
• Emergency Pipe: We also provide emergency pipe in both 1.2m and 0.3m lengths. This is invaluable for temporary repairs or in situations where a specific length is needed quickly.
• Multi Fuel Supply Hoses: Our range extends to multi fuel supply hoses, available in various diameters to accommodate different vehicle specifications. These are designed to handle a broad spectrum of fuels.
• Nylon Pipe: We stock nylon pipe, known for its chemical resistance and flexibility, making it a popular choice for many fuel line applications.
• Clear Braid Supply Hose: This type of hose allows for visual inspection of fuel flow and is often used in specific diagnostic or custom fuel system setups. The braiding provides an additional layer of protection.
• Leak Off Hose: As highlighted earlier, leak off hoses are critical. We offer every type of leak off hose to ensure you can replace these vital components effectively.

Choosing the Right Fuel Hose: Key Considerations

When selecting replacement fuel hoses, it's essential to consider several factors to ensure compatibility and safety:

Material Compatibility

Ensure the hose material is rated for the type of fuel you are using (diesel, biodiesel, etc.) and any additives that might be present. Modern diesel fuels can be more aggressive on older hose materials.

Pressure Rating

Different parts of the fuel system operate at different pressures. The hoses used for low-pressure return lines will have different specifications to those used in high-pressure injection systems. Always match the hose's pressure rating to the system's requirements.

Temperature Resistance

Fuel hoses are subjected to fluctuating temperatures, from the cold of winter starts to the heat generated by the engine. The material must be able to withstand these extremes without becoming brittle or degrading.

Flexibility and Routing

The hose needs to be flexible enough to be routed correctly within the engine bay, avoiding sharp bends that could restrict flow or rub against other components. However, it should not be so flexible that it kinks or collapses under vacuum.

Reinforcement

For higher pressure or more demanding applications, hoses with reinforcement (like braiding or spiral winding) offer increased durability and burst resistance.

Table: Common Fuel Hose Types and Their Applications

Troubleshooting: What to Do if You Suspect a Hose Issue

If you're experiencing the symptoms described earlier – particularly long cranking times, especially when cold – the first step is a visual inspection of your fuel hoses. Look for any signs of:

• Cracking or splitting: This is a clear indicator of a hose that has become brittle and is likely to fail.
• Perishing or hardening: Hoses that feel stiff and inflexible have lost their elasticity and are prone to cracking.
• Bulging or swelling: This can indicate that the hose material is not compatible with the fuel or is degrading internally.
• Oozing or dampness: Even slight dampness around fittings or along the hose length can signify a leak.
• Kinks or damage: Ensure hoses are not kinked or rubbing against other components, which can cause wear and eventual failure.

If you find any of these issues, it is highly recommended to replace the affected hose immediately. For safety and optimal performance, it's often best practice to replace all fuel hoses of a similar age and type at the same time.

Frequently Asked Questions (FAQs)

Q1: How often should I check my fuel hoses?

It's good practice to visually inspect your fuel hoses during routine maintenance, such as oil changes. Pay particular attention if you notice any changes in how your engine starts or runs.

Q2: Can I use a generic hose for my diesel fuel lines?

It is strongly advised against using generic, non-automotive-grade hoses. Fuel hoses are specifically designed to withstand the chemical properties of diesel fuel and the operating conditions within an engine bay. Using the wrong type of hose can lead to premature failure, leaks, and a significant fire hazard.

Q3: What is the difference between a fuel supply hose and a leak off hose?

Fuel supply hoses carry fuel from the tank to the engine under pressure, while leak off hoses are part of the low-pressure return system that directs excess fuel from the injectors back to the tank. Both are critical, but they operate under different pressures and may require different hose specifications.

Q4: My engine starts fine when warm but is hard to start when cold. Could it be the fuel hoses?

Yes, this is a classic symptom of worn leak off hoses or a faulty fuel supply hose allowing fuel to drain back or air to enter the system when the engine is off. Replacing these hoses is often the first and most cost-effective solution to investigate.

Conclusion: Securing Your Diesel's Performance

Fuel hoses are small components that have a monumental impact on your diesel engine's performance and safety. From the initial spark of starting to the continuous delivery of fuel, their role is indispensable. At Darwen Diesels, we are committed to providing the highest quality fuel hoses and associated parts, ensuring that you have access to reliable solutions for maintenance and repair. If you encounter any difficulties in identifying or sourcing the correct hose for your vehicle, please do not hesitate to contact us. Our team is ready to assist you. Remember, all the pipes and hoses featured on our website are available for immediate dispatch, with many orders qualifying for next-day UK delivery, ensuring you get your vehicle back on the road with minimal downtime.
