Revive Your Vintage Speakers: A DIY Guide

Silence is Not Golden! Revive Your Vintage Speakers with DIY Repair

It's a familiar scenario for any audiophile or music enthusiast: you've unearthed a pair of fantastic vintage speakers, perhaps inherited from a relative or discovered in a dusty second-hand shop. The allure of their classic design and the promise of that warm, rich sound is undeniable. However, upon closer inspection, you might find that time has taken its toll. The once supple foam or rubber surrounds have degraded, cracked, or disintegrated entirely. Or perhaps the cone itself has suffered damage from years of use or an unfortunate mishap. The thought of replacing these sonic treasures can be disheartening, not to mention expensive. But what if there was a way to breathe new life into your beloved vintage speakers without breaking the bank? Fortunately, for many common speaker ailments, the answer lies in the world of DIY speaker repair.

Instead of consigning your quality vintage speakers to the scrap heap, consider the satisfying and cost-effective alternative of repairing them yourself. This is where specialised DIY speaker repair kits come into play, offering a practical solution for common issues like perished surrounds and damaged cones. These kits are designed to be user-friendly, empowering individuals to undertake repairs that might otherwise seem daunting. By investing in a repair kit, you're not only saving money but also preserving the character and history of your audio equipment, ensuring that those cherished sounds can continue to fill your room for years to come.

Understanding Common Speaker Faults

Before diving into the repair process, it's crucial to understand the common points of failure in vintage speakers. Over time, the materials used in speaker construction can degrade due to various factors, including age, environmental exposure, and heavy usage. The most frequent culprits are:

• Perished Surrounds: The surround is the flexible ring that connects the speaker cone to the speaker basket. It allows the cone to move freely, producing sound. Most vintage speakers, especially those from the 70s and 80s, used foam or rubber surrounds. These materials are susceptible to oxidation and drying out over time, leading to cracking, tearing, or complete disintegration. This is often the most common reason for a speaker to sound distorted, muffled, or produce no sound at all.
• Damaged Cones: The cone is the diaphragm that actually moves air to create sound waves. It can be made of paper, plastic, or other composite materials. Cones can be damaged in several ways:
• Brittleness: Older paper cones can become brittle with age, leading to cracks or tears, especially around the edges where the cone flexes.
• Overdriving: Pushing a speaker beyond its intended limits (overdriving) can cause the cone to distort excessively, leading to permanent damage or even splitting. This is often a result of amplifier issues or simply playing music too loud for too long.
• Impact Damage: Accidental knocks or drops can cause punctures or creases in the cone, affecting its ability to vibrate uniformly.
• Voice Coil Failure: The voice coil is a coil of wire attached to the cone that moves within a magnetic gap. If an amplifier experiences DC voltage (DC offset) due to a fault, it can be sent through the voice coil, causing it to overheat, burn out, or even melt. This is particularly common in smaller drivers like tweeters and mid-range units.
• Suspension Damage: The spider is another part of the suspension system that supports the voice coil and cone. It can tear or sag over time, affecting the speaker's performance and potentially leading to voice coil rubbing.

DIY Speaker Repair Kits: Your Solution

Fortunately, many of these common issues can be addressed with readily available DIY speaker repair kits. These kits are specifically designed to replace the worn-out or damaged components, bringing your speakers back to their former glory. The two primary types of kits you'll encounter are:

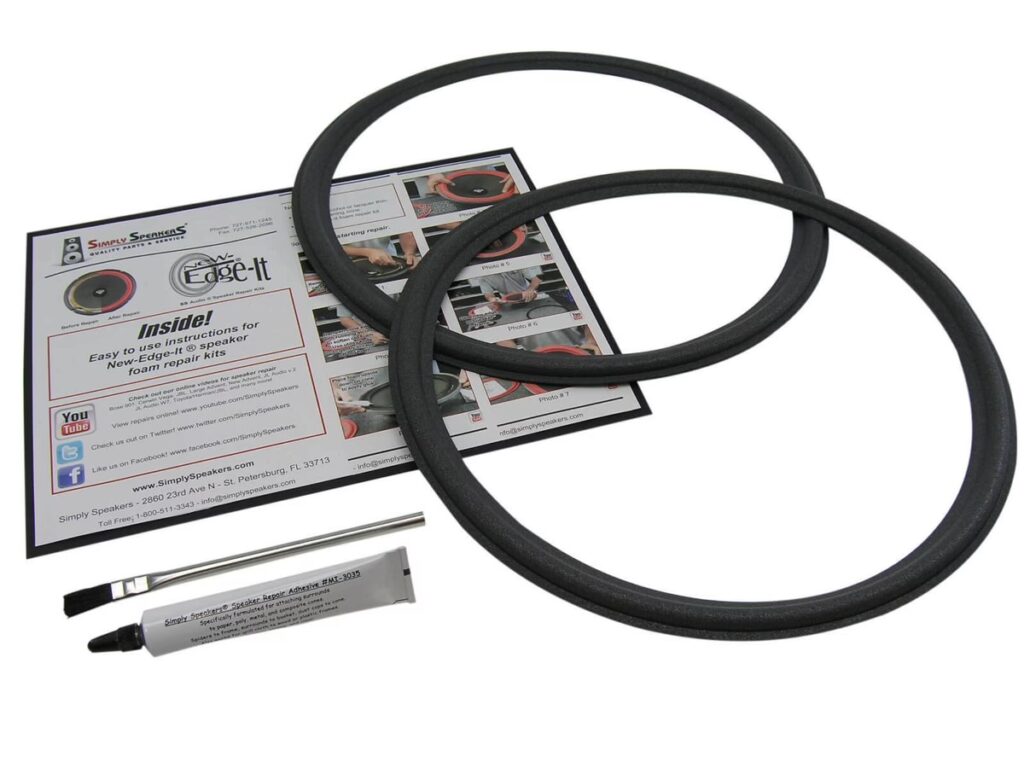

1. Speaker Surround Repair Kits

If the foam or rubber surround of your speaker has degraded, a surround repair kit is exactly what you need. These kits typically include:

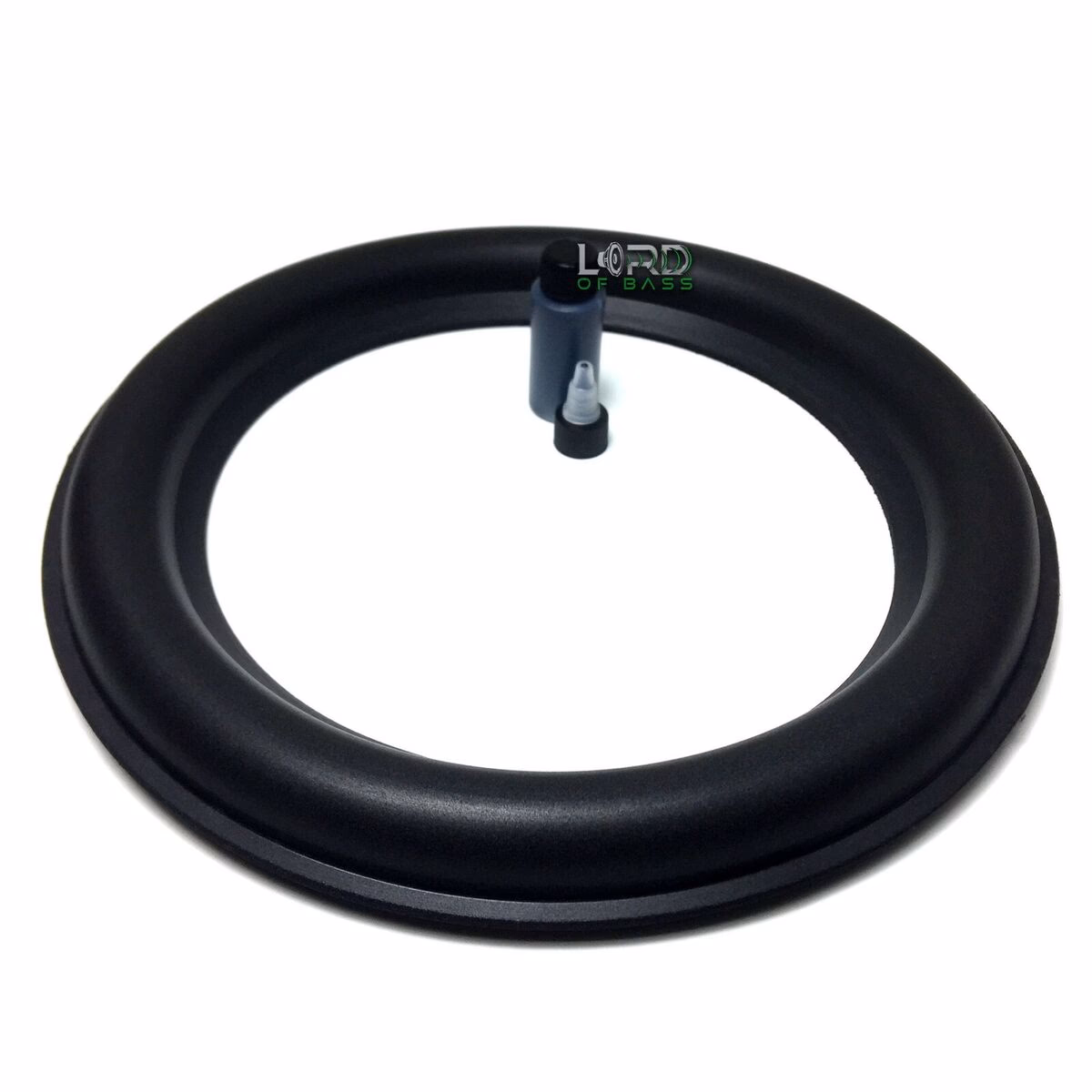

• New Surrounds: Precisely cut foam or rubber rings designed to match the original speaker's dimensions. These are available for a vast array of brands and models, including popular names like Boston Acoustics, JBL, Cerwin Vega, Infinity, Bose, Advent, DynAudio, Kenwood, Pioneer, and many more.
• Adhesive: A specialised, flexible adhesive formulated for speaker repair. This glue is crucial for securely bonding the new surround to the speaker cone and the speaker basket without stiffening the suspension or compromising the sound.
• Tools and Instructions: Many kits come with applicators, shims (to centre the voice coil during the gluing process), and detailed instructions to guide you through the replacement.

  The process generally involves carefully removing the old surround, cleaning the cone and basket, applying the adhesive, positioning the new surround, and allowing it to dry properly. The result is a speaker with restored low-frequency response and a clean, unblemished appearance.

  2. Speaker Recone Kits

  For more significant damage, such as a torn cone, damaged voice coil, or a failed spider, a recone kit is the appropriate solution. A recone kit is essentially a complete replacement of the moving parts of the speaker. A typical recone kit will include:

  • New Cone: A pre-assembled cone, often with the voice coil and spider already attached and aligned.
  • Voice Coil: The replacement voice coil.
  • Spider: The suspension spider that supports the voice coil.
  • Dust Cap: A protective cap that fits over the centre of the cone, preventing dust and debris from entering the magnet assembly and interfering with the voice coil.
  • Gasket Ring: An outer gasket that seals the speaker to the cabinet or baffle.
  • Adhesive: Specific adhesives for bonding the various components.

  Reconing is a more involved process than simply replacing a surround, but it can completely restore a speaker that might otherwise be irreparable. It's a fantastic way to save money compared to buying new, high-quality speakers, and it allows you to retain the original speaker's enclosure and magnet structure, which are critical to its unique sound signature.



  The Repair Process: A Step-by-Step Overview

  While specific instructions vary by kit and speaker model, here's a general outline of the process for replacing a speaker surround:

  Step 1: Disassembly and Cleaning

  Carefully remove the speaker from its enclosure. You may need to unscrew the driver or, in some cases, remove a grille that hides the mounting screws. Once the driver is out, you'll need to remove the old, degraded surround. This can often be done by peeling it off or carefully cutting away the remnants. Use a solvent (like isopropyl alcohol or a specialised adhesive remover) to thoroughly clean the edge of the speaker cone and the rim of the speaker basket. Any residual glue or foam must be removed for the new surround to adhere properly.

  Step 2: Centring the Voice Coil

  This is a critical step. Before applying the new surround, you need to ensure the voice coil is perfectly centred within the magnetic gap. Many kits include thin shims or paper strips that you can slide between the voice coil and the magnet pole piece. Ensure the coil can move freely without rubbing. Once centred, you can proceed with gluing.

  Step 3: Attaching the New Surround

  Apply a thin, even bead of the specialised speaker adhesive to the rim of the speaker cone. Carefully position the new surround onto the cone, ensuring it's centred. Press gently to ensure good contact. Allow this to set for a short period according to the adhesive's instructions. Once the cone-side adhesive has started to cure, apply adhesive to the speaker basket rim. Carefully place the surround onto the basket, aligning it correctly. If you used shims, leave them in place until the adhesive is fully dry.

  Step 4: Final Curing and Testing

  Allow the adhesive to cure completely. This can take anywhere from 12 to 24 hours, depending on the adhesive and environmental conditions. Do not attempt to play the speaker before the adhesive is fully cured, as this can ruin the repair. Once cured, carefully remove any shims. Gently push the cone to check for any rubbing sounds. If all is well, reinstall the speaker into its enclosure and test it with your amplifier.



  When to Consider a Recone Kit

  If your speaker's cone is torn, punctured, or the voice coil is visibly damaged (e.g., burnt windings), a surround repair kit won't suffice. In these cases, a recone kit is the only viable option to restore the speaker. Signs that you might need a recone include:

  • A torn or split speaker cone.
  • Visible damage to the voice coil windings.
  • A distorted or "rubbing" sound that doesn't go away after ensuring the surround is intact.
  • A speaker that produces no sound, potentially due to a burnt-out voice coil.

  The process for using a recone kit is more complex, often involving transferring the original magnet structure and basket to the new cone/coil assembly. However, the principles of careful alignment and proper adhesive use remain the same. Many manufacturers offer detailed guides and videos to assist with recone installations.

  Important Considerations and Tips

  • Identify Your Speaker: Before ordering a kit, accurately identify your speaker model and size. Look for identifying marks on the back of the speaker basket.
  • Read Reviews: Check customer reviews for both the repair kits and the suppliers. This can provide valuable insights into product quality and customer service.
  • Work in a Clean Environment: Ensure your workspace is clean and free of dust and debris, which could contaminate the adhesive or speaker components.
  • Patience is Key: Speaker repair requires patience. Rushing the process, especially the drying times, can lead to a failed repair.
  • One Kit Per Speaker: Remember that most repair kits are designed for a single speaker. If you have a stereo pair, you'll need to order two kits. Many suppliers offer a discount for purchasing multiple kits.
  • Check Amplifier Health: If you suspect voice coil failure due to amplifier issues, it's wise to have your amplifier checked for DC offset or other faults before installing a repaired speaker.
  • Magnet Integrity: If the speaker's magnet is cracked or dislodged, the speaker may not be repairable and might need replacement.

  Customer Testimonials: The Proof is in the Sound

  The satisfaction of bringing vintage audio equipment back to life is a common theme among DIY speaker repair enthusiasts. Many users report:

  • Cost Savings: Repairing is significantly cheaper than buying comparable new speakers.
  • Restored Sound Quality: Repaired speakers often sound as good as, or even better than, their original state.
  • Sense of Accomplishment: There's a great feeling of satisfaction in successfully repairing something yourself.
  • Environmental Responsibility: Repairing instead of replacing is a more sustainable choice, reducing waste.

  As one satisfied customer put it, "Feels good to repair rather than replace and the world needs more of this." Another enthusiastically shared, "The thought of trashing my set of 25 yr old home made speakers had already brought me to tears, till by chance I heard of "Speakerworks" etc. ... What a treat! A good quality product, with the type of instructions for someone who'd never seen such before. Well, in a short time and a little patience, 'BODDA BING' I'm back to my good 'ol tunes, good as new!! Thanks!!"

  Frequently Asked Questions

  Q1: How do I know if my speaker needs a surround replacement or a recone?

  A1: If the flexible rubber or foam edge of the speaker cone is cracked, torn, or missing, you likely need a surround replacement. If the paper cone itself is torn, the voice coil is damaged, or the speaker makes a scraping sound when the cone moves, you probably need a recone kit.

  Q2: Can I use any type of glue to attach the new surround?

  A2: No, it's crucial to use the specialised adhesive provided in the repair kit. Regular glues can be too stiff, brittle, or toxic to the speaker materials, negatively impacting the sound quality and potentially damaging the speaker further.

  Q3: How long does the adhesive take to dry?

  A3: Drying times vary depending on the adhesive used. Always follow the manufacturer's instructions. Typically, you'll need to allow at least 12-24 hours for the adhesive to cure fully before playing the speaker.



  Q4: What happens if I don't centre the voice coil correctly?

  A4: If the voice coil is not centred, it will rub against the magnet structure as the cone moves. This creates a distorted, scraping sound and can quickly lead to permanent damage to the voice coil, rendering the speaker unusable.

  Q5: Can I repair a speaker that has been overdriven and the cone is distorted?

  A5: If the cone is only slightly distorted and the voice coil and suspension are intact, a recone kit might be able to restore it. However, severe distortion or permanent creasing of the cone often means the speaker's structural integrity is compromised, and a recone kit with a new cone assembly is necessary.

  By embracing the world of DIY speaker repair, you can keep your cherished vintage audio equipment sounding its best. With the right tools, a bit of patience, and a willingness to learn, you can successfully revive those classic speakers and continue to enjoy their unique sonic character for years to come.
