Car Park Concrete: Corrosion & Repair Secrets

Multi-storey car parks are indispensable components of our urban infrastructure, yet beneath their often mundane appearance lies a complex engineering challenge. These structures are subjected to an unrelenting assault from environmental factors, vehicle traffic, and chemical contaminants, all of which conspire to accelerate the deterioration of their concrete fabric. Recent shifts in health and safety legislation in the UK have amplified the imperative for facility owners to maintain and operate these car parks in strict adherence to Health and Safety Executive standards. This heightened scrutiny underscores a critical need for understanding not just the 'what' of concrete degradation, but the 'why' and, crucially, the 'how' of effective remediation. Many older car park structures, often plagued by poor design, long-term neglect, and inadequate maintenance regimes, are particularly vulnerable, presenting a significant risk to both public safety and financial investment.

The longevity and safety of any concrete structure, especially those exposed to the elements, hinge on proactive maintenance and a deep understanding of the forces working against them. For car parks, this challenge is magnified by their unique operational environment. Neglecting these structures isn't just a matter of aesthetics; it's a direct threat to their structural integrity and a potential breach of regulatory compliance.

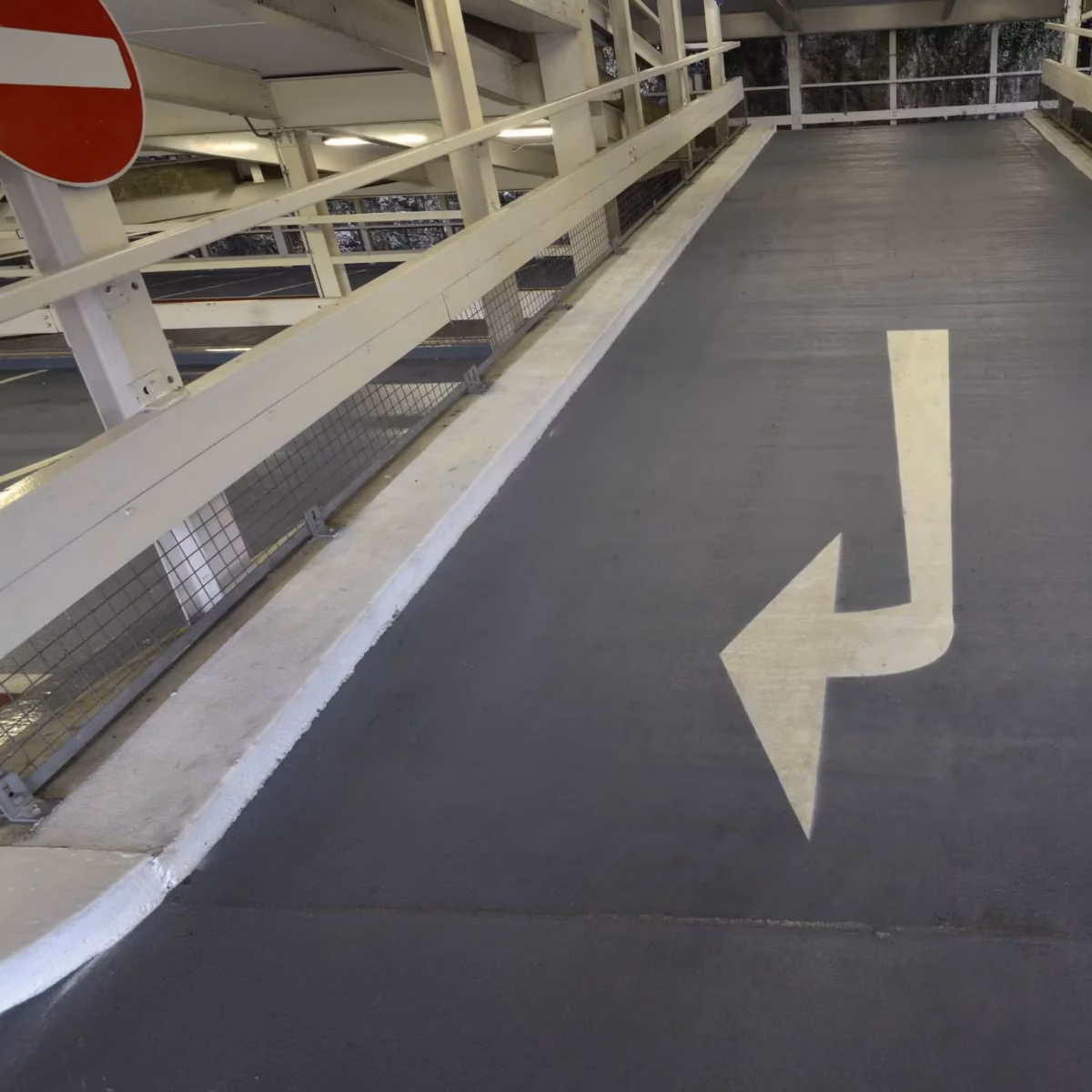

The Relentless Assault: Why Car Park Concrete Corrodes

The primary antagonist in the story of car park concrete deterioration is corrosion of the steel reinforcement embedded within it. Concrete, while robust in compression, relies on steel bars (rebar) for its tensile strength. When these bars corrode, they expand, exerting immense internal pressure that cracks and spalls the surrounding concrete. This process is accelerated by the harsh environment characteristic of busy multi-storey car parks, combined with the urban atmosphere and the notoriously challenging UK weather conditions.

Several key factors contribute to this accelerated degradation:

• Water Ingress: Rain, snowmelt, and condensation are constant threats. Water seeps into even the smallest cracks and pores in the concrete. Once inside, it facilitates the transport of corrosive agents to the steel reinforcement. Furthermore, freeze-thaw cycles, common in the UK, cause trapped water to expand when it freezes, creating immense pressure that widens existing cracks and creates new ones.
• De-icing Salts: Perhaps the most destructive agent is the widespread use of de-icing salts, primarily sodium chloride (common road salt) and calcium chloride. These salts are carried into car parks on vehicle tyres and undercarriages, dissolving in the water present on the concrete surface. The chloride ions then penetrate the concrete, reaching the steel reinforcement. Chlorides break down the passive protective layer that naturally forms on steel in alkaline concrete, initiating and accelerating the corrosion process. Even small concentrations of chlorides can trigger significant corrosion over time.
• Oils and Other Chemical Attacks: Vehicles leak various fluids – engine oil, brake fluid, fuel, and coolants. While some of these may not directly corrode steel, they can degrade the concrete itself, making it more porous and susceptible to water and chloride penetration. Exhaust fumes, containing carbon dioxide and other acidic components, also contribute to the carbonation of concrete, a process where carbon dioxide reacts with the calcium hydroxide in concrete, reducing its alkalinity and thus removing the protective environment for the steel.
• Poor Design and Construction: Original design flaws, such as inadequate drainage slopes, insufficient concrete cover over the reinforcement, or poor quality concrete mixes, lay the groundwork for premature deterioration. Water pooling, for instance, dramatically increases the time chlorides and moisture have to penetrate the slab.
• Inadequate Maintenance: A lack of regular cleaning, inspection, and timely repair of minor defects allows small issues to escalate into major structural problems. Cracks left unsealed become pathways for water and chlorides, turning minor blemishes into significant structural weaknesses.

The combination of these factors creates a vicious cycle. Initial cracks allow water ingress, which brings de-icing salts and other chemicals into contact with the steel. The ensuing corrosion causes the concrete to spall and crack further, exposing more steel and accelerating the damage. This process compromises the structural integrity of the car park, leading to potential safety hazards and requiring increasingly costly repairs.

Understanding the Threat: Signs and Implications of Corrosion

Identifying concrete corrosion early is crucial for effective intervention. Common visual signs include:

• Rust Staining: Brownish-red stains on the concrete surface, often emanating from cracks, are a tell-tale sign of corroding rebar.
• Cracking: Linear cracks running parallel to the reinforcement, or map-pattern cracking, indicate internal expansion due to corrosion.
• Spalling and Delamination: Sections of concrete detaching or flaking off the main structure, often exposing the corroded rebar beneath. This is a severe sign of advanced corrosion.
• Efflorescence: White, powdery deposits on the concrete surface, indicating water movement through the concrete, dissolving salts, and depositing them on the surface as the water evaporates. While not directly a sign of rebar corrosion, it indicates water ingress which is a precursor.

The implications of unchecked corrosion extend beyond mere aesthetics. They include:

• Reduced Load-Bearing Capacity: Corroded steel cannot carry loads as effectively, potentially leading to structural failure.
• Falling Debris: Spalling concrete poses a direct hazard to vehicles and pedestrians below.
• Increased Repair Costs: Delaying repairs only exacerbates the problem, leading to more extensive and expensive remedial work.
• Regulatory Non-Compliance: Failure to maintain car parks to HSE standards can result in fines, operational restrictions, or even closure.

Concrete Crack Resin Injection: A Targeted Solution

When faced with concrete cracks, particularly those caused by or leading to water ingress and potential corrosion, one of the most effective and widely used repair methods is concrete crack resin injection. This highly specialised technique involves injecting liquid resin into cracks, voids, or delaminations within the concrete structure to seal them and restore structural integrity.

Our nationwide team of fully-trained operatives possess a wealth of on-site concrete and waterproofing experience, enabling them to expertly apply this solution. This expertise is evident in their work on a number of prestigious projects, including the AELTC Wimbledon Centre Court and the King’s Cross regeneration scheme, demonstrating a deep understanding of complex concrete challenges, from waterproof concrete systems to underground car park installations and repairs.

How Resin Injection Works:

The process typically involves:

1. Crack Preparation: The crack is cleaned of loose debris, and surface ports or nipples are installed along its length at regular intervals.
2. Resin Selection: The choice of resin depends on the crack characteristics (width, whether it's wet or dry, structural requirements) and the specific application.
• Epoxy Resins: Known for their high strength and bonding capabilities, epoxies are ideal for structural repairs where the aim is to restore the original strength of the concrete. They are excellent for bonding cracked sections back together.
• Polyurethane Resins: These resins are highly effective for waterproofing. They react with water, expanding to fill voids and form a flexible, watertight seal. They are particularly useful for active leaks or cracks where water is present.
• Acrylic Resins: Often used for very fine cracks or for creating flexible waterproof membranes.
3. Injection: Using specialised pumps, the chosen resin is injected under pressure into the ports, starting from the lowest point and working upwards, or from one end of the crack. The resin penetrates the full depth and width of the crack, filling all voids.
4. Curing: The resin then cures, solidifying within the crack. Curing times vary depending on the resin type and environmental conditions.

Benefits of Resin Injection:

• Effective Waterproofing: Seals cracks against water and chloride ingress, preventing further corrosion.
• Structural Restoration: Epoxy resins can restore or even exceed the original structural strength of the concrete.
• Durability: Injected resins form a permanent, durable bond or seal.
• Cost-Effectiveness: Often a more economical solution than complete demolition and reconstruction or extensive patch repairs.
• Minimal Disruption: The process is relatively quick and causes less disruption to car park operations compared to other methods.
• Versatility: Can be used on a wide range of crack sizes and types, in both wet and dry conditions.
• Longevity: By preventing the ingress of corrosive agents, resin injection significantly extends the lifespan of the concrete structure.

Comparing Concrete Repair Methods

Choosing the right repair method for car park concrete issues depends on the nature and extent of the damage. While resin injection is excellent for sealing cracks and restoring integrity, other methods may be suitable for different scenarios.

Frequently Asked Questions About Car Park Concrete and Repair

Q1: How long does a concrete resin injection repair last?

A well-executed concrete resin injection repair, using high-quality materials and applied by experienced professionals, can last for many decades, often for the remaining lifespan of the structure. The durability largely depends on the type of resin used (e.g., epoxy for structural, polyurethane for flexible waterproofing) and whether the underlying cause of cracking (e.g., structural movement) has been adequately addressed or stabilised.

Q2: Can all cracks in a car park be repaired with resin injection?

No, not all cracks are suitable for resin injection. This method is most effective for dormant cracks (those not experiencing ongoing movement) or for active cracks where a flexible polyurethane resin can accommodate minor movements. Very wide cracks, severely deteriorated concrete, or cracks indicating major structural instability may require alternative or more comprehensive repair strategies, such as patch repairs, rebar replacement, or even structural strengthening.

Q3: What are the early signs of concrete corrosion I should look out for in a car park?

Early signs often include minor rust stains on the concrete surface, especially near expansion joints or areas prone to water pooling. You might also notice fine, linear cracks developing parallel to the steel reinforcement or subtle bulging of the concrete surface before spalling occurs. Any unusual damp patches or efflorescence (white powdery deposits) can also indicate water ingress, a precursor to corrosion.

Q4: Is regular maintenance of multi-storey car parks mandatory?

Yes, in the UK, maintaining multi-storey car parks to ensure their safety and structural integrity is a legal requirement under the Health and Safety at Work etc. Act 1974 and the Construction (Design and Management) Regulations 2015 (CDM Regulations). Owners and operators have a duty of care to ensure the structure is safe for users. Non-compliance with Health and Safety Executive (HSE) standards can lead to severe penalties, including fines and prosecution. Regular inspections and a proactive maintenance regime are essential to meet these obligations.

Q5: What exactly are de-icing salts, and how do they damage concrete?

De-icing salts typically refer to chemical compounds like sodium chloride (common rock salt), calcium chloride, or magnesium chloride, used to melt ice and snow. While effective at de-icing, when these salts dissolve in water, they release chloride ions. These ions are highly aggressive and can penetrate the concrete's protective layer, reaching the steel reinforcement. Once at the steel, they break down its passive oxide layer, initiating and accelerating the electrochemical process of corrosion. This leads to the expansion of the steel, causing the concrete to crack, spall, and ultimately compromise the structure's integrity.

Conclusion: Proactive Measures for Lasting Structures

The challenges facing multi-storey car parks are significant, but they are not insurmountable. The relentless attack of environmental factors, vehicle-borne contaminants, and the passage of time necessitates a proactive and informed approach to maintenance. Understanding the mechanisms of corrosion, recognising its early warning signs, and employing advanced repair solutions like concrete crack resin injection are paramount to ensuring the longevity and safety of these vital structures. By partnering with experts in concrete solutions, facility owners can navigate the complexities of maintenance, meet stringent health and safety standards, and protect their valuable assets from the pervasive threat of deterioration. Investing in timely and effective repairs today safeguards against far more costly and disruptive interventions tomorrow, ensuring car parks remain safe, functional, and compliant for years to come.
