How Laser Wheel Alignment Machines Work

The Science Behind Precise Wheel Alignment

Ensuring your vehicle's wheels are perfectly aligned is crucial for optimal tyre wear, fuel efficiency, and a smooth, safe driving experience. While manual alignment methods have been around for decades, modern automotive workshops increasingly rely on sophisticated computerised wheel alignment machines. These advanced systems take the guesswork out of this vital maintenance task, offering a level of precision that was once unimaginable. But how exactly do these high-tech machines work? Let's delve into the technology, focusing on leading systems like the Bee Line LC7580 Laser Wheel Alignment System.

From Manual Guesswork to Laser Precision

Traditionally, wheel alignment was performed using mechanical gauges and spirit levels. While these methods could achieve a reasonable result, they were susceptible to human error and environmental factors. The advent of infrared sensors marked an improvement, but it's the integration of laser technology that has truly revolutionised the field. Laser-guided systems offer superior accuracy, visibility, and real-time feedback, making them the gold standard for modern alignment procedures.

Understanding Computerised Alignment Systems: The Laser Advantage

Computerised wheel alignment machines, particularly those employing laser technology, operate on a straightforward yet highly effective principle. The core idea is to project precise beams of light onto the vehicle's wheels and then measure the angles and positions of these beams with extreme accuracy. This data is then processed by sophisticated software to provide a clear diagnosis of any alignment issues.

How Laser Systems Measure Alignment

Take, for instance, the Bee Line LC7500 Series, and specifically the adaptable LC7580 model. These systems utilise bright, highly visible laser beams. These beams are directed from a source (often mounted on the workshop's alignment rack) towards targets or sensors attached to each wheel. The beauty of lasers lies in their inherent straightness and narrow beam width, which minimises the potential for measurement error.

Unlike older systems that might measure alignment variables to the nearest hundredth of an inch (0.01"), Bee Line's advanced systems, such as the LC7580, can measure to an astonishing five thousandths of an inch (0.005"). This incredible precision ensures that even the slightest deviation from the manufacturer's specifications can be detected and corrected.

Key Alignment Variables Measured

These systems meticulously measure several critical alignment angles:

• Toe: The angle at which the tyres point inwards or outwards relative to the vehicle's longitudinal axis.
• Camber: The inward or outward tilt of the top of the tyre from the vertical.
• Caster: The angle of the steering axis relative to a vertical line in the side view of the vehicle.
• Kingpin Inclination (KPI): The angle of the steering axis in relation to the vertical when viewed from the front of the vehicle.
• Rear Tracking: The alignment of the rear wheels relative to the vehicle's centreline.

The "Live" Reading Advantage

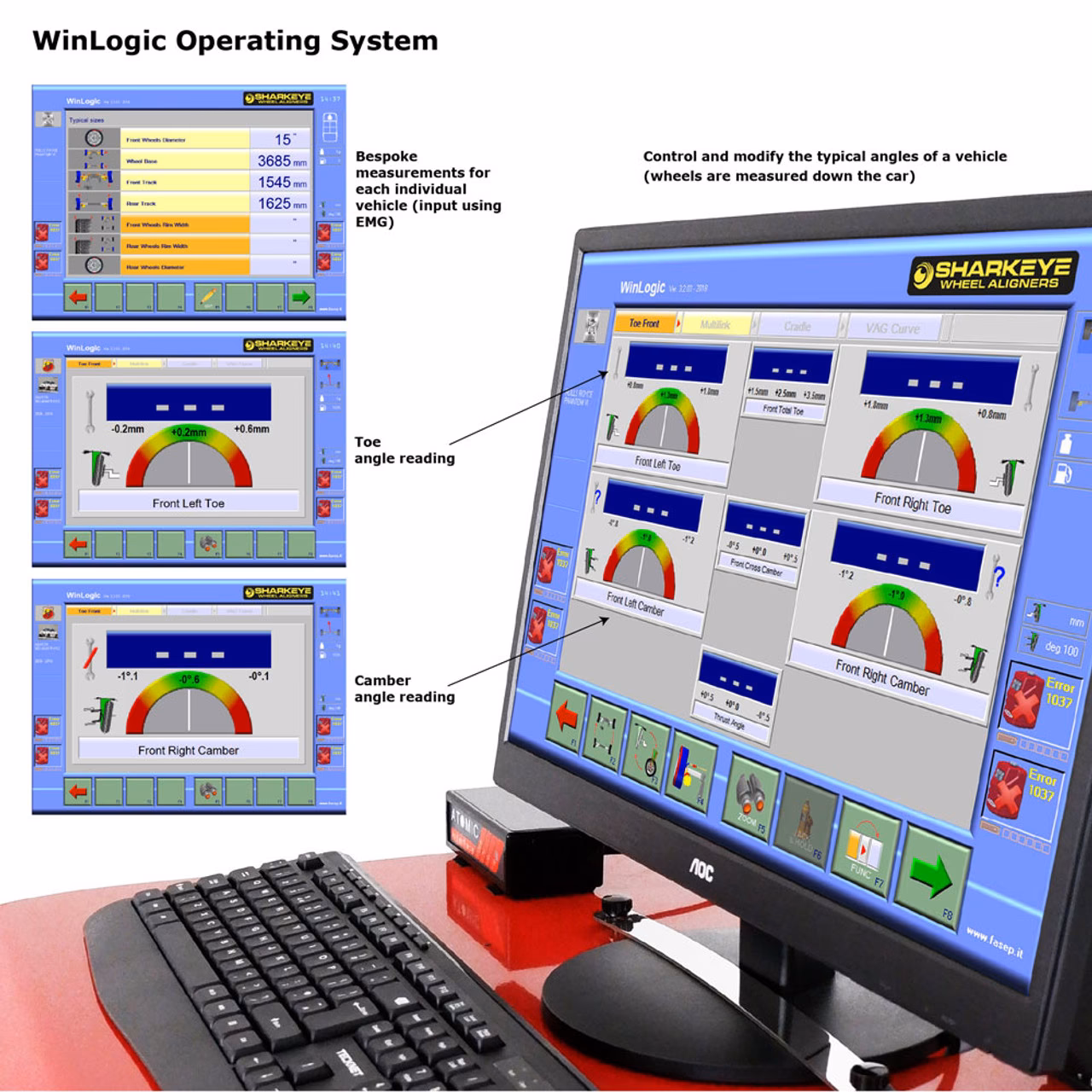

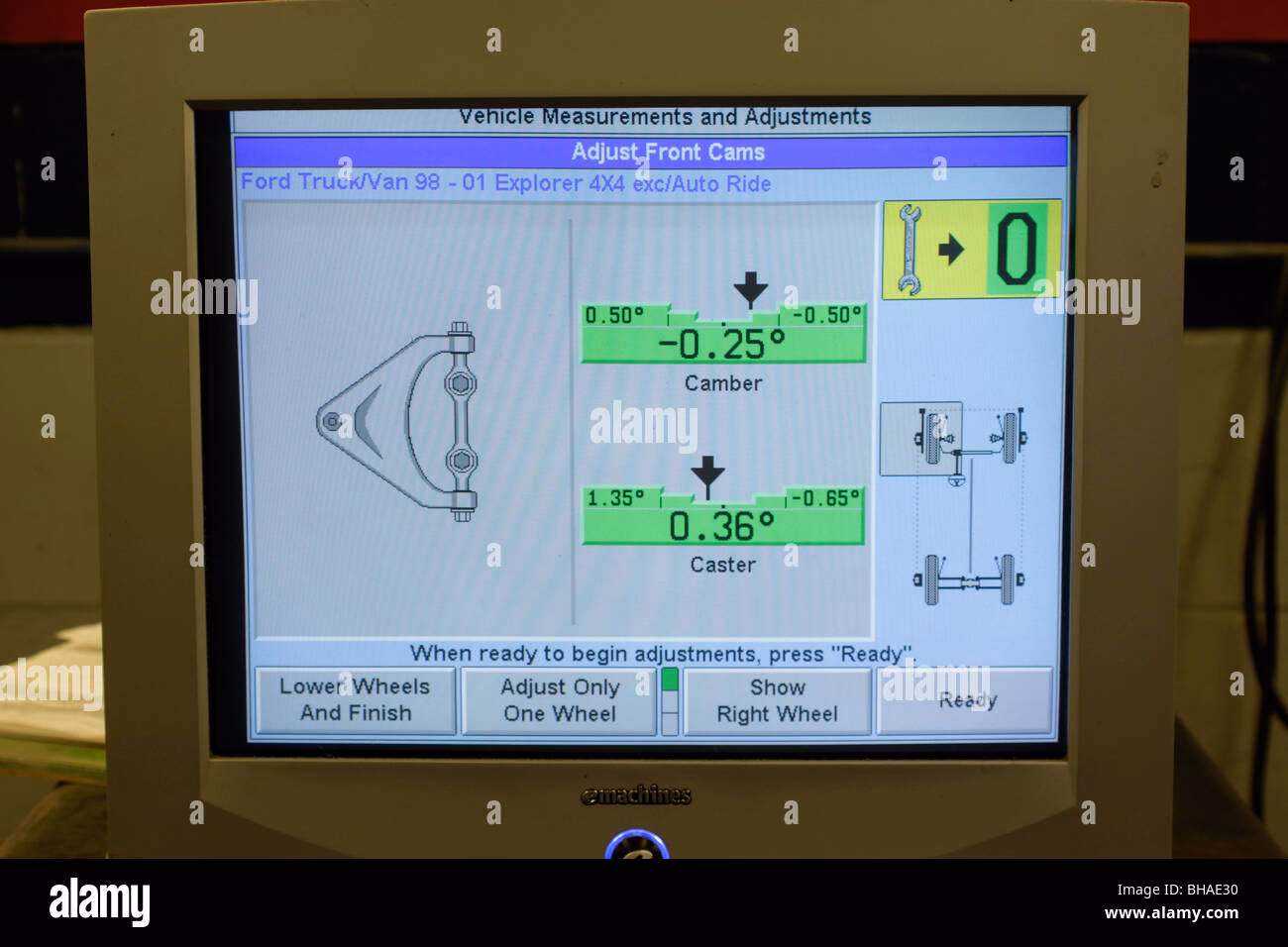

One of the most significant benefits of modern computerised alignment machines is the ability to perform adjustments with "live" readings. As a technician makes adjustments to the vehicle's suspension components (like tie rods or control arms), the alignment machine provides instant, real-time feedback on the computer screen or a wireless remote display. This means the technician can see precisely how each adjustment affects the toe, camber, and tracking angles as they are being made.

This dynamic feedback loop is invaluable for achieving accurate alignment efficiently. Instead of making an adjustment, taking a measurement, and repeating the process, the technician can fine-tune the alignment in one continuous, flowing operation. This not only saves time but also dramatically improves the accuracy of the final alignment.

Calibration: Ensuring Ongoing Accuracy

For any precision measuring equipment, regular calibration is paramount. Wheel alignment machines are no exception. Calibration ensures that the system's sensors and software are accurately reporting measurements. Bee Line systems, like the LC7500 Series, address this crucial aspect with built-in calibration capabilities.

This means that the alignment machine can be calibrated by the operator quickly and easily, often in just a few minutes. This in-house calibration capability offers several advantages:

• Reduced Downtime: No waiting for external calibration services.
• Cost Savings: Eliminates the expense of third-party calibration.
• Consistent Accuracy: Allows for frequent calibration to maintain peak performance.

By simplifying and internalising the calibration process, Bee Line ensures that workshops can always rely on the accuracy of their alignment readings.

The Bee Line LC7580: A Revolution in Alignment

The Bee Line LC7580 Laser Computer Wheel Alignment System is a prime example of how technology is enhancing automotive service. Its key features are designed to lower operational costs, boost productivity, and ultimately increase a workshop's profit potential.

Key Features and Benefits of the LC7580:

• Adaptability: Designed to be adaptable to ALL vehicles, including independent rear suspension vehicles, twin steer vehicles, and everything in between. This makes it the ultimate all-around alignment machine.
• Exceptional Accuracy: Utilises advanced laser technology for measurements to 0.005 inches, providing the most accurate readings available.
• Real-Time Feedback: "Live" readings on a high-resolution monitor (often a 32" screen) show adjustments as they happen, ensuring precision.
• User-Friendly Software: Features exclusive in-house software design with straightforward updates. The Windows-based operating system and on-board assist, remote diagnostics, and F1 help make training uncomplicated.
• Built-in Calibration: Offers easy, operator-performed calibration, reducing costs and downtime.
• Increased Productivity: Faster processing and quicker measurement cycles mean more vehicles can be serviced efficiently.

Choosing the Right System

Bee Line offers various systems within the LC7500 Series, each with similar core features but designed to meet specific needs. Whether it's the standard LC7500, the highly adaptable LC7580, or the mobile LC7550 featuring a Bee Line laptop, there's a solution for most automotive workshops. The decision often comes down to the types of vehicles serviced and the desired level of flexibility.

The Impact of Proper Wheel Alignment

Investing in a quality computerised wheel alignment system like those offered by Bee Line brings tangible benefits:

Frequently Asked Questions

Q1: How often should I get my wheel alignment checked?

A1: It's generally recommended to have your wheel alignment checked annually, or whenever you notice signs of uneven tyre wear, the vehicle pulling to one side, or after hitting a significant pothole or curb.

Q2: Can I perform a wheel alignment myself?

A2: While basic checks can be done, performing a professional wheel alignment requires specialised equipment like computerised alignment machines and a level workshop bay. For accurate results, it's best left to trained technicians.

Q3: What is the difference between a "toe" adjustment and a "thrust angle" adjustment?

A3: "Toe" refers to the angle of the wheels relative to each other. "Thrust angle" is the angle of the rear axle relative to the vehicle's centreline. A thrust angle issue indicates that the rear axle is not perpendicular to the vehicle's centreline, which can cause the vehicle to "dog track" (drive crooked).

Q4: Why are laser alignment systems considered more accurate?

A4: Lasers provide a very precise, straight line of light that is less susceptible to environmental factors or mechanical inaccuracies compared to older sensor technologies. The ability to measure to finer tolerances (e.g., 0.005 inches) further enhances their accuracy.

Conclusion

Computerised wheel alignment machines, particularly those utilising advanced laser technology, represent a significant leap forward in automotive maintenance. Systems like the Bee Line LC7580 offer unparalleled precision, real-time feedback, and user-friendly operation, empowering workshops to deliver superior service. By ensuring your vehicle's wheels are correctly aligned, you contribute to the longevity of your tyres, improve fuel economy, and enhance the overall safety and driving experience. If you're a workshop owner looking to upgrade your alignment capabilities, exploring these modern laser-guided systems is a wise investment.
