Honda K-Series Fuel Systems: Pump-to-Injector Explained

When discussing automotive engineering, the phrase “pump-to-injector fuel system” might seem like a technical mouthful, but at its core, it describes a fundamental process present in every modern internal combustion engine. In simple terms, it refers to the entire pathway that petrol takes from the fuel tank, through the pump, along the lines, and finally into the engine's injectors. For enthusiasts of Honda's legendary K-series engines – such as the K20A2, K20A3, K20Z1, K20Z3, and K24Z7 – understanding this system is paramount, especially when chasing higher horsepower (bhp) figures. While every Honda, by design, possesses a pump-to-injector fuel system, the question often arises in the performance community: does your K-series need an *upgraded* complete pump-to-injector fuel system?

The Standard Honda K-Series Fuel System: A Foundation of Reliability

To truly appreciate the need for an aftermarket upgrade, it's crucial to understand the stock setup. Honda's K-series engines are renowned for their robust design and excellent factory fuelling. A typical stock Honda fuel system consists of several key components working in harmony:

• Fuel Tank: Stores the petrol.
• In-Tank Fuel Pump: Submerged in the tank, it draws fuel and sends it under pressure towards the engine.
• Fuel Filter: Traps contaminants before they can reach the delicate fuel injectors.
• Fuel Lines: Conduits, usually metal or high-pressure rubber, that transport fuel from the tank to the engine bay.
• Fuel Rail: A manifold that distributes pressurised fuel evenly to all the injectors.
• Fuel Pressure Regulator (FPR): Maintains a consistent fuel pressure within the rail, returning excess fuel to the tank (return-style system) or regulating pressure at the pump (returnless system, common in newer models).
• Fuel Injectors: Electrically actuated valves that atomise and spray petrol directly into the engine's intake ports or combustion chambers.

For a stock K-series engine, this system is perfectly adequate. It's engineered to deliver precise amounts of fuel for optimal combustion, efficiency, and reliability under standard operating conditions. However, when modifications like turbochargers, superchargers, aggressive camshafts, or engine swaps begin to dramatically increase the engine's volumetric efficiency and demand for fuel, the limitations of the stock system quickly become apparent.

When "Pump-to-Injector" Means Performance: Aftermarket Solutions

The term "complete pump-to-injector fuel system" in the performance world often refers to an engineered package designed to support significantly higher bhp goals than the factory setup. This is where specialists like DeatschWerks come into play. They have developed comprehensive solutions specifically for K20A2, K20A3, K20Z1, K20Z3, and K24Z7 powered Hondas, aimed at removing the fuelling bottlenecks that arise with increased power output.

An aftermarket performance fuel system isn't just about one component; it's about ensuring every link in the chain can handle the increased demand. Upgrading one part without considering the others can lead to imbalances, inconsistent fuelling, and potentially dangerous lean conditions.

Key Components of an Upgraded Fuel System

To effectively support higher bhp, a performance fuel system typically involves upgrading several critical components:

1. High-Flow Fuel Pump

The heart of any fuel system, a high-flow pump is essential for delivering the sheer volume of petrol required by a modified engine. Stock pumps are generally rated for up to a certain horsepower level, beyond which they struggle to maintain adequate pressure and flow. Aftermarket pumps, like the DW300C 340lph compact pump mentioned, offer significantly higher flow rates, ensuring the engine receives sufficient fuel even under extreme loads. While the DW300C is specifically mentioned for certain Honda Civic (2012-2016) and Accord (2013-2017) models, its compact design and high output make it a popular choice for various performance applications, including K-series swaps in different chassis.

2. Larger Fuel Lines

Just as a wider hose allows more water to flow, larger diameter fuel lines reduce restriction and allow for greater fuel volume delivery. Stock lines can become a bottleneck with high-flow pumps and injectors. Aftermarket lines often use AN (Army-Navy) fittings for secure, leak-free connections and are typically constructed from materials resistant to modern fuels, including ethanol blends.

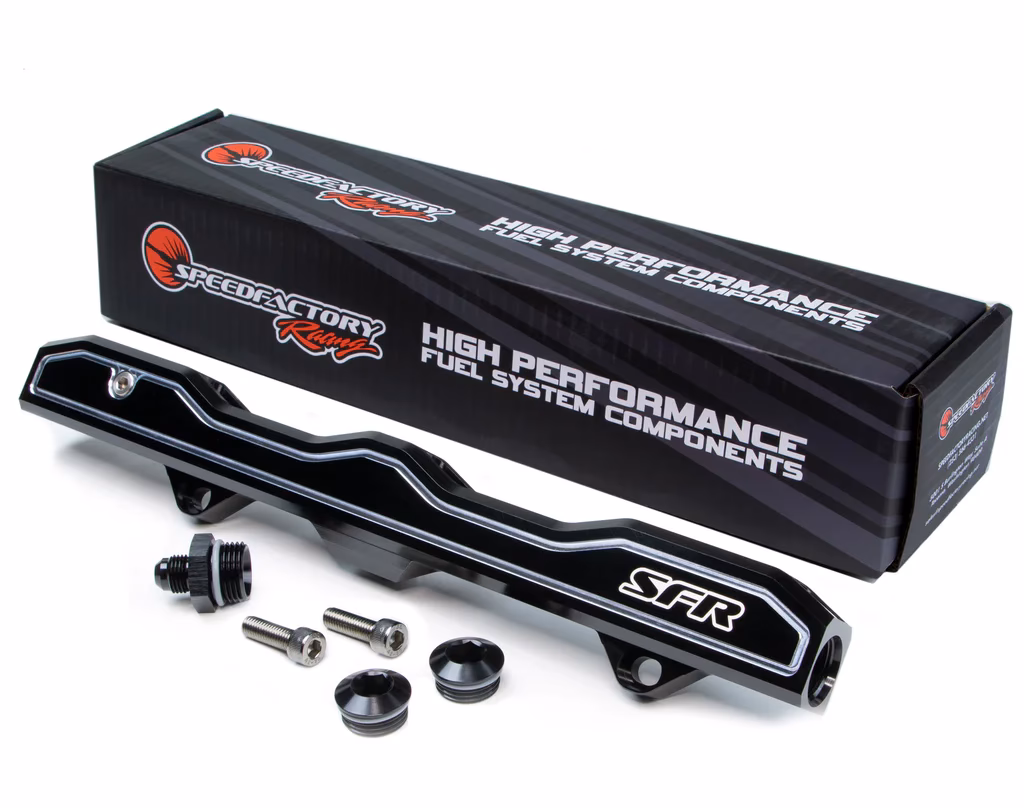

3. High-Flow Fuel Rail

A performance fuel rail is designed with a larger internal bore to ensure even distribution of fuel pressure and volume to all injectors, preventing pressure drops at individual cylinders, especially during high-RPM operation. They are often made from billet aluminium for strength and corrosion resistance.

4. High-Volume Fuel Injectors

These are perhaps the most direct way to increase fuel delivery. Measured in cubic centimetres per minute (cc/min) or pounds per hour (lb/hr), performance injectors have a much higher flow rate than their stock counterparts. It's crucial to select injectors that match your engine's power goals and are compatible with your ECU and tuning strategy. Factors like spray pattern and atomisation quality are also important for efficient combustion.

5. Adjustable Fuel Pressure Regulator (FPR)

An aftermarket FPR allows for precise adjustment of fuel pressure, which is vital for fine-tuning the engine's fuelling. Most performance setups utilise a return-style FPR, which ensures a constant flow of fuel through the rail and back to the tank, helping to cool the fuel and maintain stable pressure.

6. Performance Fuel Filter

Often overlooked, a high-flow, serviceable fuel filter is critical. It must be capable of handling the increased flow rates without becoming a restriction, while still effectively filtering out contaminants to protect the expensive injectors.

Why Upgrade? The Pursuit of Horsepower and Reliability

The primary motivation for upgrading to a complete pump-to-injector fuel system is to safely support increased engine output. When you add forced induction (turbocharger or supercharger), perform an engine swap, or implement aggressive engine tuning, the engine demands significantly more petrol. A stock fuel system will simply be unable to keep up, leading to a condition known as running lean. A lean condition means there isn't enough fuel for the amount of air entering the engine, which can cause dangerously high combustion temperatures, leading to pre-ignition, detonation, and ultimately, catastrophic engine damage. An upgraded system ensures your engine receives the precise amount of fuel it needs, preventing these issues and allowing you to fully exploit your K-series' performance potential.

Furthermore, the use of alternative fuels like E85 (ethanol blend) also necessitates a more robust fuel system. E85 has a lower energy density than petrol, meaning you need to inject approximately 30-40% more of it by volume to achieve the same power. This dramatically increases the demand on all fuel system components, from the pump to the injectors. Additionally, ethanol can be corrosive to certain materials found in older or stock fuel systems, making material compatibility another crucial factor for performance upgrades.

Choosing the Right System and Professional Installation

Selecting the correct components for your specific K-series engine and power goals is vital. It's not a one-size-fits-all situation. Factors such as desired bhp, chosen fuel type (petrol, E85, etc.), and the specific K-series variant (K20A2, K20A3, K20Z1, K20Z3, K24Z7) will all influence component selection. It’s highly recommended to consult with experienced tuners or performance shops. Moreover, the installation of a performance fuel system is not a task for the inexperienced. Incorrect installation can lead to leaks, fire hazards, and engine damage. Professional installation ensures safety and optimal performance. After any significant fuel system upgrade, a custom ECU tune is absolutely essential to correctly calibrate the engine's fuelling maps for the new components.

Comparative Table: Stock vs. Performance K-Series Fuel System

To illustrate the differences, consider this comparison:

Frequently Asked Questions About Honda K-Series Fuel Systems

Q: What exactly is a "pump-to-injector" fuel system?

A: Fundamentally, it describes the entire path fuel takes from the fuel tank, through the fuel pump, fuel lines, fuel rail, and finally into the engine's fuel injectors. In the performance context, it often refers to a comprehensively upgraded system designed to support higher horsepower levels.

Q: Does my stock Honda K-series already have a pump-to-injector fuel system?

A: Yes, every modern internal combustion engine, including your stock Honda K-series, has a complete fuel system that delivers petrol from the tank to the injectors.

Q: How do I know if I need to upgrade my K-series fuel system?

A: If you're planning significant engine modifications such as forced induction (turbo/supercharger), aggressive cam upgrades, or aiming for power levels significantly above stock (typically over 250-300 bhp, depending on the K-series variant), an upgraded fuel system is highly recommended to prevent lean conditions and engine damage. Using E85 fuel also necessitates an upgrade.

Q: Can I just upgrade my fuel pump and keep the stock lines and injectors?

A: While possible for very modest power gains, it's generally not advisable for significant increases. A high-flow pump can overwhelm stock lines and injectors, leading to inconsistent pressure or reaching the flow limits of other components. A balanced approach where all components are matched to your power goals is crucial.

Q: What are the risks of not upgrading my fuel system when increasing power?

A: The primary risk is running too lean, meaning insufficient fuel for the air entering the engine. This leads to excessively high combustion temperatures, which can cause pre-ignition, detonation, and severe engine damage, including melted pistons, bent rods, and damaged cylinder heads.

Q: Is it safe to run E85 in my stock K-series fuel system?

A: Generally, no. E85 requires a significantly higher volume of fuel delivery (30-40% more) than petrol, which will quickly exceed the capacity of a stock fuel pump and injectors. Furthermore, ethanol can be corrosive to certain materials used in older or stock fuel lines and seals, potentially leading to leaks and component failure. A full E85-compatible fuel system upgrade is required.

Q: How important is tuning after a fuel system upgrade?

A: Crucially important. After installing an upgraded fuel system, the engine's ECU must be custom-tuned to account for the increased fuel delivery capacity. Without a proper tune, the engine will likely run excessively rich or lean, leading to poor performance, reduced efficiency, and potential damage. Professional tuning is non-negotiable for safety and optimal performance.

In conclusion, while your Honda K-series already has a functional pump-to-injector fuel system from the factory, the journey into high-performance modifications almost certainly necessitates an upgrade. Investing in a complete, engineered solution from a reputable manufacturer, coupled with professional installation and expert tuning, is the only way to safely and reliably achieve your ambitious bhp targets for your K20A2, K20A3, K20Z1, K20Z3, or K24Z7 powered Honda.
