Unlocking Performance: Common Rail Injection

In the evolving world of automotive technology, few innovations have had as profound an impact on diesel engines as Common Rail (CR) injection. This sophisticated fuel delivery system has redefined what's possible in terms of engine performance, fuel efficiency, and environmental responsibility. Moving far beyond older mechanical systems, Common Rail technology offers unparalleled precision and control, making modern diesel vehicles cleaner, more powerful, and remarkably economical. If you've ever wondered what truly sets contemporary diesel engines apart, the answer often lies within this ingenious system.

First conceptualised in the early 20th century and finding its initial significant applications in submarine diesel engines during the 1910s, Common Rail has undergone continuous refinement. From its humble beginnings to its widespread adoption across virtually all non-commercial diesel vehicles today, its journey is a testament to its transformative capabilities. This article will delve into the intricacies of Common Rail injection, exploring its fundamental principles, comparing it with conventional and unit injection systems, and highlighting the myriad benefits it brings to the road.

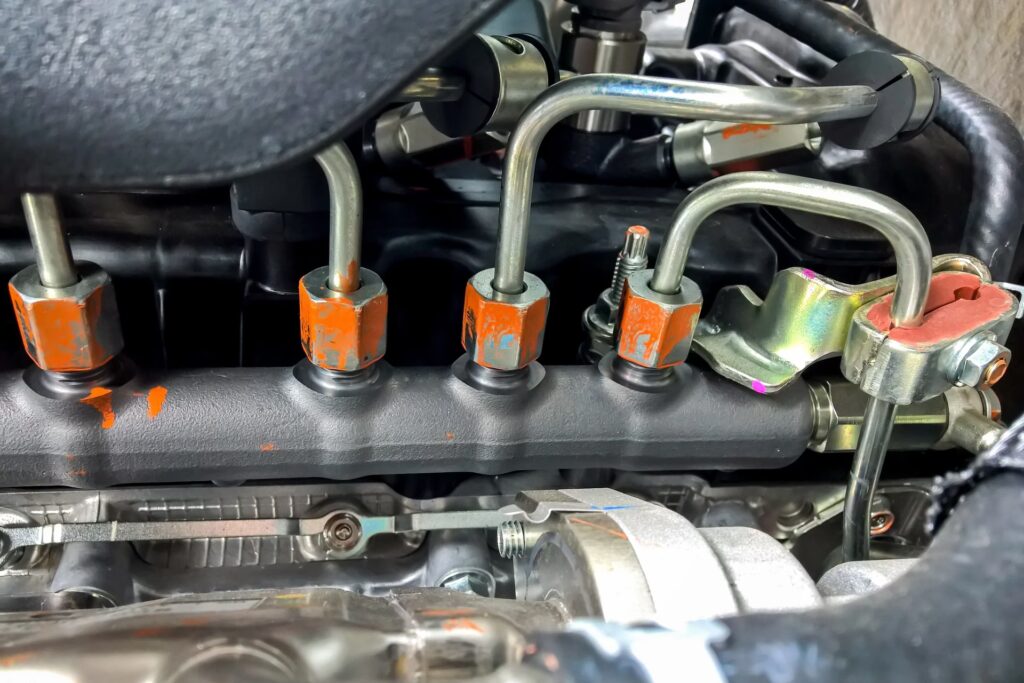

What is a Common Rail Diesel Fuel System?

At its heart, a Common Rail diesel fuel system is an advanced method of fuel delivery that stands in stark contrast to earlier, more rudimentary designs. Unlike conventional systems that rely on a mechanical pump to directly deliver fuel to the engine, Common Rail systems employ a high-pressure pump that feeds fuel into a shared, high-pressure accumulator – the 'common rail' itself. This rail then supplies fuel to individual injectors, but crucially, the pressure in the rail is maintained independently of engine speed, unlike older cam-driven systems.

The primary characteristic that distinguishes Common Rail systems is their unparalleled ability to deliver fuel at exceptionally high pressures, often exceeding 2,000 bar (200 MPa or 29,000 psi), and in third-generation systems, even reaching up to 2,500 bar. This immense pressure enables the fuel to be injected as a much larger number of incredibly small droplets, significantly increasing the surface area-to-volume ratio. This superior atomisation leads to vastly improved vaporisation of the fuel, ensuring a more efficient and complete combustion process within the cylinder.

Furthermore, the electronic control unit (ECU) governs the fuel injectors in a Common Rail system. These injectors, typically utilising solenoid or piezoelectric valves, allow for incredibly fine electronic control over the fuel-injection time and quantity. This precise management enables features such as 'pilot' injection – a small amount of diesel injected just before the main event to reduce noise and vibration – and multiple injections per engine cycle, further optimising combustion, fuel efficiency, and emissions.

Evolution of Diesel Fuel Injection: A Historical Perspective

The journey of diesel fuel injection from its mechanical origins to the sophisticated Common Rail systems of today is a fascinating tale of engineering innovation. Early diesel engines relied on simple, direct injection methods where a mechanical pump delivered fuel directly to the cylinders. While effective for their time, these systems lacked the precision and flexibility needed for modern performance and emission standards.

One of the earliest documented uses of a mechanical common rail system was by Vickers in 1916 for their G-class submarine engines. This system used four plunger pumps to maintain a constant injection pressure, with valves shutting off fuel delivery to individual cylinders. Later, Doxford Engines famously employed a common rail system in their opposed-piston marine engines from 1921 to 1980, utilising a multi-cylinder reciprocating fuel pump and accumulator bottles to achieve pressures around 600 bars.

The conceptual leap towards automotive Common Rail occurred in the late 1960s with Robert Huber of Switzerland, and further developed by Dr. Marco Ganser. However, the first practical application in a road vehicle was the MN 106-engine by East German VEB IFA Motorenwerke Nordhausen in 1985, though it never reached mass production due to funding issues.

The real breakthrough for mass-produced vehicles came in 1995 when Dr. Shohei Itoh and Masahiko Miyaki of Denso Corporation developed the ECD-U2 common rail system, first seen on the Hino Ranger truck in Japan. Denso thus lays claim to the first commercial high-pressure common rail system. In Europe, the modern Common Rail system, prototyped by Magneti Marelli, Centro Ricerche Fiat, and Elasis, was acquired by Robert Bosch GmbH due to Fiat's financial constraints. Bosch refined the design, leading to its mass production.

The first passenger car to feature this revolutionary system was the 1997 Alfa Romeo 156 with its 2.4-L JTD engine, quickly followed by Mercedes-Benz in their W202 model the same year. Common Rail technology soon permeated the pickup truck market, appearing in the 6.6-litre Duramax LB7 V8 in 2001, followed by Dodge and Cummins in 2003, and Ford in 2008. Today, it is the standard in nearly all non-commercial diesel vehicles, highlighting its undeniable superiority.

Common Rail vs. Other Diesel Injection Systems

To truly appreciate the advantages of Common Rail, it's essential to understand how it differs from its predecessors:

Conventional/Direct Injection System

The classic direct injection system, also known as conventional, uses a mechanical pump to deliver fuel. The pump is responsible for generating the pressure required to inject fuel into the engine. Its performance is fundamentally limited compared to the high-pressure pumps found in Common Rail systems. In these older setups, injection pressure is proportional to engine speed, meaning the highest pressures are only achievable at peak RPMs. This results in less precise fuel delivery, especially at lower engine speeds, impacting efficiency and emissions. Despite these limitations, conventional systems remain reliable and cost-effective for older engines or applications where simplicity and budget are paramount.

Unit Injection System (UIS)

Often considered the middle ground, the Unit Injection System (UIS), or Pump Nozzle System, incorporates the high-pressure pump and the injector into a single, compact unit for each cylinder. This design simplifies the fuel lines and allows for more precise fuel control than conventional systems. UIS offers improved cold-start performance because the integrated pump can generate sufficient pressure even in colder conditions, and it provides smoother operation due to better fuel flow control. However, while more advanced than conventional systems, UIS still cannot match the ultra-high pressures and flexible multiple injection capabilities of Common Rail systems, making it a good balance of performance and cost-effectiveness but not the pinnacle of technology.

Comparative Overview

The Technical Advantage of Common Rail Direct Injection

The true genius of Common Rail Direct Injection (CRDI) lies in its sophisticated electronic control and hydraulic design. Fuel is not just delivered; it is precisely managed and metered with incredible accuracy. Here's a deeper look into the technical aspects that grant CRDI its superior edge:

• Electronically Controlled Precision: At the core of every modern CRDI system is an Engine Control Unit (ECU). This sophisticated computer continuously monitors various engine parameters – such as engine speed, load, temperature, and throttle position – to precisely determine the optimal injection timing, quantity, and pressure. This dynamic adjustment ensures peak performance across the entire operating range, not just at specific points.
• High-Pressure Accumulation: Unlike systems where pressure is generated on demand for each injection, CRDI maintains fuel at a consistently high pressure within the common rail. This 'accumulator' ensures that fuel is always ready for injection at the desired pressure, irrespective of other cylinders' injection events. This constant high pressure leads to finer atomisation, where fuel is converted into a very fine mist, promoting more complete and efficient combustion.
• Multiple Injection Events: One of the most significant advantages is the ability to perform multiple injection events per combustion cycle. This includes:
  • Pilot Injection: A small amount of fuel is injected just before the main injection. This pre-injection initiates a controlled combustion, reducing the sudden pressure rise that causes diesel 'knock' and significantly lowering engine noise and vibration.
  • Main Injection: The primary fuel delivery for power generation.
  • Post-Injection: Additional small injections after the main event can be used for various purposes, such as regenerating a diesel particulate filter (DPF) by raising exhaust gas temperatures or further reducing NOx emissions.

  This multi-stage injection process allows for a much smoother and more controlled combustion, leading to cleaner burning and improved efficiency.

• Variable Pressure Delivery: The ECU can vary the pressure in the common rail based on operating conditions. For instance, higher pressures are used for demanding conditions like acceleration or heavy loads, while lower pressures might be employed during idling or light cruising. This flexibility optimises fuel economy and reduces emissions across a wider range of driving scenarios.
• Advanced Injector Technology: Modern Common Rail systems increasingly utilise piezoelectric injectors over solenoid valves. Piezoelectric injectors react much faster and with greater precision, allowing for even finer control over injection timing and quantity, and enabling up to five or more injection events per stroke. This enhanced responsiveness contributes to superior fuel atomisation and combustion control.

Benefits of Common Rail Injection

The technical sophistication of Common Rail injection translates into a wealth of tangible benefits for vehicle owners and the environment alike:

• Improved Fuel Efficiency: The precise control over injection timing, quantity, and pressure, combined with superior fuel atomisation, ensures that virtually every drop of fuel is combusted efficiently. This leads to better fuel economy, directly impacting your running costs.
• Lower Emissions: More complete combustion significantly reduces harmful particulate matter (soot) and nitrogen oxides (NOx) emissions, helping vehicles comply with stringent modern emission regulations (e.g., Euro 6 in the UK). The ability to perform multiple injections also aids in exhaust aftertreatment processes.
• Enhanced Power Delivery and Torque: The consistent high pressure and precise fuel metering allow for optimal combustion, even at lower engine speeds. This results in improved torque characteristics across the entire RPM range, meaning better responsiveness, smoother acceleration, and more effective power delivery under varying load conditions.
• Reduced Noise and Vibration: The 'pilot' injection strategy, where a small amount of fuel is injected before the main event, significantly softens the combustion process. This reduces the characteristic harshness and noise associated with older diesel engines, leading to a much quieter and more refined driving experience.
• Better Cold Start Performance: While Unit Injection Systems are noted for this, Common Rail systems also offer excellent cold start capabilities due to their ability to quickly build and maintain high fuel pressure, ensuring effective atomisation even in low temperatures.
• Improved Engine Longevity: Cleaner burning engines produce fewer carbon deposits and experience less component wear. This translates to extended service intervals and better long-term reliability of engine components, potentially reducing maintenance costs over the vehicle's lifespan.
• Greater Driving Refinement: The combination of reduced noise, smoother power delivery, and improved responsiveness contributes to a significantly more refined and enjoyable driving experience, bringing diesel engines closer to the characteristics traditionally associated with petrol engines.

Applications and Future of Common Rail

Since its widespread adoption in the late 1990s, Common Rail technology has become ubiquitous across a broad spectrum of diesel-powered applications. From the smallest city cars like the Fiat Panda to luxurious executive saloons such as the Audi A8, and from heavy-duty pickup trucks to marine vessels and locomotives, Common Rail is the dominant fuel injection system. Major suppliers like Bosch, Delphi Technologies, Denso, and Continental AG continue to innovate, pushing the boundaries of pressure and control.

The future of Common Rail technology, even amidst the global shift towards electric vehicles, remains relevant for commercial transport, industrial machinery, and certain long-haul applications where the energy density of diesel fuel is still critical. Continuous development focuses on even higher injection pressures, more sophisticated multi-injection strategies, and tighter integration with exhaust aftertreatment systems to meet ever more stringent emission standards. The adaptability and efficiency of Common Rail ensure its place as a cornerstone of internal combustion engine technology for years to come.

Frequently Asked Questions About Common Rail Injection

Q1: Is Common Rail only for diesel engines?

While Common Rail is predominantly associated with diesel engines, the underlying principle of direct fuel injection from a common high-pressure rail is also the basis for modern gasoline direct injection (GDI) systems used in petrol engines. So, while the fuel type differs, the core concept is similar.

Q2: How often do Common Rail injectors need replacing?

The lifespan of Common Rail injectors can vary significantly based on fuel quality, maintenance, and driving conditions. Generally, they are designed to last for well over 100,000 miles, but issues like contaminated fuel can drastically reduce their life. Regular fuel filter replacement and using high-quality fuel are crucial for longevity.

Q3: Can Common Rail systems handle different types of diesel fuel?

Modern Common Rail systems are designed to be quite robust, but they are highly sensitive to fuel quality. Using contaminated or low-quality diesel can lead to rapid wear and damage to the high-pressure pump and injectors due to their extremely tight tolerances. It's always recommended to use fuel that meets the specified standards for your vehicle.

Q4: Why are Common Rail systems sometimes more expensive to repair?

The high precision and advanced technology involved in Common Rail components, especially the injectors and high-pressure pump, make them more expensive to manufacture and, consequently, to replace. The system also operates at extremely high pressures, requiring specialised tools and expertise for diagnosis and repair, contributing to higher labour costs.

Q5: Does Common Rail technology require specific maintenance?

Beyond standard vehicle servicing, specific maintenance for Common Rail systems primarily revolves around ensuring fuel purity. This means adhering strictly to recommended fuel filter replacement intervals, and being mindful of fuel quality. Any signs of fuel system issues, such as rough running, excessive smoke, or a loss of power, should be addressed promptly by a qualified mechanic.

Q6: What are some common acronyms for Common Rail engines?

Manufacturers often use their own branding. Some common ones include: JTD (Fiat/Alfa Romeo), CDI (Mercedes-Benz), TDI (Volkswagen/Audi), dCi (Renault/Nissan), TDCi (Ford), CDTi (Opel/Vauxhall), CTDi (Honda), D-4D (Toyota), CRDi (Hyundai/Kia), and XDi (SsangYong).

Summing Up

The Common Rail injection system represents a monumental leap forward in diesel engine technology. By meticulously controlling fuel delivery at incredibly high pressures, it has transformed diesel vehicles from noisy, less efficient workhorses into refined, powerful, and environmentally conscious machines. Its ability to finely tune combustion through multiple, precise injections has unlocked unprecedented levels of fuel efficiency, drastically reduced emissions, and significantly enhanced overall driving performance and refinement.

Understanding the principles and benefits of Common Rail technology is key for any vehicle owner or enthusiast today. Whether you're considering a new diesel car or maintaining an existing one, recognising the importance of this sophisticated system, and ensuring its proper care, will help keep your engine running smoothly and efficiently for years to come. The Common Rail system isn't just an improvement; it's a fundamental pillar of modern automotive engineering, providing the power, efficiency, and cleanliness we expect from today's vehicles.
