Understanding Common Rail Fuel Injection

In the evolving landscape of automotive technology, the common rail fuel injection system stands as a cornerstone for modern diesel engines. This sophisticated technology has dramatically transformed how fuel is delivered to the engine's combustion chambers, leading to significant advancements in efficiency, performance, and emissions control. Gone are the days of mechanically limited fuel delivery; common rail technology ushers in an era of electronic precision, allowing for unprecedented control over the combustion process. For anyone interested in the inner workings of their vehicle, or simply curious about what makes today's diesel engines so remarkably refined, understanding this system is absolutely key.

What Exactly is a Common Rail Fuel Injection System?

At its heart, a common rail fuel injection system is an advanced method of fuel delivery for diesel engines. Unlike older, conventional systems where fuel pressure was generated individually for each injector at the point of injection, a common rail system uses a single, high-pressure accumulator – the 'common rail' – to store fuel under immense pressure. This pressurised fuel is then distributed to all the injectors. The crucial innovation lies in the separation of pressure generation from the actual injection process. This allows for far greater flexibility and control over when, how much, and how often fuel is injected into the cylinders.

The concept itself is straightforward yet incredibly powerful. Imagine a central reservoir of highly pressurised fuel, ready to be deployed instantly. This constant, high pressure ensures that fuel atomisation – the breaking down of fuel into a fine mist – is exceptionally efficient, which is vital for complete and clean combustion. This system's ability to maintain pressure independently of engine speed or load is a significant leap forward, providing optimal injection conditions across the entire operating range of the engine.

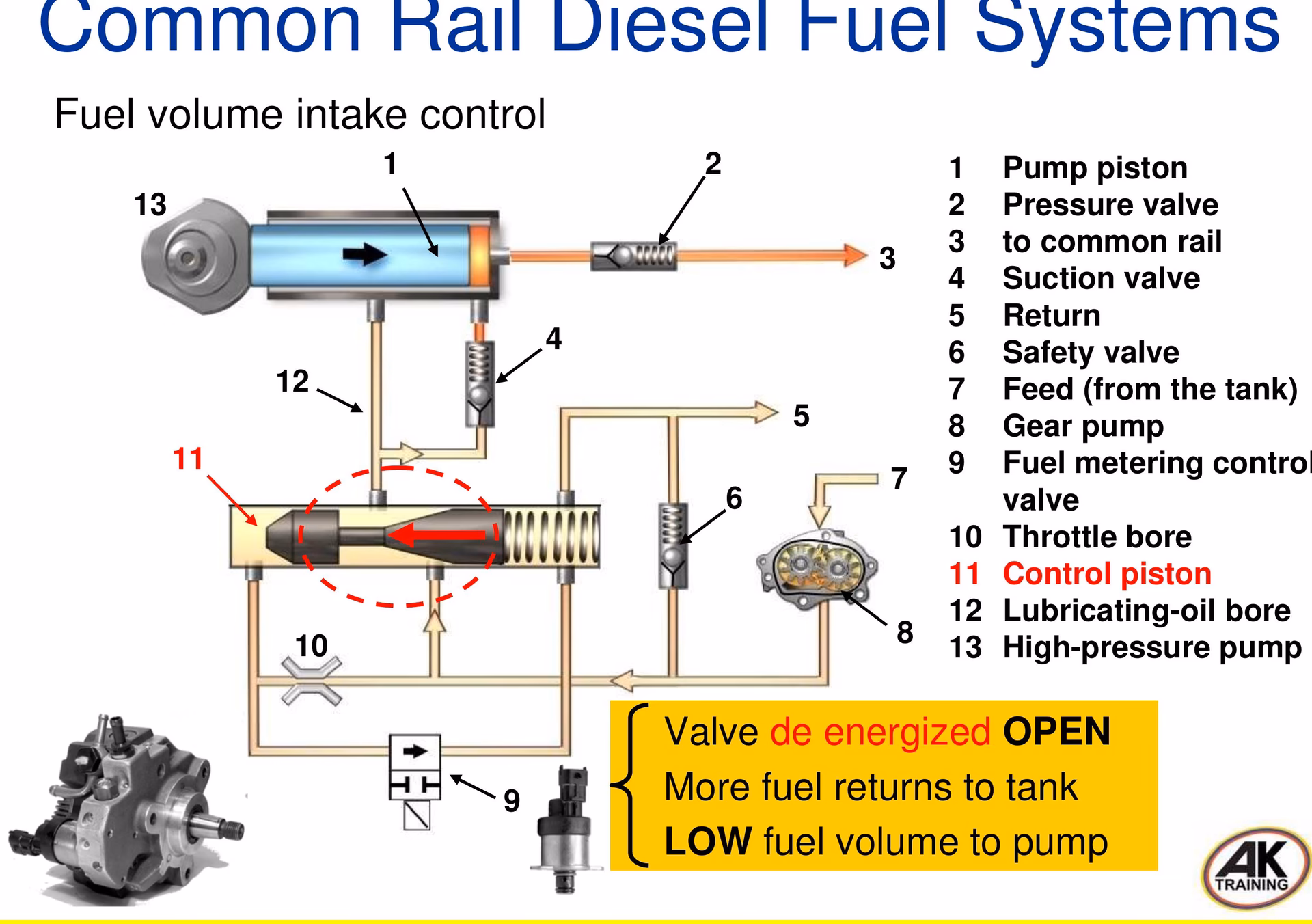

The Bosch Common Rail System (Bosch CRS): A Global Standard

When discussing common rail technology, it's virtually impossible to ignore the pioneering work of Bosch. The Bosch Common Rail Fuel Injection System (Bosch CRS) is not merely a component; it's a comprehensive, innovative, and highly efficient high-pressure injection technology that has become a benchmark in the automotive industry. Bosch's commitment to research and development has made their CRS a cornerstone for making today’s vehicles more attractive than ever before, combining robust performance with outstanding economy and reduced environmental impact.

The Bosch CRS is inherently modular, consisting of three primary components that work in harmony:

• The High-Pressure Pump: Responsible for generating the immense pressure required for the system.
• The Rail (Accumulator): A robust pipe that stores the highly pressurised fuel, acting as a buffer to maintain constant pressure.
• The Injectors: Electronically controlled valves that precisely atomise and deliver fuel into the combustion chambers.

This modular design allows for system scalability and adaptability across a wide range of engine sizes and applications, from compact passenger cars to heavy-duty commercial vehicles. Bosch's continuous refinement of these components has led to systems capable of operating at ever-increasing pressures, pushing the boundaries of diesel engine efficiency.

How Does a Common Rail Fuel Injection System Work? A Detailed Breakdown

The operation of a common rail system is a fascinating ballet of mechanical and electronic precision. It begins with the fuel in the tank and culminates in the finely controlled combustion within the engine cylinders. Here’s a step-by-step look at its intricate workings:

1. Fuel Supply and Low Pressure Stage

The journey begins with a low-pressure supply pump (often an electric lift pump) drawing fuel from the tank. This fuel is then directed through a sophisticated fuel filter, which is crucial for removing impurities and water that could severely damage the precision components of the high-pressure system. From here, the filtered fuel is delivered to the high-pressure pump.

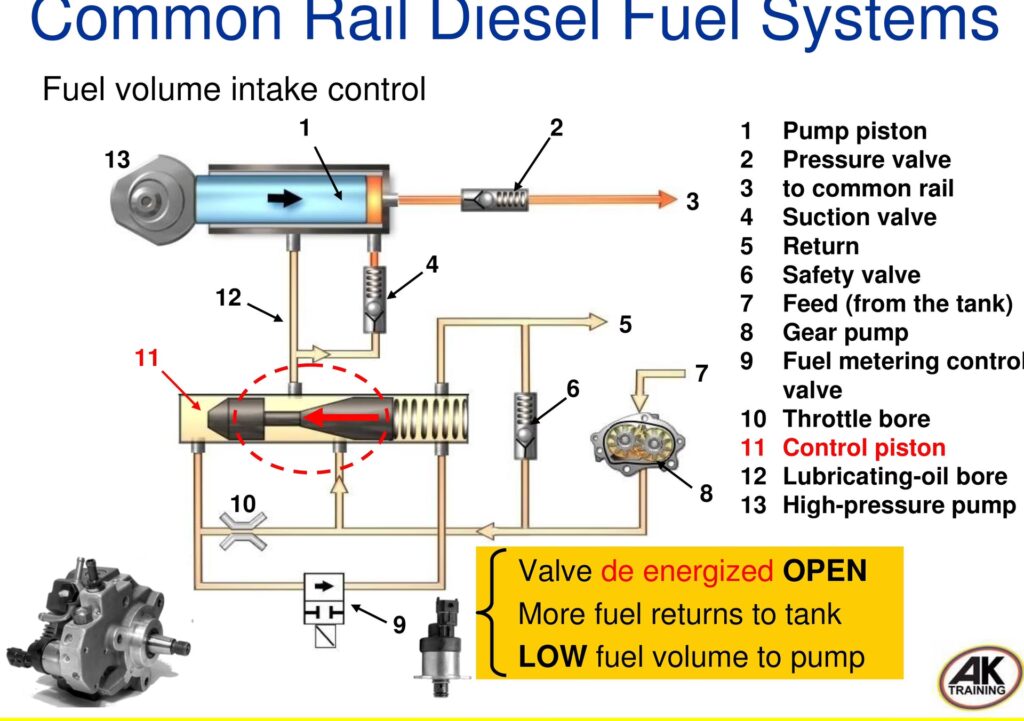

2. High-Pressure Generation

The high-pressure pump is the workhorse of the system. Unlike older systems, this pump continuously generates pressure, irrespective of injection events. It takes the low-pressure fuel and compresses it to extremely high levels – often exceeding 180 MPa (1800 bar) in second-generation systems, and even higher in newer iterations (up to 250 MPa or more). This pump is typically driven by the engine's camshaft or crankshaft and features precise control mechanisms to regulate the output pressure based on engine demands.

3. The Common Rail: Pressure Accumulation and Distribution

The highly pressurised fuel from the pump flows into the common rail. This robust, thick-walled pipe acts as a hydraulic accumulator, maintaining a constant pressure for all connected injectors. Its design helps to dampen pressure pulsations created by the high-pressure pump and the opening/closing of the injectors, ensuring a stable and consistent pressure supply. Sensors within the rail continuously monitor the fuel pressure, providing feedback to the Electronic Control Unit (ECU).

4. Precision Injection: The Injectors

The injectors are the final, and perhaps most critical, components in the fuel delivery chain. Each injector is a highly sophisticated, electronically controlled solenoid valve (or increasingly, a piezo-electric valve). The ECU dictates precisely when and for how long each injector opens, allowing for incredibly accurate control over the fuel quantity injected into each cylinder.

Modern common rail systems are capable of performing multiple injection events within a single combustion cycle:

• Pilot Injection: A tiny amount of fuel injected before the main injection to initiate combustion smoothly, reducing engine noise and improving cold starting.
• Main Injection: The primary fuel delivery for power generation.
• Post-Injection: One or more small injections after the main event, often used to raise exhaust gas temperatures for exhaust aftertreatment systems (like Diesel Particulate Filters, DPFs) or to further reduce emissions.

This multi-injection capability, combined with the extreme injection pressure, ensures superior atomisation, leading to more complete combustion, reduced emissions, and improved fuel economy.

5. The Control System: The Brains of the Operation

The entire common rail system is orchestrated by the Electronic Control Unit (ECU). The ECU receives real-time data from numerous sensors throughout the engine and vehicle – including engine speed, load, temperature, accelerator pedal position, and rail pressure. Based on this information and complex algorithms, the ECU precisely calculates the optimal injection timing, pressure, and quantity for each cylinder at any given moment. This unparalleled level of control is what gives common rail engines their remarkable efficiency and refined performance.

Injection Rate and High Pressure: Key to Performance

The performance of a common rail system is profoundly influenced by two interconnected factors: injection pressure and injection rate. As mentioned, second-generation common rail systems inject fuel at an extremely high pressure of 180 MPa (1800 bar), with newer systems pushing far beyond. This immense pressure is crucial because it ensures that the fuel is atomised into an incredibly fine mist as it exits the nozzle. Finer atomisation means a larger surface area for the fuel to mix with air, leading to more rapid and complete combustion.

The injection rate is defined as the ratio of the changes in the fuel quantity that is injected successively from the nozzle within a given unit of time. Simply put, it describes how quickly and effectively fuel is delivered into the cylinder. As the injection pressure increases, the injection rate increases accordingly. A higher injection rate allows for shorter injection durations while delivering the necessary fuel quantity, which in turn provides more flexibility for multiple injection events and better control over the combustion process. This precise control over the injection rate significantly contributes to the engine's power output, fuel economy, and emissions characteristics.

Advantages of Common Rail Fuel Injection Systems

The widespread adoption of common rail technology is a testament to its numerous benefits:

• Superior Fuel Efficiency: Precise control over injection timing and quantity, coupled with high atomisation, leads to more complete combustion and less wasted fuel.
• Reduced Emissions: Better combustion results in lower levels of harmful pollutants like nitrogen oxides (NOx) and particulate matter (soot).
• Enhanced Engine Performance: The ability to deliver fuel under consistent high pressure across all engine speeds translates to improved torque and power output.
• Smoother and Quieter Operation: Pilot injections significantly reduce the harsh diesel knock, making common rail engines remarkably refined compared to their predecessors.
• Greater Design Flexibility: The separation of pressure generation and injection allows engine designers more freedom in optimising combustion chamber design.

Common Rail vs. Older Fuel Injection Systems

To truly appreciate the common rail system, it's useful to compare it with older mechanical or electronic distributor pump systems:

Maintenance Considerations for Common Rail Systems

While incredibly robust, common rail systems do require careful maintenance to ensure longevity and optimal performance. The extreme precision of their components makes them sensitive to contamination. High-quality fuel and regular fuel filter replacement are paramount. A blocked or inefficient fuel filter can starve the high-pressure pump, leading to premature wear, or allow contaminants to reach the injectors, causing blockages or damage. It's always advisable to adhere strictly to the manufacturer's recommended service intervals for fuel filter changes, often every 20,000 to 40,000 miles, depending on the vehicle and driving conditions.

Issues with common rail systems can be costly to repair due to the high precision and expense of components like injectors and high-pressure pumps. Symptoms of a failing system might include rough idling, reduced power, increased fuel consumption, excessive smoke from the exhaust, or engine warning lights. Prompt diagnosis by a qualified mechanic is essential to prevent more extensive damage.

Frequently Asked Questions (FAQs)

Q: What type of fuel should I use with a common rail system?

A: Always use high-quality diesel fuel from reputable suppliers. The cleanliness and lubricity of the fuel are crucial for the longevity of common rail components. Avoid using contaminated or low-grade fuels, as they can cause significant damage to the high-pressure pump and injectors.

Q: How often should I replace my fuel filter?

A: Refer to your vehicle's owner's manual for the exact recommended interval. Typically, fuel filters in common rail systems should be replaced every 20,000 to 40,000 miles (32,000 to 64,000 km), or more frequently if operating in dusty environments or using lower quality fuel.

Q: Can I use fuel additives with my common rail engine?

A: Some manufacturers approve specific fuel additives that can help clean the fuel system or improve lubricity. However, always consult your vehicle manufacturer's guidelines or a trusted mechanic before using any additives, as some can be detrimental to the delicate components of the common rail system.

Q: What are the common signs of a failing common rail injector?

A: Symptoms can include rough idling, misfires, reduced engine power, increased fuel consumption, excessive black or white smoke from the exhaust, or a persistent engine management light on the dashboard. Early diagnosis is important to prevent further damage.

Q: Is common rail technology only used in diesel engines?

A: While common rail is most famously associated with diesel engines, the underlying principle of a common, high-pressure fuel reservoir and electronically controlled injectors has also been adapted for petrol engines, known as Gasoline Direct Injection (GDI) systems. These systems offer similar benefits in terms of efficiency and performance for petrol vehicles.

Conclusion

The common rail fuel injection system, particularly the refined offerings from Bosch, represents a monumental leap forward in automotive engineering. By separating pressure generation from the injection process and enabling incredibly precise electronic control, it has unlocked unprecedented levels of fuel efficiency, reduced emissions, and enhanced driving refinement for diesel vehicles. As manufacturers continue to push the boundaries of high-pressure technology and electronic control, the common rail system will undoubtedly remain a vital component in the quest for cleaner, more powerful, and more economical internal combustion engines. Understanding this intricate system not only demystifies modern diesel mechanics but also highlights the ongoing innovation dedicated to improving our vehicles and their environmental footprint.
