Clutch & Gearbox Woes: Your Drivetrain Guide

Few things are as unnerving as feeling your car's drivetrain falter. The clutch and gearbox are pivotal components, working in harmony to transfer power from the engine to the wheels, allowing you to control your speed and direction. When either of these crucial systems begins to act up, it's not just an inconvenience; it can be a significant safety concern and a precursor to very costly repairs. Understanding the common symptoms, differentiating between clutch and gearbox issues, and knowing when to seek expert advice is essential for any car owner in the UK.

Ignoring early warning signs can lead to complete component failure, leaving you stranded and facing a much larger bill. This guide will walk you through the tell-tale signs of clutch and gearbox problems, helping you diagnose the potential issue and make informed decisions about your vehicle's maintenance.

Understanding Your Clutch: The Link to Smooth Power

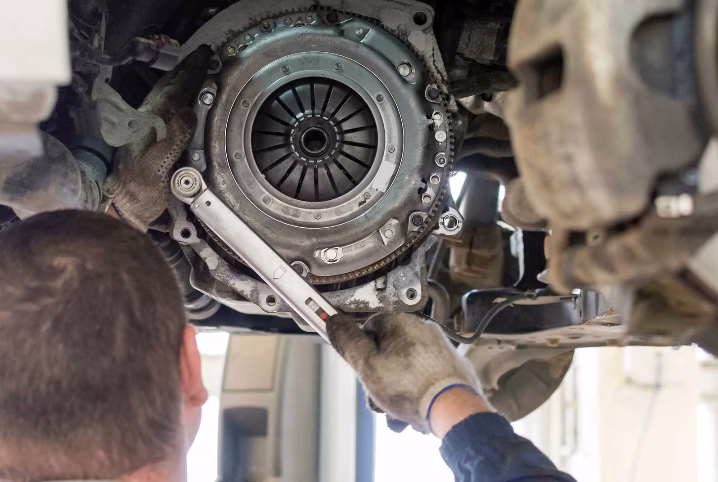

The clutch is the unsung hero that allows you to smoothly engage and disengage the engine from the gearbox, enabling gear changes without grinding. It comprises several parts, including the clutch disc, pressure plate, flywheel, and release bearing. Over time, these components can wear out or develop faults.

Common Clutch Problems and Their Symptoms:

• Slipping Clutch: This is arguably the most common clutch issue. You'll notice your engine revs increase, but the car doesn't accelerate proportionally. It feels like the car is struggling to 'grip' the road's power. This is often more apparent when accelerating uphill or under heavy load. A slipping clutch indicates the clutch disc is worn and failing to create enough friction against the flywheel and pressure plate.
• Sticking or Spongy Pedal: If your clutch pedal feels unusually soft, spongy, or even sticks to the floor after being pressed, it often points to a problem with the hydraulic system (master or slave cylinder) or air in the lines. This prevents proper clutch disengagement.
• Hard or Stiff Pedal: Conversely, a clutch pedal that requires excessive force to operate can indicate a problem with the pressure plate, a seized release bearing, or a worn clutch cable (on older, cable-operated systems). This can make driving tiresome and uncomfortable.
• Grinding or Shuddering on Engagement: When you release the clutch pedal and the car starts to move, if you feel a violent shudder or hear a grinding noise, it could be due to a warped flywheel, a worn clutch disc, or issues with the pressure plate. It's a clear sign that the clutch is not engaging smoothly.
• Burning Smell: A distinct smell of burning material, similar to burnt toast or rubber, especially after prolonged clutch use (e.g., in heavy traffic or when reversing uphill), is a definite sign of an overheating or slipping clutch. The friction material on the clutch disc is getting too hot.
• Noisy Clutch: Different noises can signal different problems. A squealing or chirping noise when the clutch pedal is pressed might indicate a worn or faulty release bearing. A consistent rattling noise when the clutch is disengaged (pedal up) that disappears when pressed (pedal down) could point to a worn pilot bearing or input shaft bearing in the gearbox.

Decoding Gearbox Issues: Manual vs. Automatic

The gearbox, or transmission, is responsible for converting the engine's power into usable torque at various speeds. Manual and automatic gearboxes operate differently, leading to distinct sets of common problems.

Manual Gearbox Problems:

• Difficulty Shifting Gears: If you're struggling to get into a specific gear, or all gears, it could be due to low or incorrect gearbox fluid, worn synchros (which help match shaft speeds for smooth engagement), a faulty clutch (not fully disengaging), or internal wear within the gearbox.
• Gears Grinding When Shifting: This is a classic symptom of worn synchros. When you try to shift, the synchros can't adequately match the rotational speeds, leading to a loud grinding noise. This can also happen if the clutch isn't fully disengaging.
• Gears Slipping Out of Place: If your car pops out of gear while driving, it's a serious issue. This could be due to worn detents, a bent shift fork, internal wear, or misalignment within the gearbox. It's dangerous and needs immediate attention.
• Whining, Humming, or Clunking Noises: Various noises can emanate from a failing manual gearbox. A continuous whine or hum that changes with speed often indicates worn bearings within the gearbox. A clunking noise, especially when engaging gear or accelerating/decelerating, could suggest worn universal joints (U-joints), propshaft issues, or excessive backlash in the differential, though it can also stem from internal gearbox wear.
• Fluid Leaks: Puddles or drips of fluid under your car, particularly reddish or brownish fluid, might indicate a gearbox fluid leak. Low fluid levels can quickly lead to overheating and catastrophic internal damage.

Automatic Gearbox Problems:

• Rough or Delayed Shifts: If your automatic transmission shifts harshly, hesitates before shifting, or shifts at unusually high RPMs, it's a strong indicator of a problem. This could be due to low or dirty transmission fluid, faulty solenoids, sensor issues, or internal wear.
• Slipping Gears: Similar to a slipping clutch, an automatic gearbox can 'slip' between gears, where the engine revs up but the car doesn't accelerate as expected. This is often due to low fluid, worn clutch packs inside the transmission, or a faulty torque converter.
• Burning Smell: A strong, acrid burning smell from an automatic gearbox usually means the transmission fluid is overheating and breaking down. This can be caused by low fluid, a clogged filter, or excessive internal friction from worn components.
• Fluid Leaks: Just like manual gearboxes, automatic transmissions can leak fluid. Given the critical role of fluid in automatic systems, any leak should be addressed immediately.
• Check Engine Light (CEL) Illumination: Modern automatic gearboxes are heavily computer-controlled. Many issues, from sensor faults to solenoid failures, will trigger the check engine light and store a diagnostic trouble code (DTC) in the car's ECU.
• Noises: Whining, clunking, or humming noises from an automatic gearbox are also concerning. A constant hum that changes with speed could be a failing torque converter or internal bearing issues. Clunking might indicate worn gears or differential problems.

Quick Diagnostic Checks You Can Do

While most clutch and gearbox repairs require professional expertise, there are a few things you can do to help narrow down the problem:

• Check Fluid Levels: For both manual and automatic gearboxes, check the fluid level if accessible (consult your car's manual for location and procedure). Low fluid is a common culprit for many issues. Note the colour and smell of the fluid; burnt smell or dark, sludgy appearance is a bad sign.
• Listen Carefully: Pay close attention to when the noise occurs. Does it happen when the clutch is pressed? When released? In a specific gear? At a certain speed? This information is invaluable for a mechanic.
• Note Pedal Feel: Is the clutch pedal too hard, too soft, or sticking? Does it feel different than usual?
• Observe Performance: Is the car accelerating as it should? Are shifts smooth or jerky? Does the car jump out of gear?

When to Seek Professional Help

Given the complexity and critical nature of clutch and gearbox systems, it is almost always advisable to seek professional help as soon as you notice any persistent symptoms. Driving with a faulty clutch or gearbox can not only worsen the damage, leading to significantly higher repair costs, but it can also compromise your safety on the road. A qualified mechanic will have the diagnostic tools and expertise to accurately pinpoint the problem and recommend the appropriate repair.

Preventative Maintenance for Longevity

While wear and tear are inevitable, certain practices can extend the life of your clutch and gearbox:

• Proper Clutch Use: Avoid 'riding the clutch' (keeping your foot on the pedal unnecessarily), which causes premature wear. Don't hold the car on a hill using the clutch; use the handbrake.
• Regular Fluid Changes: Follow your vehicle manufacturer's recommendations for gearbox fluid changes. Old, contaminated, or low fluid is a leading cause of gearbox failure. This is especially crucial for automatic transmissions.
• Gentle Driving Habits: Avoid aggressive acceleration, harsh braking, and rapid gear changes. Smooth driving reduces stress on both the clutch and gearbox.
• Address Leaks Promptly: Any fluid leak should be investigated and fixed immediately to prevent fluid levels from dropping too low.

Cost Implications

Repairs to clutches and gearboxes can be among the most expensive for a vehicle. A clutch replacement can range from a few hundred pounds to over a thousand, depending on the car model and whether a dual-mass flywheel also needs replacing. Gearbox repairs or replacements can easily run into several thousands of pounds. This highlights the importance of early diagnosis and preventative maintenance to mitigate the financial impact.

Clutch vs. Gearbox Symptoms: A Quick Comparison

Frequently Asked Questions (FAQs)

Q1: Can I drive with a slipping clutch?

A1: While you might be able to drive for a short period, it's highly unadvisable. A slipping clutch will only get worse, potentially leaving you stranded. It also generates excessive heat, which can damage the flywheel and other components, leading to a more expensive repair.

Q2: How long do clutches typically last?

A2: The lifespan of a clutch varies greatly depending on driving style, vehicle type, and conditions. It can range from as little as 30,000 miles for aggressive drivers in city traffic to over 100,000 miles for careful drivers on motorways. Proper clutch use is key to longevity.

Q3: Is it always expensive to fix a gearbox?

A3: Gearbox repairs can be very costly, often because they are complex units that require significant labour to remove and disassemble. Sometimes, a simple fluid change or sensor replacement can fix an issue, but internal mechanical failures usually mean a costly repair or full replacement. Early diagnosis can sometimes prevent more extensive damage.

Q4: What's the difference between clutch noise and gearbox noise?

A4: Clutch noises often correlate with pressing or releasing the clutch pedal. For instance, a squeal when the pedal is pressed is often a release bearing. Gearbox noises, however, are typically related to gear selection, driving speed, or specific gears. A constant whine that changes with vehicle speed is more likely gearbox-related.

Q5: Can low gearbox fluid cause serious issues?

A5: Absolutely. Low gearbox fluid (or transmission fluid in automatics) is a common cause of serious problems. The fluid lubricates moving parts, cools the system, and in automatics, acts as a hydraulic medium for shifting. Insufficient fluid leads to increased friction, overheating, and rapid wear of internal components, which can quickly lead to catastrophic failure.

Understanding the signs and symptoms of clutch and gearbox problems is the first step in protecting your vehicle and your wallet. Don't hesitate to consult a professional mechanic if you suspect an issue. Prompt attention can save you significant hassle and expense in the long run.
