A spongy clutch pedal or difficulty shifting gears in your Jeep Wrangler can be a frustrating experience, often leading to that dreaded grinding sound when you try to engage a gear. Fortunately, for many Jeep Wrangler models equipped with a manual transmission, this issue can often be resolved by adjusting the clutch. This process, commonly referred to as "bleeding" the clutch, is part of maintaining the hydraulic system that operates the clutch. It's a relatively straightforward task that most DIY enthusiasts can tackle in under an hour with basic tools. This guide will walk you through the process, explain why it's necessary, and offer some insights into clutch wear and diagnosis.
Understanding Your Jeep Wrangler's Clutch System
Your Jeep Wrangler's manual transmission clutch is typically operated by a hydraulic system. This system consists of a clutch master cylinder, a clutch slave cylinder, and the fluid lines connecting them. When you press the clutch pedal, the master cylinder pushes hydraulic fluid through the lines to the slave cylinder. The slave cylinder, in turn, actuates a fork that disengages the clutch, allowing you to shift gears. Over time, air can enter this system, or the fluid can degrade, leading to a less responsive pedal and potential shifting problems. Adjusting the clutch, or bleeding it, aims to remove this air and ensure the system is filled with fresh fluid, restoring proper clutch operation. It's important to note that this guide focuses on adjusting a hydraulic clutch. Older models or specific configurations might have a cable-operated clutch, which requires a different adjustment procedure.
When to Consider Adjusting Your Jeep Wrangler's Clutch
Several symptoms can indicate that your Jeep Wrangler's clutch may need adjustment. These include:
- Spongy or Soft Clutch Pedal: If the clutch pedal feels mushy or doesn't offer firm resistance when you press it, it's a strong indicator of air in the hydraulic system.
- Difficulty Shifting Gears: If you find it hard to get the gear lever into gear, or if it requires significant force, the clutch might not be fully disengaging.
- Grinding Gears: This is a classic sign that the clutch isn't releasing completely. The grinding occurs because the transmission gears are still partially engaged when you attempt to shift.
- Clutch Engagement Point Changes: If the clutch starts to engage very close to the floor, or conversely, very high up, it might need adjustment.
While these symptoms often point to the need for bleeding, it's also crucial to consider the overall health of your clutch. If bleeding doesn't resolve the issue, or if you're experiencing slipping (the engine revs up, but the vehicle doesn't accelerate accordingly), it could indicate a worn-out clutch disc or pressure plate, which requires a more involved replacement procedure.
How to Bleed Your Jeep Wrangler's Clutch
Bleeding the clutch is a process of removing air and old fluid from the hydraulic system. You'll typically need a helper for this task, as it involves coordinating pedal presses with fluid release. Here’s a general outline of the steps involved:
Tools and Materials You'll Need:
- New clutch fluid (check your Jeep's owner's manual for the correct type – typically DOT 3 or DOT 4 brake fluid).
- A clean container to catch old fluid.
- A length of clear plastic tubing that fits snugly over the slave cylinder bleed nipple.
- A wrench (usually 8mm or 10mm) to open and close the bleed nipple.
- Rags or shop towels for cleaning up spills.
- Safety glasses and gloves.
Step-by-Step Bleeding Procedure:
- Locate the Clutch Fluid Reservoir: This is usually a small, translucent plastic reservoir located in the engine bay, often near the brake fluid reservoir. Check your owner's manual if you're unsure.
- Check and Top Up Fluid: Ensure the reservoir is filled to the "MAX" line with fresh, correct-spec clutch fluid.
- Locate the Clutch Slave Cylinder: The slave cylinder is typically found on or near the transmission bell housing. It has a small nipple, called a bleed nipple or bleeder valve, on it.
- Attach the Tubing: Place one end of the clear plastic tubing firmly onto the bleed nipple. Place the other end of the tubing into your collection container, ensuring the end of the tube remains submerged in a small amount of fresh clutch fluid in the container. This prevents air from being drawn back into the system.
- Helper's Role: Open the Bleed Nipple: With the clutch pedal fully released, have your helper slowly press the clutch pedal all the way down and hold it there. While they are holding the pedal down, use your wrench to carefully open the bleed nipple a quarter to half a turn. You will see fluid and possibly air bubbles flow through the tubing into the container.
- Close the Bleed Nipple: Before your helper releases the pedal, quickly close the bleed nipple securely.
- Helper's Role: Release the Pedal: Instruct your helper to slowly release the clutch pedal.
- Repeat the Process: Continue steps 5 through 7. After each cycle, check the fluid level in the reservoir and top it up as needed to prevent it from running dry. Keep repeating until no more air bubbles are visible in the fluid coming through the tubing, and the fluid flowing is clear.
- Final Check: Once you've finished bleeding, ensure the bleed nipple is tightly closed. Top up the reservoir to the "MAX" line and replace the cap.
- Test the Clutch: With the engine off, press the clutch pedal several times. It should feel firm and consistent. Start the engine and test shifting through the gears to ensure the problem is resolved.
Important Considerations During Bleeding:
- Never let the clutch fluid reservoir run dry. This will introduce more air into the system, requiring you to start the bleeding process all over again.
- Use the correct type of clutch fluid. Using the wrong fluid can damage the seals in the hydraulic system.
- Dispose of old fluid responsibly. Clutch fluid is a hazardous waste.
- Clean up any spills immediately. Clutch fluid can damage paint.

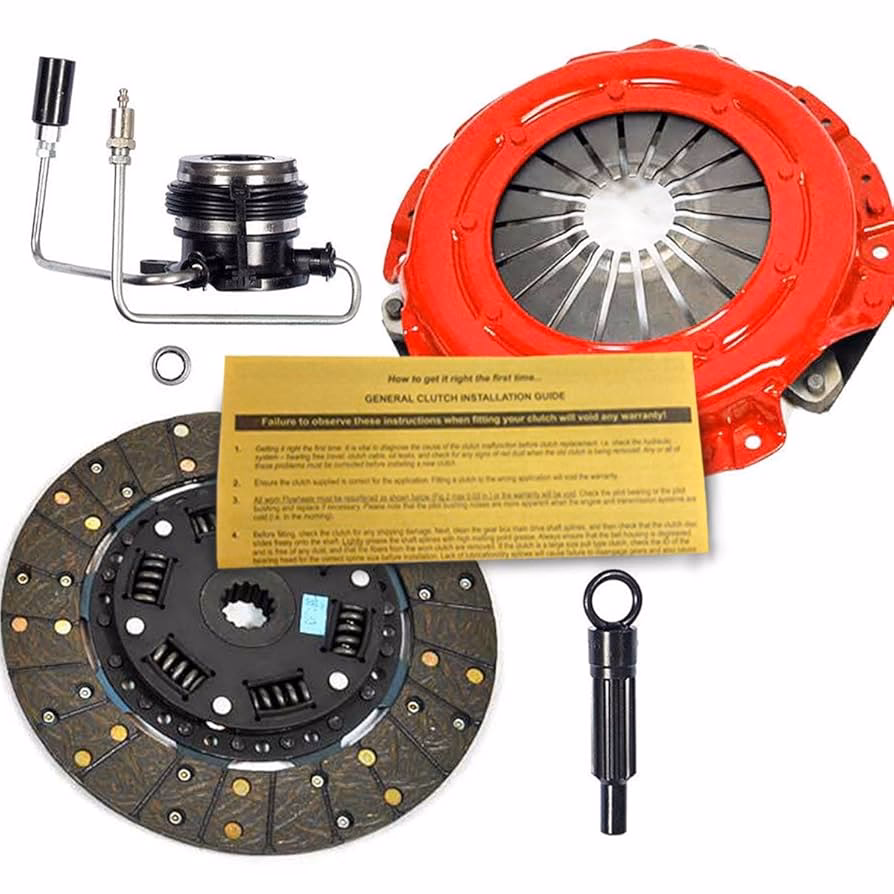

How Often Should a Clutch Be Replaced?
Unlike some other vehicle components, clutches do not have a set replacement mileage. The lifespan of a clutch is highly dependent on several factors, including your driving habits, the type of driving you do, and the specific vehicle. For instance, someone who frequently drives in stop-and-go city traffic will likely wear out their clutch faster than someone who primarily drives on highways. Similarly, off-roading or towing with a Jeep Wrangler can put additional strain on the clutch.

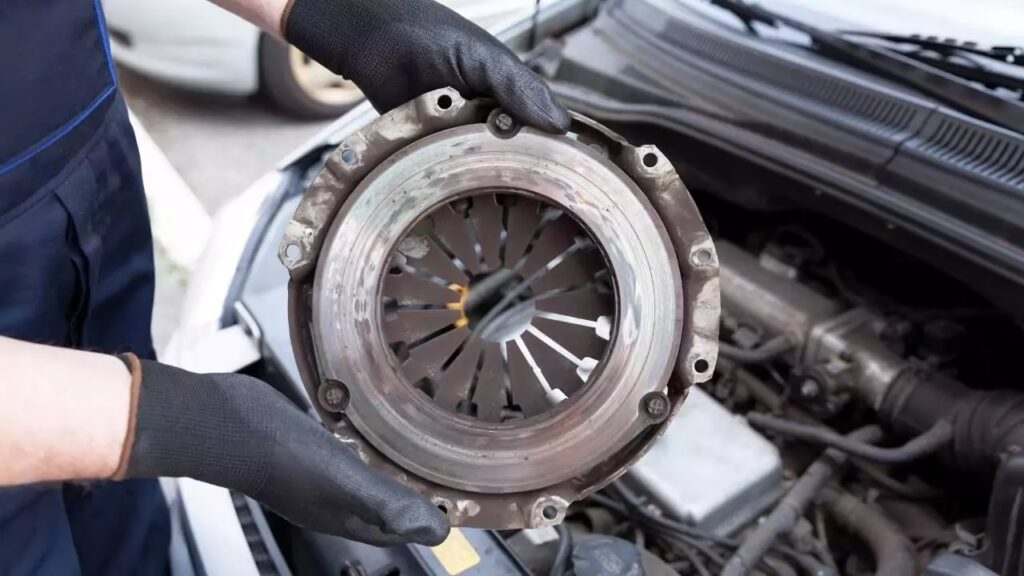

Generally, a clutch can last anywhere from 50,000 to 100,000 miles or even more. Signs that your clutch is nearing the end of its life include slipping (as mentioned earlier), a pedal that feels excessively high or low, or difficulty engaging gears even after bleeding the system. If you suspect your clutch is worn out, it's best to have it inspected by a qualified mechanic. Clutch replacement is a significant repair that involves removing the transmission, and it's often a good time to replace other related components like the pilot bearing and rear main seal.
Diagnosing Clutch Issues
When you bring your Jeep Wrangler to a mechanic with clutch problems, they will typically perform a thorough inspection. This often involves:
- Checking the Clutch Hydraulics: They will examine the master cylinder, slave cylinder, and fluid lines for any leaks or signs of damage. They will also check the fluid level and condition.
- Inspecting the Clutch Pedal Assembly: Ensuring the pedal itself is functioning correctly and that there are no issues with the linkage or return spring.
- Test Driving the Vehicle: A mechanic will drive the Jeep to assess the clutch's performance, looking for slipping, engagement issues, and any unusual noises.
- Checking for Clutch Cable Issues (if applicable): While most modern Wranglers have hydraulic clutches, older models might have a cable. The mechanic would inspect this cable for stretching, binding, or damage.
Based on these diagnostic steps, they can determine whether the problem is with the hydraulic system (requiring bleeding or component replacement) or with the clutch itself (requiring replacement).
Common Clutch Problems and Solutions
Here's a quick rundown of common clutch issues and their typical solutions for a Jeep Wrangler:
| Symptom | Possible Cause(s) | Typical Solution(s) |
|---|---|---|
| Spongy clutch pedal | Air in hydraulic system | Bleed the clutch hydraulic system |
| Difficulty shifting / Grinding gears | Air in hydraulic system, Clutch not disengaging fully, Worn clutch disc | Bleed the clutch hydraulic system, Inspect and potentially replace clutch assembly |
| Clutch slipping | Worn clutch disc, Worn pressure plate, Leaking slave cylinder | Replace clutch assembly, Inspect and replace slave cylinder if leaking |
| Clutch pedal sticks to the floor | Failed master cylinder, Failed slave cylinder, Low fluid | Check fluid level and top up, Replace master or slave cylinder |
| Noises when clutch pedal is pressed | Worn throw-out bearing (clutch release bearing) | Replace clutch assembly (includes throw-out bearing) |
Frequently Asked Questions (FAQs)
Q1: Can I adjust my Jeep Wrangler's clutch without a helper?
A1: While it's much more difficult, some people have used vacuum bleeding kits or one-man bleeding kits that allow you to bleed the clutch system alone. However, the traditional two-person method is generally more effective and straightforward.
Q2: How much fluid does a Jeep Wrangler clutch system typically hold?
A2: The amount of fluid is relatively small, often less than a pint. The key is to keep the reservoir topped up during the bleeding process and to ensure the system is full without overfilling.
Q3: What happens if I don't bleed my clutch regularly?
A3: Over time, air can accumulate in the system, and the fluid can degrade. This will lead to the symptoms mentioned earlier: a spongy pedal, difficulty shifting, and potential gear grinding. If left unaddressed, it can make driving difficult and potentially lead to further damage.
Q4: Is it safe to drive with a spongy clutch?
A4: While you might be able to drive, it's not ideal. A spongy clutch means the clutch isn't disengaging properly, which can put extra wear on your transmission and synchronizers. It also makes smooth gear changes difficult, increasing the risk of grinding gears.
Q5: My Jeep Wrangler has a cable clutch. How do I adjust that?
A5: Cable-operated clutches have an adjustment nut or mechanism where the clutch cable connects to the clutch fork or at the pedal itself. You would typically loosen a locknut and turn the adjustment nut to lengthen or shorten the cable, thereby changing the clutch pedal free play. Consult your specific owner's manual or a service manual for the exact procedure for your model year.
Conclusion
Maintaining the hydraulic clutch system in your Jeep Wrangler is crucial for smooth gear changes and the overall longevity of your transmission. By understanding the symptoms of a clutch needing adjustment and following the bleeding procedure, you can often resolve common issues yourself, saving time and money. Remember to always prioritize safety, use the correct fluids, and if you're ever in doubt, consult a professional mechanic. A well-maintained clutch ensures your Jeep Wrangler is ready for any adventure, on or off the road.
