Clutch Problems: When is it Time for a New One?

The clutch is a vital component in any manual transmission vehicle, acting as the crucial link between the engine and the gearbox. It allows you to smoothly engage and disengage power, enabling gear changes and bringing your vehicle to a halt without stalling. When this intricate system begins to falter, it can manifest in a variety of frustrating symptoms, leaving drivers questioning the extent of the problem. While some clutch issues might be minor, others can signal a more significant overhaul is required. This article delves into the common reasons why a clutch might fail, the tell-tale signs to look out for, and what you can expect when your clutch needs attention.

Understanding the Core Components of a Clutch System

Before we dive into the problems, it's essential to understand what makes up a typical clutch system. This knowledge will help demystify the repair process. The primary components include:

• Clutch Disc: Often referred to as the 'friction disc', this is the part that actually makes contact with the flywheel and pressure plate. It's lined with a high-friction material, similar to brake pads, which wears down over time.
• Pressure Plate: This component acts like a powerful spring, pressing the clutch disc against the flywheel. When you press the clutch pedal, a mechanism releases this pressure, allowing for gear changes.
• Release Bearing (or Throw-out Bearing): This bearing is activated when you press the clutch pedal. It pushes against the pressure plate to disengage the clutch.
• Flywheel: A heavy rotating disc attached to the engine's crankshaft. It provides a smooth surface for the clutch disc to grip and also helps to store rotational energy.
• Pilot Bearing/Bushing: Located in the centre of the flywheel, this small component supports the input shaft of the gearbox, ensuring it aligns correctly with the crankshaft.
• Hydraulic System (Master and Slave Cylinders): In most modern vehicles, a hydraulic system is used to operate the clutch. The master cylinder is connected to the pedal, and it pushes hydraulic fluid through a line to the slave cylinder, which then actuates the release bearing.

Common Symptoms of a Failing Clutch

Recognising the signs of a worn or damaged clutch is key to preventing further damage and ensuring your safety. Ignoring these symptoms can lead to more extensive and costly repairs.

1. Slipping Clutch

This is perhaps the most common and noticeable symptom. A slipping clutch occurs when the clutch disc is not fully engaging with the flywheel and pressure plate. You might experience this as:

• The engine revs up, but the car doesn't accelerate proportionally.
• Difficulty maintaining speed, especially on inclines.
• A burning smell, often described as 'burning oil' or 'burning rubber', which comes from the clutch material overheating due to friction.

Slipping is usually caused by a worn-out clutch disc, but it can also be a sign of oil contamination on the friction surfaces or issues with the pressure plate.

2. Difficulty Changing Gears

If you find it hard to shift into gear, or if the gears grind when you try to engage them, your clutch might be the culprit. This can happen because the clutch isn't fully disengaging, meaning the gearbox is still spinning when you attempt to select a new gear. Reasons for this include:

• A faulty release bearing.
• Problems with the hydraulic system (leaking master or slave cylinder).
• An issue with the clutch linkage or cable.

3. Clutch Pedal Issues

The feel of your clutch pedal can tell you a lot about its condition:

• Spongy or Soft Pedal: This often indicates air in the hydraulic clutch system or a leak in the master or slave cylinder.
• Stiff or Hard Pedal: This could be due to a worn or binding clutch cable, a damaged pressure plate, or a failing release bearing.
• Clutch Pedal Not Returning: If the pedal stays depressed or returns slowly, it's a strong sign of a hydraulic issue or a problem with the return spring.
• Pedal Too Low: If the clutch pedal engages very close to the floor, it usually means the clutch disc is significantly worn.

4. Grinding Noises

Grinding sounds, particularly when you press or release the clutch pedal, can be indicative of a worn release bearing. If the grinding occurs when you press the pedal, it's likely the release bearing itself. If it happens when the pedal is released, it could be the input shaft bearing in the gearbox.

When to Replace vs. Repair

When your clutch system shows signs of wear or damage, a professional mechanic will assess the situation to determine the best course of action. The decision to replace or repair often depends on the specific component that has failed and the overall condition of the clutch assembly.

Common Replacements

In most clutch repair scenarios, several key components are typically replaced as a set, often referred to as a 'clutch kit'. This is because these parts wear in conjunction with each other:

• Clutch Disc: As the primary friction surface, it's almost always replaced due to wear.
• Pressure Plate: While more durable than the disc, the pressure plate can weaken or warp over time, affecting its ability to apply consistent pressure. It's standard practice to replace it with the disc.
• Release Bearing: This bearing is subjected to significant stress and wear. Since it's easily accessible during a clutch replacement, it's almost always replaced at the same time to prevent premature failure of the new clutch disc.

Resurfacing or Replacing the Flywheel

The flywheel is a more robust component. If it's not severely damaged, it can often be resurfaced by a machine shop. Resurfacing removes a thin layer of metal to create a perfectly flat and smooth surface for the new clutch disc to engage with. However, if the flywheel has deep grooves, hot spots (discoloured areas from excessive heat), or cracks, it will need to be replaced entirely.

Hydraulic System Components

If the issue lies within the hydraulic system, the master cylinder, slave cylinder, or clutch line might need replacement or repair, depending on the nature of the fault (e.g., leaks, internal damage).

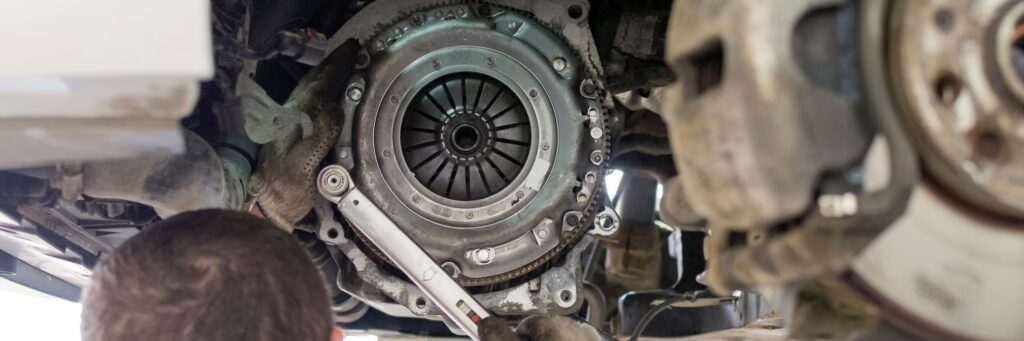

The Repair Process

Replacing a clutch is a labour-intensive job. It involves removing the gearbox from the vehicle to gain access to the clutch assembly. Here’s a general overview of the process:

1. Vehicle Preparation: The vehicle is safely raised, and necessary components (like the exhaust system or driveshafts) may need to be removed to allow access to the gearbox.

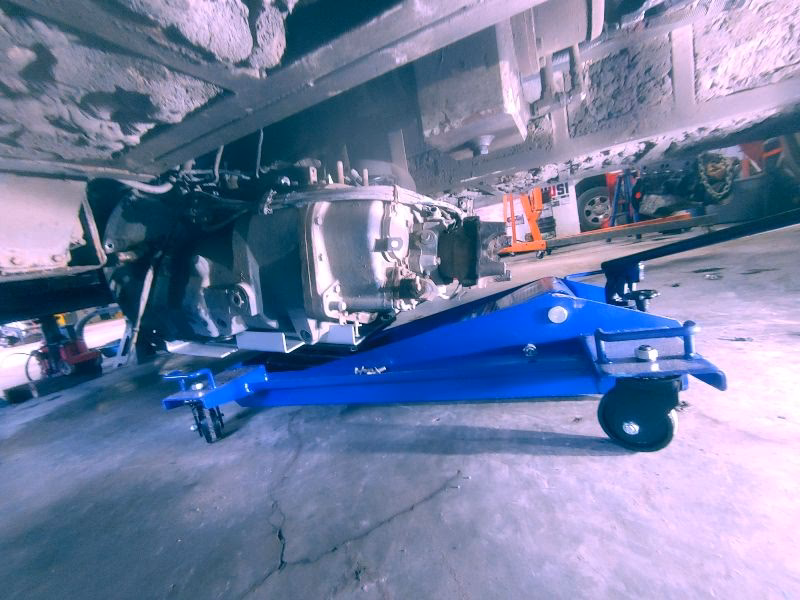

2. Gearbox Removal: The gearbox is carefully detached from the engine and lowered.
3. Clutch Removal: The old clutch assembly (pressure plate, clutch disc) is unbolted and removed.
4. Flywheel Inspection/Resurfacing: The flywheel is inspected. If it's in good condition, it's sent for resurfacing. If not, it's replaced.
5. Component Replacement: The new clutch disc, pressure plate, release bearing, and pilot bearing are installed. The hydraulic system components are also checked and replaced if necessary.
6. Reassembly: The gearbox is reinstalled, and all associated components are reconnected.
7. System Bleeding: If the hydraulic system was disturbed, it needs to be bled to remove any air.
8. Testing: The clutch operation is tested to ensure smooth engagement and proper function.

Table: Clutch Component Wear and Symptoms

Frequently Asked Questions (FAQs)

Q1: How long does a clutch typically last?

A: The lifespan of a clutch can vary significantly depending on driving habits, vehicle type, and road conditions. However, a well-maintained clutch in average driving conditions can last anywhere from 50,000 to 100,000 miles, or even more.

Q2: Can I drive with a slipping clutch?

A: It is not recommended to drive with a slipping clutch for an extended period. Continued driving will cause the clutch material to overheat and wear down rapidly, potentially damaging the flywheel and pressure plate, leading to more expensive repairs.

Q3: Why does my clutch smell like burning?

A: The burning smell is usually caused by the clutch friction material overheating due to slippage. This can happen if you're holding the car on a hill with the clutch, riding the clutch (resting your foot on the pedal), or if the clutch itself is worn out.

Q4: Is it necessary to replace all clutch components at once?

A: Yes, it is highly recommended to replace the clutch disc, pressure plate, and release bearing as a set. These components wear together, and replacing only one part can lead to premature failure of the new component or the old ones that were left in place.

Q5: How much does a clutch replacement cost?

A: The cost of a clutch replacement can vary widely depending on the make and model of your vehicle, the parts used, and labour rates in your area. It's a labour-intensive job, so labour costs often make up a significant portion of the total price. It's best to get a quote from a reputable mechanic.

Conclusion

The clutch is a sophisticated system that requires careful attention. By understanding the common symptoms of wear and tear and knowing when to seek professional help, you can ensure your vehicle's clutch remains in optimal condition. If you suspect an issue with your clutch, don't delay. Prompt diagnosis and repair by a qualified mechanic will not only restore your driving experience but also prevent potentially more severe and costly damage down the line. We are committed to making the necessary repairs and replacements as efficiently as possible, ensuring you get back on the road with confidence.
