Clutch Master Cylinder: Your Ultimate UK Guide

There's nothing quite like the satisfaction of a manual transmission, the direct connection between driver and machine. But when that connection falters, often the unsung hero, the clutch master cylinder, is to blame. Imagine cruising home, enjoying the drive, when suddenly your clutch pedal drops to the floor, fluid spews, and you're left nursing your vehicle in first gear. This scenario, unfortunately, is a reality for many, including Erik with his beloved VZ SS Commodore.

Erik's experience highlights a critical point: even well-maintained cars with heavy-duty clutches can suffer from an ageing master cylinder. With 206,000 km on the clock, an original master cylinder is certainly due for replacement. Whether you're a seasoned DIY enthusiast like Erik or simply trying to understand a recent garage diagnosis, this guide will delve deep into the world of clutch master cylinders, from their function and common faults to sourcing replacements and mastering the art of bleeding.

Understanding the Clutch Master Cylinder

At its core, the clutch master cylinder acts as the pump for your vehicle's hydraulically operated clutch system. When you depress the clutch pedal, this cylinder pushes hydraulic fluid through a line, down to the clutch slave cylinder. This action then disengages the clutch, allowing you to change gears smoothly. It's a vital component in any manual transmission vehicle, translating your foot's action into the precise hydraulic pressure needed for gear shifts.

Being hydraulic in nature, these cylinders are susceptible to issues, primarily leaks or internal failures that compromise their ability to displace fluid effectively. When problems arise, they directly impact the clutch pedal feel and your ability to shift gears, making driving a frustrating and potentially dangerous experience.

Symptoms of a Failing Clutch Master Cylinder

Recognising the warning signs of a failing clutch master cylinder early can save you from a complete breakdown and potentially more extensive repairs. Here are the common indicators to look out for:

1. Low or Contaminated Clutch Fluid

One of the easiest symptoms to spot is an issue with the clutch fluid itself. Check the fluid reservoir for the clutch master cylinder. If the fluid level is consistently low, it's a strong indicator of a leak somewhere in the system – it could be the master cylinder, the slave cylinder, or the connecting lines. Furthermore, if the fluid appears dirty or discoloured, it often means the internal seals of the master cylinder are breaking down due to wear and age, contaminating the fluid. These ageing seals are also more prone to developing leaks over time.

2. Difficulty Shifting Gears

The primary function of the master cylinder is to create sufficient hydraulic pressure to disengage the clutch. If it's failing, perhaps due to an internal leak, it won't be able to generate this pressure effectively. This results in the clutch not fully disengaging when the pedal is pressed. You might experience a grinding sensation when attempting to shift gears, or in more severe cases, the transmission might even pop out of gear while driving. This is a clear sign that the system isn't functioning as it should.

3. Abnormal Clutch Pedal Behaviour

The feel of your clutch pedal is a direct reflection of your master cylinder's health. Any internal issues within the cylinder will immediately alter the pedal's behaviour. A common complaint is a mushy or spongy pedal feel, indicating a lack of proper pressure build-up. In advanced stages of failure, the pedal might sink to the floor after being depressed and stay there, requiring you to manually pull it back up. This is a critical symptom requiring immediate attention, as it means the system has lost its ability to maintain hydraulic pressure.

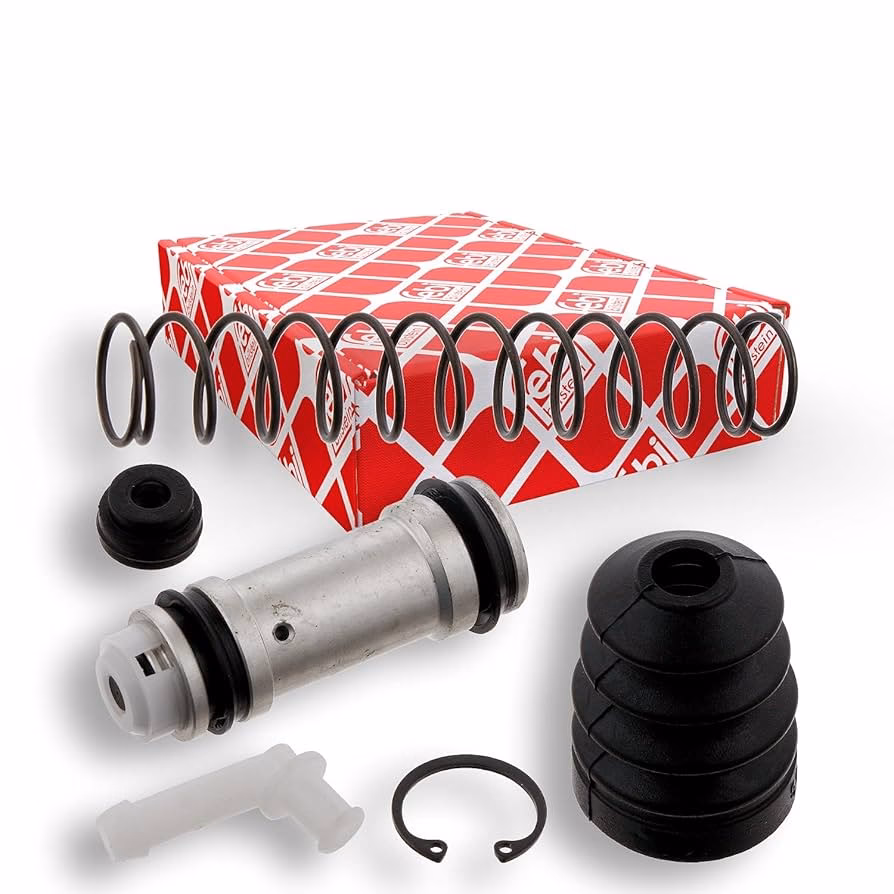

Sourcing a New Clutch Master Cylinder

Once you've diagnosed a failing clutch master cylinder, the next step is finding a suitable replacement. For owners of vehicles like Erik's VZ SS Commodore, while the car shares a platform with the LHD Pontiac GTO, directly importing parts from the States isn't always straightforward due to potential differences in clutch line length and routing. Here's a breakdown of your options:

OEM (Original Equipment Manufacturer)

Your safest bet for a direct fit and guaranteed quality is to purchase an OEM part from a Vauxhall or Holden dealer (or a specialist importer for Australian models). These parts are designed specifically for your vehicle and ensure compatibility. However, they are often the most expensive option.

Aftermarket Options

The aftermarket provides a wide range of choices, often at a more competitive price point. Brands like Lockheed, Girling, and Dunlop have been long-standing suppliers of brake and clutch master cylinders for a vast array of vehicles, including classic cars, commercial vehicles, and modern saloons. When considering aftermarket, look for reputable brands known for their quality. Erik's research into Tick performance parts for the GTO suggests he's looking for performance-oriented aftermarket solutions, which can offer improved durability or feel over standard replacements.

When purchasing aftermarket, ensure the part is explicitly listed for your exact make, model, and year. Be wary of generic 'universal' parts, especially for critical components like a master cylinder.

Specialist Suppliers and Salvage Yards

For older or less common vehicles, specialist classic car part suppliers often stock new or re-manufactured master cylinders and a comprehensive range of repair kits, seals, and dust cover boots. Salvage yards can also be a source, but purchasing critical hydraulic components used carries inherent risks.

Before buying, always confirm the part number and compatibility. If you're unsure, consult with a trusted mechanic or specialist parts supplier.

Replacing a Clutch Master Cylinder: An Overview

Replacing a clutch master cylinder is a job that many DIY enthusiasts, like Erik, find manageable. While specific steps vary by vehicle, the general process involves:

1. Preparation: Park your car on a level surface, engage the handbrake, and disconnect the negative battery cable for safety. You'll need a drain pan for the old fluid.
2. Access: Locate the clutch master cylinder, usually found on the firewall in the engine bay, connected to the clutch pedal inside the cabin. You might need to remove some components to gain clear access.
3. Fluid Drainage: Disconnect the hydraulic line from the master cylinder and allow the old fluid to drain into your pan. Be prepared for some spillage, as clutch fluid can be corrosive.
4. Removal: Unbolt the master cylinder from the firewall (and potentially the clutch pedal linkage inside the cabin). Carefully remove the old unit.
5. Installation: Install the new master cylinder, ensuring all bolts are tightened to manufacturer specifications. Reconnect the hydraulic line securely.
6. Refilling and Bleeding: This is the crucial final step. The system must be refilled with new, clean clutch fluid and then thoroughly bled to remove any air. This process is detailed in the next section.

While the job might seem straightforward, working with hydraulic systems requires care and precision. Always consult your vehicle's specific service manual for detailed instructions and torque specifications.

The Critical Process: Bleeding the Hydraulic Clutch

Bleeding the hydraulic clutch is arguably the most important step after any work on the system, whether it's replacing the master cylinder, slave cylinder, or just a line. Air trapped in the hydraulic system can lead to a spongy pedal, incomplete clutch disengagement, and ultimately, inability to shift gears. It's a necessary procedure every driver should be familiar with, especially after a component replacement or when troubleshooting a non-responsive clutch pedal.

Why Bleed a Hydraulic Clutch?

When air enters the hydraulic clutch system (due to a leak, component replacement, or low fluid), it acts like a compressible spring. Unlike hydraulic fluid, which is incompressible, air bubbles prevent the proper transfer of pressure from the master cylinder to the slave cylinder. This results in insufficient force to fully disengage the clutch, leading to difficulty shifting, grinding gears, or a pedal that sinks to the floor.

General Hydraulic Clutch Bleeding Procedure

1. Preparation: Ensure the clutch fluid reservoir is full with the correct type of fluid. Gather your tools: a wrench for the bleeder screw, a clear hose, and a container for old fluid.
2. Locate Bleeder Valve: The bleeder valve is typically found on the clutch slave cylinder (or sometimes on the master cylinder itself, depending on the system).
3. Connect Hose: Attach one end of the clear hose to the bleeder valve and place the other end into a container with a small amount of fresh clutch fluid at the bottom. This prevents air from being sucked back in.
4. The Two-Person Method (Recommended):
   • One person sits in the driver's seat.
   • The other person operates the bleeder valve.
   • Driver: Depress the clutch pedal slowly and fully, holding it to the floor.
   • Bleeder Operator: While the pedal is held down, quickly open the bleeder valve a quarter to half turn. You will see fluid and potentially air bubbles flow into the clear hose.
   • Bleeder Operator: Close the bleeder valve.
   • Driver: Release the clutch pedal slowly.
   • Repeat this process until no air bubbles are visible in the fluid flowing into the container. Keep a close eye on the fluid level in the reservoir, topping it up as needed to prevent air from entering the system.
5. Final Check: Once bleeding is complete, ensure the bleeder valve is securely tightened. Top up the reservoir to the correct level and test the clutch pedal for firm resistance.

Bleeding a Clutch by Yourself (Using Gravity or Vacuum Pump)

While a two-person method is ideal, it's possible to bleed a clutch solo:

1. Gravity Bleeding:

This method is slow but can be effective. Ensure the reservoir is full. Open the bleeder valve (with the hose and container attached) and simply let gravity do the work. Periodically check the fluid level in the reservoir to ensure it doesn't run dry. It can take anywhere from 1 to 3 minutes for the fluid to flow consistently without bubbles, but for a full bleed, it may take much longer, requiring patience and frequent reservoir top-ups.

2. Vacuum Pump Bleeding:

A vacuum pump (manual hand pump or powered) is an excellent tool for solo bleeding. Attach the vacuum pump to the bleeder valve. Apply vacuum pressure (typically around 10-15 psi) and open the bleeder valve. The vacuum will draw fluid and air out of the system. Monitor the fluid in the hose for bubbles and keep the reservoir topped up. Once bubbles stop, close the bleeder valve and release the vacuum. This method is generally faster and cleaner.

3. Pressure Bleeding:

This involves using a pressure bleeder tool that pressurises the fluid in the reservoir, forcing fluid through the system. This is a very effective method, especially for systems that are difficult to bleed conventionally. Connect the pressure bleeder to the reservoir cap, pressurise to the recommended PSI, and then open the bleeder valve at the slave cylinder until no air comes out.

Bleeding Without a Bleeder Valve

Some older or simpler systems might not have a dedicated bleeder valve. In such cases, you might need to use a pressure bleeder or a vacuum bleeder. Another crude method, if replacing a component, is to bench bleed the master cylinder before installation. This involves filling the master cylinder with fluid and using a pushrod to expel air before it's connected to the vehicle's lines.

Remember, the goal is to remove all air from the system. Any remaining air will compromise clutch performance and pedal feel.

Common Hydraulic Clutch Problems Beyond the Master Cylinder

While the master cylinder is a frequent culprit, other components in the hydraulic clutch system can also cause issues. It's important to diagnose accurately to avoid unnecessary replacements.

Clutch Slipping

If your engine revs but the car doesn't accelerate proportionally, you might have a slipping clutch. While this can be a mechanical clutch plate issue, hydraulic problems can contribute. Low fluid levels, contaminated fluid (which can degrade seals), or even a partially disengaging slave cylinder can cause slipping. Ensuring correct fluid levels and a clean hydraulic system is crucial.

Damaged or Missing Clutches (Hydraulic System Impact)

The provided text mentions 'damaged or missing clutches', which typically refers to the friction plates themselves. While not directly a hydraulic problem, a failing hydraulic system (e.g., master or slave cylinder) that doesn't fully disengage the clutch can lead to premature wear and damage to the clutch friction plates over time, necessitating their replacement.

Incorrect Adjustment

Sometimes, the problem isn't a faulty component but an incorrect adjustment. While modern hydraulic clutches are largely self-adjusting, issues with the clutch pedal linkage or the slave cylinder's pushrod length can cause problems. If your clutch pedal engagement point feels off, an adjustment might be needed, though this is less common with fully hydraulic systems compared to cable-operated ones.

Hydraulic System Failure

This is a broad category encompassing failures in the master cylinder, slave cylinder, or the hydraulic lines connecting them. A rupture in a line, a seized slave cylinder, or a complete internal failure of either cylinder will lead to a loss of hydraulic pressure and a non-functional clutch. Diagnosing which component has failed is key – look for fluid leaks at specific points or test the pressure output of the master cylinder.

Table: Common Hydraulic Clutch Issues & Solutions

Getting Pressure Back in Your Clutch

If your clutch pedal has lost pressure, the first step is to identify the root cause. If it's simply air in the system after a repair or due to a minor leak, a thorough bleeding procedure (as described above) is usually all that's needed. Ensure the reservoir is full before you start bleeding.

If the pedal still feels soft or goes to the floor after bleeding, it indicates a more serious issue:

• Leak: Visually inspect all components and lines for fluid leaks. A plunger or vacuum cleaner hose as mentioned in the original text is not a standard repair method for hydraulic clutch issues; this seems to be a misunderstanding of how hydraulic systems work. Instead, leaks need to be identified and the faulty component or line replaced.
• Faulty Component: If no external leaks are found, it's likely an internal failure of the master or slave cylinder, necessitating replacement.

Always ensure the clutch system is properly adjusted and lubricated where applicable, though with hydraulic systems, the lubrication is primarily the fluid itself.

Frequently Asked Questions About Clutch Master Cylinders

1. How do you bleed air from a hydraulic clutch?

Air is bled from a hydraulic clutch by opening a bleeder valve on the slave cylinder (or master cylinder if applicable) while simultaneously depressing the clutch pedal, allowing fluid and air to escape. This is repeated until only fluid, free of bubbles, emerges. Methods include the two-person pump-and-hold, gravity bleeding, or using a vacuum or pressure bleeder.

2. How much fluid does it take to bleed a clutch master cylinder?

The amount of fluid needed varies, but generally, you'll need at least 0.5 to 1 litre of fluid for a thorough bleed, assuming you don't run the reservoir dry during the process. It's always best to have more fluid than you think you'll need to allow for flushing and ensuring all air is expelled.

3. What should I do if my clutch bleeds (leaks fluid)?

If your clutch system is 'bleeding' fluid (i.e., leaking), it indicates a compromised seal or line. You must identify the source of the leak (master cylinder, slave cylinder, or hydraulic line) and replace the faulty component. Continuing to drive with a leaking system is dangerous as it will eventually lead to complete clutch failure.

4. Why do modern cars need to bleed the clutch?

All hydraulic clutch systems, whether old or modern, require bleeding to remove air that can enter the system. Air, being compressible, prevents the proper transfer of force, leading to a spongy pedal and incomplete clutch disengagement. This is essential for smooth gear engagement and preventing wear on the transmission components.

5. Do you have to bleed a hydraulic clutch?

Yes, absolutely. Any time the hydraulic system is opened (e.g., for component replacement) or if fluid levels run critically low, air can enter. Bleeding is crucial to remove this air and restore proper clutch operation. Without bleeding, the clutch will not function correctly.

6. How do I get the pressure back in my clutch?

To restore pressure, first ensure the fluid reservoir is full. Then, perform a thorough bleeding procedure to remove any trapped air. If bleeding doesn't restore pressure, it indicates a faulty component (master cylinder, slave cylinder, or a leaking line) that needs to be inspected and replaced.

7. How do you manually bleed a clutch?

Manually bleeding a clutch typically refers to the two-person method (one person pumping the pedal, the other opening/closing the bleeder valve) or the gravity bleed method (opening the bleeder valve and allowing fluid to drain by gravity), without the use of specialised pressure or vacuum tools.

Conclusion

A functioning clutch master cylinder is paramount for the smooth operation of any manual transmission vehicle. As Erik's experience vividly illustrates, an ageing or failing unit can lead to sudden and dramatic issues. Understanding the symptoms, knowing where to source quality replacement parts, and mastering the bleeding procedure are essential skills for any car enthusiast or owner. While a hydraulic system failure can be daunting, with the right knowledge and tools, it's a repair that many can undertake themselves, restoring that direct, satisfying connection between driver and road.
