Clutch Fluid: Leaks and Fixes

The clutch fluid, more accurately identified as brake fluid, is an unsung hero within your vehicle's transmission system. It acts as the hydraulic medium, transferring the force you exert on the clutch pedal to the clutch mechanism, allowing you to smoothly engage and disengage power between the engine and the gearbox. Without sufficient, clean clutch fluid, your car's ability to change gears effectively can be severely compromised. This article delves into the critical aspects of clutch fluid, from understanding what happens when it leaks to how you can effectively diagnose and rectify common issues.

What Happens If Clutch Fluid Leaks?

A leak in the clutch fluid system is akin to a critical failure in its hydraulic pathway. Because the clutch operates on hydraulic pressure, any loss of fluid directly translates to a loss of that pressure. This can manifest in several noticeable ways:

Symptoms of Low or Leaking Clutch Fluid

• Difficulty Shifting Gears: This is often the first and most apparent symptom. If the fluid level drops, the hydraulic system may not have enough pressure to fully disengage the clutch. This makes it challenging, or even impossible, to select gears, leading to grinding noises or a complete refusal of the gearbox to shift.
• Soft or Spongy Clutch Pedal: A healthy clutch pedal should feel firm and responsive. When there's air or a significant fluid leak, the pedal can feel 'mushy' or 'spongy'. This is because the air within the system is compressible, unlike the fluid. When you press the pedal, you're compressing air rather than directly actuating the clutch.
• Clutch Slippage: If the fluid is very low, the clutch may not be able to fully engage. This results in clutch slippage, where the engine revs increase, but the vehicle's speed doesn't match. You might notice a lack of acceleration or a feeling that the car is struggling to move forward.
• Burning Smell: In some cases, a leak could cause fluid to drip onto hot exhaust components or engine parts. This can produce a distinct burning odour, particularly noticeable when the engine is warm or when the clutch is being used.

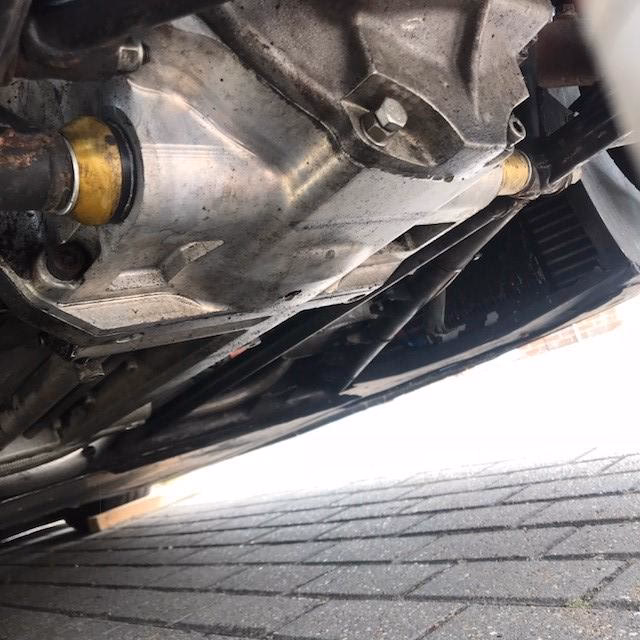

• Visible Fluid Leaks: The most direct sign is the presence of fluid puddles under your vehicle, typically found near the clutch pedal area inside the cabin or under the gearbox where the slave cylinder is located.

Diagnosing Clutch Fluid Problems

Identifying a clutch fluid issue requires a systematic approach. Here’s how to go about it:

1. Check the Clutch Fluid Reservoir

The clutch fluid reservoir is usually a small, translucent plastic container found in the engine bay, often located near the brake fluid reservoir. It will have 'MIN' and 'MAX' markings. Consult your vehicle's owner's manual for its exact location.

2. Inspect Fluid Level and Condition

Open the reservoir cap (ensure the engine is off and cool). Observe the fluid level. If it's below the 'MIN' mark, it indicates a potential leak or that fluid has been consumed over time (though significant consumption usually points to a leak). Also, note the fluid's colour. It should typically be clear to a light amber. Dark, cloudy, or contaminated-looking fluid suggests it needs changing.

3. Look for Leaks

Carefully examine the entire hydraulic clutch system for any signs of fluid seepage or drips. Key areas to inspect include:

4. Assess Pedal Feel

As mentioned, a soft, spongy, or low-feeling clutch pedal is a strong indicator of air in the system or a significant fluid loss.

5. Dashboard Warning Lights

Some vehicles have a dashboard warning light that illuminates for clutch issues. This might resemble a gear with a reservoir or a circle with an exclamation mark. If this light appears, it's a cue to investigate the clutch fluid.

Fixing Clutch Fluid Problems

Once a problem is diagnosed, prompt action is crucial to prevent further damage.

Topping Up Clutch Fluid

If the fluid level is low but no obvious leaks are found, topping up is the first step. Ensure you use the correct type of fluid specified by your vehicle manufacturer (usually DOT 3 or DOT 4 brake fluid). Use a clean funnel to avoid introducing dirt into the reservoir. Fill to the 'MAX' line.

Bleeding the Clutch System

If the pedal feels spongy after topping up, or if you've replaced a component like the master or slave cylinder, the system needs bleeding to remove air. This process typically involves:

1. Locating the bleeder valve on the slave cylinder.
2. Attaching a clear plastic hose to the bleeder valve, with the other end submerged in a container partially filled with fresh clutch fluid.
3. Having a helper press and hold the clutch pedal down.
4. Slightly opening the bleeder valve to allow fluid and air to escape into the container.
5. Closing the bleeder valve before the helper releases the clutch pedal.
6. Repeating steps 3-5 until no air bubbles are seen in the clear hose and the fluid runs clear.
7. Topping up the reservoir as needed during the process.

Important: Never release the clutch pedal while the bleeder valve is open, as this will draw more air into the system.

Replacing Damaged Components

If leaks are found, the faulty component (master cylinder, slave cylinder, or hydraulic line) will need to be replaced. After replacement, the system will require bleeding as described above.

Replacing Contaminated Fluid

If the fluid is old and contaminated, a complete fluid flush and replacement is recommended. This involves draining all old fluid from the reservoir and bleeding the system thoroughly with fresh fluid.

Preventing Clutch Fluid Problems

Regular maintenance is key to a healthy clutch system:

• Regular Checks: Inspect the clutch fluid level and condition every few months or during routine servicing.
• Prompt Leak Repair: Address any signs of leaks immediately.
• Use Correct Fluid: Always use the manufacturer-specified fluid type. Mixing fluid types can cause damage.
• Periodic Bleeding: Consider bleeding the clutch system every few years, even if no symptoms are present, to remove accumulated moisture.
• Scheduled Fluid Replacement: Follow your vehicle manufacturer's recommendations for clutch fluid replacement intervals.

Frequently Asked Questions (FAQ)

Is clutch fluid the same as brake fluid?

Yes, in most vehicles, the fluid used in the hydraulic clutch system is the same brake fluid used in the braking system. They share the same hydraulic principles.

How often should clutch fluid be replaced?

While there's no universal answer, a common recommendation is every 2-3 years, or as specified in your vehicle's service manual. Brake fluid is hygroscopic, meaning it absorbs moisture from the air over time, which can lower its boiling point and lead to corrosion.

Can I drive with low clutch fluid?

Driving with significantly low clutch fluid is not recommended. It can lead to difficulty shifting, clutch slippage, and accelerated wear on clutch components, potentially causing more expensive repairs down the line.

What is the cost of clutch fluid replacement?

The cost of simply topping up or bleeding the clutch fluid is typically low, often between £20-£50 if done by a professional, depending on labour rates. If a component like the slave cylinder needs replacing, costs can range from £100-£300 or more, depending on the part and labour involved.

Conclusion

The clutch fluid is a critical element for the proper functioning of your vehicle's transmission. Understanding the signs of leaks, knowing how to check the fluid level, and being prepared to bleed or replace the fluid are essential skills for any car owner. Regular checks and maintenance will not only ensure smooth gear changes but also help prevent costly damage to your clutch system, ultimately saving you time and money.
