Golf Cart Brake Light Switch: Do They Have One?

Many golf cart owners, particularly those with older or custom models, often wonder about the intricacies of their vehicle's braking system. A common question that arises is whether a golf cart, specifically models like the popular Club Car DS, is equipped with a brake light switch. This seemingly simple component plays a crucial role in vehicle safety, signalling to other road users (or even other golfers on the course) that you are slowing down or stopping. Understanding the presence and function of this switch is vital for both maintenance and safe operation.

The Function of a Brake Light Switch

At its core, a brake light switch is a simple mechanical or electrical device. Its primary purpose is to activate the brake lights whenever the brake pedal or lever is depressed. This action completes an electrical circuit, sending power to the bulbs in the rear of the vehicle, thereby illuminating them. On a golf cart, this serves a similar purpose to that on a road-legal vehicle: to provide a clear visual cue of braking intent. This is particularly important if your golf cart is used in areas with mixed traffic, such as residential communities, caravan parks, or even on public roads where permitted. Even on a golf course, where speeds are generally lower, clear communication of braking can prevent collisions, especially when navigating busy fairways or approaching greens.

Does a Golf Cart Have a Brake Light Switch?

The answer to whether a golf cart has a brake light switch is: it depends. Many modern golf carts, especially those designed for use in planned communities or on public roads, will come from the factory with brake lights and, consequently, a brake light switch. However, many older models, or those primarily intended for use solely on private golf courses, may not have been originally equipped with them. The product information you provided, mentioning a "Club Car DS Brake Return Spring For Club Car DS Golf Carts Gas & Electric 1988+", hints at a model that might benefit from or require such a switch.

For a Club Car DS, the presence of a brake light switch is not a universal given across all model years and configurations.

• Factory-fitted: Carts sold as street-legal or those with advanced lighting packages will almost certainly have a brake light switch integrated into the braking mechanism (either the brake pedal or the brake lever).
• Aftermarket additions: Many owners choose to retrofit their golf carts with brake lights and switches for enhanced safety, especially if they intend to drive their cart in areas with more traffic.
• Basic models: Simpler, older, or course-specific models might lack this feature as standard.

Identifying the Brake Light Switch on a Club Car DS

If your Club Car DS is equipped with brake lights, you'll need to locate the switch to understand its operation or to replace it if it fails. The brake light switch is typically mounted in proximity to the brake pedal or brake lever mechanism.

Location on Pedal-Operated Brakes:

On models with a traditional brake pedal:

• The switch is often a small, plunger-type switch.
• It's usually positioned so that when the brake pedal is pressed, the plunger is depressed, activating the switch.
• When the pedal is released, a spring (like the return spring mentioned in the product SKU) pushes the pedal back, and the plunger extends, deactivating the switch.
• You'll typically find it mounted on the chassis or a bracket directly in the path of the brake pedal arm.

Location on Lever-Operated Brakes:

Some golf carts, especially older ones or those with a hand brake lever:

• The switch might be integrated into the lever mechanism itself.
• When the lever is pulled, it might actuate a switch, completing the circuit.

Common Issues and Troubleshooting

Like any electrical component, brake light switches can fail. Here are some common issues:

• Stuck plunger: Dirt, debris, or corrosion can cause the plunger to stick in either the 'on' or 'off' position. If it sticks 'on', your brake lights will remain illuminated constantly, draining your battery. If it sticks 'off', they won't work at all.
• Worn contacts: The internal electrical contacts can wear out over time, leading to intermittent or non-functional brake lights.
• Broken spring: If the return spring for the switch fails, it might not reset properly, leading to faulty signals. The product SKU you mentioned, "Club Car DS Brake Return Spring," could be related to this mechanism.
• Wiring issues: Damaged or corroded wiring leading to or from the switch can also cause problems.

Troubleshooting Steps:

1. Visual Inspection: Check the switch for obvious signs of damage, corrosion, or obstruction. Ensure the plunger moves freely.
2. Test the Switch: With the power to the cart on (ensure it's safely jacked up if testing the lights), press the brake pedal or lever. If you have a multimeter, you can test for continuity across the switch terminals when the brakes are applied and released.
3. Check Wiring: Inspect the wires connected to the switch for any breaks, fraying, or loose connections.
4. Test the Bulbs: Ensure the brake light bulbs themselves are not burnt out.

Replacing a Brake Light Switch

Replacing a brake light switch on a Club Car DS is generally a straightforward process for someone with basic mechanical skills. The process typically involves:

1. Safety First: Ensure the golf cart is parked on a level surface and the parking brake is engaged. If you need to lift the cart, use proper jack stands.
2. Locate the Switch: As described above, find the switch near the brake pedal or lever.
3. Disconnect Battery: Always disconnect the negative battery terminal before working on electrical components to prevent short circuits.
4. Remove Old Switch: The switch might be held in place by a retaining nut, a clip, or simply pushed into a mounting hole. Carefully remove any fasteners and gently pull the old switch out. Note the orientation of the wiring.
5. Install New Switch: Connect the wiring to the new switch exactly as it was on the old one. Push the new switch into its mounting location and secure it with any fasteners that were removed.
6. Reconnect Battery: Reconnect the negative battery terminal.
7. Test: Press the brake pedal or lever and check if the brake lights illuminate correctly.

The "Club Car DS Brake Return Spring" might be a component that needs to be transferred to the new switch or might be part of the brake pedal assembly that ensures the switch actuates correctly. It's important to consult your specific Club Car DS model's service manual or reliable online resources for detailed instructions pertinent to your year and model.

Enhancing Golf Cart Safety

The presence and proper functioning of a brake light switch are fundamental to golf cart safety. If your cart doesn't have one, consider having one installed, especially if you plan to use it in any situation where visibility to others is important.

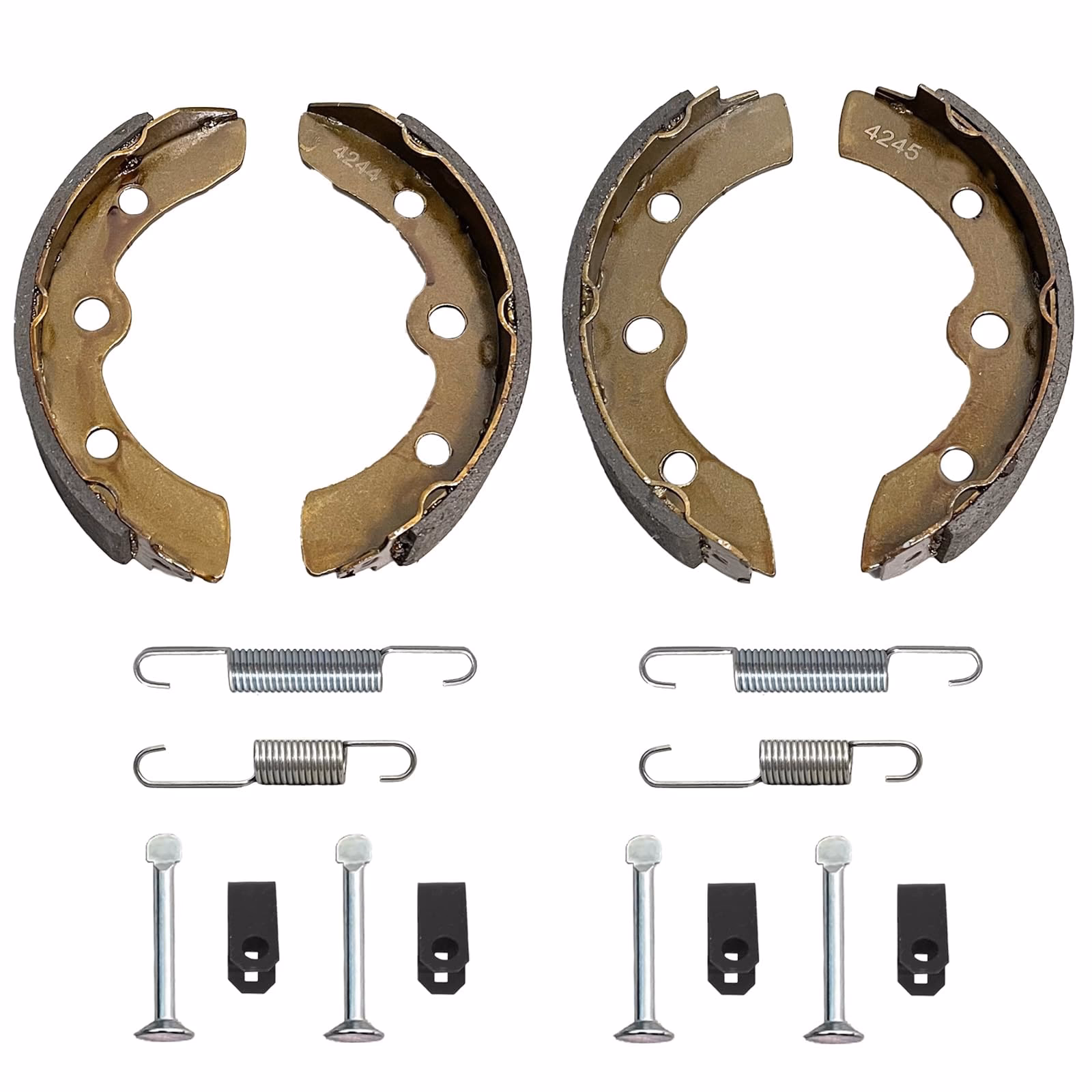

Table: Common Golf Cart Brake Components

Frequently Asked Questions (FAQs)

Q1: My golf cart has brake lights, but they don't come on when I press the brake. What could be the problem?

A1: This is most commonly a faulty brake light switch. Other possibilities include burnt-out bulbs, blown fuse (if applicable), or wiring issues between the switch and the lights.

Q2: Can I add a brake light switch to a golf cart that didn't come with one?

A2: Yes, absolutely. This is a common and highly recommended safety upgrade. You'll need a compatible switch, brake light bulbs, appropriate wiring, and potentially a flasher unit if you want them to flash. It's often best to consult a qualified technician for installation.

Q3: Where can I find a brake light switch for a Club Car DS?

A3: You can find them at specialised golf cart parts suppliers, online retailers (like the one implied by the SKU you provided), and sometimes at general automotive parts stores if the switch is a common type.

Q4: What does a "Brake Return Spring" do for the brake light switch?

A4: The brake return spring is usually part of the brake pedal or lever mechanism. It ensures that the pedal or lever springs back to its original position when you release it. This release action is what allows the brake light switch's plunger to retract, turning off the brake lights. A faulty return spring can prevent the switch from deactivating correctly.

In conclusion, while not all golf carts are equipped with brake light switches as standard, they are an essential safety feature. For models like the Club Car DS, understanding if your specific unit has one, where to find it, and how to maintain it is key to ensuring safe operation, whether you're cruising the fairways or navigating neighbourhood streets.
