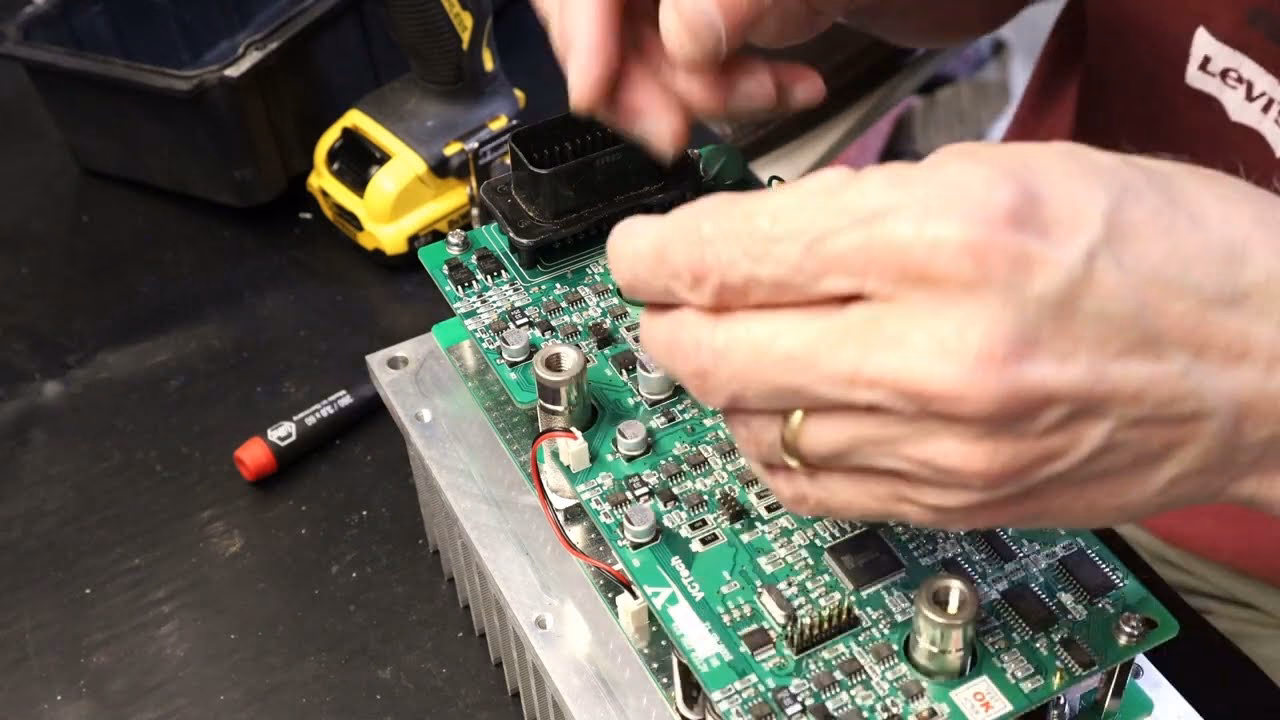

Unveiling Your Club Car's Control Centre

The Club Car controller, often referred to as the speed controller or even the “brain” of your golf cart, is an indispensable component that orchestrates the entire electrical system, ensuring your ride is smooth, responsive, and safe. While its exact physical location can vary slightly depending on your specific Club Car model and year, it’s typically found in a central, protected area, most commonly under the seat or within the battery compartment, designed to be accessible yet shielded from the elements. This sophisticated device constantly measures the batteries’ current and voltage, precisely adjusting the golf cart’s speed to match your demands. It meticulously monitors the state of the motor and generates the necessary signals to match alternating currents, ensuring efficient power delivery. Understanding this vital component is key to maintaining your Club Car’s performance and longevity.

The Core Functions of Your Club Car Controller

Beyond merely adjusting speed, the Club Car controller performs a multitude of critical functions that safeguard your golf cart’s electrical system and optimise its performance. It’s not just about going faster or slower; it’s about intelligent power management.

One of its primary roles, as the name “speed controller” suggests, is to allow you to precisely manage the vehicle’s speed. This includes controlling both the acceleration and deceleration of your golf cart, enabling a smooth and predictable ride. It empowers the rider to adjust the motor’s current flow, directly influencing how the cart responds to throttle inputs.

However, its responsibilities extend far beyond simple speed regulation. The controller plays a pivotal role in managing the golf cart’s entire power system, acting as a vigilant guardian for both the motor and the batteries. Here are some of its primary functions:

• Limiting Motor Current: This crucial function protects both the motor and the controller itself from potential damage. In scenarios where the motor might stall or become overloaded, the controller steps in to restrict the current, preventing overheating and premature wear.
• Limiting Battery Current: Managing the current drawn from the battery pack is vital for battery health. The controller ensures that the battery is protected from excessive discharging, which can significantly shorten its lifespan and lead to costly replacements.
• Thermal Protection: Overheating is a common enemy of electronic components. The speed controller incorporates thermal protection mechanisms that safeguard it from damage in unfortunate conditions where temperatures might rise beyond safe operating limits.
• Acceleration Rate Management: The controller determines how quickly your Club Car accelerates when full throttle is applied. This “acceleration rate” can often be a factor in how much strain is put on the motor and battery, and a well-tuned controller ensures a balanced performance.

Some advanced speed controllers even offer customisable programming, allowing you to fine-tune basic functions, including the top speed. The extent of this customisation typically depends on whether your electric Club Car golf cart utilises a Series system or a Shunt system, each offering different levels of flexibility. This feedback support for the device ensures that the controller can be tailored to specific user needs and preferences.

Understanding the Different Types of Club Car Controllers

Club Car golf carts utilise various types of controllers, each designed to meet different performance demands and usage scenarios. Choosing the right controller is crucial for optimal performance, efficiency, and longevity of your golf cart.

1. 200-300 AMP Controller

These controllers are generally considered suitable for lighter applications. If your primary use for the Club Car involves regular, leisurely trips around the neighbourhood or on flat terrains, a 200-300 Amp controller is often the perfect fit. They are best suited for two-passenger carts and are typically paired with smaller motors, ranging from 2 HP to 5 HP. You will most likely encounter this type of Club Car controller in 36 Volt carts.

2. 300-600 AMP Controller

For Club Cars that face more demanding conditions, such as those equipped with rear seats, a cargo bed, or regularly used on rides that involve steep hills, a 300-600 Amp controller is highly preferable. These robust controllers can easily be paired with larger motors, typically ranging from 5 HP to 10 HP. They are recommended and widely used in both 36V and 48V Club Cars, offering the necessary power and durability for heavier loads and challenging terrains.

3. Programmable Controller

Programmable controllers offer a significant advantage in their adaptability. They can be easily configured to meet the specific needs of your cart, allowing for fine-tuning of performance characteristics. One of the most significant and important benefits of programmable controllers is their efficiency; they typically produce up to 60% less heat than other, non-programmable controllers. This reduction in heat generation contributes to increased longevity and improved overall system efficiency.

Here’s a quick comparison of controller types:

Troubleshooting a Club Car Controller and Electrical System

If your golf cart suddenly refuses to move, a damaged controller is certainly a possibility. However, it’s crucial to understand that several other issues could lead to your vehicle stopping. Since the speed controller is the heart of your electric golf cart’s drive system, it’s wise to rule out simpler problems before focusing solely on the controller. A systematic approach to troubleshooting can save you time and effort.

Initial Checks Before Controller Inspection

Before delving into the complexities of the controller, always start with the basics:

1. Check the Batteries: This is the most common culprit. Start by ensuring your batteries are working properly. If they are dead or severely discharged, your golf cart simply will not start. Charge your batteries completely, then attempt to drive the cart. Low battery voltage can mimic controller issues.
2. Inspect the Solenoid: If your cart still doesn’t start even after a full charge, try pressing the accelerator pedal. Listen for a distinct “click” sound, which indicates the solenoid is engaging. If there’s no click, or if the cart doesn’t start despite the click, check the solenoid. If the solenoid is working fine and allowing power to flow, then you can begin inspecting the controller. Understanding the symptoms of a bad golf cart solenoid can be very helpful here.

If all these initial components appear to be working well, the next logical step is to check the speed controller itself.

Checking the Controller for Faults

Once you’ve ruled out the battery and solenoid, turn your attention to the controller.
Begin by visually inspecting all the wiring connected to the controller for any signs of damage, fraying, or loose connections. Many controllers are equipped with an operation light, which can be an invaluable diagnostic tool. This light will often flash a specific Morse code, or a sequence of flashes, that discloses the nature of the problem. If the code suggests that the source voltage is incorrect, you need to revisit the previous steps – recheck your batteries and solenoid, as the issue might stem from there rather than the controller itself.

However, if the code specifically indicates a faulty controller, then the controller will likely need a reset or repair. For serious issues, or if you’re not comfortable with repairs, it’s often best to consider purchasing a new controller.

Club Car Controller Replacement Tips

If your diagnostics confirm that it’s time to replace the controller, follow these simple but crucial tips to ensure a safe and successful replacement:

1. Disconnect Battery Power: This is paramount for safety. Always ensure you completely disconnect the batteries’ power before you begin any work on the electrical system. This prevents accidental shorts and potential injury.
2. Handle Wires with Care: Even with the power disconnected, it’s not advisable to take risks with the complex wiring. Be careful when disconnecting and reconnecting wires. It’s often helpful to label each wire as you disconnect it to ensure correct reassembly.
3. Use Hand Tools for Tightening: When tightening the cables back onto the new controller, always use hand tools. Avoid using power tools, as they can easily lead to over-tightening and stripping the connections, which can cause poor electrical contact and future problems.

Choosing the suitable controller involves many variables, and selecting the wrong one can negatively impact the entire cart’s performance. For any confusion regarding the Club Car controller replacement part, it’s always wise to get a solution straight from an expert.

Comprehensive Wiring Troubleshooting for Your Club Car Golf Cart

The complex maze of wires, switches, and components within your Club Car golf cart can initially seem intimidating, and wiring issues have often proven to be a source of frustration. However, with a basic understanding of the system, these issues can be tackled effectively. Knowing how to troubleshoot these issues is not just about fixing immediate problems; it ensures the longevity of your golf cart and helps prevent future electrical failures, keeping your fun on the fairway uninterrupted.

Identifying Common Wiring Issues

Effective identification of common wiring issues in golf carts requires a thorough examination of controller input and output voltages, especially in Club Car models. The controller of a Club Car golf cart is an essential component of its electrical system, and irregular speed behaviour of your cart could be a strong indicator of a faulty speed controller or underlying wiring problems.

Before any inspection, always ensure the cart is disconnected from all power sources. This is best done using appropriate hand tools to disconnect the battery. Look for any visible signs of damage or wear in the wiring, such as frayed insulation, corrosion, or loose connections. The key components involved in this inspection are the controller, the wiring harness, and the operation light of the Club Car. These parts need to be in good condition; otherwise, replacing the controller might be necessary. The operation light of the controller should be on; if it’s not, this could signify a controller issue. Furthermore, the batteries must be fully charged prior to any controller tests. A discrepancy between the controller input and output voltages and the manufacturer’s specifications might point directly to a problem with the wiring or the controller itself.

The Club Car Electrical System: A Closer Look

The Club Car controllers form a critical part of the newer golf cart’s electrical system. These components are responsible for managing the power and speed of the Club Cars, ensuring appropriate acceleration and deceleration. As previously discussed, different types of Club Car Controllers are available to cater to varying requirements, with the choice often hinging on the golf cart’s intended usage. For example, normal trips can be adequately handled by 200-300 Amp Controllers, whereas 300-600 Amp Controllers are ideal for steep inclines and heavy loads.

Speed controllers play a pivotal role as they regulate the cart’s speed, ranging from full throttle to a complete halt. The function of these controllers is to precisely control the power that reaches the motor when the accelerator is pressed. The quality of a controller is often judged by the smoothness of acceleration and deceleration it provides. To thoroughly troubleshoot the golf cart’s electrical system, it’s necessary to check the controller’s input and output voltages, test the motor for continuity and connections, and inspect switches for their functionality. A comprehensive knowledge of this intricate system is indispensable for the golf cart’s efficient and safe operation.

A Systematic Wiring Troubleshooting Guide

A systematic approach to wiring troubleshooting simplifies the process and effectively resolves common issues with a Club Car golf cart. This comprehensive guide covers every aspect, from the battery to the controller.

1. Disconnect and Inspect the Battery: Start by disconnecting the battery. Hand tools should be used to carefully disconnect and inspect the wiring. Look for any signs of corrosion, damage, or loose terminals. If the wiring is in good condition, reconnect it securely.
2. Examine Accelerator Pedal and Controller: The role of the controller is crucial as it regulates the power and speed of the golf cart. A malfunctioning controller can significantly impact the performance of the Club Car. Inspect the accelerator pedal mechanism to ensure it’s not sticking and properly activating the microswitch (if applicable).

If the Club Car is still not operating correctly after these steps, consulting a professional is highly recommended. Mastering the wiring system is essential for understanding the operation and maintenance of a Club Car golf cart.

In-Depth Component Testing

To pinpoint electrical issues, you often need to test individual components.

Testing The Electric Motor

Here’s a set of steps that can be useful when you’re trying to fix issues with your motor:

1. Disconnect Cables: Firstly, you need to disconnect all the cables attached to the motor. It’s crucial to label them carefully so that you know exactly where each one goes during reassembly. Ensure that none of the terminals are unintentionally connected to the motor or cart frame, especially the F1 terminal to the motor frame, as this can cause a short.
2. Check for Continuity: Now, let’s talk about continuity using a multimeter. You should find continuity (a closed circuit) between F1 and F2, as well as between A1 and A2. However, there should be no continuity (an open circuit) between any A terminal and any F terminal.

If any of these tests do not yield the expected results, it means that your motor will not function as it should. Remember, “A stitch in time saves nine.” Addressing these problems early can save you a lot of trouble down the line. So, make sure you follow these steps carefully and remember – safety first! Stay current and educated about your motor, and it will serve you well.

Testing the Controller

Testing the controller directly requires a multimeter and careful attention to detail.

1. Initial Voltage Check: First, you’ll want to connect the negative probe of your multimeter to the B- terminal of the controller and the positive probe to the B+ terminal. When done correctly and with the main resistor disconnected, your reading should be around 0 volts, assuming the accelerator pedal hasn’t been pressed in the last 15 to 30 minutes. This indicates the controller is in a quiescent state.
2. Solenoid Engagement Voltage: Next, gently press down on the accelerator pedal until you hear the solenoid “kick in” or click. Keep an eye on your meter during this step. At this point, the reading should reflect the full battery pack’s voltage. This confirms that power is reaching the controller’s input side.
3. Throttle Response Voltage Drop: Continue pressing down on the pedal, further engaging the accelerator. As you do this, you should see the voltage reading on your multimeter gradually drop close to 0 volts. This indicates that the controller is successfully processing the throttle signal and preparing to send power to the motor.

Here’s the crucial part: if the voltage starts at full pack and goes down near zero when the pedal is depressed, but the motor doesn’t respond, then there’s likely a problem with the high amperage side of the drive circuit. In this scenario, it’s time to thoroughly inspect the cable connections to the motor, the forward and reverse switch, and the motor itself for any faults. Remember, understanding the problem is half the solution. So, take your time to understand what these readings mean and how they affect the overall functionality of your motor. A careful examination is a great first step in any troubleshooting process, saving time and preventing unnecessary repairs.

Essential Tools for Wiring Repair

Having the right tools is paramount for successful wiring repair and maintenance on your Club Car golf cart. These tools help ensure safe, precise, and durable repairs.

• Wire Strippers: These are key tools that ensure smooth power flow by making clean, precise cuts through wire insulation without damaging the conductors.
• Crimpers: Essential for guaranteeing secure electrical connections when attaching terminals or connectors to wires. A good crimp prevents loose connections, which can lead to power loss or intermittent faults.
• Cutters: Necessary for precise trimming of wires to the correct length, ensuring neat and efficient wiring.
• Multimeter: This versatile tool tests voltage, current, and resistance, functioning as a metaphorical Morse code that reveals the health of electrical circuits. It measures the power drawn from the battery and the current drawn by different programmable controllers, helping you diagnose issues accurately.
• Heat Shrink Tubing and a Heat Gun: These protect wire connections from moisture, corrosion, and abrasion, thereby preserving power flow and extending the life of your repairs.
• Soldering Iron and Solder: Used to make durable, low-resistance connections, fastening wires back onto the controller or other components securely.

It’s always important to disconnect the battery before beginning any repair for safety reasons. If your multimeter points out problems, it’s necessary to replace the faulty components. The wiring diagram specific to your Club Car model is an indispensable tool in your repair kit, guiding you through the system’s layout and connections. These comprise the essential tools for successful wiring repair, enabling you to tackle common electrical challenges with confidence.

Tips for Preventing Electrical Failures

To avoid frustrating electrical failures and ensure the longevity of your Club Car golf cart, certain preventative measures need to be consistently implemented. Proactive maintenance is always better than reactive repairs.

The battery, being the heart of the golf cart’s electrical system, needs protection from excessive discharging to prolong its life. The early detection of issues can be done by inspecting pack voltage regularly. Keeping terminals clean and tightened also significantly reduces resistance and prevents power loss.

The motor and controller serve as the brain and speed control of the cart. The performance of these components is best when they generate less heat. Ensure proper ventilation around these components. Different power levels are required for motors ranging from a small 2 HP to a larger 5 HP, and overloading them may result in electrical failures. Therefore, it is vital to match the power needs of the motor with the battery’s capacity and the controller’s capabilities. Avoid pushing your cart beyond its designed limits, especially with heavy loads or on very steep inclines if it’s not equipped for it.

The rate of acceleration also has an effect on the electrical system. Rapid acceleration can cause significant strain on the motor and controller, especially in motors of 5 HP or more. Preserving the electrical system can be achieved by moderating the rate of acceleration, adopting a smoother driving style.

Finally, the wiring harness should also be inspected periodically for signs of wear or damage, such as cracks in the insulation or areas where wires might be chafing. The flow of electricity can be severely disrupted by loose connections, which may cause intermittent failures or even complete breakdowns. Regularly checking and tightening all electrical connections can prevent many common problems. By implementing these preventative measures, the electrical system of your golf cart will run efficiently and be protected from common failures, ensuring many years of reliable service.

Frequently Asked Questions About Club Car Electrical Systems

Here are some common questions regarding Club Car golf cart controllers and electrical troubleshooting:

How Do You Reset the Onboard Computer on a Club Car Golf Cart?

Resetting the onboard computer of a Club Car golf cart is a straightforward process, but it’s important to follow the steps carefully to ensure safety and avoid damaging the cart’s electrical system. Here’s a general guide:

1. Safety First: Before you begin, ensure that the golf cart is turned off. Remove the key from the ignition to prevent any accidental starts.
2. Disconnect the Battery: Open the battery compartment and disconnect the negative (-) terminal of the battery. This is crucial to prevent any electrical shocks or shorts while working on the golf cart.
3. Locate the Onboard Computer: The onboard computer is usually located near the battery compartment or under the seat. Refer to your Club Car golf cart’s manual for the exact location, as it can vary by model.
4. Reset the Computer: There are two common methods to reset the onboard computer:
   • Manual Reset: Some models have a dedicated reset button on the onboard computer. Press and hold this button for a few seconds. If your model has this feature, it will be mentioned in the manual.
   • Power Reset: For models without a manual reset button, the reset is done by simply reconnecting the battery. First, ensure that all connections to the onboard computer are secure. Then, reconnect the negative (-) terminal of the battery.
5. Check the Functionality: After the reset, turn on the golf cart to check if the onboard computer is functioning properly. Look for any error messages or lights that might indicate a problem.
6. Consult the Manual: Always refer to your specific model’s manual for detailed instructions. The manual will provide model-specific information and any precautions you need to take.
7. Seek Professional Help if Needed: If you’re unsure about any step or if the problem persists after the reset, it’s advisable to consult a professional technician who specialises in Club Car golf carts.

Remember, handling electrical components can be risky. If you’re not comfortable performing these steps, it’s best to seek professional assistance.

What Would Cause a Golf Cart Not to Move?

A golf cart may not move due to a variety of issues, most commonly related to the battery, wiring, solenoid, or directional switch. Always verify battery charge, inspect all wiring connections for damage or looseness, test the solenoid for proper engagement, and check the functionality of the forward/reverse switch.

How Do You Test a Micro Switch on a Club Car?

To test a micro switch on a Club Car, you’ll need a multimeter. Set the multimeter to the continuity setting. Place the probes on the terminals of the micro switch. You should hear a beep or see a reading indicating continuity when the switch is activated (e.g., pressed) and an open circuit (no beep/reading) when it is released. Also, visually inspect the switch for any physical damage and ensure it’s properly installed and aligned within its mechanism.

Final Words On Your Club Car Controller

From being able to change your golf cart’s speed to managing all the electrical components perfectly, the controller is an undeniably important element of your cart. You could accurately say the controller is the heart of your cart’s operational system. A properly selected and meticulously maintained controller will allow the vehicle to operate smoothly, safely, and efficiently for many years to come. Understanding its functions, troubleshooting common issues, and adopting preventative measures are all crucial steps in ensuring your Club Car remains a reliable companion on the course or around the neighbourhood.
