Club Car Drive Clutch: Removal & Replacement Guide

Owning a golf cart offers a fantastic way to enjoy leisure time, whether on the green or around your neighbourhood. However, like any mechanical device, your Club Car golf cart's drive clutch can experience wear and tear over time, potentially leading to performance issues. This essential component is responsible for transferring power from the engine to the wheels, and when it falters, your cart's ability to accelerate and maintain speed is significantly impacted. Fortunately, with the right tools and a methodical approach, you can tackle the removal and replacement of your Club Car drive clutch yourself, saving both time and money. This guide will walk you through the process, from identifying the necessary tools to safely completing the job.

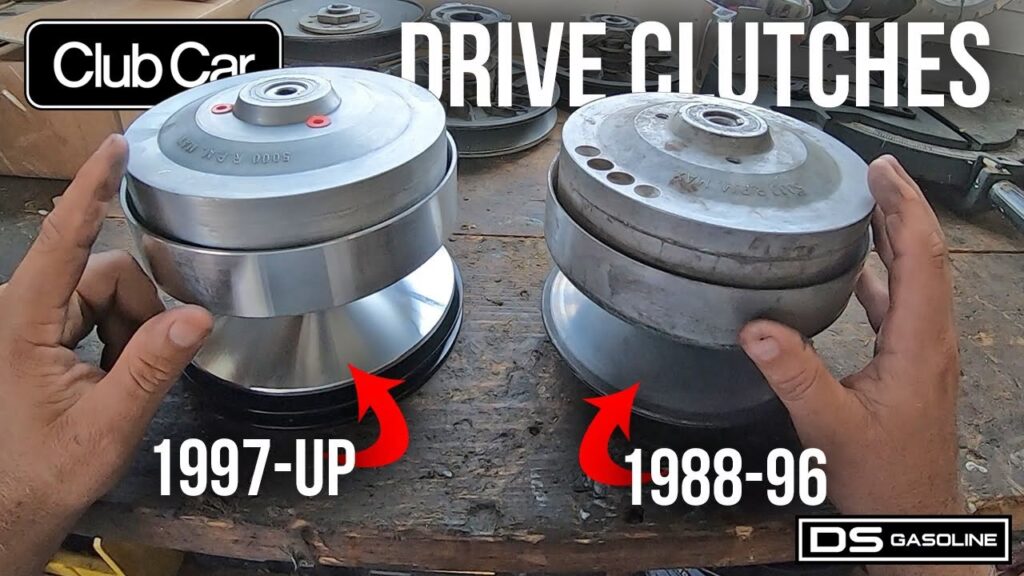

The drive clutch, often referred to as the primary clutch, is a sophisticated yet robust piece of engineering. It's typically located on the engine's crankshaft and works in tandem with the driven clutch (secondary clutch) connected to the differential. Its operation is fascinating: as the engine's RPMs increase, internal weights within the drive clutch force its sheaves to move closer together. This action effectively squeezes the drive belt, causing it to ride higher on the clutch's diameter, which in turn alters the gear ratio and propels the cart forward. The higher the belt rides, the faster the cart travels. When the engine is at rest or low RPMs, the sheaves are further apart, and the belt sits lower, providing a lower gear ratio for starting off or climbing inclines.

Understanding how your golf cart clutch works is the first step to diagnosing and fixing issues. The drive clutch and driven clutch work as a team. The drive clutch receives power directly from the engine's crankshaft. As the engine speeds up, centrifugal force causes weights inside the drive clutch to move outwards. This forces the two halves of the clutch (sheaves) together, squeezing the drive belt. As the belt is squeezed, it moves up the angled faces of the sheaves. This movement causes the driven clutch, connected to the rear axle via the transaxle, to open up and the belt to move down its sheaves. This change in belt position effectively changes the gear ratio, allowing the golf cart to accelerate smoothly and efficiently.

### Symptoms of a Faulty Drive Clutch

Recognising the signs of a failing drive clutch is crucial for timely intervention. Ignoring these symptoms can lead to more extensive damage and costly repairs. Here are some common indicators:

• Sluggish Acceleration: If your golf cart struggles to get up to speed, or feels significantly slower than usual, it could be a sign of worn clutch shoes or weak clutch springs. The clutch may not be engaging properly, preventing optimal power transfer.
• High RPMs, Low Speed: You might notice the engine revving loudly, but the cart isn't moving as fast as it should. This often points to a worn clutch sheave or rollers, or a belt that is slipping within the clutch mechanism.
• Burning Smell: A distinct burning odour, often described as rubber or burnt oil, can indicate that the clutch components are overheating. This is usually due to excessive friction from slipping or a clutch that isn't disengaging or engaging smoothly.
• Clutch Slipping: Similar to sluggish acceleration, but often more pronounced, clutch slipping means the drive belt is not being gripped effectively by the clutch sheaves. This can be caused by worn clutch shoes, damaged sheaves, or a worn-out drive belt itself.
• Loud or Grinding Noise: Unusual noises, such as grinding, clicking, or rattling, emanating from the clutch area are a clear warning sign. These noises typically result from worn or damaged clutch shoes, rollers, springs, or internal components within the clutch assembly or the sheave.
• Jolting During Startup: If your golf cart lurches or jolts when you engage the accelerator, it suggests the clutch is not engaging smoothly. This can be due to internal wear, a damaged spring, or issues with the clutch's alignment.

### Essential Tools and Materials

Before you begin, ensure you have all the necessary tools and materials to complete the job safely and efficiently. Having everything ready will prevent interruptions and potential mistakes.

Required Tools:

### Safety First: Crucial Precautions

Working on any vehicle component carries inherent risks. Adhering to safety protocols is paramount to prevent injury or damage.

• Wear Protective Gear: Always wear safety glasses to protect your eyes from flying debris and gloves to prevent cuts and keep your hands clean.
• Disconnect the Battery: Before starting any work, disconnect the negative battery terminal first, followed by the positive terminal. This prevents accidental electrical shorts or the engine starting unexpectedly.
• Ensure a Stable Work Surface: Park your golf cart on a flat, level surface. Engage the parking brake and remove the ignition key.
• Allow Components to Cool: If the engine has been running recently, allow it to cool down completely to avoid burns.
• Block the Wheels: For added safety, especially if you need to lift the cart, block the wheels to prevent any rolling motion.
• Use Jack Stands: If you need to lift the golf cart, use sturdy jack stands to support the vehicle securely. Never rely solely on a jack.
• Work in a Ventilated Area: Ensure good ventilation to avoid inhaling fumes from lubricants or any residual fuel.

### Step-by-Step Club Car Drive Clutch Removal

Follow these steps carefully to remove the drive clutch from your Club Car.

1. Prepare the Golf Cart:
Park your golf cart on a level surface. Turn off the engine, remove the key from the ignition, and engage the parking brake. Allow the engine to cool if it has been recently used. Disconnect the battery cables, starting with the negative terminal.

2. Access the Drive Clutch:
Depending on your Club Car model, you may need to remove body panels, the seat, or other covers to gain access to the drive clutch assembly. Consult your owner's manual if you are unsure.

3. Inspect and Remove the Drive Belt:
Before removing the clutch, examine the drive belt for any signs of cracking, fraying, or excessive wear. If the belt appears worn, it's highly recommended to replace it at this time. To remove the belt, you'll need to loosen the tension. This is typically done by loosening a tensioner bolt on the driven clutch or by manually sliding the driven clutch inwards towards the engine. Once the belt is slack, carefully slide it off the drive clutch and the driven clutch.

4. Remove the Clutch Cover (if applicable):
Some models may have a clutch cover that needs to be removed first. Use a socket wrench to unscrew the bolts securing the cover. You might need a flathead screwdriver to gently pry the cover off if it's stuck. Keep the cover and its bolts in a safe place.

5. Remove the Clutch Retaining Bolt:
Locate the large bolt in the centre of the drive clutch that secures it to the crankshaft. Use the appropriate size socket wrench to remove this bolt. Be aware that this bolt can be quite tight.

6. Install the Clutch Puller:
This is a critical step. Obtain a clutch puller tool specifically designed for Club Car drive clutches. Thread the puller tool into the threaded hole in the centre of the drive clutch. Ensure it's seated correctly and aligned with the crankshaft.

7. Remove the Drive Clutch:
Using your socket wrench, begin to tighten the clutch puller tool. As you turn the puller, it will exert pressure on the crankshaft, forcing the drive clutch to slide off. This process can require significant force, and it may take some time. Continue turning the puller until the clutch is completely free from the crankshaft. Be patient and ensure you are wearing your safety glasses and gloves.

8. Clean the Crankshaft:
Once the drive clutch is removed, use a clean cloth or rag to thoroughly clean the crankshaft threads and the area where the clutch was seated. Remove any dirt, grease, or debris to ensure a clean surface for reinstallation.

### Drive Clutch Inspection and Reinstallation

After removing the drive clutch, it's the ideal time to inspect it for wear and tear. This will help you determine if a repair or replacement is necessary.

Drive Clutch Inspection:

Reinstallation Steps:

1. Clean Components: Ensure both the clutch shaft and the internal threads of the new or repaired drive clutch are clean.
2. Lubricate Shaft: Apply a thin layer of anti-seize lubricant to the crankshaft threads. This will make future removal easier and prevent galling.
3. Mount the Drive Clutch: Carefully slide the drive clutch back onto the crankshaft. Ensure it is properly aligned.
4. Torque the Clutch: Use a torque wrench to tighten the drive clutch onto the crankshaft to the manufacturer's specified torque. For many Club Car models, this is around 50 ft-lbs, but always confirm with your manual.
5. Install Snap Ring: If your model uses a snap ring to secure the clutch, use snap ring pliers to install it correctly into its groove on the crankshaft.
6. Reinstall Clutch Cover: If you removed a clutch cover, reattach it and tighten the bolts securely.
7. Reinstall Drive Belt: Place the drive belt back onto the pulleys, ensuring it's correctly seated on both the drive and driven clutches. Adjust tension as per your manual.
8. Reconnect Battery: Reconnect the battery cables, positive terminal first, then the negative terminal.
9. Test Operation: Start the engine and carefully test the drive clutch operation. Listen for any unusual noises and check for smooth acceleration.

### Drive Clutch Torque Specifications

Accurate torque is vital for proper clutch function and safety. Always refer to your specific Club Car model's service manual for exact specifications, but here are general guidelines:

### Is It Safe to Drive a Club Car with a Faulty Drive Clutch?

Absolutely not. Driving a golf cart with a faulty drive clutch is not recommended and can be dangerous. A compromised drive clutch impairs the entire power transmission system. This can lead to:

• Difficulty on Inclines: The cart may struggle or fail to move uphill, as the wheels won't receive adequate power. This can be a safety hazard, especially in hilly terrain.
• Reduced Acceleration: Poor power delivery will result in sluggish acceleration, making it difficult to merge or react to traffic situations safely.
• Increased Wear on Other Components: A failing clutch can put extra strain on the engine, transmission, and drive belt, potentially causing a cascade of further mechanical issues.
• Risk of Complete Failure: A severely damaged clutch could fail catastrophically, leaving you stranded and potentially causing damage to other parts of the drivetrain.

Addressing a faulty drive clutch promptly is essential to prevent more significant and costly repairs down the line. If you notice any of the symptoms mentioned earlier, it's best to stop using the cart until the issue is resolved.

### Frequently Asked Questions (FAQs)

Q1: Why won’t my Club Car go forward or reverse?
A: This can be due to a lack of power from the battery, a faulty solenoid, or issues within the clutch system itself, such as a worn belt, slipping clutch shoes, or damaged internal components that prevent proper power transfer.

Q2: What is the difference between a drive clutch and a driven clutch?
A: The drive clutch (primary clutch) is connected to the engine's crankshaft and is responsible for initiating power transfer based on engine speed. The driven clutch (secondary clutch) is connected to the differential and receives power from the drive clutch via the belt. They work in unison to provide variable gearing.

Q3: Does an electric golf cart have a drive clutch?
A: Yes, electric golf carts also have drive clutches, although their internal mechanisms may differ slightly from those in gas-powered carts. The fundamental principle of transferring power from the motor to the wheels remains the same.

Q4: Why is my Club Car drive clutch not engaging?
A: Common reasons for non-engagement include an excessively loose or worn drive belt, insufficient belt tension, or contamination (rust, dirt, grease) on the clutch sheaves or internal components, which can hinder smooth operation.

### Conclusion

Replacing a Club Car drive clutch might seem daunting, but by following a structured approach and prioritising safety, it's a manageable task for many DIY enthusiasts. Having the correct tools, understanding the symptoms of a failing clutch, and meticulously following the removal and reinstallation steps are key to a successful outcome. Regular maintenance and inspection of your golf cart's drive system, including the drive clutch, will not only ensure its longevity and optimal performance but also save you from unexpected breakdowns and costly repairs. If at any point you feel uncomfortable or unsure about a particular step, it's always best to consult a qualified mechanic.
