Optimising Aircraft Braking: Cleveland & McCauley Linings

The braking system is arguably one of the most critical safety components of any aircraft, ensuring controlled deceleration and safe ground operations. At the heart of this system, especially for popular general aviation aircraft utilising Cleveland and McCauley brake assemblies, are the brake linings. These seemingly small components bear the immense responsibility of converting kinetic energy into thermal energy, bringing an aircraft to a smooth, controlled halt. Understanding the types of brake linings available, their unique properties, and their suitability for different applications is paramount for aircraft owners, operators, and maintenance professionals in the UK. This comprehensive guide will delve into the specifics of brake linings for Cleveland and McCauley systems, helping you make informed decisions for optimal performance and safety.

Understanding Brake Lining Composition and Function

Brake linings, often referred to as brake pads, are friction materials designed to create resistance against a rotating brake disc, effectively slowing down or stopping an aircraft. The choice of material for these linings significantly impacts braking performance, durability, and cost-effectiveness. For Cleveland and McCauley brake assemblies, two primary types of linings are prevalent: organic and metallic.

Organic Brake Linings: The RAPCO Standard

When discussing organic brake linings for Cleveland and McCauley systems, the brand RAPCO frequently emerges as a leading manufacturer. Despite the term "organic," these linings are not purely natural; rather, they are crafted from a sophisticated semi-metallic mix. RAPCO employs a carefully engineered blend of materials, including brass, copper, and Kevlar fibres, combined with a high-temperature binding compound. This specific composition is designed to deliver a balance of exceptional performance and a commendably long service life, making them a popular choice across various aircraft types.

A significant advantage of many RAPCO organic linings is the inclusion of a built-in wear indicator. This ingenious feature provides a visual cue regarding the lining's remaining life, allowing maintenance personnel to anticipate replacement needs proactively. This not only reduces the risk of potential damage to the brake disc, which can be costly to repair or replace, but also helps to optimise the lining's operational life, ensuring that they are replaced only when truly necessary. For convenience, RAPCO organic linings are readily available in bulk, typically in boxes containing 10 individual linings, or as comprehensive kit forms. These kits are particularly useful as they contain the precise number of linings and the necessary rivets required for a complete replacement on either Cleveland or McCauley brake assemblies. Having these kits on hand can be incredibly beneficial, streamlining the relining process whenever the need arises.

Metallic Brake Linings: Engineered for Durability

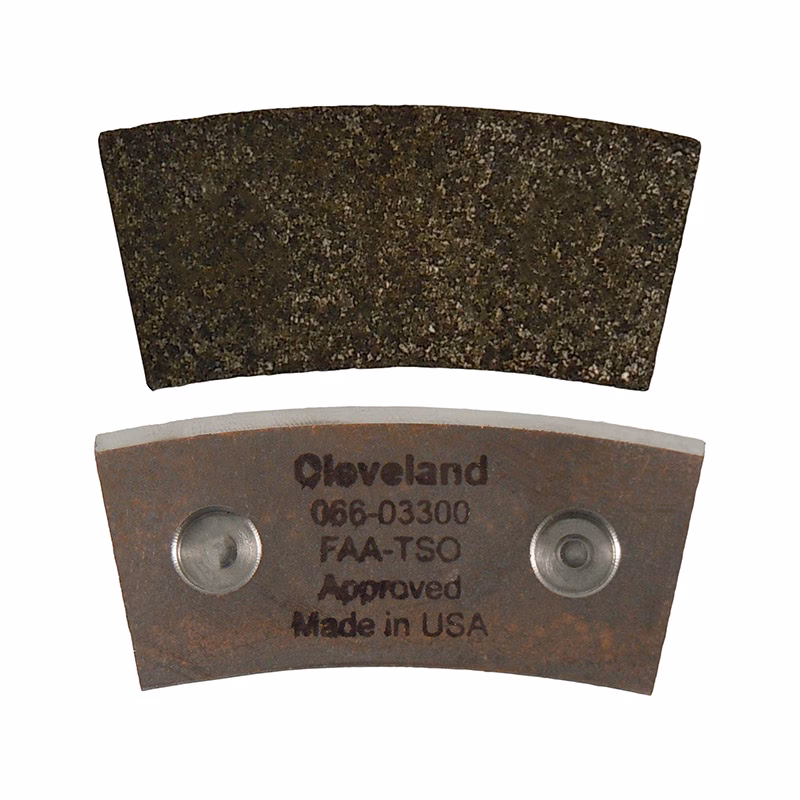

For those seeking even greater durability and enhanced braking performance, metallic lining replacements, specifically designed for Cleveland brake assemblies, offer a robust alternative. These linings are distinctively made from sintered steel, a highly specialised manufacturing process. Sintering involves fusing metallic particles to a steel carrier plate under immense heat and pressure, creating a dense, incredibly resilient friction material. This advanced process results in brake linings that are exceptionally hard-wearing, offering a substantially long operational life even under demanding braking conditions. Pilots and mechanics often praise RAPCO metallic linings for their excellent braking performance, noting their consistent stopping power and resistance to fade over extended use. While the initial cost might be higher than some organic alternatives, their extended lifespan often translates to significant savings in the long run, reducing the frequency of replacements and associated labour costs.

Choosing the Right Brake Lining for Your Aircraft

The decision between organic and metallic brake linings isn't always straightforward and depends on several factors, including the specific aircraft type, its operational profile, and the pilot's preferences. While organic linings provide a good balance of performance and longevity for general use, metallic linings are often preferred for applications where extreme durability and consistent performance under heavy braking are paramount.

Consider the following comparison:

Sourcing Cleveland and McCauley Brake Components in the UK

For aircraft owners and maintenance facilities in the United Kingdom, ensuring access to genuine and reliable brake components is crucial. When it comes to Cleveland Wheels & Brakes, which are part of Parker Aerospace, finding an approved distributor is vital for authenticity and quality assurance. Airpart Supply stands out as an approved factory distributor and stockist of Cleveland Wheels & Brakes (Parker Aerospace) products in the UK. This means they are a trusted source for a comprehensive range of Cleveland products, ensuring that you receive genuine parts that meet stringent aviation standards.

Their extensive product range includes not only brake linings but also a wide array of other essential components for your aircraft's landing gear and braking system:

• Main Wheel Assemblies
• Nose Wheel Assemblies
• External Floating Caliper Brake Assemblies
• Rotor Brake Assemblies
• Park Brake Valves
• Reservoir Type Master Cylinders
• Push Type Master Cylinders
• And, of course, critical brake spares such as brake discs, brake linings, and brake rivets.

While the information provided focuses specifically on Cleveland and McCauley brake linings, it's important to recognise that these distributors often carry the full spectrum of related components. This allows for a single, reliable source for all your braking system needs, simplifying procurement and ensuring compatibility.

What Happened to Cleveland Brake Linings? A Legacy of Quality

The question "What happened to Cleveland brake linings?" often arises, not out of concern for their disappearance, but rather as an inquiry into their continued reputation and availability. The overwhelming sentiment from aircraft owners and certified mechanics (A&P/IA) is that Cleveland brake linings continue to be highly regarded for their quality and performance. Customer feedback frequently highlights their attributes:

• Good Fit and Easy Installation: Many users report that Cleveland linings offer a perfect fit, making installation straightforward. Comments like "Fit as expected," "Perfect replacement fit with no issues," and "Easy install" are common.
• Superior Quality and Durability: A recurring theme is the perceived higher quality of Cleveland linings compared to other brands. Users attest to their durability and long service life, with one mechanic stating they "prefer Cleveland linings, higher quality, less money in the long run," and another noting they "last twice as long as Rapco." This suggests a strong reputation for longevity and reliability, which can lead to overall cost savings despite potentially higher initial prices.
• Consistent Performance: Pilots appreciate the consistent and reliable braking performance. Phrases like "Works well. Always well made. Very consistent product over many years" underscore the trust placed in Cleveland products.
• Value for Money: Despite potentially higher upfront costs, the extended lifespan and consistent performance often lead users to conclude that Cleveland linings offer excellent value for money. "Lasts long and cheap" and "Great price on a very good product" are sentiments that reflect this long-term value.

However, it's also worth noting some operational feedback that can guide future purchasers:

• Rivet Supply: Some users have noted that kits might come with the exact number of rivets needed (e.g., two for two pads, or three for three holes), with no spares. It's prudent to confirm rivet quantities or acquire extras to avoid delays during installation.
• Fitment Variations: While generally good, occasional reports of linings being "slightly too thick" for certain brake models or not fitting specific aircraft years (e.g., a 1976 Cessna 172M) indicate the importance of verifying part numbers rigorously with your aircraft's maintenance manual or a knowledgeable supplier.
• Packaging/Sales Quantity: A common suggestion is that brake pads should ideally be sold in pairs, as they are almost always replaced in pairs. Currently, they are often sold individually, which can lead to confusion if not explicitly noted.

In essence, Cleveland brake linings maintain a strong, positive reputation within the aviation community, prized for their quality, fit, and longevity. Their continued availability through approved distributors like Airpart Supply ensures that aircraft operators can continue to rely on these trusted components.

Maintaining Your Aircraft's Braking System

Proper maintenance of your aircraft's braking system, including regular inspection and timely replacement of brake linings, is paramount for safety. A proactive approach can prevent costly damage to brake discs and ensure that your aircraft is always ready for safe operations. Always adhere to the aircraft manufacturer's recommended maintenance schedule and consult certified aviation mechanics for any brake system work. When replacing linings, ensure you use the correct part numbers and follow manufacturer installation procedures precisely, paying close attention to rivet installation and torque specifications.

Frequently Asked Questions About Aircraft Brake Linings

Here are some common questions regarding brake linings for Cleveland and McCauley systems:

Q1: How often should I replace my brake linings?

A1: The replacement interval for brake linings depends heavily on factors such as aircraft type, frequency of use, landing conditions (e.g., short field landings requiring more braking), and the type of lining used. Many organic linings feature a built-in wear indicator, which provides a visual cue. Metallic linings, while more durable, should also be regularly inspected for wear. Always refer to your aircraft's maintenance manual and perform pre-flight and post-flight inspections to monitor wear. A general rule is to replace them before they reach minimum thickness or if any signs of damage or uneven wear are present.

Q2: Can I mix organic and metallic brake linings on the same aircraft?

A2: No, it is generally not recommended and often prohibited to mix different types of brake linings (e.g., organic on one wheel and metallic on the other, or different types on the same brake assembly). Brake systems are designed to operate with consistent friction characteristics across all wheels for balanced braking. Mixing lining types can lead to uneven braking performance, potentially causing directional control issues during taxiing, take-off, or landing. Always replace linings in pairs (or sets) with the same type and manufacturer's specifications.

Q3: Are brake lining kits for Cleveland and McCauley interchangeable?

A3: While some organic lining kits from manufacturers like RAPCO are stated to be suitable for both Cleveland and McCauley brake assemblies, it's crucial to verify the specific part number against your aircraft's maintenance manual and the brake assembly model. Metallic linings are typically specified for Cleveland assemblies. Always confirm compatibility to ensure proper fit and performance.

Q4: What are the signs of worn brake linings?

A4: Key signs of worn brake linings include:

• A noticeable decrease in braking effectiveness or increased pedal travel.
• Squealing or grinding noises during braking (indicating metal-on-metal contact due to completely worn linings).
• Visual inspection revealing linings worn down to the wear indicator (if present) or below minimum thickness.
• Uneven braking or pulling to one side during braking.
• Scoring or damage to the brake disc, which can occur if linings are excessively worn.

Regular visual inspection is the most reliable method for detecting wear early.

Q5: Is it worth paying more for Cleveland or RAPCO brand linings?

A5: Based on extensive user feedback, many aircraft owners and mechanics believe that investing in genuine Cleveland or high-quality aftermarket options like RAPCO is worthwhile. While they might have a higher upfront cost, their superior quality, durability, and longer service life often result in fewer replacements over time, leading to overall cost savings and enhanced safety. The consistency and reliability of these brands are highly valued in the aviation community.

In conclusion, the selection and maintenance of brake linings for Cleveland and McCauley systems are vital aspects of aircraft airworthiness. Understanding the differences between organic and metallic options, sourcing genuine parts from approved distributors, and adhering to rigorous maintenance practices will ensure your aircraft's braking system performs flawlessly, contributing significantly to the safety and reliability of every flight.
