Silence Your Squealing: Mechanical Disc Brake Alignment

If you’ve ever suffered a rubbing disc brake, you’ll know how annoying it can be. That slight kiss from the disc onto your brake pads and the accompanying squealing/scraping noise can drive you mad. In severe cases, you’ll be fighting every pedal stroke as your brakes slow you down, and your pads will wear out quickly and unevenly. Bicycle disc brakes can be broken down into two categories depending on how they operate: Mechanical disc brakes (aka cable disc brakes) and Hydraulic disc brakes. While both types serve the same fundamental purpose – to bring your bike to a halt – their internal mechanisms and, consequently, their adjustment procedures differ significantly. This comprehensive guide will focus exclusively on the precise art of aligning your mechanical disc brakes, transforming your ride from a noisy drag to a silent, efficient glide.

Mechanical disc brakes operate via a cable, much like traditional rim brakes. When you squeeze the lever, a cable pulls an arm on the brake caliper, which then pushes one or both brake pads against the rotor. While generally simpler in design and often easier to maintain at home than their hydraulic counterparts, they are still susceptible to misalignment, leading to the frustrating issues mentioned above. Understanding how these brakes work is the first step towards mastering their adjustment.

Understanding Mechanical Disc Brakes and Why They Rub

Mechanical disc brakes consist of a caliper that mounts to your bike's frame or fork, a rotor (the disc itself) attached to your wheel hub, and pads inside the caliper that clamp onto the rotor. When you pull the brake lever, a cable pulls a lever arm on the caliper. This action typically pushes one pad (the 'actuating' pad) directly towards the rotor. The rotor then flexes slightly and pushes against the other, 'fixed' pad, effectively sandwiching the rotor between the two pads. This single-sided actuation is a key characteristic that differentiates many mechanical systems from hydraulic ones, which usually push both pads simultaneously.

So, why do they rub? Several factors can cause this:

• Improper Caliper Alignment: This is the most common culprit. If the caliper isn't perfectly centred over the rotor, one pad will constantly drag.
• Bent Rotor: Rotors can get bent or warped due to impact, heat, or even improper storage. A bent rotor will inevitably rub as it rotates through the pads.
• Worn Pads: As pads wear down, the gap between them and the rotor changes, potentially leading to rub if not compensated for. Uneven pad wear can also contribute.
• Loose Caliper Bolts: If the bolts holding the caliper to the frame or fork aren't tight, the caliper can shift out of alignment.
• Cable Tension Issues: While less directly related to rub, incorrect cable tension can affect how the pads sit when the brake is disengaged.

Addressing these issues systematically is crucial for a perfectly aligned brake.

Tools You'll Need

Before you begin, gather the following essential tools. Having them ready will streamline the process:

• Allen keys (usually 5mm, but check your specific brake model)
• T25 Torx wrench (if your rotor bolts are Torx, not Allen)
• Bright light source (e.g., a headlamp or flashlight)
• Clean rag or paper towel
• Disc brake specific cleaner or isopropyl alcohol (optional, for cleaning rotor)
• Rotor truing fork (optional, for bent rotors)

The Step-by-Step Alignment Procedure

This procedure assumes your rotor is relatively straight. If your rotor is visibly bent, you may need to true it first (see troubleshooting section).

Step 1: Prepare Your Bike and Loosen the Caliper Bolts

Firstly, ensure your bike is stable, either in a work stand or inverted. Spin the wheel to confirm the rub. Next, locate the two bolts that secure the brake caliper to your frame or fork. These are typically 5mm Allen bolts. Loosen both bolts enough so that the caliper can move freely side-to-side, but not so loose that it flops around. Just enough play to allow for adjustment.

Step 2: The 'Squeeze and Tighten' Method (Recommended Initial Adjustment)

This is the quickest and often most effective method for initial alignment:

1. With the caliper bolts loose, firmly squeeze the brake lever (the one connected to the mechanical disc brake you're aligning) and hold it down. This action will centre the caliper over the rotor by pushing the pads against it.
2. While still holding the lever, carefully tighten the two caliper mounting bolts. Alternate between the bolts, tightening each a small amount at a time to ensure even pressure. Start with the bolt closest to the cable arm, then the other, then back again. Ensure they are tightened to the manufacturer's recommended torque specifications if you have a torque wrench, or until they are very snug. Do not overtighten!
3. Release the brake lever. Spin the wheel and listen and look for any rubbing.

If the rub has disappeared, congratulations! You might be done. However, often a small amount of fine-tuning is still required.

Step 3: Visual Inspection and Fine-Tuning

If the rub persists or if the squeeze-and-tighten method didn't work perfectly, you'll need to use your eyes and a bit of patience.

1. Loosen the caliper bolts slightly again, just enough for the caliper to move.
2. Position yourself so you can look directly down into the caliper, observing the gap between the pads and the rotor. A bright light source can be invaluable here.
3. You should see a small, even gap on both sides of the rotor between the pads. The goal is to centre the rotor perfectly within the caliper.
4. Gently push the caliper left or right as needed to achieve this even gap. It often helps to push the caliper slightly in the direction of the rub. For example, if the outer pad is rubbing, push the caliper inward towards the wheel.
5. Once you believe it's centred, hold the caliper in that position and carefully re-tighten the mounting bolts, alternating as before.
6. Spin the wheel again to check for rub. Repeat this fine-tuning until the rub is gone. This step often requires a few iterations.

Step 4: Adjusting the Fixed Pad (If Applicable)

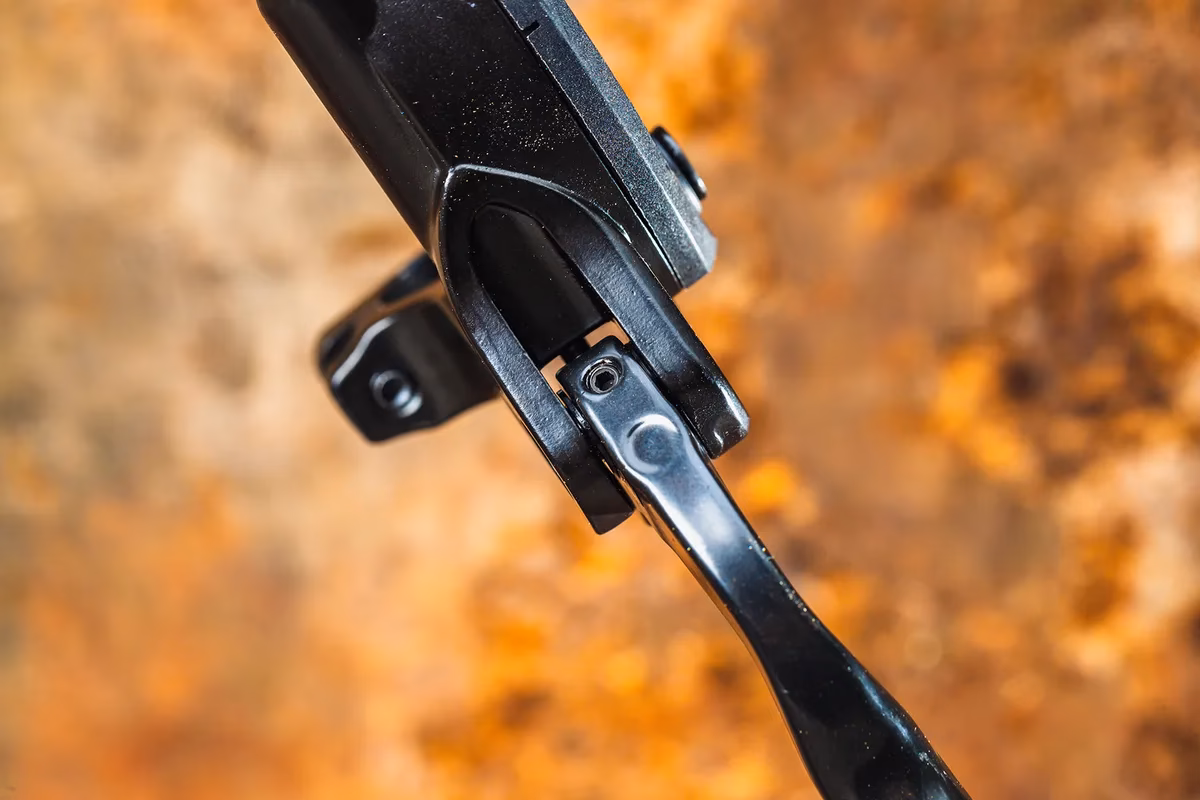

Many mechanical disc brakes have a fixed pad that doesn't move when the lever is pulled. You can often adjust the position of this fixed pad to optimise clearance. Look for a small Allen bolt or knob on the caliper body, usually on the side opposite the cable arm. This bolt moves the fixed pad closer to or further from the rotor.

• If you have too much gap on the fixed pad side, or if the moving pad has to travel too far to engage, you can turn this adjuster screw clockwise to move the fixed pad closer to the rotor.
• Be careful not to move it too close, as this will cause constant rub. Adjust it incrementally until there's just a hair's breadth of clearance.

This adjustment is crucial for ensuring proper brake feel and preventing excessive lever travel.

Step 5: Adjusting Cable Tension

Once the caliper is aligned and the fixed pad is set, you might need to adjust the cable tension. This affects how firm your brake lever feels and how quickly the pads engage. On mechanical disc brakes, there's usually a barrel adjuster either at the brake lever or on the caliper itself.

• To increase tension (make the lever feel firmer, or bring pads closer to rotor), turn the barrel adjuster counter-clockwise.
• To decrease tension (make the lever feel softer, or create more clearance), turn the barrel adjuster clockwise.

Adjust until your lever feels firm and the brake engages without excessive travel, but without causing rub when disengaged.

Troubleshooting Common Mechanical Disc Brake Issues

Even after careful alignment, you might encounter persistent issues. Here are some common problems and their solutions:

Problem: The Rotor is Bent or Warped

This is a frequent cause of stubborn rubbing that won't go away with caliper alignment. A bent rotor will rub in one specific spot during each rotation.

• Diagnosis: Spin the wheel slowly and watch the rotor pass through the pads. If it wobbles from side to side, it's bent.
• Solution: You can attempt to true the rotor using a rotor truing fork (a specific tool designed for this purpose). Identify the high spot (where it rubs) and gently bend the rotor back into alignment. This requires patience and a delicate touch. Alternatively, if the bend is severe or you're uncomfortable doing it, a bike shop can true it for you, or you may need to replace the rotor.

Problem: Pads are Worn Unevenly or Down to the Metal

Worn pads can cause poor braking performance and sometimes rub.

• Diagnosis: Remove the wheel and inspect the pads. Are they worn thin? Is one pad significantly more worn than the other? Are they worn down to the metal backing plate?
• Solution: Replace worn pads immediately. Uneven wear can sometimes be mitigated by adjusting the fixed pad, but it's often a sign of consistent misalignment over time. Always replace pads in pairs.

Problem: Sticky Caliper Piston/Mechanism

While mechanical brakes don't have fluid-filled pistons like hydraulic ones, the moving parts within the caliper can become sticky or gummed up with dirt.

• Diagnosis: If the moving pad doesn't retract fully after the lever is released, or feels sluggish.
• Solution: With the wheel removed, carefully clean the area around the moving pad and the mechanism that pushes it. A small amount of dry lubricant (like PTFE spray, avoiding the pad surface) can sometimes help, but be extremely careful not to contaminate the pads or rotor.

Problem: Brake Lever Feels Spongy or Has Too Much Travel

This is usually a cable tension issue, but can also indicate a stretched or frayed cable.

• Solution: Adjust the barrel adjuster to increase cable tension. If the problem persists, inspect your brake cable and housing. Replace them if they are old, rusty, or frayed, as this significantly improves brake feel and performance.

Maintenance Tips for Longevity

Proper alignment is just one part of disc brake care. Regular maintenance will keep your mechanical disc brakes performing optimally and extend their lifespan:

• Keep Rotors Clean: Contaminated rotors (with oil, grease, or cleaning products) will cause squealing and reduced braking power. Clean them regularly with disc brake cleaner or isopropyl alcohol and a clean rag.
• Check Pad Wear Regularly: Make it a habit to inspect your brake pads. Replace them before they wear too thin to avoid damaging your rotor or compromising safety.
• Inspect Cables and Housing: Periodically check your brake cables for fraying, rust, or stiffness. Lubricate them if needed, or replace if damaged. Smooth cable action is vital for consistent braking.
• Tighten Bolts: Occasionally check that your caliper mounting bolts and rotor bolts are still tight. Use a torque wrench if you have one.

Mechanical vs. Hydraulic Disc Brakes: A Quick Comparison

While this article focuses on mechanical brakes, it's useful to understand their place in the disc brake landscape.

Mechanical disc brakes are a fantastic, reliable, and cost-effective option for many riders, especially those who prefer to do their own maintenance. Their simpler design makes them very accessible for home mechanics.

Frequently Asked Questions (FAQ)

Q1: How often should I align my mechanical disc brakes?

There's no fixed schedule. You should align them whenever you notice rubbing, squealing, or reduced braking performance. After replacing wheels, pads, or if the bike has been transported, it's always a good idea to check alignment.

Q2: Can I use the 'squeeze and tighten' method on hydraulic disc brakes?

No, absolutely not. The 'squeeze and tighten' method is specifically for mechanical disc brakes where the caliper is pulled into alignment by the cable. Hydraulic brakes have pistons that extend symmetrically, and this method would likely misalign them. Hydraulic brakes require a different alignment procedure, often involving shims or a specific alignment tool.

Q3: My brake still rubs after alignment, what else could it be?

If you've followed all the alignment steps and the rub persists, the most likely culprits are a bent rotor, worn or contaminated brake pads, or a sticky caliper mechanism. Carefully inspect your rotor for wobbles, and check your pads for wear and cleanliness. If the rub is intermittent, it's almost certainly a bent rotor.

Q4: Do I need special tools for disc brake alignment?

For basic alignment, usually just standard Allen keys (5mm is common). A bright light source is incredibly helpful. For more advanced troubleshooting like truing a bent rotor, a specific rotor truing fork is needed. Always refer to your brake manufacturer's instructions for specific tool requirements or torque settings.

Q5: Is it normal for new disc brakes to rub?

Yes, it's quite common for new disc brakes to rub slightly out of the box or after initial installation. This is usually due to the caliper not being perfectly centred. A proper alignment procedure will resolve this.

Conclusion

Aligning your mechanical disc brakes is a fundamental maintenance skill that every cyclist can master. By following these steps, you can eliminate annoying brake rub, extend the life of your brake pads, and significantly improve your riding experience. A well-aligned brake means a quieter ride, more efficient pedalling, and most importantly, reliable stopping power when you need it most. Don't let a squealing brake detract from your cycling pleasure; take a few minutes, follow this guide, and enjoy the silent, smooth performance of perfectly aligned disc brakes.
