DIY Guide: Replacing a Brake Caliper in the UK

A properly functioning braking system is paramount for your safety on the road. Among its critical components, the brake caliper plays a pivotal role, clamping the brake pads onto the rotor to slow or stop your vehicle. When a caliper begins to fail, it can lead to compromised braking performance, uneven wear, and even dangerous driving conditions. While replacing a brake caliper might seem daunting, with the right tools, knowledge, and adherence to safety protocols, it's a task many DIY enthusiasts can confidently undertake in their own garage.

This guide will walk you through the entire process, from identifying a failing caliper to the final test drive, ensuring you have all the information needed to perform this crucial repair correctly and safely. Remember, patience and precision are key when working on your vehicle's braking system.

Understanding Your Brake Caliper

Before diving into the replacement process, it's beneficial to understand what a brake caliper is and how it works. Essentially, the caliper acts like a clamp. When you press the brake pedal, hydraulic pressure from the master cylinder forces brake fluid into the caliper, pushing its piston(s) outwards. These pistons then press the brake pads against the spinning brake rotor, creating friction that slows the wheel down. Calipers are typically made of cast iron or aluminium and come in two main types:

• Floating Calipers: These are the most common type, featuring one or two pistons on one side of the rotor. When pressure is applied, the piston pushes one pad against the rotor, and the caliper body slides on guide pins, pulling the other pad into contact from the opposite side.
• Fixed Calipers: Less common on standard road cars, fixed calipers have pistons on both sides of the rotor. They do not move or 'float'; instead, the pistons push both pads simultaneously against the rotor. These are often found in high-performance applications due to their superior stopping power and heat dissipation.

Recognising the signs of a failing caliper is the first step towards a successful replacement. Common symptoms include a vehicle pulling to one side when braking, a soft or spongy brake pedal, a burning smell, reduced braking efficiency, or visible fluid leaks around the wheel.

Essential Tools and Materials

Having the correct tools before you begin is crucial for a smooth and safe replacement. Here’s a checklist of what you'll likely need:

• New Brake Caliper (ensure it's the correct one for your vehicle's make, model, and side)
• New Brake Pads (always replace pads when replacing calipers)
• Brake Fluid (check your owner's manual for the correct DOT rating, e.g., DOT3, DOT4, DOT5.1)
• Jack and Jack Stands (never work under a vehicle supported only by a jack)
• Wheel Nut Wrench/Socket and Breaker Bar
• Socket Set and Ratchet (for caliper mounting bolts)
• Open-End Wrenches (for brake line fittings and bleeder valve)
• Torque Wrench (essential for tightening fasteners to manufacturer specifications)
• Brake Bleeder Kit or Bleeder Wrench and Hose
• Drain Pan or Container (for old brake fluid)
• Caliper Piston Compression Tool (if reusing old pads or for initial setup, though less critical with new pads)
• Wire Brush (for cleaning mounting surfaces)
• Brake Cleaner Spray
• Gloves and Eye Protection (safety first!)
• Shop Rags or Old Towels
• Small Container for Waste Fluid

Safety First: Crucial Precautions

Working on your vehicle's braking system demands the utmost attention to safety. Neglecting proper precautions can lead to serious injury or catastrophic vehicle failure. Always:

• Park your vehicle on a flat, level surface.
• Engage the parking brake firmly.
• Place wheel chocks behind the wheels that will remain on the ground.
• Use sturdy jack stands to support the vehicle after lifting it with a jack. Never rely solely on the jack.
• Wear appropriate personal protective equipment, including safety glasses and gloves, to protect against brake dust, fluids, and sharp edges.
• Allow the brakes to cool down if the vehicle has recently been driven, as components can be extremely hot.
• Be aware that brake fluid is corrosive to paint; clean up spills immediately.
• Ensure proper ventilation if working in an enclosed space, especially when dealing with brake cleaner or fluid fumes.

Step-by-Step Brake Caliper Replacement Guide

Step 1: Prepare the Vehicle

With the vehicle safely parked on a level surface, engage the parking brake and chock the wheels. Loosen the wheel nuts on the wheel you'll be working on while the vehicle is still on the ground – this makes it easier as the wheel won't spin. Once the nuts are loose, use your jack to lift that corner of the vehicle. Place the jack stand securely under a strong part of the chassis or subframe, then slowly lower the vehicle until it rests on the stand. Remove the wheel nuts completely and carefully take off the wheel, setting it aside.

Step 2: Access the Caliper and Remove Brake Pads

With the wheel off, you'll have a clear view of the brake caliper, rotor, and pads. Locate the caliper guide pin bolts (usually two of them, often with rubber boots). These bolts hold the caliper to the caliper bracket. Using the appropriate socket or wrench, remove these bolts. Once the bolts are out, the caliper should pivot or slide off the brake rotor. Gently pull the caliper away from the rotor and carefully remove the old brake pads. Inspect the rotor for excessive wear or scoring; if it's heavily grooved, consider replacing it too.

Step 3: Disconnect the Brake Line

Before you can fully remove the old caliper, you need to disconnect the hydraulic brake line. Place your drain pan directly underneath the caliper to catch any dripping brake fluid. Using an open-end wrench (often a flare nut wrench is best to prevent rounding the fitting), carefully loosen and disconnect the brake line from the caliper. Be prepared for fluid to drip out. To minimise fluid loss and air entering the system, you can use a brake line clamp or plug the end of the line, though this isn't strictly necessary if you're quick and plan to bleed the system thoroughly.

Step 4: Remove the Old Caliper

Once the brake line is disconnected, the caliper is typically held to a mounting bracket by two larger caliper mounting bolts. These are different from the guide pin bolts. Use a suitable socket and ratchet (a breaker bar might be needed as they can be quite tight) to remove these bolts. With the mounting bolts removed, the old caliper can now be taken off the vehicle. Compare the old caliper with the new one to ensure they are identical and that all mounting points align correctly.

Step 5: Install the New Caliper

Before installing the new caliper, give the mounting bracket and surrounding area a quick clean with a wire brush and brake cleaner to ensure proper seating. Position the new caliper onto the mounting bracket, aligning the bolt holes. Insert and hand-tighten the caliper mounting bolts. Once both are started, use your torque wrench to tighten them to the manufacturer's specified torque setting. This is critical for safety and proper function. Consult your vehicle's service manual for these precise values.

Step 6: Reconnect the Brake Line

Carefully connect the brake line to the new caliper, ensuring the banjo bolt (if applicable) and copper washers are correctly installed and aligned. Hand-tighten the fitting, then use your wrench to tighten it. Again, consult your service manual for the correct torque specification for the brake line fitting. Overtightening can strip threads, while undertightening can lead to leaks. Use new copper washers if provided with the new caliper or banjo bolt.

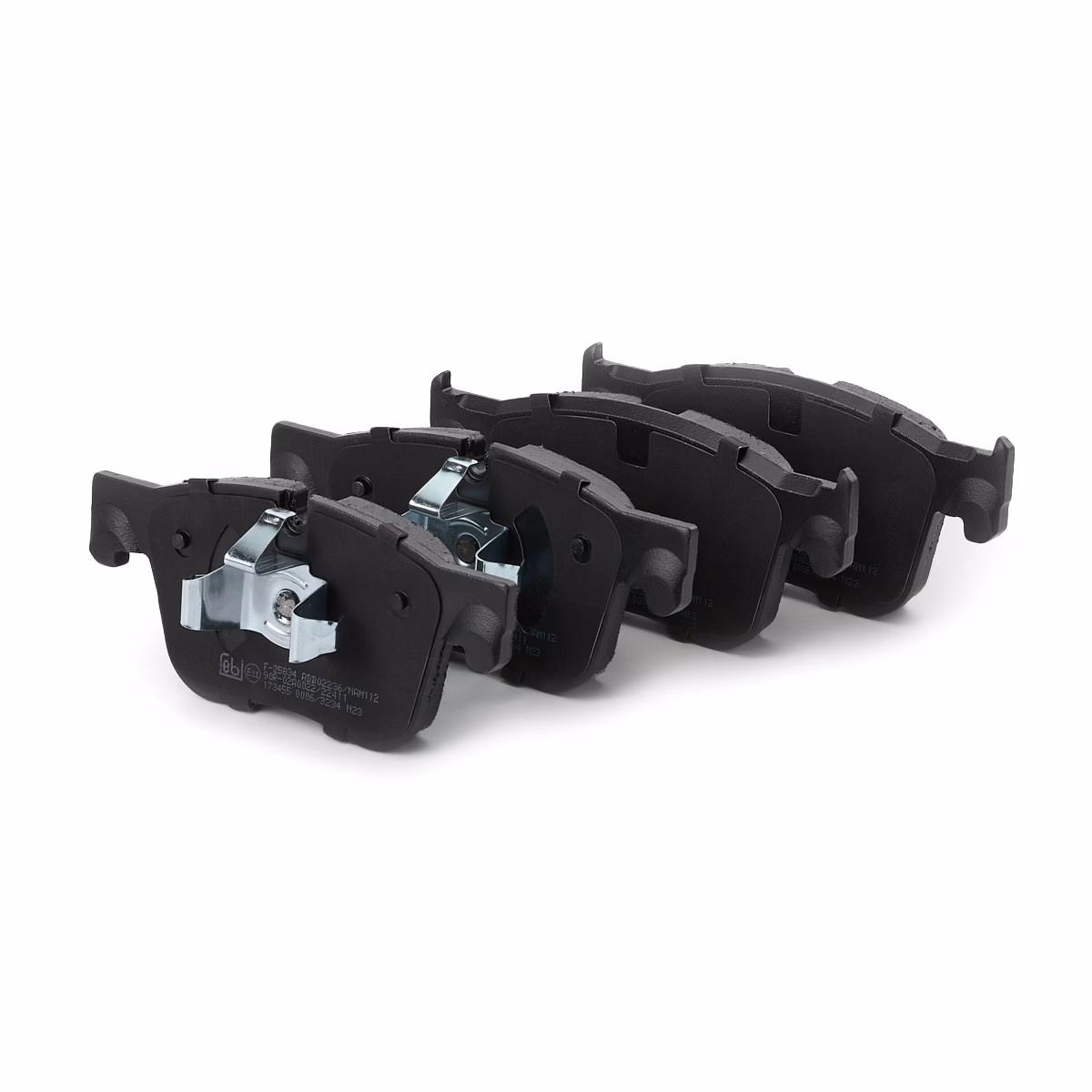

Step 7: Install New Brake Pads

With the new caliper securely mounted and the brake line connected, it's time to install the new brake pads. Ensure the pads are correctly oriented (inner and outer pads can sometimes differ). Apply a small amount of brake grease to the caliper guide pins (if reusing, though new ones often come pre-greased) and the ears of the brake pads where they slide into the caliper bracket. Slide the pads into position. If your caliper came with new guide pins, install those, then slide the caliper onto the pads and rotor, aligning the guide pin bolts. Insert and tighten these bolts to the specified torque setting.

Step 8: Bleed the Brake System

This is arguably the most crucial step. Whenever you open the brake system, air can enter, and air in the brake lines will lead to a spongy pedal and severely reduced braking performance. You must bleed the brake system to remove all air. This usually requires two people: one to pump the brake pedal and one to open and close the bleeder valve. Begin with the caliper furthest from the master cylinder (typically the rear passenger side on a right-hand drive UK car), then the rear driver's side, front passenger, and finally the front driver's side. If you only replaced one caliper, you generally only need to bleed that specific caliper, but a full system bleed is always recommended for peace of mind.

Bleeding Procedure:

1. Ensure the brake fluid reservoir is full. Keep it topped up throughout the process.
2. Attach a clear hose to the bleeder valve on the caliper and place the other end into a container with some fresh brake fluid at the bottom.
3. Have your assistant pump the brake pedal several times until it feels firm, then hold it down firmly.
4. While the pedal is held down, quickly open the bleeder valve for a few seconds. You'll see fluid and possibly air bubbles exit through the hose.
5. Close the bleeder valve tightly.
6. Only then should your assistant release the brake pedal.
7. Repeat this process until no more air bubbles appear in the fluid coming out of the hose.
8. Move to the next caliper in the sequence.

Ensure the brake fluid reservoir never runs dry during this process, as this will introduce more air into the system.

Step 9: Reinstall Wheel and Test

Once bleeding is complete and the brake fluid reservoir is topped up to the 'MAX' line, reinstall the wheel, hand-tighten the wheel nuts, and lower the vehicle off the jack stands. Finish tightening the wheel nuts in a star pattern to the manufacturer's specified torque. Before driving, pump the brake pedal several times until it feels firm. It will likely feel soft initially as the pads seat against the rotor and the system fully pressurises. Finally, take your vehicle for a cautious test drive in a safe area, starting at low speeds. Listen for any unusual noises and feel for proper braking action. Avoid hard braking initially to allow the new pads and caliper to bed in properly.

Common Issues and Troubleshooting

Even with careful execution, issues can arise. Here are a few common problems and their solutions:

• Spongy Brake Pedal: Almost always an indication of air still in the brake lines. Re-bleed the system, ensuring the master cylinder reservoir doesn't run dry.
• Brake Fluid Leak: Check all connections, especially the brake line fitting and bleeder valve. Ensure banjo bolt washers are correctly seated and tight.
• Brakes Pulling to One Side: Could indicate an issue with the new caliper not functioning correctly, air in only one side of the system, or a problem with the opposite side's caliper.
• Grinding Noise: Could be new pads not seated, or a problem with the rotor. Ensure dust shields aren't bent and touching the rotor.
• Sticking Caliper: If the new caliper sticks, it could be a faulty new part or debris in the system. Ensure guide pins are clean and greased, allowing the caliper to float freely.

Comparing Caliper Replacement vs. Professional Service

While DIY can save money, if you're uncomfortable with any part of this process, particularly the bleeding of the brake system or working with hydraulic fluid, it's always best to consult a qualified mechanic. Your safety, and the safety of others, depends on a perfectly functioning braking system.

Frequently Asked Questions (FAQs)

Q1: Do I need to replace brake pads when replacing a caliper?

A: Yes, it is highly recommended to always replace brake pads when replacing a caliper. The old pads may have worn unevenly due to the faulty caliper, and new pads will ensure optimal performance and proper bedding-in with the new caliper and existing rotor.

Q2: How long does a brake caliper replacement typically take?

A: For an experienced mechanic, replacing one caliper might take 1-2 hours. For a DIY enthusiast, especially a first-timer, it could easily take 3-5 hours or more, including time for gathering tools, troubleshooting, and thorough bleeding.

Q3: Do I need to replace both calipers on an axle?

A: While not strictly necessary if only one caliper has failed, it's often advisable to replace calipers in pairs (both front or both rear) to ensure balanced braking performance across the axle. If one caliper has failed due to age or wear, the other side may not be far behind.

Q4: What type of brake fluid should I use?

A: Always refer to your vehicle's owner's manual or the cap on your master cylinder reservoir. Brake fluids are categorised by DOT ratings (DOT3, DOT4, DOT5, DOT5.1). Using the incorrect type can damage your braking system. DOT3 and DOT4 are common for most vehicles, with DOT4 having a higher boiling point. DOT5 is silicone-based and generally not compatible with systems designed for DOT3/4/5.1.

Q5: Can I reuse the old brake line?

A: Yes, typically you will reuse the existing brake line unless it is damaged, corroded, or leaking. Ensure the fitting is clean and seats correctly in the new caliper. Always use new copper washers if your setup uses a banjo bolt.

Q6: What happens if I don't bleed the brakes properly?

A: If air remains in the brake lines, your brake pedal will feel spongy, soft, or 'mushy'. This is because air compresses, unlike brake fluid, meaning less hydraulic pressure reaches the caliper, significantly reducing braking effectiveness and making your vehicle unsafe to drive. You must re-bleed until the pedal is firm.

Q7: When should I consider professional help instead of DIY?

A: If you lack the necessary tools, experience, or confidence, or if you encounter unexpected complications (e.g., seized bolts, rounded fittings, persistent fluid leaks after bleeding), it's always best to stop and seek professional assistance. Safety should always be your top priority.

Conclusion

Replacing a brake caliper is a significant maintenance task that, when performed correctly, can save you money and provide a deep sense of accomplishment. By following this detailed guide, understanding the critical steps, and prioritising safety at every turn, you can restore your vehicle's braking capability and ensure a secure driving experience. Remember, a well-maintained braking system isn't just about passing an MOT; it's about confidence and control every time you get behind the wheel. Drive safely!
