Reprogramming Your Car's ECU: A Step-by-Step Guide

Understanding ECU Reprogramming

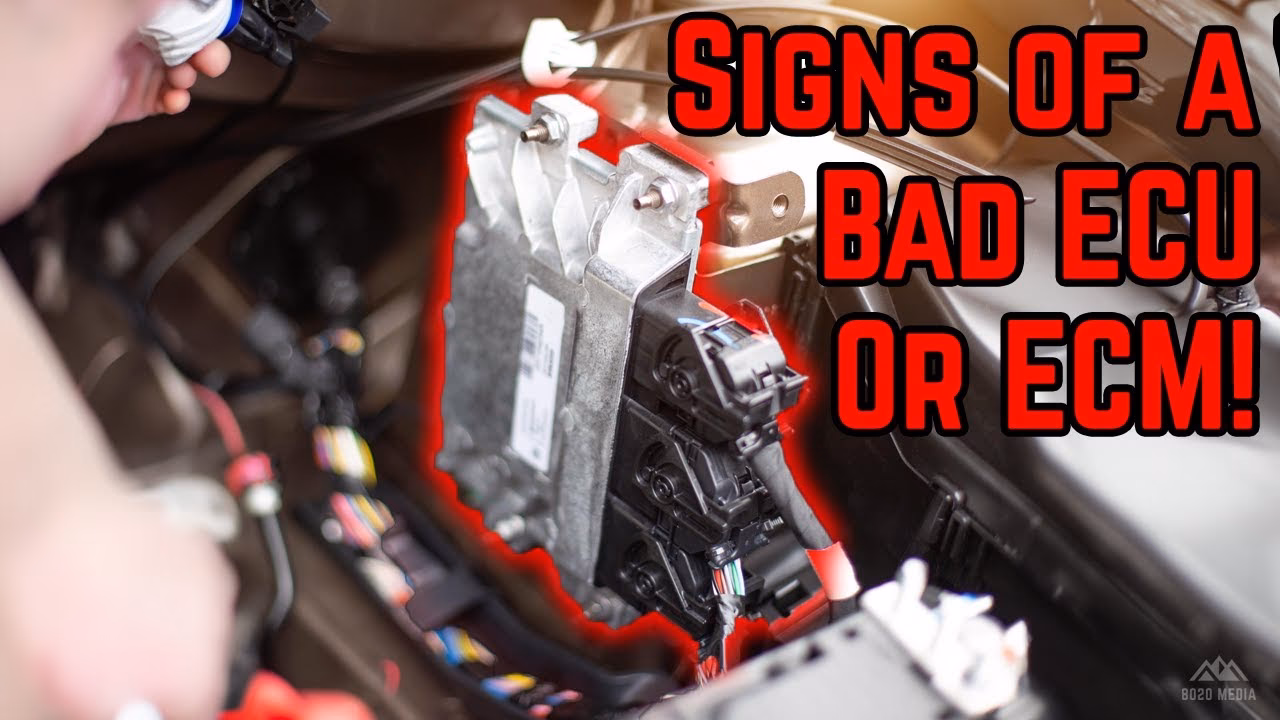

The Engine Control Unit (ECU), often referred to as the Engine Control Module (ECM), is the brain of your vehicle. It manages a myriad of functions, from fuel injection and ignition timing to emissions control and transmission shifts. Over time, manufacturers release updated software, or 'calibration files', to improve performance, enhance fuel efficiency, or address known issues. Reprogramming, or reflashing, your ECU with these updated files can breathe new life into your car. This guide will walk you through the process, focusing on the General Motors Service Programming System (SPS).

What is the Service Programming System (SPS)?

The Service Programming System (SPS) is a powerful PC application designed specifically to update the calibration files stored within a vehicle's ECM. It works by reading your car's unique Vehicle Identification Number (VIN), retrieving the appropriate update data from its extensive database, and then transferring this data to your vehicle's reprogrammable memory. Think of it as giving your car's brain a software update.

Essential Tools and Preparations

Before embarking on the reprogramming journey, ensure you have the necessary equipment and have taken the right precautions. You will typically need:

• A compatible PC with the SPS software installed.
• A diagnostic scan tool (e.g., GM's Tech 2 Flash or a Next Generation scan tool) that supports pass-thru programming.
• The appropriate cables to connect the scan tool to your vehicle and PC.
• A stable power source for both the vehicle and the PC. A fully charged battery is crucial, and using a booster pack is permissible, but avoid using a battery charger during the programming process, as it can interfere with the voltage regulation.

The Reprogramming Process: A Detailed Walkthrough

Here’s a step-by-step breakdown of how to reprogram your ECU using GM's SPS:

Step 1: Initial Setup

1. Turn the vehicle's ignition to the ON position. Do not start the engine.
2. On your PC's desktop, locate and double-click the TIS 2000 icon. This will open the TIS 2000 – Application Selection window.
3. Click on the Service Programming System (SPS) icon to launch the application. This action will bring up the SPS System’s Select Diagnostic Tool and Programming Process window.

Step 2: Selecting Programming Options

In the SPS window, you'll need to make several key selections:

• Select Diagnostic Tool: Choose 'Pass-Thru'. (Note: The 'Information Only/PROM Data' option is for viewing PROM or calibration data, not for programming.)
• Select Programming Process:
  • Select 'Reprogram ECU' to update the existing ECU (also known as reflashing or calibrating).
  • Select 'Replace and Program ECU' if you are installing a brand new ECU.
• Select ECU Location: Choose 'Vehicle'. (The OBPA option is only relevant if you have a specific off-board programming adapter.)
• Click the 'Next' button to proceed.

Step 3: Vehicle Identification

The 'Determine Vehicle' window will now appear:

• VIN Area: You can typically skip entering the VIN here, as the system will read it directly from the vehicle.
• Vehicle Data Area: For each listed item (sales make, model year, vehicle type, car line, engine type), click the down arrows and select the correct options corresponding to your vehicle. Accuracy here is paramount for selecting the correct calibration files.
• Once all vehicle data is correctly entered, click 'Next'. This will display connection instructions.

Step 4: Establishing Connection and Baud Rate

This step involves connecting your scan tool and configuring its communication settings:

• Follow the on-screen instructions carefully.
• For Tech 2 Flash: Power on the Tech 2 Flash and ensure it displays the version number screen.
• For Next Generation Scan Tool: Power on the scan tool. Navigate to CONFIGURATION > I/O management > Pass-thru > Properties > Baud. Select the appropriate baud rate (38400, 57600, or 19200 – whichever works best) and click 'OK'. Use 'Exit' to return to the Service Programming screen, ensuring the 'GM Reflash Pass-Thru Mode' screen is displayed.
• CAUTION: Never change the baud rate after the programming process has begun.
• Ensure the vehicle key is in the 'Run' position and the battery is fully charged.
• Click 'Next' to continue.

Step 5: VIN Validation and Controller Selection

You may encounter a warning message prompting you to input the VIN. If so, click 'OK'. The 'Validate VIN' window will appear:

• Verify that the VIN automatically read from the vehicle is correct by comparing it to your vehicle's VIN plate. If it's incorrect, manually enter the correct VIN.
• Click 'Next'. The 'Supported Controllers' window will be displayed.

On the 'Supported Controllers' window:

• Select Controller: Choose the specific ECU (controller) you intend to program from the list.
• Select Programming Type:
  • Normal: Select this to update an existing calibration or program a new controller with standard data.
  • VCI (Vehicle Configuration Index): You may need to contact your dealer for a VCI number. This option is used to update calibrations or program new controllers for vehicles whose VINs are not yet in the SPS database, or when calibrating for a different transmission, altered speedometer readings (due to tire size or axle ratio changes).
  • Reconfigure: This selection is not supported for all vehicles and is generally not recommended.
• Click 'Next'. Depending on your selections, you might see a 'Calibration Selection' window or a dialog box requesting further information (reconfiguration details, part number, or VCI number).

Step 6: Inputting Additional Information (If Required)

If a dialog box appears requesting more information:

• Obtain Required Information:
  • Using Tech 2: Exit the current procedure, use the scan tool to scan the vehicle, and request the module information.
  • Using Next Generation Scan Tool: With the 'GM Reflash Pass-Thru Mode' screen displayed, press Enter to view the controller list. Select the controller and press Enter again to see the module information. Note the required details, then press Enter to return to the Pass-Thru Mode.
• Select the correct value from the provided drop-down list and click 'OK'. If the correct value is not listed, do not proceed with programming; exit the procedure.

Step 7: Entering the VCI Number (If Required)

If you selected 'VCI' as the programming type, a dialog box will appear:

• Enter the VCI number in the designated box. Remember to delete any pre-filled 'ZERO' (0) before entering the correct number.
• Click 'OK'.

Step 8: Selecting Calibration Files

This is a critical stage where you choose the correct software update:

• You will see a list of calibration files for the controller you selected. For vehicles with PCMs, all calibrations are usually presented on a single 'tab'. Vehicles with VCMs may have multiple 'tabs', requiring a selection under each.
• Crucially, review the history of each calibration file. This history explains what the calibration does, whether it supersedes older versions, and may list related service bulletin numbers. Always consult the latest service bulletins for context on why specific calibrations were released. Select the file that best matches your needs based on this information.
• Note: If the selected calibrations are identical to the ones already in the module, a message will appear. You can click 'OK' and then 'Back' or 'Cancel' on the Summary screen.
• Important: Before proceeding, consult any service bulletins related to the selected calibration and follow any specific instructions provided.
• Select the appropriate calibration file(s) by checking the corresponding boxes.
• Click 'Next' to display the 'Summary' window.

Step 9: Confirming and Initiating Programming

The 'Summary' window provides a final overview of your selections:

• Carefully review all the calibration details to ensure they are correct.
• Click 'Next' to begin the programming process.
• You may encounter one or more warning messages. Read them carefully, follow any instructions, and click 'OK' (or 'YES') to acknowledge each one. This will eventually lead to the 'Transfer Data' window.

Step 10: The Transfer Process

The SPS application will now transfer the selected calibration data to your vehicle's ECU. This process can take several minutes. It is vital to maintain a stable power supply and avoid interrupting the process. Any interruption could lead to an inoperable ECU, requiring more extensive repairs.

Step 11: Completion and Verification

Once the data transfer is complete, the system will typically indicate success. It's good practice to:

• Turn the ignition OFF for a short period (as per system instructions, often 10-30 seconds).
• Turn the ignition back to the ON position (do not start the engine).
• Allow the ECU to initialize and re-learn any parameters.
• Start the engine and check for any warning lights or fault codes.
• Test drive the vehicle to ensure the reprogramming has had the desired effect and no new issues have arisen.

Important Considerations and Troubleshooting

Power Stability: This cannot be stressed enough. Fluctuations in power during programming can corrupt the ECU. Ensure your vehicle's battery is in excellent condition or use a reliable booster pack.

Correct Calibration Selection: Choosing the wrong calibration file is the most common mistake. Always double-check the vehicle details and the calibration history against service bulletins.

VIN Issues: If the VIN is not read correctly or if a VCI number is required, consult your vehicle's documentation or a qualified technician.

Software Updates: Ensure your SPS software and diagnostic tool firmware are up to date.

When to Seek Professional Help: If you are unsure about any step, lack the necessary equipment, or encounter persistent errors, it is always best to entrust the task to a qualified mechanic or dealership.

Frequently Asked Questions

Can I reprogram my ECU myself?

Yes, with the correct tools, software, and a thorough understanding of the process, it is possible for a knowledgeable individual to reprogram their ECU. However, the risks of error are significant.

What happens if the programming fails?

A failed programming attempt can render the ECU inoperable, a condition known as 'bricking'. This usually requires professional intervention to either re-flash the module or replace it entirely.

How long does reprogramming take?

The actual data transfer typically takes anywhere from 10 to 40 minutes, depending on the vehicle, the amount of data, and the speed of the connection. However, the entire process, including setup and verification, can take longer.

Will reprogramming void my warranty?

Modifying your vehicle's ECU software can potentially void your manufacturer's warranty, especially if the modification is deemed to have caused a fault. Always check your warranty terms and conditions.

What's the difference between Reprogram ECU and Replace and Program ECU?

'Reprogram ECU' is used when you are updating the existing ECU with new software. 'Replace and Program ECU' is used when you are installing a new, physically different ECU that needs to be programmed with the correct vehicle-specific data.

Reprogramming your ECU can be a rewarding process, offering potential improvements in your vehicle's performance and efficiency. By following these steps diligently and prioritising safety and accuracy, you can successfully update your car's 'brain'.
