When it comes to the safety and performance of your General Motors vehicle, few components are as critical as the braking system. At the heart of this system lie the brake drums and rotors, responsible for converting kinetic energy into thermal energy to slow or stop your car. Understanding these vital parts isn't just for mechanics; it's for any GM owner who values their safety and the longevity of their vehicle.
Whether your GM model utilises disc brakes with rotors, drum brakes, or a combination of both, each component plays a specific role in bringing your vehicle to a controlled halt. Genuine GM parts are engineered to precise specifications, ensuring optimal fit, performance, and durability, which is paramount for a system that directly impacts your life on the road.
The Fundamental Role of Braking Components
Before delving into the specifics of drums and rotors, it's essential to grasp the basic principle of how a vehicle stops. When you press the brake pedal, hydraulic pressure is transmitted through the brake lines, actuating components at each wheel that create friction against a rotating surface. This friction is what slows the wheel's rotation and, consequently, the vehicle's speed. The brake drums and rotors are those crucial rotating surfaces.
GM Brake Rotors: The Disc Brake Workhorse

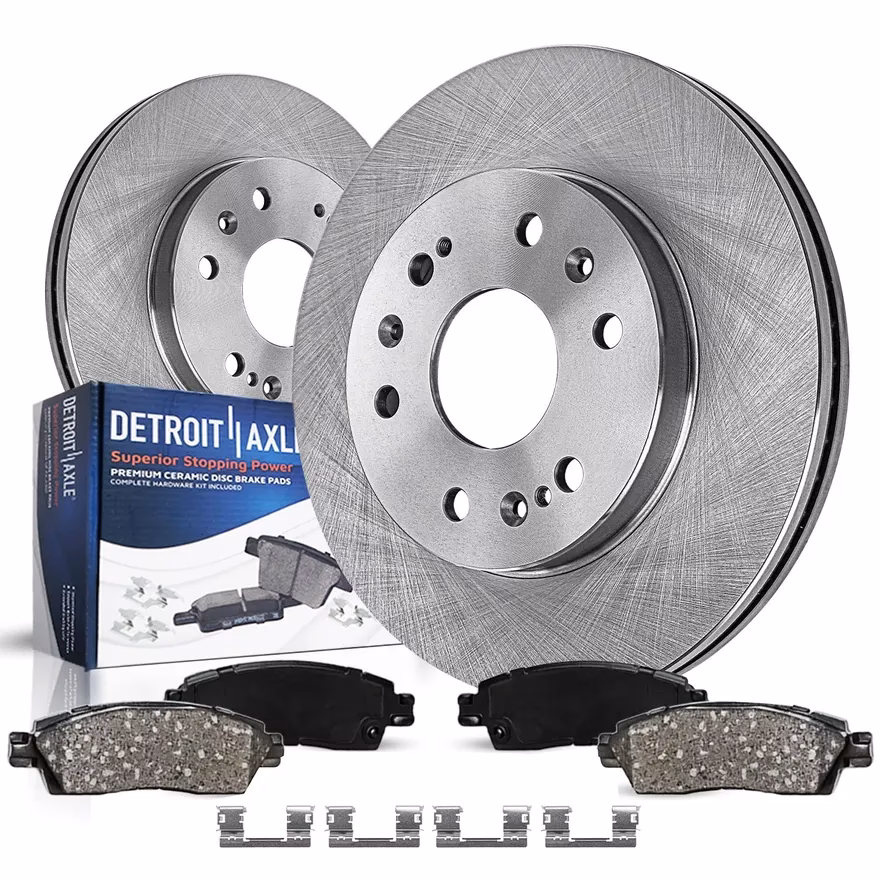

Most modern GM vehicles, especially on the front wheels, utilise disc brakes, which feature brake rotors. A brake rotor, often simply called a brake disc, is a metallic disc that rotates with the wheel. When the brakes are applied, calipers clamp brake pads onto both sides of the rotor, creating friction that slows the wheel down. This design is highly effective at dissipating heat, making disc brakes ideal for high-performance vehicles and everyday driving alike.
Types of GM Brake Rotors
- Solid Rotors: These are single pieces of cast iron and are typically found on the rear wheels of some vehicles or smaller, lighter cars. They are simpler and less expensive to manufacture but less efficient at heat dissipation.
- Vented Rotors: The most common type for front wheels on GM vehicles, vented rotors have a series of fins or vanes between two disc faces. These vanes act like a fan, drawing air through the rotor to cool it down, which helps prevent brake fade during heavy braking.
- Drilled Rotors: These rotors feature holes drilled through the disc surface. The primary benefit is improved initial bite and wet weather performance, as the holes help to clear water and gases that can build up between the pad and rotor. However, they can be more prone to cracking under extreme stress.
- Slotted Rotors: Slotted rotors have grooves machined into their surface. Similar to drilled rotors, slots help to sweep away gases, dust, and water, maintaining consistent brake pad contact. They are generally more durable than drilled rotors for track use as they are less likely to crack.
- Drilled and Slotted Rotors: Combining both features, these rotors aim to offer the benefits of both designs.
Genuine GM rotors are typically made from high-quality cast iron, specifically formulated for optimal heat resistance and durability. They are designed to work seamlessly with GM brake pads, ensuring balanced wear and consistent braking performance. Opting for non-genuine parts can lead to premature wear, increased noise, and compromised stopping power.
GM Brake Drums: The Rear Axle Stalwart
While disc brakes are prevalent, many GM vehicles, particularly older models or those with lighter loads on the rear axle, still use drum brakes. A brake drum is a hollow cylindrical component that rotates with the wheel. Inside the drum are two curved brake shoes, lined with friction material. When the brakes are applied, hydraulic pressure pushes these shoes outwards, pressing them against the inner surface of the drum. This friction slows the wheel.
Components of a GM Drum Brake System
- Brake Drum: The rotating outer casing.
- Brake Shoes: Curved components with friction material that press against the drum.
- Wheel Cylinder: A hydraulic component that pushes the brake shoes outwards.
- Return Springs: Pull the brake shoes back to their original position when the pedal is released.
- Adjuster Mechanism: Automatically adjusts the shoes as the friction material wears to maintain proper clearance.
Drum brakes are generally less expensive to manufacture and are often sufficient for the rear wheels, which typically bear less braking force than the front. However, they are less effective at dissipating heat compared to disc brakes, which can lead to brake fade under repeated heavy braking. Genuine GM drums are engineered to meet specific tolerances, ensuring smooth operation and effective braking, especially when paired with genuine GM brake shoes.
Drums vs. Rotors: A Comparative Look
Understanding the fundamental differences between these two braking technologies can help you appreciate the engineering behind your GM vehicle's stopping system.
| Feature | Brake Rotors (Disc Brakes) | Brake Drums (Drum Brakes) |
|---|---|---|
| Heat Dissipation | Excellent (open design, often vented) | Poor (enclosed design traps heat) |
| Performance | Superior stopping power, less fade | Adequate for light duty, prone to fade |
| Maintenance & Cost | Easier inspection, generally higher parts cost | More complex to service, generally lower parts cost |
| Self-Adjustment | Not applicable (pads are always close to rotor) | Automatic adjusters common, but can stick |
| Application | Front wheels, performance vehicles, modern cars | Rear wheels, older vehicles, light-duty applications |
| Brake Feel | Consistent, firm pedal feel | Can feel softer, less immediate |
Signs of Worn GM Brake Components
It is crucial to be vigilant for signs that your GM brake drums or rotors may be wearing out. Ignoring these warnings can lead to reduced braking performance, increased stopping distances, and potentially dangerous situations. Regular inspections are key, but here are common indicators:
- Squealing or Grinding Noises: A high-pitched squeal often indicates worn brake pads (which interact with rotors/drums). A deeper grinding sound usually means the pads are completely worn away, and metal-on-metal contact is occurring, which will rapidly damage your rotors or drums.
- Vibration or Pulsation: If your steering wheel or brake pedal vibrates when braking, it's often a sign of a warped rotor. Warped rotors have uneven surfaces, causing inconsistent contact with the brake pads.
- Extended Stopping Distances: If your vehicle takes longer to stop than usual, it's a clear sign of brake system inefficiency. This could be due to worn friction material, overheated rotors/drums, or other issues.
- Pulling to One Side: If your GM vehicle pulls to the left or right when you apply the brakes, it could indicate uneven braking force, possibly due to a seized caliper, contaminated brake pads, or a problem with one of the drums or shoes.
- Visual Wear: Inspecting your rotors and drums for visible signs of wear is vital. Look for deep grooves, scoring, cracks, or excessive rust. Rotors have a minimum thickness specification; if they are worn below this, they must be replaced. Drums can also become "out of round" or develop deep scoring.
- Soft or Spongy Brake Pedal: While not directly related to drums or rotors, a soft pedal can indicate air in the brake lines or a master cylinder issue, which impacts the overall braking system's effectiveness.
Maintenance and Replacement Best Practices
Maintaining your GM brake drums and rotors is paramount for safety and performance. Here's what you need to know:
Regular Inspection: Have your brakes inspected by a qualified technician during routine service appointments, typically every 10,000 to 20,000 miles or annually. This allows for early detection of wear before it becomes a safety hazard.
Replacement vs. Resurfacing: For rotors, minor surface irregularities can sometimes be corrected by 'machining' or 'resurfacing' them on a brake lathe. However, this reduces the rotor's thickness. If the rotor is already close to or below its minimum thickness specification, it must be replaced. Modern rotors are often designed to be replaced rather than resurfaced due to their lighter construction and specific material properties. For drums, resurfacing is also an option if they are within tolerance, but replacement is common when significant wear is present.
Genuine GM Parts: When replacing brake components, always opt for genuine GM parts. They are designed and tested to meet the exact specifications of your vehicle, ensuring optimal fit, performance, and safety. Aftermarket parts, while sometimes cheaper, may not offer the same level of quality, leading to premature wear, noise, or compromised braking ability.
Professional Installation: Brake system work requires precision and expertise. It's highly recommended to have brake drums and rotors replaced by a certified technician. Incorrect installation can lead to immediate safety hazards or long-term issues.
Brake Fluid: Don't forget the brake fluid! It's the medium that transfers force from your pedal to the brakes. Over time, brake fluid can absorb moisture, reducing its boiling point and effectiveness. Check your GM owner's manual for recommended brake fluid change intervals.
Frequently Asked Questions About GM Brake Components
How often should I have my GM brakes inspected?
It's generally recommended to have your GM brakes inspected by a qualified technician every 10,000 to 20,000 miles, or at least once a year, whichever comes first. Your driving habits and environment can influence wear, so more frequent checks might be necessary if you do a lot of city driving or towing.
Can I replace just one brake rotor or drum on my GM?
While technically possible, it is strongly advised to replace brake rotors and drums in pairs on the same axle (e.g., both front rotors, both rear drums). This ensures balanced braking force across the axle, preventing uneven wear and maintaining stable stopping performance. Replacing only one can lead to pulling, vibration, and premature wear on the new component.
What's the difference between OEM and aftermarket GM brake parts?
OEM (Original Equipment Manufacturer) parts are identical to the parts your GM vehicle was built with. They are designed, tested, and approved by General Motors to meet strict quality and performance standards. Aftermarket parts are produced by other companies and may vary widely in quality, material, and performance. While some aftermarket parts are good, many do not offer the same level of reliability or exact fit as genuine GM components, potentially compromising safety and longevity.
Why do my new GM brakes squeal after replacement?
A slight squeal can be normal for a short period after new brake pads and rotors/drums are installed, as they need to "bed in." This involves a process of gentle braking to transfer a thin layer of friction material from the pads to the rotors/drums, optimising performance. However, persistent or loud squealing can indicate improper installation, incorrect parts, or issues with the brake pad material itself. If it doesn't subside, have it checked.
What is 'bedding in' new GM brakes?
Bedding in, also known as break-in, is a crucial process for new brake pads and rotors/drums. It involves a series of moderate stops from increasing speeds, allowing the friction materials to properly transfer and seat themselves against the braking surface. This optimises braking performance, reduces noise, and prevents premature wear. Your mechanic should provide instructions, or you can find specific procedures in your vehicle's service manual.
Conclusion
The brake drums and rotors on your GM vehicle are non-negotiable safety components. Understanding their function, recognising the signs of wear, and committing to timely maintenance with genuine parts are paramount for ensuring your vehicle's stopping power remains optimal. Investing in the right components and professional servicing isn't just about prolonging the life of your car; it's about safeguarding every journey you take.
