In the realm of automotive engineering, the delivery of fuel to an engine is a critical factor in its performance, efficiency, and emissions. While various fuel delivery systems have evolved over the decades, multipoint fuel injection (MPI) has emerged as the dominant and preferred method for many modern vehicles, particularly for V8 engines. This system, with its precise fuel atomisation and distribution, offers significant advantages over older technologies like carburettors and even earlier forms of fuel injection. Let's delve into what makes multipoint fuel injection so effective and explore the components and benefits associated with it.
Understanding Multipoint Fuel Injection (MPI)
At its core, multipoint fuel injection is a sophisticated system where individual fuel injectors are strategically placed at each intake port of the engine's cylinder head, just before the intake valve. This placement ensures that a precise, atomised spray of fuel is delivered directly into the path of incoming air as it enters the combustion chamber. This contrasts with earlier systems like single-point injection (SPI), where a single injector or throttle body was located in the intake manifold, distributing fuel to all cylinders simultaneously. The key advantage of MPI lies in its ability to control the fuel-air mixture for each cylinder independently, leading to improved performance and efficiency.
How MPI Works: The Intricate Dance of Fuel and Air
The MPI system operates under the control of an Electronic Control Unit (ECU), often referred to as the engine management system. The ECU receives data from a multitude of sensors strategically placed around the engine. These sensors monitor various parameters, including engine speed (RPM), throttle position, air intake temperature, manifold absolute pressure (MAP), oxygen levels in the exhaust, and coolant temperature, among others. Based on this real-time data, the ECU calculates the optimal amount of fuel required for each cylinder at any given moment. It then signals the appropriate fuel injector to open for a specific duration, injecting a precisely metered amount of fuel.
In a V8 engine, this typically means eight individual injectors, each dedicated to a single cylinder. For even greater precision, modern MPI systems can operate in a sequential injection mode. In sequential injection, the ECU fires each injector precisely when its corresponding cylinder is on the intake stroke. This synchronisation, coupled with an appropriate ECU and distributor (or more commonly, a crank and cam sensor setup), allows for incredibly accurate fuel delivery, resulting in lower fuel consumption and significantly better drivability compared to older batch fire systems, where injectors fire in groups.
The Advantages of Multipoint Fuel Injection
The widespread adoption of MPI is not without reason. The benefits it offers are substantial:
- Improved Fuel Efficiency: By precisely controlling the fuel injected into each cylinder, MPI minimises fuel wastage. The ECU can adjust the fuel mixture based on driving conditions, leading to more miles per gallon.
- Enhanced Performance: The accurate fuel delivery results in a more consistent and powerful combustion process, leading to improved throttle response, increased horsepower, and a smoother power band.
- Reduced Emissions: A well-controlled fuel-air mixture leads to more complete combustion, significantly reducing harmful exhaust emissions. This is crucial for meeting stringent modern emissions standards.
- Better Drivability: MPI systems provide a more refined driving experience. Issues like engine hesitation, stumbling, or rough idling, often associated with carburettors, are virtually eliminated.
- Easier Cold Starts: The precise fuel control allows for optimal starting in cold weather, eliminating the need for manual choke adjustments.
- Adaptability: MPI systems are highly adaptable to varying altitudes and atmospheric conditions, automatically adjusting fuel delivery for optimal performance.

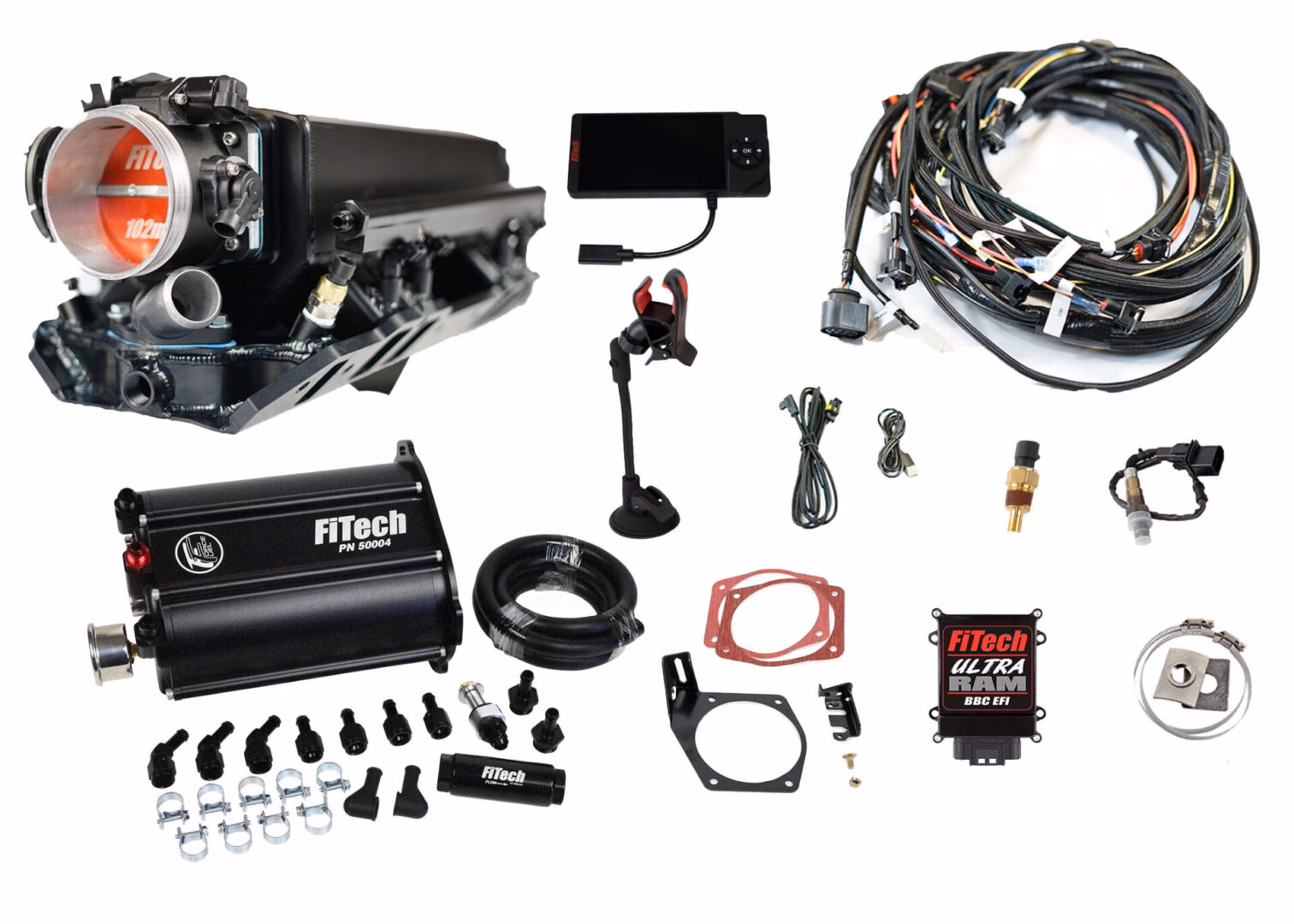

Key Components of an MPI System
A typical multipoint fuel injection system comprises several critical components:
| Component | Description |
|---|---|
| Fuel Injectors | Electrically operated valves that spray atomised fuel into the intake ports. Each cylinder has its own injector. |
| Fuel Pump | Supplies fuel from the tank to the injectors at a regulated pressure. |
| Fuel Rail | A manifold that distributes pressurised fuel to all the injectors. |
| Fuel Pressure Regulator | Maintains a constant fuel pressure in the fuel rail, returning excess fuel to the tank. |
| ECU (Engine Control Unit) | The 'brain' of the system, processing sensor data and controlling injector pulse width. |
| Sensors | Provide the ECU with real-time information about engine operating conditions (e.g., MAP, TPS, O2, IAT, ECT). |
| Throttle Body | Controls the amount of air entering the engine, regulated by the accelerator pedal. Some systems integrate the throttle body with the air intake. |
Specific Considerations for V8 Kits
When looking at performance kits, such as those designed for V8 engines, specific attention is paid to optimising the MPI system for higher power outputs. For instance, a V8 Stack and Cross Ram kit might be rated for 580HP - 600HP, indicating its capability to support such power levels provided the rest of the engine and tuning are adequate.
Customers often have choices regarding the assembly of these kits:
- Fully Assembled Kit: This option provides a ready-to-install system where throttle bodies are precision-assembled, throttle shafts are cut to the correct length, linkages are fitted and adjusted (though final adjustment may be needed once the engine is running), and the Throttle Position Sensor (TPS) is mounted for optimal positioning. This is ideal for those seeking a hassle-free installation.
- Sub-Assembled Kit: In this case, the throttle bodies are factory-assembled, but throttle shafts are left long for custom trimming to suit the specific manifold and engine. Linkages are supplied separately for the user to fit and adjust after shaft trimming. This option offers more flexibility for custom builds.
It's important to note specific compatibility, such as a kit being designed for Rectangular Port Cylinder Heads and not Cathedral Port Heads, which can affect fitment and performance.
Technical Details and Enhancements
Modern performance MPI systems often incorporate advanced features:
- 6° Throttle Plates: Unlike the older industry standard of 12° throttle plates, 6° plates offer significant improvements in drivability, especially at lower throttle openings. The shallower angle provides a more linear and predictable increase in airflow as the throttle plate opens, making off-idle and cruise conditions much smoother and more enjoyable. This is a crucial detail for enhancing the driving experience. The butterflies themselves are typically secured to centreless ground brass shafts, with screws loctited for reliability. The use of low stiction bearings, rather than bushes, eliminates axial shaft movement and contributes to a sharp throttle response.
- TPS Mounting and Drive: The TPS is a vital sensor that tells the ECU the position of the throttle. For optimal performance, its mounting and drive are carefully considered. A common specification involves an 8mm shaft with a 6mm 'D' shape across it, and mounting holes with a 32mm PCD (Pitch Circle Diameter). Ensuring the TPS is positioned correctly on the shaft is key for accurate data input to the ECU.
- Linkage and Ram Tube Colours: While functionality is paramount, aesthetics also play a role in engine bay appearance. Many manufacturers offer customisation options, such as transitioning standard colours from blue to black for ram tubes, linkages, and other components. Black is a versatile choice that complements most engine bay designs. For those who prefer a specific colour like blue, custom anodising can often be arranged for an additional charge, ensuring both performance and visual appeal are met.
Frequently Asked Questions (FAQ)
Q1: What is the main difference between multipoint and single-point fuel injection?
A1: Multipoint fuel injection has an injector for each intake port, delivering fuel directly to each cylinder. Single-point injection has a single injector or throttle body located in the intake manifold, distributing fuel to all cylinders. MPI offers more precise fuel control.
Q2: Can multipoint fuel injection improve my car's fuel economy?
A2: Yes, significantly. The precise control over fuel delivery for each cylinder, especially in sequential mode, minimises waste and optimises combustion, leading to better fuel efficiency.
Q3: Is multipoint fuel injection suitable for performance V8 engines?
A3: Absolutely. MPI is the preferred method for modern V8 engines, both in standard road cars and high-performance applications, due to its ability to deliver precise fuel mixtures for optimal power and efficiency.
Q4: What does 'sequential injection' mean?
A4: Sequential injection means that the ECU fires each fuel injector individually, timed precisely with the intake stroke of its corresponding cylinder. This offers greater accuracy than batch fire injection where injectors fire in groups.
Q5: How do 6° throttle plates improve drivability?
A5: 6° throttle plates provide a more gradual and controlled increase in airflow at low throttle openings compared to older 12° plates. This results in smoother acceleration and better control, especially in stop-and-go traffic or during low-speed manoeuvres.
In conclusion, multipoint fuel injection represents a significant advancement in engine management technology. Its ability to precisely deliver fuel to each cylinder, coupled with sophisticated electronic control, results in a harmonious blend of performance, efficiency, and reduced emissions. Whether for a daily driver or a high-performance V8, understanding the principles and components of MPI is key to appreciating the engineering that goes into making modern vehicles run so effectively.
