Installing brake drums might seem like a straightforward task, but overlooking critical steps can lead to premature wear, reduced braking efficiency, and even safety concerns. This guide delves into the essential knowledge you need to acquire before embarking on this vital automotive maintenance. Understanding the nuances of brake drum installation is paramount for any mechanic, from seasoned professionals to enthusiastic DIYers. We'll explore the importance of meticulous inspection, correct component alignment, and proper tightening procedures to ensure your braking system performs at its best.
The Cruciality of Pre-Installation Inspection

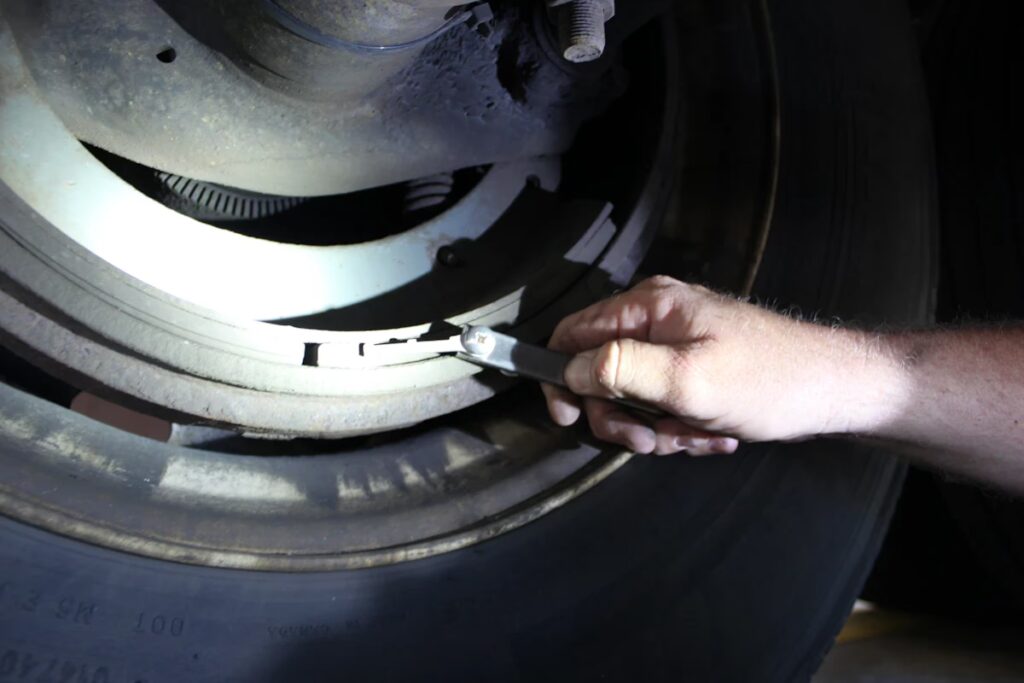

Before a single bolt is turned or a drum is seated, a thorough inspection of all related components is non-negotiable. This is where you lay the foundation for a reliable braking system. The most common culprits for premature brake drum wear and erratic braking behaviour often stem from issues that could have been identified and rectified during this initial phase. Pay particular attention to areas prone to wear and tear.
Understanding Corrosion and Its Impact
Corrosion is the silent saboteur of many automotive components, and brake drums are no exception. Areas particularly susceptible to rust and degradation include:
- Brake Drum Pilot: This is the central locating spigot on the hub that the brake drum sits over. Any corrosion here can prevent the drum from seating squarely against the hub.
- Mating Hub Surface: The face of the wheel hub where the brake drum makes contact. Unevenness due to corrosion can lead to the drum being mounted off-centre.
- Bolt Flanges: The surfaces where the lug nuts or bolts make contact. Corroded bolt holes or flange surfaces can lead to improper seating of the drum and potential loosening of the wheel.
When these critical surfaces become corroded, it can lead to excessive end play. Imagine a wobbly wheel – that's essentially what can happen if the drum isn't securely and squarely mounted. This excessive movement, or end play, forces the brake shoes to constantly adjust their position within the drum. The consequence? Deep, uneven wear on one side of the brake drum. This not only reduces braking effectiveness but also necessitates premature replacement of the drum and potentially the shoes.
Table: Common Corrosion Issues and Their Effects
| Component | Corrosion Type | Consequence |
|---|---|---|
| Brake Drum Pilot | Rust build-up, pitting | Drum not seating squarely, leading to uneven shoe contact and wear. |
| Mating Hub Surface | Rust, debris, pitting | Drum mounted off-centre, causing vibration and uneven braking. |
| Bolt Flanges/Holes | Rust, dirt | Improper seating of drum, potential for loose wheel nuts, reduced clamping force. |
Ensuring Proper Mounting and Orientation
Once you've confirmed that your components are in good condition, the next crucial step is correct mounting and orientation. This involves ensuring the brake drum is fitted in the right position and aligned correctly with the wheel hub.
The Importance of Drum Orientation
While many brake drums appear symmetrical, some have specific orientations. This is often due to factors like venting, cooling fins, or even the placement of the brake shoe contact points. Installing a drum in the incorrect orientation can lead to:
- Reduced Cooling Efficiency: If cooling vents are misplaced, the drum can overheat, leading to brake fade.
- Improper Brake Shoe Contact: The curvature of the drum is precisely matched to the brake shoes. An incorrectly oriented drum can result in only a portion of the shoe making contact, drastically reducing braking power and causing rapid, uneven wear.
- Vibrations: An improperly seated drum can cause subtle vibrations that become more noticeable under braking.
Always consult your vehicle's service manual for specific guidance on drum orientation. Sometimes, markings on the drum or hub can indicate the correct alignment. Never assume symmetry is a guarantee of correct fitting.
Mounting the Drum Securely
The brake drum is typically secured to the hub using retaining clips or nuts. These small components play a vital role in keeping the drum in place during normal operation and preventing it from shifting. Ensure these are:
- Present and Undamaged: If retaining clips are missing or bent, they won't hold the drum effectively.
- Correctly Installed: Make sure they are seated properly in their designated grooves.
While the wheel nuts will ultimately hold the drum firmly against the hub when the wheel is fitted, these retaining elements are essential for maintaining alignment and preventing movement during maintenance or when the wheel is off.
The Art of Tightening Lug Nuts
The final, and often most critical, stage of installing a brake drum is tightening the lug nuts. This is not a task to be rushed or done haphazardly. The sequence and torque applied to the lug nuts directly impact the drum's seating and the overall integrity of the wheel assembly.
Tightening Sequences: A Star Pattern is Key
To ensure the brake drum and wheel are drawn onto the hub evenly, a specific tightening sequence, commonly known as a star pattern or criss-cross pattern, must be followed. Applying pressure in a circular fashion can cause the drum to seat unevenly, leading to the very issues we're trying to avoid, such as runout and uneven wear.
The process typically involves:
- Hand-tightening all lug nuts to ensure they are started correctly and not cross-threaded.
- Tightening the nuts in a star pattern to a snug fit.
- Using a torque wrench to tighten the nuts to the manufacturer's specified torque in the same star pattern.
Why is this so important? Evenly distributed pressure ensures the brake drum is clamped flush against the hub, preventing any wobble or misalignment. This even clamping force is crucial for the brake shoes to make consistent contact with the drum's inner surface during operation.
Torque Specifications: Precision Matters
Every vehicle has specific torque specifications for its lug nuts. These are not mere suggestions; they are engineering requirements. Overtightening can:
- Stretch or break wheel studs.
- Damage the brake drum or wheel mounting surfaces.
- Cause rotor warping (though less common with drums, the principle of excessive clamping force applies).
Undertightening, as we've discussed, leads to loose wheels, a highly dangerous situation. Always use a calibrated torque wrench and adhere strictly to the vehicle manufacturer's recommended torque settings, usually found in the owner's manual or a service manual.
Table: Torque Wrench Usage Guide
| Step | Action | Tool |
|---|---|---|
| 1 | Snug up all lug nuts | Star wrench/socket driver |
| 2 | Torque to half of final specification | Torque wrench |
| 3 | Torque to final specification | Torque wrench |
| 4 | Re-check torque after driving a short distance (e.g., 50-100 miles) | Torque wrench |
Frequently Asked Questions
Q1: Can I reuse old brake drum retaining clips?
It is highly recommended to use new retaining clips. Old clips can be weakened, stretched, or corroded, compromising their ability to hold the drum securely. New clips are inexpensive and ensure proper drum seating.
Q2: What happens if I don't tighten the lug nuts in a star pattern?
Not using a star pattern can lead to the brake drum being installed unevenly against the hub. This can cause vibrations, uneven brake shoe wear, and potentially compromise the integrity of the wheel mounting.
Q3: How tight should lug nuts be if I don't have a torque wrench?
While it's strongly advised to use a torque wrench, if absolutely necessary, tighten them firmly and evenly in a star pattern. However, this is not precise and carries a risk of overtightening or undertightening. Investing in a torque wrench is a worthwhile safety measure for anyone performing automotive maintenance.
Q4: What is 'end play' in relation to brake drums?
End play refers to the slight axial (front-to-back) movement of the brake drum on the hub. A small amount of play is normal, but excessive end play, often caused by corrosion or worn hub components, can lead to uneven and rapid wear of the brake drum's inner surface.
Q5: Should I lubricate the brake drum mounting surfaces?
Generally, no. Lubricants on these surfaces can interfere with the proper seating of the drum and the clamping force of the lug nuts. The only exception might be a very light application of an anti-seize compound on wheel studs, but this must be done sparingly and according to manufacturer recommendations, as it can affect torque readings.
Conclusion
The installation of brake drums is a critical maintenance task that demands attention to detail. By meticulously inspecting components for corrosion, ensuring correct mounting and orientation, and adhering to precise lug nut tightening sequences and torque specifications, you can guarantee the longevity and reliable performance of your vehicle's braking system. Prioritising these steps not only enhances safety but also prevents costly premature wear and potential repairs. Always refer to your vehicle's specific service manual for the most accurate procedures and specifications.
