T4 Oil Pressure Sensor: Location & Replacement Guide

The Volkswagen Transporter T4, a true workhorse of the roads, has earned its legendary status for reliability and versatility. However, like any vehicle, it requires diligent maintenance to keep its heart – the engine – beating strong. One critical component often overlooked until it causes a warning light to flash is the oil pressure sensor. A malfunctioning sensor can lead to incorrect readings, or worse, mask a genuine low oil pressure issue, potentially causing severe engine damage. Understanding its location, function, and how to replace it is crucial for any T4 owner.

Oil pressure is vital for your engine's health. It ensures that lubricating oil reaches all moving parts, reducing friction and preventing wear. A healthy oil pressure sensor provides accurate data to your dashboard, alerting you if pressure drops below a safe threshold. Ignoring an oil pressure warning light can be catastrophic, leading to costly repairs or even engine replacement. This guide will walk you through everything you need to know about the T4's oil pressure sensor.

Understanding the Importance of Oil Pressure

Engine oil isn't just a lubricant; it's also a coolant, a cleaner, and a seal. It forms a protective film between moving components, preventing metal-on-metal contact. The oil pump circulates this vital fluid throughout the engine, creating pressure that ensures it reaches every nook and cranny. The oil pressure sensor, often referred to as an oil pressure switch, is a simple but critical device that monitors this pressure. When the pressure falls below a pre-set level, the sensor sends a signal to the instrument cluster, illuminating the oil warning light. This warning is your engine's cry for help and should never be taken lightly.

Locating the Oil Pressure Sensor in Your T4

For most Volkswagen Transporter T4 models (1990-2003, MK4), the oil pressure sensor is conveniently located towards the bottom part of the engine compartment. To access it, you will typically need to get underneath the vehicle. It's usually screwed directly into the engine block or an oil filter housing, where it can directly monitor the oil pressure. Depending on your specific T4 engine variant (petrol or diesel, and number of cylinders), its precise position might vary slightly, but it's generally found near the oil filter or towards the front/lower part of the engine.

Before you begin any work, ensure your T4 is safely supported on jack stands on a level surface, or ideally, lifted on a ramp. Always allow the engine to cool down completely, as oil and engine components can be extremely hot. Locating the sensor often involves looking for a small, cylindrical component with an electrical connector attached to it, usually with a hexagonal base for a spanner or socket.

Symptoms of a Faulty Oil Pressure Sensor

Recognising the signs of a failing oil pressure sensor can save you a lot of trouble. While some symptoms can mimic actual low oil pressure, a faulty sensor often provides misleading information. Common indicators include:

• Flickering Oil Warning Light: The most common symptom. The light might flicker intermittently, especially at idle or during acceleration, even when oil levels are correct.
• Constant Oil Warning Light: The light stays on continuously, despite the oil level being full and the engine sounding normal. This could indicate a sensor failure rather than a genuine pressure drop.
• No Oil Warning Light at Start-up: The oil light should illuminate briefly when the ignition is turned on (before the engine starts) as part of a system check. If it doesn't, the sensor or its wiring might be faulty.
• Oil Leaks: Although less common, a cracked or improperly seated sensor can cause oil to leak from its mounting point.

It's crucial to differentiate between a faulty sensor and actual low oil pressure. If you suspect low oil pressure, check your oil level immediately. If the level is correct, but the light persists, a sensor issue is a strong possibility. If the engine is making unusual noises (e.g., tapping, knocking), or if the light comes on and the engine sounds rough, pull over safely and turn off the engine immediately, as this could indicate a severe mechanical issue.

Tools and Materials Required for Replacement

Replacing the oil pressure sensor on your T4 is a relatively straightforward DIY task, provided you have the right tools and take necessary precautions. Here's what you'll typically need:

• Socket set or spanner set (likely 24mm or 27mm, depending on the sensor)
• Torque wrench (optional, but recommended for correct tightening)
• Drain pan or container for spilled oil
• Clean rags or shop towels
• New oil pressure sensor (ensure it's the correct one for your T4)
• New copper washer or sealing ring (usually comes with the new sensor)
• Gloves and eye protection
• Jack and jack stands, or access to a vehicle lift/ramp
• Brake cleaner or degreaser for cleaning up oil residue

Step-by-Step Oil Pressure Sensor Replacement Guide

Once you've safely positioned your T4 and gathered your tools, follow these steps for a successful replacement:

1. Safety First: Ensure the vehicle is on a level surface, engine is cool, and it's securely supported by jack stands or a lift. Engage the parking brake.
2. Locate the Sensor: Get underneath the vehicle and locate the oil pressure sensor. It's typically screwed into the engine block or oil filter housing. You'll see a single wire or connector leading to it.
3. Disconnect the Electrical Connector: Carefully disconnect the electrical connector from the sensor. This usually involves pressing a tab and pulling. Be gentle, as old plastic connectors can be brittle.
4. Prepare for Oil Spillage: Place your drain pan or container directly underneath the sensor. A small amount of oil will likely leak out when the sensor is removed.
5. Remove the Old Sensor: Using the appropriate size spanner or socket (often 24mm or 27mm), carefully loosen and unscrew the old sensor. Turn it counter-clockwise. Be prepared for a small amount of oil to escape once it's loose.
6. Clean the Mounting Area: Once the old sensor is out, use a clean rag to wipe away any old oil or debris from the sensor's mounting hole on the engine block. Ensure the mating surface is clean and free of any old gasket material.
7. Install the New Sensor: Take your new oil pressure sensor. Ensure the new copper washer or sealing ring is correctly seated on the sensor's threads. This washer is crucial for creating a leak-proof seal.
8. Thread the New Sensor In: Carefully thread the new sensor into the opening by hand, ensuring it doesn't cross-thread. Once you can no longer turn it by hand, use your spanner or socket to tighten it.
9. Torque Specification: Tighten the sensor firmly but do not overtighten it. Overtightening can strip the threads in the engine block or damage the new sensor. While specific torque values can vary, a typical range for these sensors is around 20-25 Nm (15-18 lb-ft). If you have a torque wrench, use it. If not, tighten until snug, then give it a small additional turn (about a quarter turn).
10. Reconnect the Electrical Connector: Push the electrical connector firmly back onto the new sensor until it clicks into place.
11. Check for Leaks: Lower the vehicle (if on a lift). Start the engine and let it run for a few minutes. Carefully check around the new sensor for any oil leaks. If no leaks are present and the oil warning light is off, you've successfully replaced the sensor.
12. Clean Up: Wipe away any spilled oil from the engine bay.

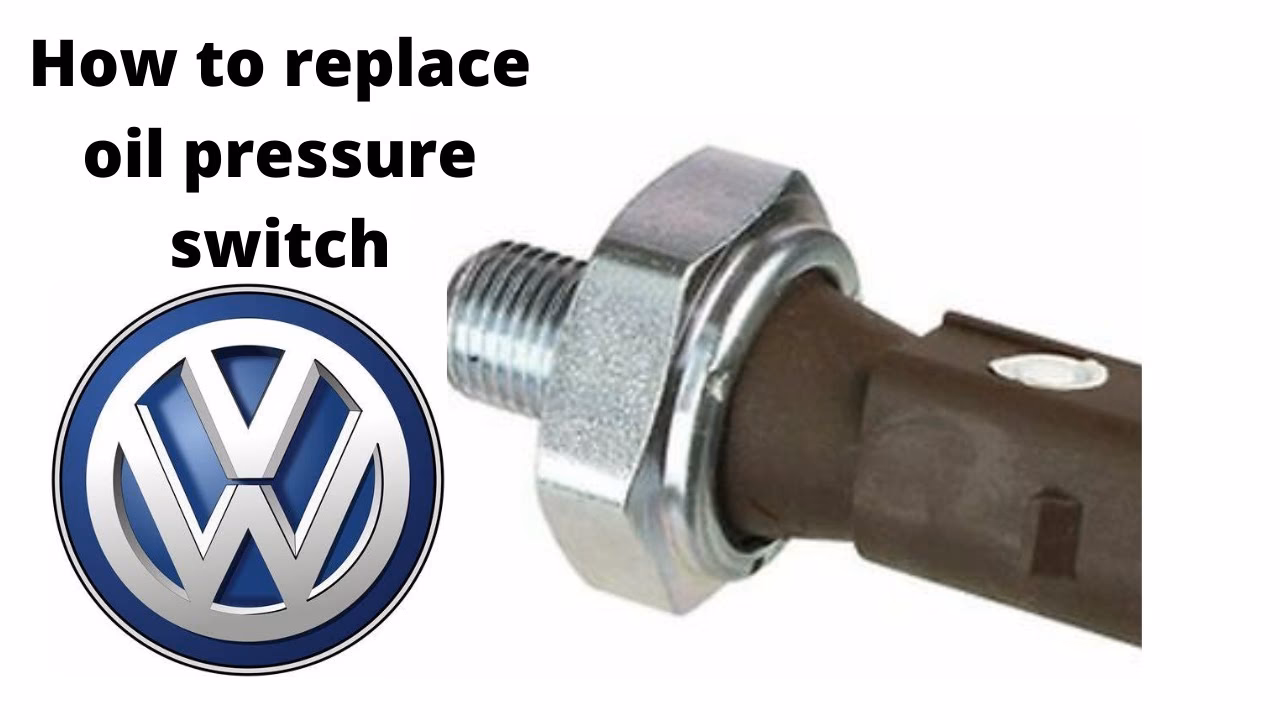

The Elusive 'Brown Sensor' and Its Replacement

Some early T4 models, particularly those from the early 90s, were originally fitted with a brown sensor for oil pressure. This specific brown sensor is now largely obsolete and no longer readily available from Volkswagen or aftermarket suppliers. This can pose a challenge for owners of these older T4s when it comes time for replacement.

Fortunately, there's a well-documented solution. The brown sensor can be effectively replaced with a more modern Febi oil pressure switch (blue). However, this isn't a direct swap. You will also need an adaptor, which changes the thread pitch or size to allow the blue sensor to fit into the existing engine block opening. The Volkswagen part number for this adaptor is 074103179. It's crucial to obtain this adaptor to ensure compatibility.

The Febi blue sensor is specifically noted to fit all petrol and water-cooled T25 models from 1979 to 1992, and importantly, T4s equipped with a 4-cylinder engine. If your T4 has a 5-cylinder engine, you'll need to verify compatibility or seek out the correct sensor for that specific engine type. Always double-check the part numbers and descriptions to ensure you're getting the correct components for your vehicle, especially when dealing with such specific parts.

Troubleshooting Beyond the Sensor

While replacing the oil pressure sensor often resolves the warning light issue, it's important to remember that the sensor is just a messenger. If the light persists after replacement, or if you notice other symptoms, the problem might lie elsewhere. Here are some other potential causes of low oil pressure:

• Low Oil Level: The most obvious and easiest to check. Always maintain your oil level between the 'min' and 'max' marks on the dipstick.
• Faulty Oil Pump: The oil pump is responsible for circulating oil. If it's failing, it won't be able to generate sufficient pressure. This is a more serious and costly repair.
• Clogged Oil Filter: A severely clogged oil filter can restrict oil flow and reduce pressure. Always use a quality oil filter and replace it during every oil change.
• Worn Engine Bearings: Excessive wear in engine bearings can create larger clearances, allowing oil to escape too easily and leading to a drop in pressure. This is a sign of significant internal engine wear.
• Incorrect Oil Viscosity: Using oil that is too thin (low viscosity) for your engine's operating temperature can lead to insufficient pressure, especially when hot. Always use the oil recommended in your T4's owner's manual.
• Wiring Issues: A damaged wire or corroded connector leading to the sensor can also cause erratic readings or a constant warning light.

If you've replaced the sensor and the problem persists, it's advisable to have a qualified mechanic diagnose the issue. They can perform an actual oil pressure test using a mechanical gauge, which provides a definitive reading of your engine's oil pressure, helping to pinpoint the root cause.

Comparative Table: Old vs. New Sensor (4-Cylinder T4)

Here's a quick comparison to help clarify the brown sensor situation:

Frequently Asked Questions (FAQs)

Q: How often should I replace my T4's oil pressure sensor?

A: There's no set replacement interval for the oil pressure sensor. It's typically replaced only when it fails or starts to give inaccurate readings. However, considering its relatively low cost and importance, some owners opt to replace it as a preventative measure during a major engine service, especially on older vehicles.

Q: Can I drive my T4 with the oil pressure light on?

A: Absolutely not, unless you are certain it's a false alarm from a faulty sensor. If the oil pressure light comes on, you should immediately and safely pull over, turn off the engine, and check your oil level. Driving with genuine low oil pressure can cause severe, irreparable engine damage in a very short amount of time. If you suspect it's just the sensor, you might risk driving a very short distance to a safe spot, but it's always best to assume the worst until proven otherwise.

Q: What's the difference between an oil pressure sensor and an oil pressure switch?

A: For most applications, especially in older vehicles like the T4, the terms are often used interchangeably. Both refer to a device that activates a warning light when oil pressure drops below a certain threshold. More sophisticated 'sensors' might provide a variable resistance signal to an ECU for a gauge, whereas a 'switch' is typically an on/off contact. The component in question for the T4 is primarily a switch.

Q: Will replacing the sensor fix an oil leak?

A: If the oil leak is specifically coming from around the sensor's threads or its body, then yes, replacing a faulty sensor with a new one (and ensuring the new sealing washer is correctly fitted) should resolve that particular leak. However, if the leak is from elsewhere in the engine, replacing the sensor will not help.

Q: Is it difficult to replace the oil pressure sensor myself?

A: For someone with basic mechanical skills and the right tools, replacing the oil pressure sensor on a T4 is generally considered a straightforward task. The main challenges are safely getting underneath the vehicle and ensuring you have the correct replacement part, especially for early T4s requiring the adaptor.

Maintaining your Volkswagen Transporter T4 involves paying attention to all its vital signs, and the oil pressure warning light is one of the most critical. By understanding where the sensor is located, how to replace it, and what to do about the 'brown sensor' dilemma, you're empowering yourself to keep your beloved T4 running smoothly and reliably for many more years to come. Don't let a small component lead to a major engine headache!
