Jeep 4.0 Rear Main Seal: Your DIY Repair Guide

Ah, the joys of owning a Jeep! While the thrill of off-road adventures and the unmistakable rugged charm are undeniable, many Jeep owners, particularly those with the venerable 4.0-litre engine, are intimately familiar with a less glamorous characteristic: the dreaded oil leak. If you've noticed those tell-tale spots on your driveway, chances are your rear main seal is the culprit. This isn't just a minor annoyance; a significant oil leak can lead to serious issues, including potential vehicle fires if oil drips onto hot exhaust components. Forget the 'it's a Jeep thing' mentality; this is a fixable problem that can save you from a much larger headache down the road. Fortunately, replacing the rear main seal on your Jeep 4.0 is a procedure well within the capabilities of a competent DIY enthusiast with a basic set of hand tools and a dose of patience.

This comprehensive guide will walk you through the entire process, from draining the oil to enjoying a spot-free driveway. We'll cover everything you need to know, including essential tools, specific parts, and crucial torque settings, ensuring you approach this repair with confidence. While we're at it, if your oil pan has seen better days, perhaps from adventurous off-roading, this is the perfect opportunity to replace it too.

Why Your Jeep 4.0 Rear Main Seal Leaks

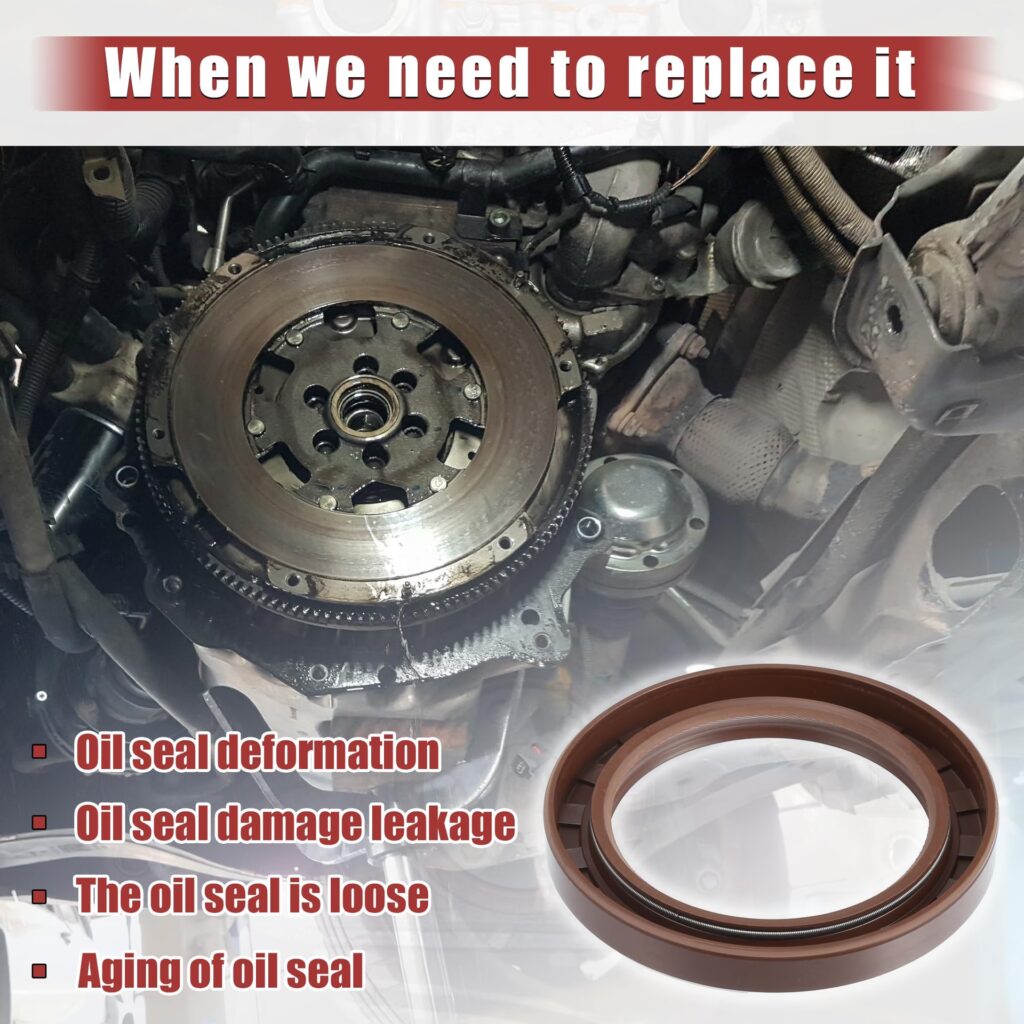

The rear main seal is a critical component designed to prevent engine oil from escaping where the crankshaft exits the engine block and connects to the transmission. Over time, due to heat cycles, age, and constant exposure to engine oil, the rubber or synthetic material of the seal can harden, crack, or simply lose its elasticity. This degradation allows oil to seep past, leading to those unwelcome drips. The Jeep 4.0 engine, renowned for its longevity, is particularly prone to this issue as it ages, affecting models from the late 80s XJs right up to early 2000s TJs. Ignoring a leaking seal can lead to several problems:

• Environmental Impact: Oil leaks contaminate your driveway and the environment.
• Safety Hazard: As mentioned, oil dripping onto a hot exhaust manifold or catalytic converter can ignite, posing a serious fire risk.
• Engine Damage: While a small leak might not immediately deplete your oil, a significant one could lead to dangerously low oil levels, causing premature wear or catastrophic engine failure if not regularly monitored and topped up.
• Mess and Odour: Leaking oil creates a mess under your vehicle and can produce a burning oil smell, especially when driving.

Project Overview: What to Expect

This repair is generally considered straightforward, requiring more patience than specialised mechanical skill. Expect the project to take approximately 3 hours, assuming you have all the necessary parts and tools ready to hand. Working safely and methodically will ensure a successful outcome.

Essential Tools & Parts Checklist

Before you begin, gather all your required tools and parts. Having everything organised will streamline the process and prevent unnecessary delays.

Required Parts:

• Rear Main Seal: Fel-Pro BS 40612 (This part number is specified for 1992-1993 4.0 engines but is known to work for 1987-current 4.0s. It’s a reliable choice).
• Oil Pan Gasket: Fel-Pro OS 34308 R (A one-piece design, highly recommended for its superior sealing properties compared to multi-piece alternatives).

Optional Parts (Recommended):

• Replacement Oil Pan: If your existing pan is dented, rusted, or otherwise compromised, now is the ideal time to replace it.
• Engine Oil & Filter: Since you'll be draining the oil, a fresh oil change is a sensible addition to this maintenance task.
• RTV Silicone Sealant: A tube of good quality RTV (Room Temperature Vulcanising) silicone sealant is crucial for ensuring a leak-free seal in specific areas.

Required Tools:

• Socket Set: A comprehensive set including 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 13/16", and 3/8" sockets.
• Ratchet Wrenches: Both 3/8" drive and 1/2" drive for various fasteners.
• Torque Wrenches:
• 3/8" drive torque wrench for low torque settings (e.g., oil pan bolts).
• 1/2" drive torque wrench for higher torque settings (e.g., main cap bolts).
• Needle-Nose Pliers: Essential for gripping and pulling the old seal.
• Small Drift Punch or Screwdriver: Used carefully to rotate and dislodge the old seal.
• Oil Drain Pan: For collecting the old engine oil.
• Jack and Jack Stands: For safely lifting and supporting the vehicle. Never work under a vehicle supported only by a jack.
• Rubber Mallet: For gently seating components.
• Brake Cleaner or Degreaser: For cleaning mating surfaces.
• Clean Rags or Shop Towels.

The Removal Process: A Step-by-Step Guide

Safety first! Ensure your Jeep is on a level surface, the parking brake is engaged, and the wheels are chocked. Lift the vehicle safely using a jack and secure it firmly on jack stands before commencing any work underneath.

1. Drain the Engine Oil

Begin by placing your oil drain pan directly beneath the oil pan drain plug. Use a 16mm socket to carefully remove the drain plug. Allow ample time for all the engine oil to drain completely. Once drained, reinstall the drain plug, ensuring it's snug but not overtightened. Remember to properly dispose of the old engine oil at an authorised recycling centre.

2. Remove the Exhaust System

Access to the oil pan and rear main seal requires temporary removal of a section of the exhaust system. This might seem daunting, but it's a straightforward process:

1. Locate and unplug the oxygen (O2) sensors connected to the exhaust pipe. Be gentle with the connectors.
2. Using a 13mm socket, remove the nuts securing the exhaust pipe flange at the catalytic converter.
3. Move further up the exhaust system and, with a 15mm socket, remove the nuts connecting the exhaust pipe to the manifold.
4. With the nuts removed, the exhaust section should now be free. Carefully lower it and set it aside. This step is crucial for providing the necessary clearance.

3. Remove the Oil Pan

The oil pan is secured by numerous bolts, often of varying sizes, and sometimes studs. It's vital to note the location of each bolt size as you remove them to ensure they go back in their correct positions during reinstallation.

• Using 11mm, 12mm, and 13mm sockets, systematically remove all the bolts securing the oil pan to the engine block.
• Pay close attention to where any studs are located, as these will guide the gasket during reassembly.
• Once all bolts are removed, carefully lower the oil pan. It might require a gentle tap with a rubber mallet to break the seal of the old gasket.
• Clean the old gasket material thoroughly from both the engine block's mating surface and the oil pan's flange. A plastic scraper can be helpful here to avoid scratching the metal surfaces. Ensure these surfaces are spotless for the new gasket to seal effectively.

4. Remove the Main Cap Girdle (If Applicable)

Some Jeep 4.0 engine years feature a main cap girdle, an additional brace that connects to the main bearing caps for added rigidity. If your engine has this component:

• Use a 14mm socket to remove the nuts securing the main cap girdle.
• Carefully remove the girdle and set it aside.

5. Wiggle the Rear Main Bearing Cap

The rear main seal is actually a two-piece design, with one half in the engine block and the other in the rear main bearing cap. To access the cap's seal, you need to free the cap itself. It's important to do this carefully to avoid damaging the bearing:

• Loosen the bolts on the rear main bearing cap, but do not remove them entirely. Leave them threaded in by a few turns.
• Gently wiggle the main cap back and forth. This action, with the bolts still in place but loose, helps to break the cap free from the engine block without it dropping.
• Be extremely cautious not to damage the bearing housed within the cap. It's not uncommon for the bearing to come out with the cap. If it does, simply note its orientation, as it will have a small notch that aligns with a tang on the cap for correct reinstallation.
• Once freed, carefully remove the cap and its bolts.

6. Remove the Rear Main Seal from the Cap

With the rear main bearing cap now removed, the old seal housed within it can be easily extracted. Simply use a small screwdriver or pick to pry out the old seal. Take this opportunity to thoroughly clean the main cap, ensuring all old oil and gasket residue are removed.

7. Remove the Seal from the Engine Block

The trickiest part of the removal process is often getting the upper half of the rear main seal out of the engine block. This requires precision and care to avoid damaging the crankshaft's journal or the seal's mating surface:

• Locate the remaining half of the seal still lodged in the engine block, surrounding the crankshaft.
• Using a small drift punch or a small flat-blade screwdriver, gently tap or apply firm, steady pressure to one end of the seal. The goal is to cause the seal to rotate within its groove, pushing one end out below the block.
• Work slowly and deliberately, taking extreme care not to scratch or nick the crankshaft journal or the sealing surface in the block. Any damage here could lead to a persistent leak even with a new seal.
• Once one end of the seal protrudes sufficiently, grab it with a pair of needle-nose pliers and carefully pull it out.
• Thoroughly clean the seal groove in the block and the crankshaft journal. Ensure all old oil and residue are completely removed. This surface must be pristine for the new seal to function correctly.

Installation: Bringing it All Together

With the old seals removed and all surfaces cleaned, you're ready to install the new components. Installation is essentially the reverse of removal, but with critical attention to detail regarding lubrication, orientation, and torque specifications.

1. Install New Seal into the Engine Block

The new seal typically comes with specific installation instructions regarding its orientation. Always refer to the manufacturer's guidelines. Lubricate the new seal generously with clean engine oil. Carefully push and rotate the new seal into the groove in the engine block. Ensure it's fully seated and evenly positioned, with the lip facing the correct direction as per the instructions.

2. Install New Seal into the Main Cap

Just like the block half, lubricate the new seal and carefully install it into the rear main bearing cap. Again, ensure the seal is facing the correct direction and is fully seated within the cap's groove. Lubricate the bearing surface with engine oil if it was removed or if it's a new cap.

3. Apply RTV & Install Main Cap

This step is crucial for preventing leaks where the two halves of the seal meet. Apply a small dab of RTV silicone sealant to the corners of the seal in the main cap, specifically where the cap seal will meet the block seal. This creates a robust seal at the junction. Carefully position the main cap onto the engine block, aligning it precisely. You may need to gently tap it with a rubber hammer to seat it fully. Reinstall the main cap bolts and gradually tighten them in a criss-cross pattern. Finally, torque the main cap bolts to the manufacturer's specified setting, which is typically 80 ft/lbs. Always use your torque wrench for accuracy.

4. Install Main Cap Girdle (If Applicable)

If your engine has a main cap girdle, reinstall it now. Torque the girdle nuts to 35 ft/lbs.

5. Prepare Oil Pan for Installation

Before installing the gasket, apply a small amount of RTV silicone sealant to the four corners of the oil pan where there are cut-outs for the rear main cap and the front timing cover seal. These are common leak points and benefit from the added sealant.

6. Place Pan Gasket

Carefully place the new one-piece oil pan gasket onto the oil pan. Ensure it aligns perfectly with all the bolt holes and studs. Apply a small amount of RTV silicone in the same corner spots on the gasket as you did on the oil pan itself for extra sealing security.

7. Install Oil Pan

Carefully lift the oil pan, with the gasket in place, and align it with the engine block. Start by hand-threading a few bolts in various locations to hold the pan in place. Then, install all remaining bolts, remembering to put the correct length bolts and studs back in their original positions. Gradually tighten all oil pan bolts in a criss-cross pattern. It is absolutely crucial NOT to overtighten these bolts, as this can easily warp the oil pan or damage the gasket, leading to new leaks. The typical torque setting for oil pan bolts is very low, usually around 7 ft/lbs. Use your low-torque torque wrench for this step.

8. Reinstall Exhaust System

Carefully lift the exhaust section back into position. Reattach it to the manifold and the catalytic converter flange, tightening the nuts to factory specifications. Don't forget to plug the O2 sensors back in securely.

9. Add New Engine Oil & Filter

Install a new oil filter. Refill the engine with the correct type and quantity of engine oil as specified in your Jeep's owner's manual. After refilling, start the engine and let it run for a few minutes while checking for any immediate leaks. Turn off the engine, wait a few minutes for the oil to settle, and then recheck the oil level, topping up if necessary.

Crucial Torque Specifications Summary

Adhering to correct torque specifications is paramount for a successful, leak-free repair and to prevent damage to fasteners or components. Here's a quick reference:

Tips for a Successful Repair

• Cleanliness is Key: Ensure all mating surfaces are meticulously clean and free of old gasket material, oil, and grime. This is perhaps the most critical factor in preventing future leaks.
• Patience: Rushing through the process can lead to mistakes. Take your time, especially during seal removal and installation.
• Lubrication: Always lubricate new seals and bearings with clean engine oil before installation.
• Correct Orientation: Double-check the direction of the new seals before installation.
• RTV Application: Use RTV sparingly but effectively in the specified corner areas. Too much can cause it to squeeze out and potentially block oil passages.
• Final Inspection: After the repair, allow the RTV to cure for at least 24 hours before driving the vehicle, if possible. Perform a thorough visual inspection for any signs of leaks after a test drive.

Frequently Asked Questions (FAQs)

Q: How long does this repair typically take?

A: For an experienced DIY mechanic, this repair can usually be completed in approximately 3 hours. However, for those less familiar with the process, it's wise to set aside half a day to ensure you can work at a comfortable pace without rushing.

Q: Why is my Jeep 4.0 engine so prone to a rear main seal leak?

A: The Jeep 4.0 is a robust engine, but like many older designs, its rear main seal can degrade over time due to constant heat cycles, age, and the material of the seal itself. The design, while effective when new, eventually succumbs to the stresses of engine operation, leading to hardening and cracking of the seal material.

Q: Can I drive with a leaking rear main seal?

A: While a minor weep might not be immediately catastrophic, a significant leak can be dangerous. As oil drips onto hot exhaust components, it poses a fire risk. Furthermore, a substantial leak can lead to dangerously low oil levels, potentially causing severe engine damage. It's always best to address a leaking rear main seal as soon as possible.

Q: What is RTV silicone, and why is it used?

A: RTV stands for Room Temperature Vulcanising silicone. It's a type of sealant that cures when exposed to air, forming a durable, flexible, and oil-resistant gasket-like material. In this repair, it's used at the junctions of the two-piece rear main seal and at the corners of the oil pan gasket to fill any minute imperfections and provide an extra layer of sealing security, preventing leaks where traditional gaskets might struggle.

Q: What if the bearing comes out of the main cap when I'm wiggling it?

A: This is a common occurrence and nothing to worry about. The bearing is designed to sit within the main cap. If it comes out, simply note its orientation. The bearing will have a small notch or tang that aligns with a corresponding groove or tang within the main cap. Ensure these are correctly aligned when you reinstall the bearing into the cap before installation.

Enjoy a Spot-Free Driveway!

Congratulations! By following these steps, you've successfully replaced the rear main seal on your Jeep 4.0. This repair not only eliminates those annoying oil spots but also safeguards your vehicle from potential hazards and costly future repairs. Take pride in your DIY accomplishment and enjoy the peace of mind that comes with a well-maintained, leak-free Jeep. Happy motoring!
