Winding Your Kuga Mk1 Caliper

When it comes to maintaining your Ford Kuga Mk1, understanding the intricacies of its braking system is paramount. One common task that arises, particularly when replacing brake pads, is the need to retract the brake caliper piston. This process, often referred to as 'winding back' the caliper, might seem daunting to the uninitiated, but with the right guidance and tools, it's a perfectly manageable DIY job. This guide will walk you through the essential steps, the tools you'll need, and some important considerations to ensure you get it right.

Understanding the Kuga Mk1 Caliper

The Ford Kuga Mk1, like many modern vehicles, utilises a brake caliper that houses a piston. When you apply the brakes, hydraulic pressure forces this piston outwards, clamping the brake pads against the brake disc, thus slowing your vehicle. When fitting new, thicker brake pads, you need to push the piston back into its housing to create the necessary clearance. Unlike older systems where pistons could often be pushed back with a simple clamp or C-spanner, many modern calipers, including those found on the Kuga Mk1 (and indeed, often shared with models like the Ford Mondeo of the same era), require the piston to be *rotated* back into the caliper body. This is because the piston often has a built-in mechanism to adjust for brake pad wear, which needs to be engaged in reverse to retract.

Essential Tools for the Job

Before you begin, ensure you have the correct tools. Attempting to force the piston without the proper equipment can lead to damage to the caliper or piston. Here's what you'll likely need:

• Wheel Chocks: For safety, it's crucial to prevent the vehicle from rolling.
• Jack and Axle Stands: To safely lift and support the vehicle.
• Socket Set/Spanners: To remove the wheel and caliper mounting bolts.
• Wire Brush: For cleaning the caliper bracket and piston housing.
• Brake Cleaner: To degrease components.
• Caliper Wind-Back Tool Kit: This is the most crucial item. These kits typically contain a variety of adaptors that fit different caliper piston designs. You'll need one that specifically fits the Kuga Mk1 caliper. Some kits come with a handle, while others are designed to be used with a ratchet.
• Ratchet Handle (if your wind-back tool requires it): Usually a 3/8" drive.
• Pliers (as a last resort, but not recommended): While some suggest long-nose pliers can be used, this is generally more difficult and carries a higher risk of damaging the piston or caliper. It's far better to invest in the correct tool.
• Gloves and Eye Protection: For your safety.

Step-by-Step Guide to Winding the Caliper

Here’s a breakdown of the process. Remember to always consult your vehicle's specific service manual for the most accurate information.

1. Preparation and Safety

Park your Kuga on a level surface. Engage the handbrake firmly. Place wheel chocks behind the wheels that will remain on the ground to prevent the vehicle from moving. Loosen the wheel nuts on the wheel you'll be working on, but do not remove them yet. It's easier to loosen them while the wheel is on the ground.

2. Lifting and Supporting the Vehicle

Using your jack, carefully lift the corner of the vehicle where you intend to work. Place an axle stand securely under a strong point of the chassis or suspension (refer to your vehicle's manual for jacking points). Lower the vehicle gently onto the axle stand, ensuring it is stable. Never work under a vehicle supported only by a jack.

3. Removing the Wheel

Now, fully unscrew the wheel nuts and remove the wheel. Set it aside.

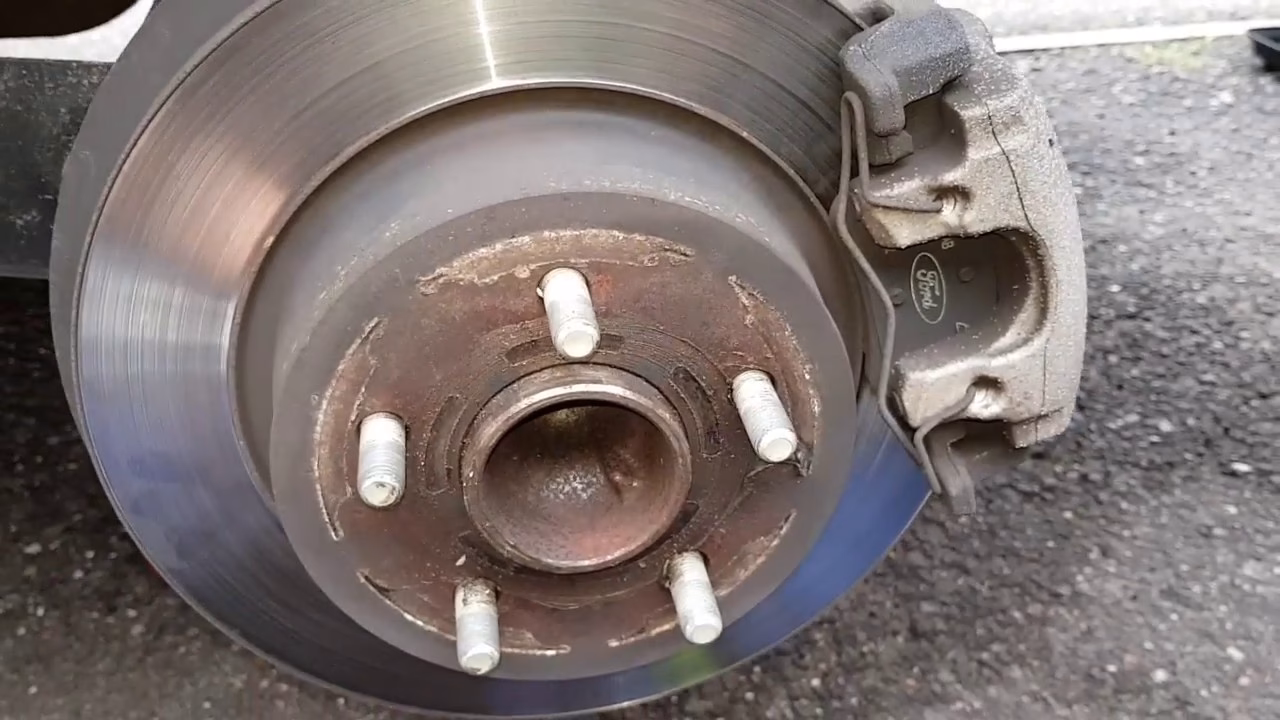

4. Accessing the Caliper

You'll see the brake caliper enclosing the brake disc. Identify the caliper mounting bolts. These typically hold the caliper to the mounting bracket. You may need to remove one or both of these bolts, or sometimes just loosen one and pivot the caliper upwards. The exact method can vary, so a quick look at your specific Kuga will tell you what you need.

5. Releasing the Handbrake Cable (if applicable)

If your Kuga Mk1 has a cable-operated handbrake that acts on the rear calipers, you'll need to disconnect the handbrake cable from the caliper itself. There's usually a small lever on the caliper body that the cable attaches to. You might need to release some tension on the cable via the adjustment mechanism under the handbrake lever inside the car, or directly at the caliper. Once disconnected, the lever on the caliper should move freely.

6. Retracting the Piston

This is where your caliper wind-back tool comes in.

Choosing the Right Adaptor: Examine the piston end of the caliper. You'll notice small notches or indentations. Select the adaptor from your kit that best fits these notches. Most kits include several different sizes and types to cover a wide range of calipers.

Attaching the Tool: Fit the chosen adaptor onto the end of the caliper piston. Then, attach your ratchet handle (or the tool's integrated handle) to the adaptor.

The Winding Action: Now, turn the handle clockwise (usually, but check your tool's instructions). You should feel resistance as the piston begins to screw back into the caliper body. Continue winding until the piston is fully retracted. It should sit flush or slightly recessed within the caliper housing. Be patient; it can take many turns.

Important Note on EPB: If your Kuga Mk1 is equipped with an Electronic Parking Brake (EPB), the procedure for retracting the rear caliper pistons is different and often requires diagnostic tools to put the system into 'service mode'. This guide assumes a standard hydraulic brake system. If you have an EPB, do NOT attempt to wind the piston back manually, as you risk damaging the EPB actuator.

7. Cleaning and Inspection

With the piston retracted, use your wire brush to clean any dirt or corrosion from the caliper bracket and the area where the brake pads sit. Apply a thin layer of high-temperature brake grease to the pad mounting points on the bracket. Clean the old brake dust from the caliper housing with brake cleaner.

8. Fitting New Brake Pads

Slide the new brake pads into place, ensuring they are correctly oriented and seated in the bracket. If your new pads come with new retaining clips or shims, fit these now.

9. Reassembling the Caliper

If you removed the caliper mounting bolts, refit the caliper over the new pads and disc. Reinstall and tighten the mounting bolts to the manufacturer's specified torque. If you disconnected the handbrake cable, reattach it securely to the caliper lever.

10. Final Steps

Before refitting the wheel, pump the brake pedal several times. This will push the caliper piston back out against the new pads, restoring pressure to the system. You'll feel the pedal firm up. If it remains spongy, there might be an issue, possibly air in the system or a leak.

Refit the wheel and tighten the wheel nuts by hand. Lower the vehicle off the axle stand. Once the vehicle is on the ground, tighten the wheel nuts fully in a star pattern to the manufacturer's recommended torque setting.

Troubleshooting and Tips

Piston Won't Retract: If the piston is extremely stiff or won't retract, there might be corrosion or damage within the caliper. In some cases, applying a penetrating lubricant to the piston seal area (avoiding the brake pad contact surfaces) might help. However, if it remains stubborn, the caliper may need replacing. Check that the handbrake cable is fully disconnected if working on the rear.

Using Pliers: As mentioned, using long-nose pliers to grip the notches on the piston is possible but difficult. The pliers can easily slip, damaging the piston face, which could lead to future sealing issues. It's a last resort for a reason.

Fluid Level: Keep an eye on the brake fluid reservoir under the bonnet. As you push the pistons back, the fluid level will rise. If it's already at the maximum mark, you may need to remove a small amount of fluid to prevent overflow. Use a clean syringe and dispose of the old fluid responsibly.

Check Other Wheels: It's good practice to inspect the other side's caliper and pads while you're at it, as brake pads wear evenly.

Frequently Asked Questions

Q1: Do I need a special tool to wind back the Kuga Mk1 caliper piston?
A: Yes, for most Kuga Mk1 calipers, you will need a caliper wind-back tool with the correct adaptor to rotate the piston back into the caliper body. Pushing it directly is not the correct method.

Q2: Can I use my old brake pads to push the piston back?
A: No, this is not recommended. You need to push the piston back into the caliper, not use it to push something else. Use the correct wind-back tool.

Q3: What happens if I don't wind the piston back correctly?
A: If you try to force the piston without rotating it, you can damage the piston seal, the piston itself, or the caliper. This can lead to brake fluid leaks and compromised braking performance.

Q4: Is the procedure the same for front and rear calipers?
A: While the principle is the same, rear calipers often incorporate the handbrake mechanism, which might involve a slightly different disconnection of the cable. Also, rear pistons are more commonly the type that requires winding.

Q5: How do I know if my Kuga Mk1 has an Electronic Parking Brake (EPB)?
A: An EPB system typically replaces the traditional handbrake lever with a button or switch. If your Kuga Mk1 has this feature, manual winding of the rear calipers is not possible, and you'll need to follow the EPB service procedure.

By following these steps and using the right equipment, you can confidently tackle the task of winding back your Kuga Mk1's brake caliper pistons, ensuring your vehicle's braking system remains in optimal condition.
