V-Brake Adjustment Guide

Over time, any bicycle brake system will inevitably require adjustment to ensure optimal braking efficiency, power, and ultimately, the safety of the rider. Linear-pull brakes, often referred to as V-brakes, are no exception to this rule. There are several common reasons why your V-brakes might need attention, including the brake pads rubbing against the rim or the brakes simply not feeling tight enough. Fortunately, with a few basic tools and this straightforward tutorial, you can learn how to adjust your linear-pull or V-brakes yourself.

What You’ll Need

Before you begin, gather the necessary tools for this adjustment:

• Phillips head screwdriver
• 5 mm Allen wrench
• Zip-tie (optional, for toe-in adjustment)

Steps on How to Adjust the Linear-Pull or V-Brake

1. Check Wheel Alignment and Brake Lever Feel

The first crucial step is to ensure your wheels are properly aligned within the bike's dropouts. Misaligned wheels can significantly compromise braking performance. Before adjusting any brake system, whether it's rim brakes or disc brakes, confirm that your wheels are seated correctly. Place your bike on the ground, release the front quick-release skewer, ensure the wheel is fully seated in the dropouts, and then re-tighten the quick-release. Repeat this process for the rear wheel.

Next, it's beneficial to mount your bike in a work stand for better visibility and ease of adjustment. While the bike is stable, check your brake levers. A good indicator of proper brake setup is the feel of the lever. When you squeeze the brake lever, you should have approximately two finger lengths of space between the handlebar and the lever when it's fully engaged. If the lever travels all the way to the handlebar, your brakes are likely not tight enough and will require adjustment.

2. Initial Brake Release and Pad Toe-In (Optional)

To begin the adjustment process, you'll need to release the tension on the brake cable. If you're aiming to prevent brake squeal, a common issue with rim brakes, you can introduce a slight 'toe-in' to the brake pads. This involves angling the front of the brake pad slightly inward towards the rim. You can achieve this by wrapping a zip-tie around the very back end section of the brake pad and the brake arm. This method helps to create a small angle, which can reduce vibration and noise. Remember, a quiet ride is not only more pleasant but also contributes to the longevity of your braking components.

3. Adjusting the Barrel Adjuster

With the brake cable released, you can now make adjustments using the barrel adjuster. Locate the barrel adjuster, typically found where the brake cable housing meets the brake lever or directly on the brake caliper itself. Attach the cable back into its securing mechanism, often a small cage or pinch bolt. Then, turn the barrel adjuster outwards approximately six turns. This counter-clockwise rotation effectively lengthens the cable housing, which in turn increases the cable tension and brings the brake pads closer to the rim.

As a reference point, observe the barrel adjuster on your brake lever. You might notice a small slot designed for the cable to slide into when replacing the cable. Use this as a visual guide. After turning the barrel adjuster out about six turns, you should see a small amount of thread exposed. Loosening the barrel adjuster (turning it outwards) results in a tighter brake. For minor adjustments, a simple barrel adjuster tweak is often all that's needed to restore proper brake tension.

4. Cable and Pad Adjustments for Fine-Tuning

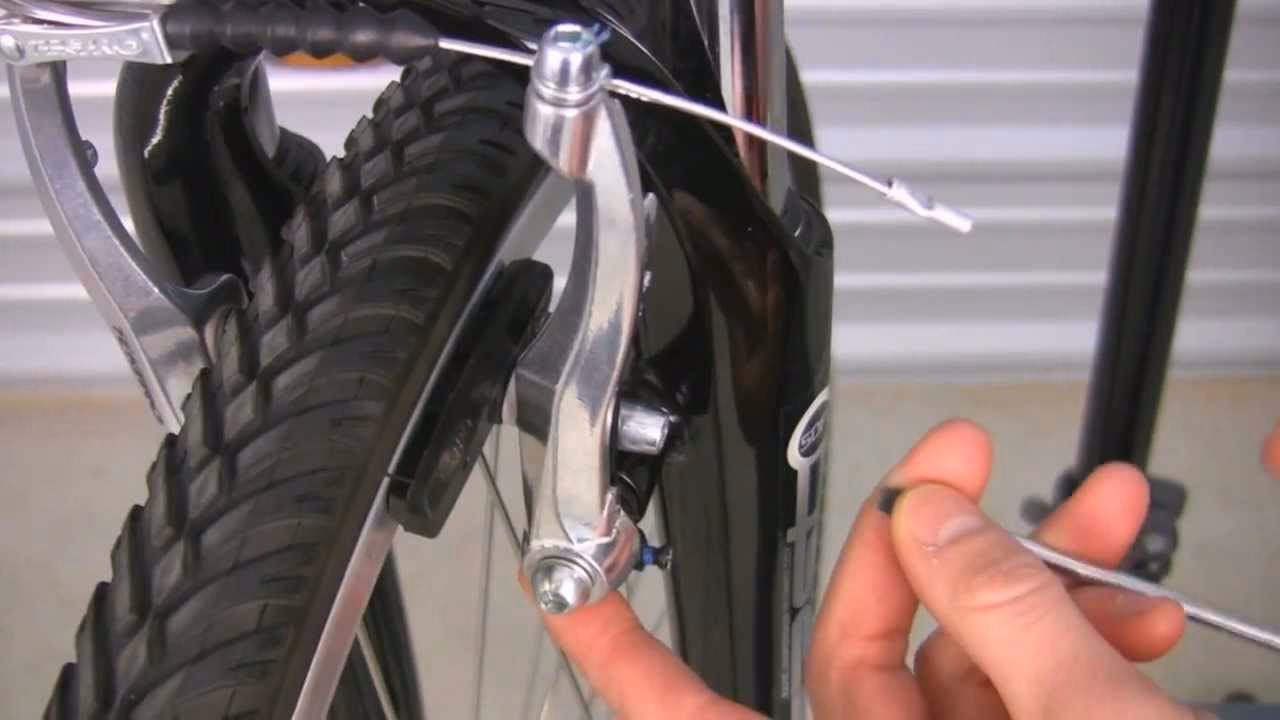

If adjusting the barrel adjuster alone hasn't achieved the desired tightness, you'll need to address the cable and pad positioning more directly. This step involves loosening the cable's pinch bolt. Use your 5 mm Allen wrench to loosen this bolt. While holding the two brake arms together, pull the brake cable taut. The goal here is to bring the brake pads into contact with the rim surface with appropriate tension. Once the cable is snug, re-tighten the pinch bolt to secure the cable in its new position. Ensure the cable is firm but not excessively tight, aiming for a nice and snug feel.

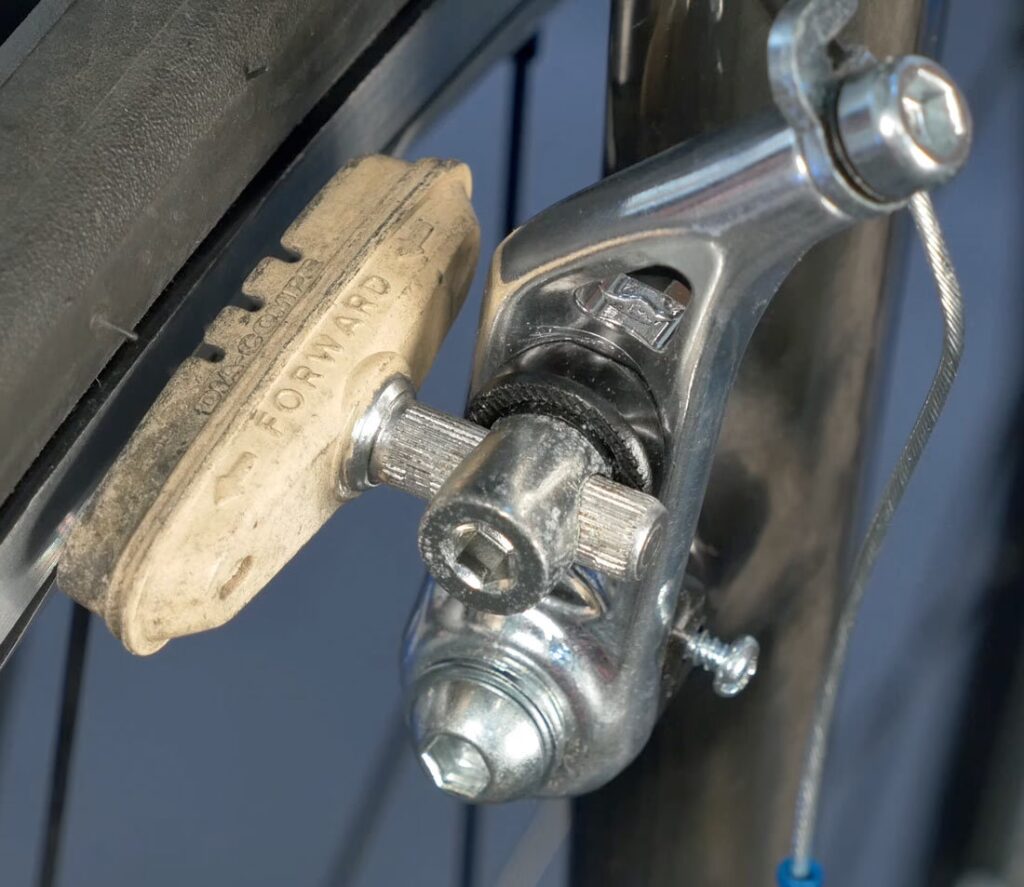

Now, let's focus on the brake pad alignment. The brake pads should contact the rim's braking surface squarely and be positioned as high as possible without touching the tyre. If a brake pad is aligned too low, as the pad wears down over time, it can migrate further down the braking surface and eventually fall off the rim entirely, rendering your brakes ineffective and potentially dangerous. To adjust the pad height, use your 5 mm Allen wrench to loosen the bolt that secures the brake pad to the brake arm. Move the brake pad upwards as high as it can go on the brake arm, ensuring it remains within the braking surface of the rim. The front edge of the pad should align with the back edge of the pad on the rim for optimal contact. Ideally, the pad should be completely flat against the rim surface. For this stage, leave the barrel adjuster slightly loosened so the rim is just barely making contact with the brake pads.

As you gradually tighten the barrel adjuster (clockwise rotation), the cable tension will increase. Since the cable is already taut from the previous step, this tightening of the barrel adjuster should open up the gap perfectly, achieving the exact tension you desire without the pads rubbing on the wheel when the brake is not applied. Once you have the correct tension and alignment, firmly lock the pad into place by tightening its securing bolt. Repeat this process for the brake pad on the other side. Finally, test your brake lever again. It should still have that two-finger length of space, indicating the tightness is just right.

5. Balancing the Brake Arms (Spring Tension)

To ensure your V-brakes operate evenly, you need to balance the spring tension on each brake arm. Start by turning your barrel adjuster back in about six turns (counter-clockwise). Remove the zip-tie you may have used for toe-in adjustment. Now, pull on your brake lever several times to allow the system to settle. Observe the brake pads as they retract from the rim. Ideally, you want both brake pads to retract and return to their resting position with an even spacing from the rim on both sides. This means they should be pulling away from the rim by the same amount.

If one brake arm is retracting more or less than the other, you'll need to adjust the spring tension. V-brakes have small Phillips head screws, usually located at the base of each brake arm where it pivots. These screws control the spring tension. Turning a screw inwards (clockwise) typically increases the spring tension on that specific brake arm, making it retract with more force. Conversely, turning it outwards (counter-clockwise) will decrease the tension.

To balance the arms, you might need to increase the tension on the side that's retracting less, or decrease the tension on the side that's retracting more. Experiment by making small adjustments to these screws. The goal is to achieve symmetrical retraction of the brake pads. Once you've balanced the arms, double-check that the pads are not touching the tyre when the brake is released, as this can cause unwanted noise and wear.

Troubleshooting Common V-Brake Issues

Brake Rubbing: If your brake pads are constantly rubbing against the rim, even when the brake lever isn't pulled, you likely have too much cable tension, or the brake arms are not balanced. Try loosening the barrel adjuster or slightly decreasing the spring tension on the arm that's too close to the rim. Ensure the wheel is also perfectly centred in the frame.

Spongy Brake Lever: A spongy feel often indicates that the brake cable is too loose or that there's air in the system (less common with cable-actuated brakes but possible with contamination). First, try tightening the barrel adjuster. If that doesn't help, you may need to re-tension the cable by loosening the pinch bolt and pulling the cable tighter before re-securing it.

Brake Squeal: As mentioned, brake squeal is often caused by vibrations between the brake pad and the rim. Introducing a slight toe-in with a zip-tie or by adjusting the pad angle can help. Ensure your rims are clean and free from grease or oil. Worn-out brake pads can also cause squealing; consider replacing them if they are heavily grooved or glazed.

Frequently Asked Questions (FAQs)

Q1: How often should I check my V-brakes?
A1: It's recommended to check your brake performance before every ride and perform a more thorough adjustment or inspection every few months, or whenever you notice a change in braking feel or power.

Q2: My V-brakes still squeal after adjusting the toe-in. What else can I do?
A2: Ensure your rims are clean and free from any contaminants. If your brake pads are old or glazed, they may need to be replaced. Sometimes, a slight angle adjustment of the brake pad itself, rather than relying solely on a zip-tie, can also help.

Q3: Can I adjust V-brakes with disc brakes on the same bike?
A3: Yes, you can have both V-brakes and disc brakes on the same bicycle. The adjustment procedures for each system are independent of each other.

Q4: What is the difference between linear-pull and V-brakes?
A4: Linear-pull and V-brakes are essentially the same type of brake system. 'Linear-pull' refers to the way the brake cable pulls the brake arms in a straight, linear motion, which is characteristic of V-brakes.

By following these steps, you can confidently adjust your linear-pull or V-brakes, ensuring reliable stopping power and a safer cycling experience. Remember to always test your brakes after any adjustment before heading out on your ride.
