MINI R56 Oil Pan Leak Diagnosis

Discovering an oil slick beneath your beloved MINI R56 can be a cause for concern, and often, the culprit is a leaky oil pan. The oil pan, a crucial component of your engine's lubrication system, sits at the bottom of the crankcase, collecting the engine oil. Over time, the seal between the oil pan and the engine block can degrade, leading to those tell-tale drips. This article will guide you through the process of identifying and diagnosing an oil pan leak on your R56, helping you distinguish it from other potential fluid leaks and understand the necessary steps for repair.

Understanding the MINI R56 Oil Pan Seal

On the MINI R56 models, the oil pan is sealed to the aluminium crankcase by a gasket. Initially, these gaskets were made from paper with a metal reinforcement. However, these older designs were prone to drying out and failing, resulting in oil leaks. To address this, MINI updated the sealing method, moving to a silicone sealant for a more robust and durable bond. Despite this improvement, the original paper gaskets can still degrade over time, especially with age and mileage, leading to leaks. If you notice oil accumulating on the side or towards the rear of your engine, the oil pan is a prime suspect.

Symptoms of a Leaky Oil Pan

The most obvious sign of a leaking oil pan is, of course, the presence of oil spots under your car. These spots are typically brownish or blackish in colour, depending on the age and condition of the oil. You might also notice a persistent smell of burning oil when the engine is running, as oil drips onto hot exhaust components. In some cases, a significant leak could lead to a noticeable drop in your oil level, which might be indicated by your car's oil pressure warning light on the dashboard. It's important to act swiftly if you suspect an oil leak, as consistently low oil levels can cause severe engine damage.

Diagnosing the Leak: Pinpointing the Source

Diagnosing an oil pan leak requires a systematic approach to ensure you're addressing the correct issue. Oil can travel, making it tricky to identify the exact origin of a drip. Here’s how to effectively pinpoint a potential oil pan leak:

Step 1: Visual Inspection

Begin by placing your car on a level surface. Once the engine has cooled down (a hot tip for safety and comfort!), get underneath the vehicle and visually inspect the oil pan and its surrounding area. Look for any obvious signs of oil residue, wet patches, or fresh drips clinging to the bottom of the oil pan or the crankcase where the oil pan bolts on. Pay close attention to the seam where the oil pan meets the engine block.

Step 2: Clean and Re-evaluate

To get a clearer picture, it’s highly recommended to clean the area around the oil pan and crankcase thoroughly. Use a degreaser and a clean cloth to remove any existing oil and grime. Once the area is clean, start the engine and let it run for a few minutes. While the engine is running, carefully observe the cleaned area. Look for new oil seeping from the oil pan gasket or the bolts. This method allows you to see exactly where the leak originates.

Step 3: Differentiate from Other Leaks

It’s crucial to differentiate the oil pan leak from other potential sources. Two common areas that can be mistaken for an oil pan leak are:

• Oil Filter Housing: The oil filter housing is often located near the oil pan and can develop its own leaks. Inspect the area around the oil filter to see if oil is dripping from there.
• Crankshaft Seal: The crankshaft seal, located at the front or rear of the engine where the crankshaft exits the block, can also leak. Oil from a crankshaft seal leak can often run down and make it appear as though the oil pan is leaking.

Ensure the leak isn't originating from above the oil pan seam. Check the oil pressure sensor, oil level sensor (if applicable), and any other components mounted higher up on the engine block that could be contributing to the oil leak.

Table: Common Leak Sources vs. Oil Pan Leak

To help you differentiate, consider this comparison:

When to Replace the Oil Pan Seal

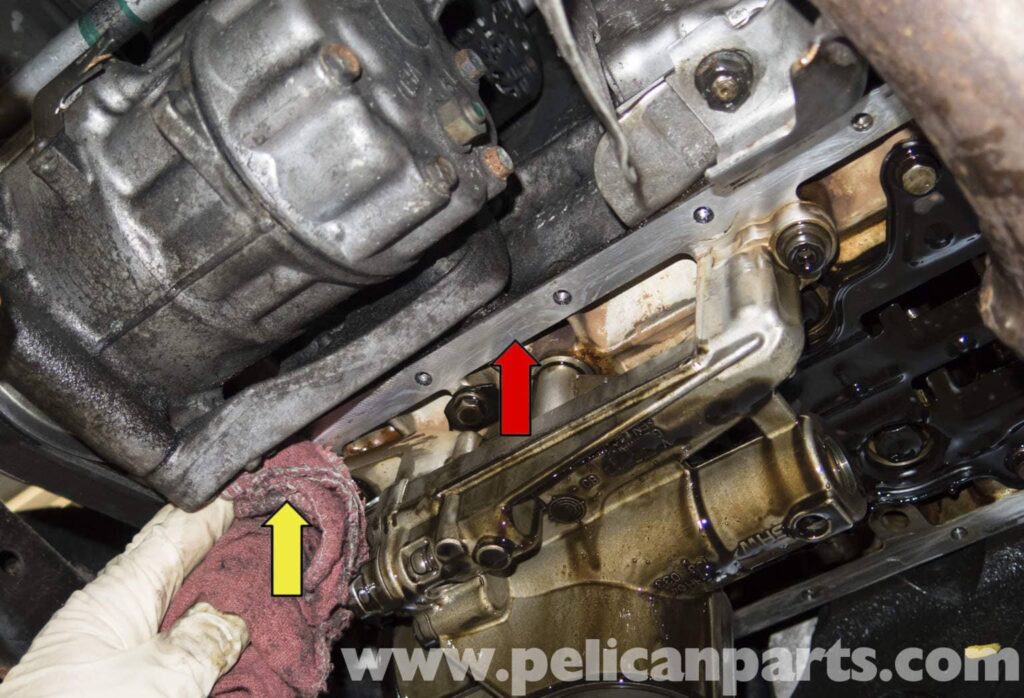

If your diagnosis confirms that the oil pan itself is leaking, the best course of action is to replace the seal. This typically involves removing the oil pan, cleaning both mating surfaces meticulously, and applying a new sealant. As mentioned, MINI transitioned to using RTV sealant for this purpose on later R56 models, which is a more reliable and durable solution than the original paper gaskets.

What You'll Need for the Repair

Should you determine your oil pan needs resealing, here’s a breakdown of the project:

• Project Time: Approximately 4 hours.
• Estimated Cost: Around £200 (this can vary based on parts and labour).
• Talent: Basic to intermediate mechanical skills.
• Tools: A comprehensive set of sockets and wrenches, screwdrivers, a floor jack, jack stands, wheel chocks, safety glasses, and a torque wrench.
• Parts Required: New oil filter, fresh engine oil (correct grade and quantity for your R56), and oil pan RTV sealant (ensure it's suitable for oil pan applications).
• Complementary Modification: It's an excellent opportunity to change your engine oil and oil filter simultaneously.

Important Safety Precautions

Working on your vehicle requires adherence to safety protocols. Always:

• Wear protective gear: Safety glasses and gloves are essential to protect your eyes and hands from fluids, dust, and debris.
• Disconnect the battery: If you're working on any electrical components, always disconnect the battery first.
• Proper fluid disposal: Catch all drained fluids in appropriate containers and dispose of them responsibly. Recycle parts, packaging, and fluids whenever possible.
• Work on a cool engine: As mentioned earlier, working on a cool engine prevents burns.
• Know your limits: Never attempt a repair that you feel is beyond your capabilities. Consult a professional mechanic if you’re unsure.

Frequently Asked Questions (FAQs)

Q1: How often should I check for oil leaks?
It's a good practice to check for oil leaks at every oil change, or whenever you notice a drop in the oil level or see oil spots under your car.

Q2: Can I drive with a leaking oil pan?
While a very minor seep might not cause immediate issues, it's not recommended to drive with a leaking oil pan for an extended period. Significant leaks can lead to dangerously low oil levels, potentially causing catastrophic engine damage. It's best to address the leak as soon as possible.

Q3: What type of sealant should I use for the oil pan?
For the MINI R56, a high-quality RTV (Room Temperature Vulcanizing) silicone sealant specifically designed for oil pan applications is recommended. Ensure it can withstand high temperatures and automotive fluids.

Q4: Do I need to remove the exhaust or other components to access the oil pan?
On some R56 models, certain components like exhaust sections or subframes might need to be temporarily removed or loosened to gain adequate access to the oil pan bolts. Refer to a service manual specific to your R56 model for detailed instructions.

Q5: My MINI R56 is leaking oil, but it doesn't look like it's coming from the oil pan seam. What else could it be?
As discussed, other common leak points include the oil filter housing, the crankshaft seals (front and rear), the valve cover gasket, and the oil pressure sensor. A thorough cleaning and careful observation while the engine is running are key to accurate diagnosis.

Conclusion

Identifying and addressing an oil pan leak on your MINI R56 is a critical maintenance task. By following a systematic diagnostic process, cleaning the area, and carefully observing for the source of the leak, you can confidently determine if your oil pan is the issue. Remember to prioritize safety and, if in doubt, consult a qualified mechanic. A well-maintained lubrication system is vital for the longevity and performance of your MINI.
