Understanding the Power of Forced Induction in Your Audi A4
The Audi A4, a distinguished member of the compact luxury vehicle segment, has been a testament to German engineering since its introduction in 1994. Available in both elegant sedan and practical station wagon forms, the A4 has consistently blended sleek design with impressive performance and everyday usability, making it a favourite across diverse driving needs. Over its five generational evolutions, the A4 has remained a cornerstone of Audi's product line, embodying innovation and driving pleasure. A significant part of this enduring appeal lies in its sophisticated powertrain, often featuring the remarkable turbocharged engine.
The very first Volkswagen Group vehicle to proudly showcase the now-legendary 1.8-litre 20-valve turbocharged engine was the Audi A4. This powerplant, delivering close to 170 horsepower while achieving an impressive 28 mpg on the highway, set a new benchmark in the mid-nineties, outperforming its contemporaries with a potent combination of power and efficiency. Today, the Audi A4 continues to offer a compelling range of engine options, including advanced TFSI petrol and TDI diesel units, all featuring forced induction and direct injection for enhanced pulling power and responsiveness.
The inclusion of a turbocharger in your Audi A4 is a deliberate engineering choice aimed at significantly boosting engine performance. By forcing more air into the combustion chamber, the turbocharger allows the engine to generate more power, increase speed, and improve overall fuel economy. However, as a component intricately linked with the engine's oil, fuel, air, and cooling systems, turbochargers are susceptible to malfunction or damage if these interconnected systems are not optimally maintained. For Audi A4 owners, understanding the common causes, symptoms, and solutions for turbocharger issues is crucial for maintaining the vehicle's optimal performance and longevity.
The Mechanics of a Turbocharger and Its Benefits
A turbocharger is essentially an exhaust-driven turbine that forces additional compressed air into the combustion chamber. This process, known as forced induction, allows the engine to burn more fuel and, consequently, produce more power than a naturally aspirated engine of the same displacement. The benefits are manifold:
- Increased Power Output: More air means more fuel can be combusted, leading to a significant increase in horsepower and torque.
- Improved Fuel Efficiency: By optimising combustion and reducing pumping losses, turbochargers can contribute to better fuel economy, especially under steady-state cruising.
- Enhanced Torque: Turbocharged engines typically deliver stronger torque at lower RPMs, providing a more responsive and flexible driving experience.
- Reduced Emissions: More efficient combustion can lead to lower emissions of certain pollutants.
The 1.8T engine, prevalent in earlier Audi A4 models (production years 1996-2008), is a prime example of this technology. With an average lifespan of 190,000-220,000 miles, this engine utilized port injection and offered a power range of 150-180 hp. While generally reliable, common issues could arise from the turbocharger itself, particularly if the exhaust system was compromised, or due to problems with the crankcase ventilation system, timing chain tensioner durability, and sensor faults. Despite these potential issues, the 1.8T was lauded for its high engine reliability score.
Common Turbocharger Problems in the Audi A4
While a turbocharger significantly enhances your Audi A4's capabilities, several factors can lead to its malfunction or failure. Understanding these issues is key to proactive maintenance.
1. Problems with the Integrated Wastegate
The wastegate is a critical component of the turbocharger system. It's a valve that regulates the amount of exhaust gas that flows through the turbine. By controlling this flow, it prevents over-boosting and potential damage to the engine. In the Audi A4, the wastegate is typically operated by a vacuum actuator connected via a linkage.
How it works: At higher engine speeds, the wastegate opens to allow some exhaust gases to bypass the turbine. This prevents the turbine from spinning too fast and generating excessive boost pressure. The precise control of this bypass is essential for maintaining optimal engine performance and preventing over-pressurisation.
Common Failures: The wastegate operates in a very harsh environment under the bonnet, exposed to extreme temperatures. Leakage in the valve, the linkage, or the vacuum actuator can lead to premature opening or failure to close properly. If the wastegate leaks exhaust gases too early, the turbo won't spool up effectively, resulting in a loss of boost and power. Conversely, if it fails to open, over-boosting can occur.
Solution: Because the wastegate is often integrated into the turbocharger's housing, a faulty wastegate can unfortunately necessitate the replacement of the entire turbocharger assembly. This is a costly repair, and it's important to diagnose this issue accurately before committing to a full turbo replacement.
For Audi A4 models equipped with the 1.9 TDI and 2.0 TDI diesel engines, the Diesel Particulate Filter (DPF) can be a significant contributor to turbocharger failures. The DPF is designed to trap soot and particulate matter from the exhaust gases.
How it works: The DPF collects soot, which is then periodically burned off during a process called 'regeneration'. This regeneration typically occurs during sustained high-speed driving on a motorway.
Common Failures: Over time, even after regeneration cycles, a small amount of ash residue can accumulate and eventually block the DPF. This blockage increases exhaust back-pressure. The turbocharger is directly connected to the exhaust system, so this increased back-pressure puts significant strain on the turbo's components, often leading to premature failure. The constant resistance can cause the turbo to work harder, leading to overheating and wear.
Solution: To resolve DPF-related turbo issues, the DPF itself may need to be replaced or, in some cases, professionally cleaned or removed (though removal may have legal implications depending on your region). Regular long drives on the motorway are essential to allow the DPF to regenerate effectively.
3. Turbine Shaft Bearing Wear
The turbocharger consists of a turbine wheel and a compressor wheel, connected by a shaft. The turbine wheel is spun by the hot exhaust gases, driving the compressor wheel which forces air into the engine. The shaft spins at extremely high RPMs (often exceeding 100,000 RPM) and is supported by bearings.
How it works: The turbine shaft bearings are crucial for maintaining the shaft's stability and the integrity of the seals that prevent oil and coolant from leaking into the exhaust or intake paths. These bearings operate under immense heat and centrifugal force.
Common Failures: Wear and tear on these bearings is a common cause of turbo failure. If the bearings become loose or fail, the turbine shaft can wobble, causing friction and potential damage to the seals. Leaking seals can result in oil entering the exhaust system, which is often indicated by blue or grey smoke from the tailpipe. Conversely, a lack of proper lubrication can cause the bearings to overheat, seize, or break apart due to excessive friction and heat.
Solution:Regular oil changes with the correct specification oil are paramount to preventing premature bearing wear. Ensuring the oil is clean and at the correct level provides the necessary lubrication to withstand the extreme operating conditions.
4. Compressor Wheel Damage
The compressor wheel is responsible for drawing in and compressing fresh air for the engine. It's located on the intake side of the turbocharger.
How it works: The compressor wheel spins at very high speeds, drawing air through the air filter and then compressing it before sending it to the engine's intake manifold.
Common Failures: It's not uncommon for small foreign objects, such as debris, grit, or even small metal fragments, to find their way past the air filter and into the turbo's intake. When these objects strike the rapidly spinning compressor wheel fins, they can cause damage, chipping, or bending. This damage can unbalance the rotating assembly, leading to vibrations, reduced efficiency, and a loss of boost pressure.
Solution: Regular inspection and replacement of the air filter are vital. Ensuring the air intake system is free from leaks and debris will help protect the compressor wheel.
Symptoms of Turbocharger Failure in Your Audi A4
Recognising the signs of a failing turbocharger is crucial for preventing further damage and costly repairs. Here are some common symptoms to look out for:
1. Blue or Grey Smoke from the Exhaust

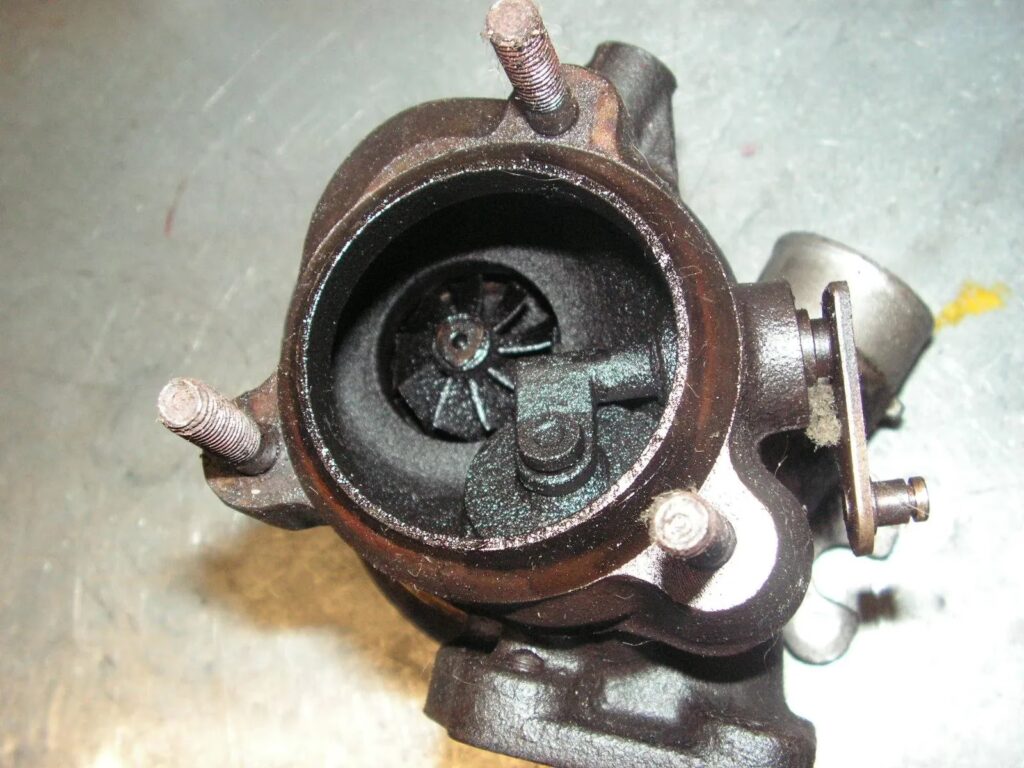

If you notice blue or grey smoke emanating from your exhaust, especially under acceleration, it often indicates that oil is leaking into the exhaust system. This can be due to worn turbo seals allowing oil to enter the turbine housing and burn off.
2. Loud Whining or Whistling Noise
Turbochargers are designed to operate relatively quietly, often muffling the natural intake noise of the engine. If you hear a loud, unusual whining, whistling, or siren-like noise coming from the turbo area, it's a strong indicator of a problem. This noise often gets louder as the turbo spools up and can signify bearing failure or damaged compressor/turbine wheels.
3. Loss of Power and Acceleration
Your Audi A4 is designed for responsive performance thanks to its turbocharger. If you experience a noticeable reduction in power, sluggish acceleration, or the car struggles to maintain speed, it could be a sign that the turbo is not producing adequate boost. This could be due to leaks in the intake or exhaust system, a malfunctioning wastegate, or internal turbo damage.
4. Check Engine Light Illuminated
While the check engine light can be triggered by numerous issues, turbo-related problems are a common cause. If the engine control unit (ECU) detects a fault with boost pressure, airflow, or associated sensors, it will illuminate the check engine light. It's always advisable to have this checked by a qualified mechanic to pinpoint the exact cause.
5. Increased Oil Consumption
If your Audi A4 is consuming more oil than usual, and you suspect turbo issues, it's likely due to leaking seals within the turbocharger. The oil can be burnt in the combustion chamber or escape through the exhaust, leading to a drop in the oil level.
Essential Maintenance for Turbocharger Longevity
Proper maintenance is the most effective way to ensure the longevity and optimal performance of your Audi A4's turbocharger. Here are some key practices:
- Regular Oil Changes: Adhere to the manufacturer's recommended service intervals for oil and filter changes. Using the correct grade and quality of oil is crucial for lubricating the turbo's high-speed bearings. Consider more frequent changes if you frequently drive in demanding conditions.
- Warm-Up Period: Allow your engine to warm up for a minute or two after starting, especially in cold weather. This gives the oil time to circulate and reach optimal temperature, ensuring proper lubrication of the turbocharger's internal components before they are subjected to high loads.
- Cool-Down Period: After a long drive or spirited driving, allow the engine to idle for a minute or two before switching it off. This helps to cool down the turbocharger gradually, preventing heat soak and potential damage to the bearings and seals from residual heat.
- Air Filter Maintenance: Regularly inspect and replace the air filter. A clean air filter ensures a consistent supply of clean air to the turbo and engine, preventing debris from causing damage.
- Exhaust System Integrity: Ensure your exhaust system is free from leaks. Leaks before or after the turbo can affect its performance and efficiency.
Conclusion
Turbochargers are vital components that significantly enhance the power, performance, and efficiency of your Audi A4. While these units are engineered for durability, they are not immune to failure, often due to issues in related systems or a lack of proper maintenance. By understanding the common causes of turbo failure, recognising the warning signs, and adhering to a diligent maintenance schedule, you can help ensure your Audi A4's turbocharger operates reliably for years to come. Addressing any suspected turbo issues promptly is key to preventing more extensive and costly damage down the line.
Frequently Asked Questions (FAQ)
Q1: How long does an Audi A4 turbocharger typically last?
With proper maintenance, an Audi A4 turbocharger can last anywhere from 100,000 to 200,000 miles or more. However, factors like driving style, maintenance adherence, and environmental conditions can influence its lifespan.
Q2: Is it safe to drive with a failing turbocharger?
While you might be able to drive with a mildly failing turbo, it's not recommended. A failing turbo can lead to reduced performance, increased oil consumption, and potentially catastrophic engine damage if it fails completely. It's best to have it diagnosed and repaired as soon as possible.
Q3: Can a faulty EGR valve affect the turbocharger?
Yes, a faulty Exhaust Gas Recirculation (EGR) valve can indirectly affect the turbocharger. If the EGR valve is stuck open or closed, it can disrupt the normal exhaust gas flow, potentially impacting the turbo's operation and efficiency, and may even contribute to carbon build-up within the system.
Q4: What is the difference between TFSI and TDI engines in an Audi A4?
TFSI (Turbocharged Fuel Stratified Injection) refers to Audi's turbocharged petrol (gasoline) engines, while TDI (Turbocharged Direct Injection) refers to their turbocharged diesel engines. Both use turbocharging for enhanced performance and efficiency, but they operate on different fuel types and combustion principles.
Q5: Should I use synthetic oil in my Audi A4 with a turbo?
Yes, it is highly recommended to use high-quality synthetic oil in Audi A4 models equipped with turbochargers. Synthetic oils offer superior lubrication, thermal stability, and resistance to breakdown under high temperatures compared to conventional oils, which is crucial for protecting the turbocharger's components.
