Mercury D4.2L D-Tronic Diesel: Maintenance Guide

Understanding Your Mercury D4.2L D-Tronic Diesel Engine

The Mercury D4.2L D-Tronic diesel engine is a robust power unit commonly found in marine applications. To ensure its longevity and optimal performance, a thorough understanding of its maintenance requirements is crucial. This guide delves into the essential maintenance procedures, troubleshooting tips, and specifications for the D4.2L D-Tronic, drawing from official service manuals to provide you with the most accurate and actionable information.

Service Manuals: Your Essential Resource

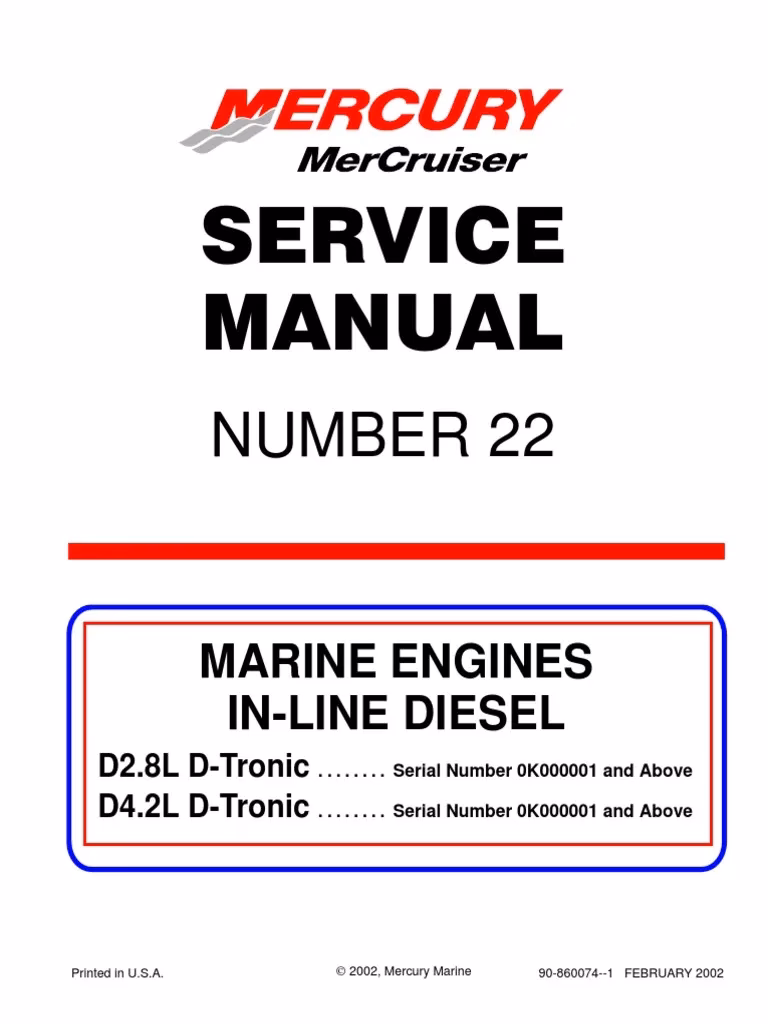

Accessing the correct service manual is the first step towards effective maintenance. For the Mercury D4.2L D-Tronic diesel engine, the primary document is the Service Manual, often designated by a number such as 'SERVICE MANUAL NUMBER 22'. These manuals are comprehensive and cover everything from general information and maintenance schedules to detailed troubleshooting and component-specific repair procedures. MerCruiser also offers specific repair manuals for their diesel models, which are invaluable for in-depth overhauls and repairs.

Key Maintenance Areas

1. Engine Oil and Filter Changes

Regular oil and filter changes are fundamental to engine health. The recommended oil for all temperature operations is 15W-40. It is vital to check the oil level daily before the first start-up. An overfilled crankcase can lead to oil pressure fluctuations due to the crankshaft agitating the oil, causing aeration.

When to Change:

• After the first 20 hours of operation.
• Every 200 hours or annually, whichever comes first.

Procedure:

1. Warm the engine to operating temperature.
2. Stop the engine and allow 10 minutes for oil to drain.
3. Remove the oil drain hose fitting.
4. Remove and discard the old oil filter and seal.
5. Lubricate the seal on the new filter with engine oil and install. Hand-tighten only.
6. Refill the engine with the correct type and quantity of new engine oil, checking the dipstick. Do NOT overfill.

2. Fuel System Maintenance

Proper fuel management is critical for diesel engines.

• Fuel Grade: Use Grade 2-D diesel fuel meeting ASTM Standards D975, with a minimum cetane rating of 45.
• Fuel Filter: Drain any water from the fuel filter after each use, especially in freezing temperatures. Replace the fuel filter as part of scheduled maintenance (e.g., every 300 hours or every 2 years).

Fuel Filter Draining:

1. Open the water drain cap (bleed valve) on the fuel filter.
2. In cold weather, drain shortly after operations to prevent freezing.

Fuel Filter Replacement:

1. Loosen the bleed screw on the fuel filter bracket.
2. Use the pump/primer to fill the new filter with fuel until an air-free stream exits the bleed screw.
3. Twist the locking ring to remove the old filter.
4. Lubricate the seal on the new filter with clean engine oil and install, hand-tightening the locking ring.

3. Cooling System

The D4.2L D-Tronic features a closed cooling system. Maintaining the correct coolant level and type is essential.

• Coolant: Use a recommended coolant, ensuring it is mixed correctly. Avoid alcohol or methanol-based antifreeze or plain water.
• Checking Level: The coolant level in the recovery bottle should be between the 'ADD' and 'FULL Hot' marks when the engine is at normal operating temperature.
• Draining: Drain the seawater section of the cooling system for cold weather or extended storage. Ensure all drain plugs and valves are securely closed after draining.
• Filling: Fill the system slowly with the recommended coolant, then start the engine and run at fast idle to purge air.

4. Seawater System Flushing

To prevent corrosion and deposit buildup, flush the seawater section of the cooling system, especially if operating in salty, polluted, or mineral-laden water. This is best done after each use or thoroughly before storage.

5. Lubrication Points

Regular lubrication of specific components is vital:

• Throttle and shift cables: Lubricate pivot points and guide contact surfaces with SAE 30W engine oil.
• Engine coupler/U-joint shaft splines: Use specific coupler spline grease.
• U-joints (Bravo models): Lubricate through grease fittings after removing the sterndrive unit.
• Drive shaft extension: Apply U-joint and Gimbal Bearing Grease to fittings.
• Gimbal bearing: Apply U-joint and Gimbal Bearing Grease.

6. Drive Belts

Inspect all drive belts for cracks, glazing, or fraying. Ensure proper tension (not deflecting more than 5 mm or 3/16 in. when pressed at the midpoint).

7. Sacrificial Anodes

Sacrificial anodes protect metal components from galvanic corrosion. Inspect them regularly and replace when approximately 50% deteriorated.

Maintenance Schedules

Adhering to the recommended maintenance schedules is key:

Sterndrive (MCM) Engines:

• Routine: Check oil daily, flush cooling system if in salt water, drain fuel filter. Check drive unit oil, trim pump, and power steering fluid weekly.
• Scheduled: Change oil & filter after 20 hours. Then every 200 hours/annually for lubrication, drive shaft U-joints, and belts. Every 300 hours/2 years for drive unit oil. Every 500 hours/3 years for fuel filter. Every 1000 hours/5 years for gimbal ring retorque.

Inboard (MIE) Engines:

• Routine: Check oil daily, flush cooling system if in salt water, drain fuel filter. Check transmission fluid, water pickups, and water strainer weekly.
• Scheduled: Change oil & filter after 20 hours. Then every 200 hours/annually for lubrication. Every 500 hours/3 years for fuel filter. Every 1000 hours/5 years for transmission fluid.

Troubleshooting Common Issues

Refer to the troubleshooting section (SECTION 1C) of your service manual for detailed guidance on issues such as:

• Poor boat performance or maneuverability.
• Improper full throttle engine RPM (too high or too low).
• Engine cranks but won't start or starts hard.
• Charging system inoperative.
• Engine operates poorly at idle or high RPM.
• Engine smoking (black, blue, or white).
• Excessive exhaust gas temperature.
• Engine noise diagnosis.
• Low or excessive oil pressure.
• Excessive oil consumption.
• Water/coolant in the engine.
• Engine overheating.
• Power steering issues.
• Noisy pumps.
• Insufficient seawater flow.
• ZF/Hurth hydraulic transmission problems.

Key Specifications (D4.2L D-Tronic)

Important Precautions

• Safety First: Always disconnect battery cables before working on electrical or fuel systems. Wear safety glasses.
• Flammability: Diesel fuel is flammable. Ensure no open flames or sparks are present. Clean up spills immediately.
• Environmental: Dispose of oil and fuel waste according to local regulations.
• Component Handling: Use correct tools and procedures to avoid damage. Follow torque specifications precisely.

By diligently following these maintenance guidelines and consulting your specific service manual, you can ensure your Mercury D4.2L D-Tronic diesel engine delivers reliable power and performance for years to come.
