Pinpointing Oil Leaks: Cooler vs. Valve Cover

A persistent oil leak can be one of the most frustrating and concerning issues for any car owner. Not only does it leave unsightly stains on your driveway or garage floor, but it can also signify a more serious underlying problem that could lead to costly repairs if left unaddressed. While the sight of a puddle of oil might immediately trigger panic, it's crucial to understand that not all leaks are created equal. Some are relatively minor and inexpensive to fix, while others can signal the end of a vehicle's economical life, often leading to it being traded in. The key lies in accurate diagnosis, differentiating between the common, less severe leaks and the more egregious, wallet-draining ones.

Many used vehicles, particularly those found on forecourts or at auctions, often come with an inherent risk of oil leaks. This isn't surprising; owners are far more likely to trade in a car facing a £1,000 to £3,000 repair bill for a timing chain cover or head gasket than one requiring a £100 oil cooler gasket or a £300 valve cover replacement. Understanding where your leak is coming from is the first vital step in deciding your next course of action, whether that's a DIY fix, a trip to the mechanic, or perhaps even considering a new vehicle.

Understanding Common Oil Leaks: The Usual Suspects

When it comes to the most frequently encountered oil leaks, two components stand out: the valve cover gasket and the oil cooler gasket. Both are made from materials like rubber or cork that, over time and subjected to countless heat cycles, can harden, crack, or shrink, losing their ability to create a perfect seal. These components are designed to contain oil within specific parts of the engine, and when their seals fail, oil begins to seep out. While annoying, these leaks are generally considered less severe than others, primarily because their repair is typically less labour-intensive and therefore less expensive. However, even a 'minor' leak should not be ignored, as it can lead to low oil levels, potential engine damage, and environmental concerns.

The Valve Cover Gasket: Top-End Troubles

The valve cover gasket is situated at the very top of your engine, forming a seal between the valve cover (the uppermost part of the engine that protects the camshafts and valve train) and the cylinder head. Its primary job is to prevent oil from escaping the engine's upper reaches as it lubricates the moving parts within. This is arguably one of the most common oil leak points, especially on older vehicles.

Symptoms of a Leaking Valve Cover Gasket:

• Visible Oil Seepage: The most obvious sign is oil visibly weeping or pooling around the perimeter of the valve cover, on top of the engine.
• Burning Oil Smell: As oil leaks from the valve cover, it can drip onto hot exhaust manifolds or other engine components, producing a distinct burning oil smell, particularly noticeable when the engine is warm or after a drive.
• Smoke from the Engine Bay: In more severe cases, the burning oil can produce wisps of smoke emanating from under the bonnet, especially after the engine has been running for a while.
• Low Oil Levels: A persistent leak will eventually lead to a noticeable drop in your engine's oil level, requiring frequent top-ups.

Diagnosis and Repair Considerations:

Diagnosing a valve cover gasket leak is often straightforward due to its accessible location. A thorough visual inspection of the top and sides of the engine block, particularly around the valve cover, will usually confirm the leak. It's often helpful to clean the area thoroughly, then run the engine for a short period and re-inspect to pinpoint the exact source of the leak. Replacing a valve cover gasket is generally considered a moderately easy DIY task for those with some mechanical aptitude, or a relatively inexpensive repair at a garage. The cost primarily involves the gasket itself (often just a few pounds) and a couple of hours of labour.

The Oil Cooler Gasket: Lower Down, But Still Manageable

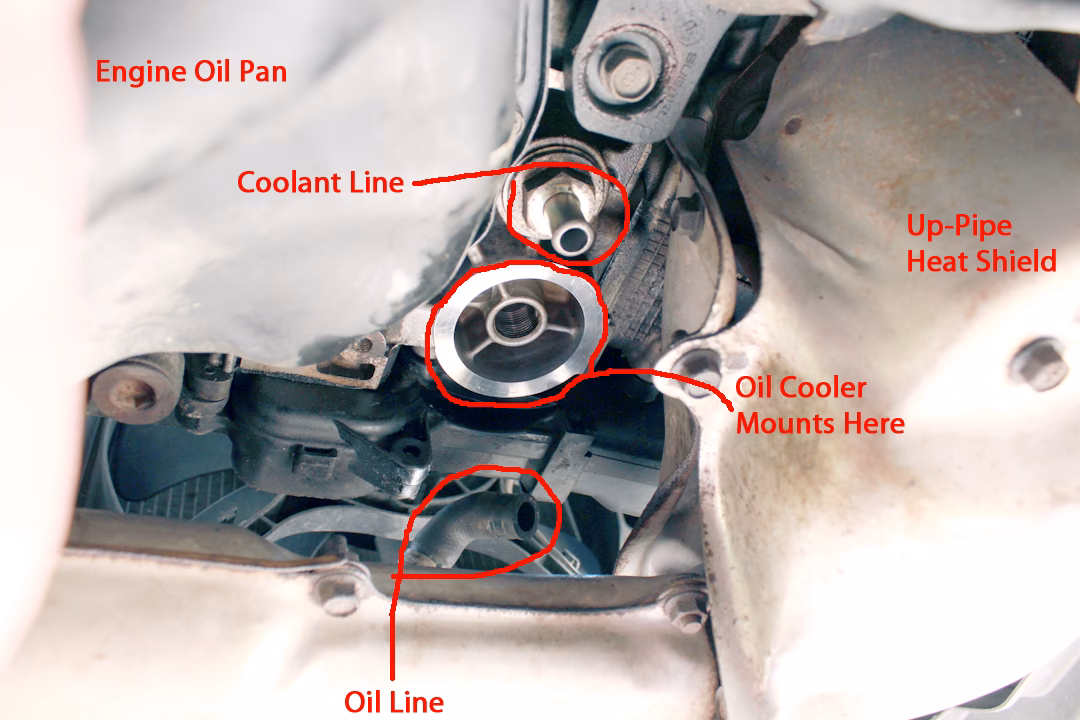

The oil cooler gasket is typically found near the oil filter housing, often integrated with it, or located where the oil cooler unit mounts to the engine block. The oil cooler's function is to help regulate the temperature of the engine oil, preventing it from overheating, which is crucial for optimal lubrication. This component is common in many modern engines, especially those in higher-performance or larger vehicles.

Symptoms of a Leaking Oil Cooler Gasket:

• Oil Drips Near the Front/Side of the Engine: Leaks from the oil cooler gasket often manifest as oil dripping lower down on the engine, frequently towards the front or side, and sometimes pooling on the underbody splash guard or the ground beneath the engine.
• Oil Around the Oil Filter Area: Since the oil cooler is often integrated with or near the oil filter, you might see oil concentrated around that general vicinity.
• Mistaken for Oil Pan Leak: Due to its lower position, an oil cooler gasket leak can sometimes be confused with an oil pan gasket leak, as the oil drips can end up in similar locations.

Diagnosis and Repair Considerations:

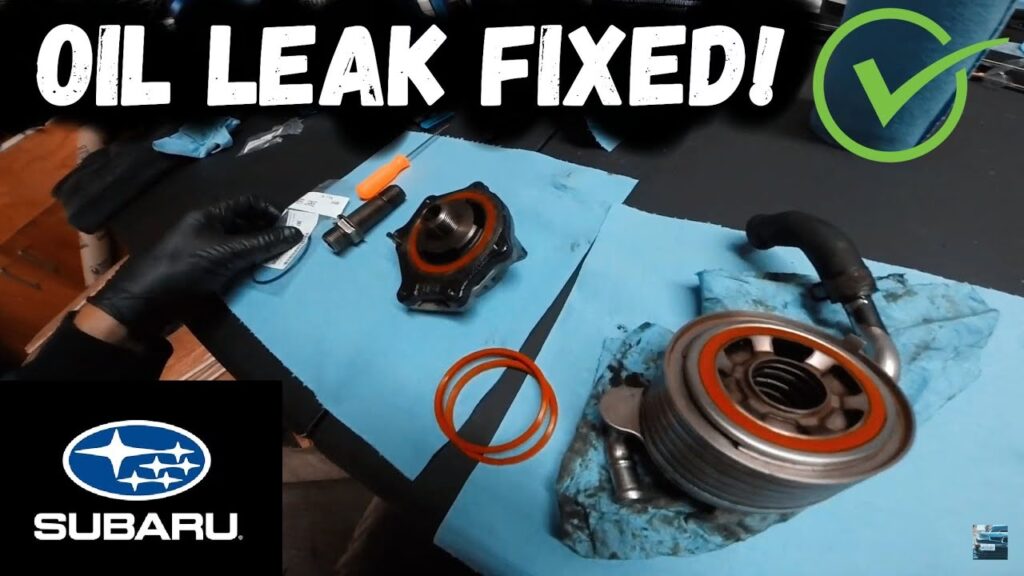

Identifying an oil cooler gasket leak requires a visual inspection of the area around the oil filter and the oil cooler unit itself. Again, cleaning the area first can make pinpointing the source much easier. While not as exposed as the valve cover, the oil cooler gasket is usually accessible without major engine disassembly. The repair can be slightly more involved than a valve cover gasket, as it might require draining some coolant (if it's a water-to-oil cooler) and removing some ancillary components to gain access. However, it still falls into the category of a less severe, more manageable repair, typically costing a few hundred pounds including parts and labour.

When Leaks Turn Serious: Timing Chain Cover & Head Gasket

While valve cover and oil cooler gaskets are common and relatively affordable fixes, it's crucial to distinguish them from leaks originating from the timing chain cover or, even more critically, the head gasket. These are the types of leaks that often lead to a car being traded in, as the repair costs can quickly escalate into thousands of pounds, making them economically unviable for many owners.

The Timing Chain Cover: A Major Undertaking

The timing chain cover is located at the very front of the engine, protecting the timing chain, sprockets, and other components that synchronise the crankshaft and camshafts. A leak here means oil is escaping from the main engine casing. The problem isn't necessarily the cost of the gasket itself, but the sheer amount of labour required to access and replace it. To get to the timing chain cover, mechanics often need to remove numerous components, including the serpentine belt, pulleys, engine mounts, and sometimes even the oil pan, which can necessitate lifting the engine. This extensive disassembly translates directly into high labour costs, making it a £1,000 - £3,000 repair scenario.

The Head Gasket: The Ultimate Deal-Breaker

The head gasket sits between the engine block and the cylinder head(s), sealing the combustion chambers and preventing engine oil, coolant, and combustion gases from mixing. A leaking head gasket is often the most severe type of leak and can manifest in several ways, not just externally visible oil. While it can cause an external oil leak, it's more commonly associated with internal issues like coolant mixing with oil (creating a milky sludge), white smoke from the exhaust (due to burning coolant), engine overheating, or unexplained coolant loss. Repairing a head gasket is a significant undertaking, requiring the removal of the cylinder head(s), which involves dismantling a large portion of the engine's top end. This is a very labour-intensive job, easily pushing repair costs into the £1,000 - £4,000+ range, making it a prime reason for an older car to be deemed beyond economical repair and traded in.

Accurate Diagnosis: Saving Your Wallet and Your Sanity

Given the vast difference in repair costs between these leak types, it becomes abundantly clear why accurate diagnosis is paramount. A misdiagnosis could lead you to spend hundreds or thousands of pounds on an unnecessary or incorrect repair, or worse, trade in a perfectly salvageable vehicle.

Tips for Pinpointing Your Leak:

• Cleanliness is Key: Start by thoroughly cleaning the engine bay, especially the suspected leak areas. Use an engine degreaser, rinse well, and dry. This allows you to observe fresh oil leaks clearly.
• Observe Carefully: After cleaning, run the engine for a while, then park it on a clean piece of cardboard or newspaper. Observe where the fresh oil drips are originating from. Look for trails of oil running down the engine.
• UV Dye: For hard-to-find leaks, a UV dye kit can be invaluable. Add the dye to your engine oil, drive for a bit, then inspect the engine with a UV light. The dye will glow brightly at the leak source.
• Professional Inspection: If you're unsure, or the leak is difficult to pinpoint, it's always wise to consult a qualified mechanic. Their experience and specialised tools can quickly and accurately identify the source of the leak, potentially saving you significant time and money in the long run.

Oil Leak Comparison Table

Frequently Asked Questions About Oil Leaks

Q: Can I ignore a small oil leak?

A: While a very minor weep might not be an immediate emergency, it's never advisable to ignore any oil leak. Even small leaks can worsen over time, lead to low oil levels which can cause severe engine damage, or drip onto hot components creating a fire risk. It's best to address it as soon as possible.

Q: How quickly should I address an oil leak?

A: The urgency depends on the severity and location. A large, rapidly dripping leak, especially one that causes your oil level to drop quickly, requires immediate attention. A slow, seeping leak should be addressed within a few weeks to prevent it from worsening and causing further issues.

Q: What are the risks of driving with a significant oil leak?

A: Major risks include: critically low oil levels leading to severe engine wear or seizure, fire hazard if oil drips onto hot exhaust components, and environmental pollution. It can also lead to MOT failure in the UK.

Q: Why are oil leaks so common in older cars?

A: Over time, the rubber and plastic components used for gaskets and seals degrade due to constant exposure to heat, pressure, and chemicals. They become brittle, crack, and lose their sealing properties. Vibrations and mileage also contribute to wear and tear.

Q: Should I use 'stop leak' products for oil leaks?

A: 'Stop leak' products are generally not recommended as a permanent solution. While they might temporarily swell seals to reduce a minor leak, they can also cause other issues by clogging oil passages or damaging other engine components. They are a temporary band-aid, not a fix.

A leaking engine can be a daunting prospect, but with the right knowledge, you can approach the problem with confidence. Knowing the difference between a simple valve cover or oil cooler gasket leak and a more serious timing chain cover or head gasket issue can save you significant time, money, and stress. Always aim for accurate diagnosis and timely repair to keep your vehicle running smoothly and reliably on British roads.
