Massey Ferguson 35X Rear Axle Seal Replacement

A leaking rear axle seal on a classic tractor like the Massey Ferguson 35X is a common, yet often concerning, issue for owners. The tell-tale signs – oil seeping onto the rear tyre and, more critically, a significant loss of braking efficiency on the affected side – are clear indicators that it's time to address the problem. While it might seem daunting, particularly with mentions of shims and axle end float, many owners successfully tackle this repair themselves, restoring their tractor's safety and functionality. This guide will walk you through the process, sharing insights and practical tips to help you confidently replace that troublesome seal.

Understanding the Problem: Signs of a Leaking Axle Seal

Before diving into the repair, it's crucial to confirm that a leaking rear axle seal is indeed the culprit. The most obvious symptom is the presence of engine or hydraulic oil on the inner side of the rear wheel and tyre. This oil often drips down and accumulates, becoming particularly noticeable after the tractor has been idle for a few days. The oil can also contaminate the brake shoes and drum, leading to a drastic reduction, or complete loss, of braking power on that specific wheel. If you experience a spongy brake pedal or a significant pull to one side when braking, combined with visible oil, a leaking axle seal is highly probable.

Ignoring a leaking axle seal isn't just an aesthetic issue; it's a safety hazard. Contaminated brakes are ineffective, drastically increasing stopping distances and posing a serious risk, especially when operating on slopes or with heavy implements. Furthermore, continued leakage can lead to insufficient lubrication for the axle bearings, potentially causing more severe and costly damage down the line.

Safety First: Essential Preparations

Before you even think about grabbing a spanner, ensuring your safety is paramount. Working under or around heavy machinery like a tractor carries inherent risks. Proper preparation can mitigate most of these dangers:

• Secure Parking: Park the tractor on a level, firm surface. Engage the parking brake (if it still works on the unaffected side) and place wheel chocks on the front wheels to prevent any accidental movement.
• Jacking and Supporting: Use a robust hydraulic jack capable of lifting the tractor's weight. Once lifted, immediately support the axle with sturdy axle stands. Never rely solely on the jack. Ensure the stands are placed securely on a solid part of the axle housing, not on components that could shift or damage.
• Personal Protective Equipment (PPE): Wear appropriate safety glasses to protect your eyes from debris or fluid splashes. Heavy-duty gloves will protect your hands from grease, oil, and sharp edges.
• Fluid Containment: Have a large drain pan ready to collect the hydraulic fluid that will be released.

Tools and Materials You'll Need

Having the right tools at hand will make the job much smoother. Based on common practice and the shared experience, here's what you'll likely require:

• Hydraulic jack and axle stands
• Wheel chocks
• Large spanners and sockets (for wheel nuts, hub bolts)
• Flat bar and wrench (for stubborn brake drum screws)
• Hammer (preferably a rubber mallet or dead blow hammer)
• Wooden block (for setting the new seal)
• Drain pan for hydraulic fluid
• New inner axle seal(s) – It's often recommended to replace both inner seals if you're doing one side, as they are inexpensive and the labour is already done.
• Fresh hydraulic fluid (ensure it meets Massey Ferguson's specifications for your model)
• Bearing grease (high-quality, appropriate for wheel bearings)
• Clean rags and brake cleaner
• Optional: Dial indicator (for checking axle end float, though often skipped for basic seal replacement)

Step-by-Step Guide to Axle Seal Replacement

This process is based on the successful experience of other Massey Ferguson 35X owners. Take your time, and don't rush any steps.

1. Preparation and Fluid Drainage

With the tractor safely jacked up and supported on axle stands, the first step is to drain the hydraulic fluid. This is crucial because the axle housing is part of the hydraulic system, and removing the axle will lead to significant fluid loss if not drained beforehand. Locate the drain plug (often at the bottom of the differential housing) and allow all the fluid to drain into your collection pan. This also gives you an opportunity to inspect the fluid for contaminants.

2. Wheel and Brake Drum Removal

The loaded rear wheel is heavy. If you have access to a front-end loader (FEL) on another tractor or a strong assistant, use it to support the weight of the wheel as you remove the wheel nuts. Once the nuts are off, carefully guide the wheel away and set it aside. Next, the brake drum needs to be removed. It's typically held to the hub by two very large screws. These can be incredibly tight. Using a flat bar for leverage with a wrench on the screw head often helps to loosen them. Once the screws are out, the drum should pull off. If it's stuck, a few gentle taps with a rubber mallet around the circumference might help loosen it, or it might be catching on the brake shoes if they are expanded.

3. Disconnecting the Brake and Hub Bolts

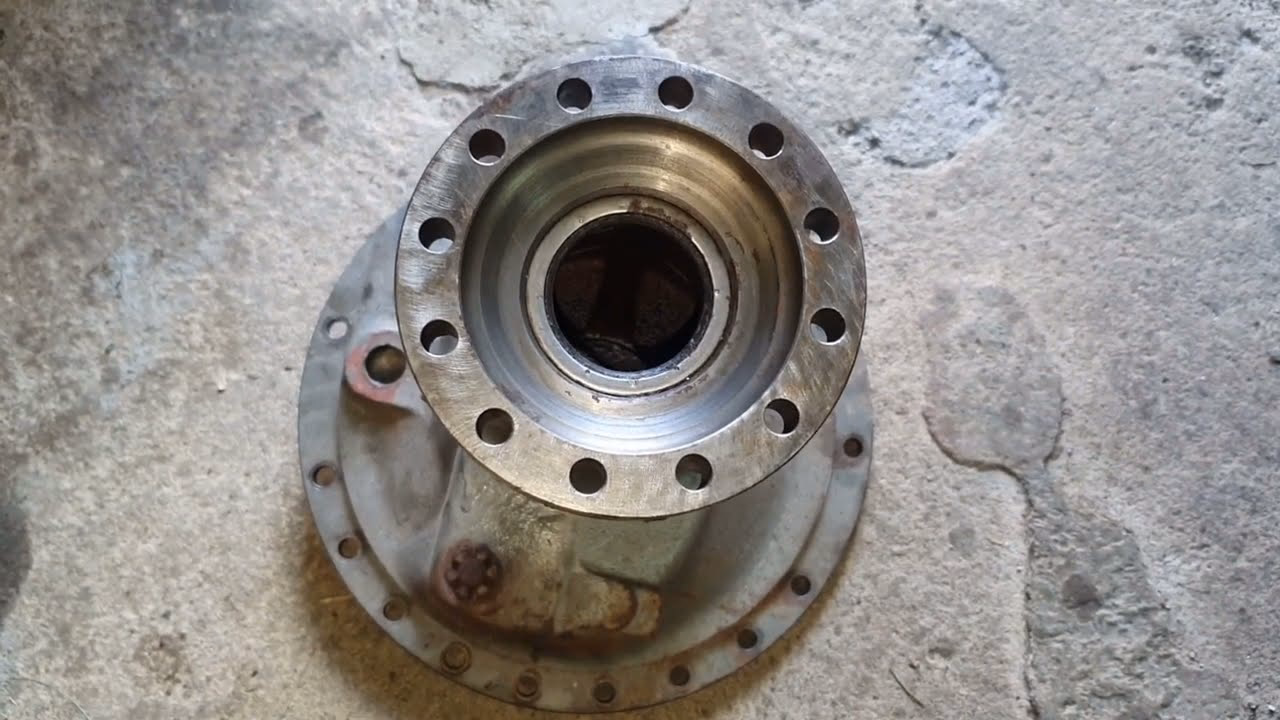

With the brake drum off, you'll have access to the brake assembly. Disconnect the brake rod by removing the pin near the axle housing that secures the yoke from the brake rod. This frees up the brake components. Now, you'll see the twelve bolts holding the hub to the axle housing. Loosen and remove all of these bolts. Keep them organised, as they will need to be reinstalled later.

4. Axle Removal and Shim Management

Carefully pull the axle straight out from the housing. As you extract it, be extremely mindful of the shims located between the hub and the axle housing. These shims are critical for setting the axle end float (the amount of axial movement the axle has) and bearing preload. If your shims are in good condition and not bent or damaged, it's often best to keep them together in their original order. If they are damaged, you will need new ones, and ideally, the end float should be checked with a dial indicator upon reassembly to ensure proper specifications. However, for a straightforward seal replacement, if the shims are intact, reusing them as they were found is a common and usually effective approach for DIYers.

Upon removing the axle, you might immediately see the cause of your leak: chunks of old, deteriorated rubber from the inner seal. This is a clear indication that the seal has failed completely.

5. Seal Inspection and Replacement

With the axle out, you can now access the old seal. Carefully pry out the old inner seal. It's important to thoroughly clean the seal housing area of any old grease, oil, or rubber debris. This ensures the new seal will seat properly and create a tight seal. Take your new replacement seal, and using a piece of wood (or a dedicated seal driver) and a hammer, gently tap the new seal into place. Ensure it goes in straight and is fully seated without being deformed or damaged. Be very careful during this step, as damaging the new seal during installation will lead to a repeat of the entire process.

While the focus is often on the inner seal, some Massey Ferguson 35X models may have an outer seal as well, primarily acting as a dust or dirt shield. As per some experienced advice, the inner seal is the critical one for preventing oil leaks into the brake drum. If the outer seal appears to be in excellent condition, it might not need replacement. However, given the minimal cost of a new seal and the effort involved in dismantling, some owners opt to replace both inner seals (if applicable on both sides of the differential) and potentially the outer seal if it's present and easily accessible.

6. Bearing Repacking

While everything is apart, it's an excellent opportunity to inspect and repack the axle bearings with fresh grease. Even if the bearings appear to have some grease, adding new, clean grease ensures optimal lubrication and extends their lifespan. Use a good quality bearing grease and ensure it's thoroughly worked into the bearings.

7. Reassembly

Reassembly is essentially the reverse of the removal process. Being extra careful not to damage the newly installed seal, carefully slide the axle back into the housing. Ensure the shims are correctly positioned. Reinstall the twelve hub bolts, tightening them evenly and to the manufacturer's specified torque if you have that information (otherwise, tighten securely in a criss-cross pattern). Reconnect the brake rod, replace the brake drum, and finally, reattach the wheel, tightening the wheel nuts securely.

A specific note for the right-hand wheel on some models: the differential lock pedal may need to be wedged or wired down to allow the axle to slide back in properly. This is a small but important detail to remember if you encounter resistance during reassembly on that side.

8. Refilling Hydraulic Fluid and Post-Repair Checks

Once everything is back together, refill the hydraulic system with the correct type and quantity of hydraulic fluid. Start the tractor and allow the fluid to circulate. Check for any immediate leaks around the newly sealed area. Test the brakes in a safe, open area at low speed to ensure they are functioning correctly and that the leak has been resolved. You might need to pump the brakes a few times to build pressure if the system was drained.

Addressing Shims and Axle End Float

The mention of shims and checking axle end float often causes concern. These shims are precisely cut spacers that control the slight axial movement of the axle within its housing. Correct end float is essential for proper bearing life and overall axle integrity. While a full professional repair might involve using a dial indicator to measure and adjust the end float, for a straightforward seal replacement where the original shims are intact and undamaged, simply reinstalling them exactly as they were found is often sufficient for a DIY repair. If you suspect bearing wear or if the shims were damaged, it would be advisable to consult a workshop manual for specific end float specifications or seek professional advice.

Frequently Asked Questions

How long does this job typically take?

For someone who is not a professional mechanic and is taking their time, exploring the tractor, and being meticulous, this job can take anywhere from 4 to 5 hours per side. An experienced mechanic might complete it faster, but for a DIY enthusiast, this timeframe is quite reasonable.

Do I need any special tools?

Most of the tools required are standard garage tools (jacks, stands, wrenches, sockets). A large flat bar can be very helpful for the brake drum screws. While not strictly necessary for a basic seal swap, a torque wrench for reassembly and a seal driver tool can be beneficial for precision and ease.

Can I drive with a leaking axle seal?

It is strongly advised against driving a tractor with a significant axle seal leak. The primary reason is the compromise to the braking system, which poses a severe safety risk. Additionally, continued fluid loss can lead to damage to internal components due to lack of lubrication.

What if I damage the new seal during installation?

Damaging the new seal during installation is a common mistake. If the seal is bent, torn, or improperly seated, it will likely leak. It's crucial to be gentle, use a wooden block or a proper seal driver, and ensure the seal goes in straight and evenly. If you suspect damage, it's best to replace it with a new one before reassembly.

Why drain the hydraulic fluid?

The Massey Ferguson 35X's axle housing is integral to its hydraulic system. When the axle is pulled out, there's an open passage for the hydraulic fluid to escape. Draining it beforehand prevents a large, messy spill and ensures you can refill with clean, fresh fluid afterward.

Conclusion

Replacing a leaking rear axle seal on your Massey Ferguson 35X is a manageable task for the mechanically inclined owner. While it requires time and attention to detail, the satisfaction of successfully completing the repair yourself, coupled with the significant cost savings compared to professional garage fees, makes it a highly rewarding endeavour. By following these steps and prioritising safety, you can restore your classic tractor's braking performance and prevent further damage, keeping your trusty MF 35X running reliably for years to come.
