DIY Guide: Removing Your Mercury 40HP Lower Unit

Understanding how to service and maintain your outboard engine is crucial for its longevity and reliable performance. One of the most fundamental tasks for any boat owner or marine enthusiast is learning to remove the lower unit. This procedure is essential for various critical maintenance operations, such as inspecting and replacing the water pump impeller, changing the gear oil, checking for fishing line entanglement around the propeller shaft, or addressing issues within the gearcase itself. While it might seem daunting at first, with the right tools and a methodical approach, removing the lower unit from your Mercury 40HP four-stroke outboard can be a straightforward process, saving you time and money on professional labour.

This guide will walk you through the necessary steps, providing detailed insights into each stage of the removal process. We'll cover everything from vital safety precautions and required tools to the actual disconnection and separation of the unit. By the end, you'll feel confident in tackling this important piece of outboard maintenance, ensuring your Mercury 40HP continues to run smoothly on the water.

Before You Begin: Essential Preparations and Safety First

Before you even think about reaching for a spanner, safety must be your absolute priority. Working on any mechanical component, especially one connected to a powerful engine, carries inherent risks. Taking a few moments to prepare properly can prevent accidents and make the job much smoother.

Crucial Safety Measures

• Disconnect the Battery: Always, without exception, disconnect the battery's negative terminal. This prevents accidental starting of the engine, which could lead to severe injury.
• Remove the Propeller: This is non-negotiable. The propeller is a sharp, rotating hazard. Ensure it's removed and safely stored away before you begin any work on the lower unit.
• Secure the Outboard: Make sure your outboard is securely mounted to the transom or a sturdy engine stand. You'll be applying force, and you don't want the engine to shift or fall.
• Wear Appropriate Personal Protective Equipment (PPE): This includes safety glasses to protect your eyes from debris or splashes, and sturdy gloves to protect your hands.

Tools and Materials You'll Need

Having the right tools at hand will make the job significantly easier and prevent frustration. Here's a list of what you'll typically require:

• Socket wrench set (metric, usually 10mm, 13mm, 15mm, 17mm)
• Extension bars for your socket wrench
• Open-ended spanners (wrenches)
• Flat-head screwdriver
• Phillips head screwdriver
• Drain pan for gear oil
• Gear oil pump (for refilling later)
• New lower unit gasket kit (highly recommended to replace all gaskets upon reinstallation)
• Marine grease (for splines and bolts)
• Clean rags or shop towels
• Torque wrench (essential for correct reinstallation)
• Mallet (rubber or plastic, for gentle persuasion if needed)

Table: Essential vs. Recommended Tools

The Removal Process: Step-by-Step Guide

Once you've taken the necessary safety precautions and gathered your tools, you're ready to begin the removal process. Follow these steps carefully:

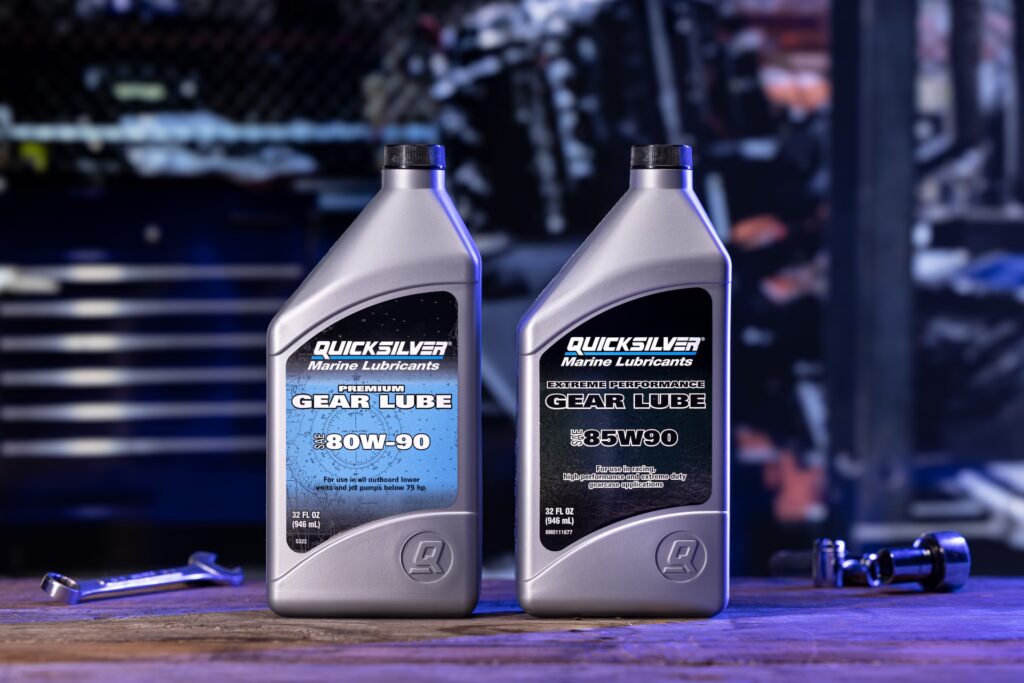

Step 1: Drain the Gear Oil

This is a good practice to perform before removing the lower unit, as it allows you to inspect the oil's condition and prevents spills during removal. Locate the two gear oil screws on the lower unit (one at the bottom, one higher up). Place your drain pan beneath the unit. First, remove the top screw to allow air in, then remove the bottom screw to drain the oil. Observe the oil's colour and consistency. Milky oil indicates water intrusion, while metal flakes suggest internal gear wear.

Step 2: Remove the Top Cowling

As per the initial instructions, the first physical step is to remove the top cowling of your Mercury 40HP outboard. This typically involves unlatching or unscrewing clips and then lifting the cowling clear to access the engine's internal components, specifically the shift shaft linkage.

Step 3: Disconnect the Shift Shaft Linkage

This is a critical step, as the shift shaft connects the gear selector in the powerhead to the gearcase in the lower unit. Misalignment or damage here can prevent proper shifting. Locate the shift shaft assembly, which will be visible once the cowling is removed. You'll see a plastic retainer clip securing the linkage.

• Locate the Clip: Identify the small plastic retainer clip holding the shift shaft assembly together.
• Push Up: Carefully push the plastic retainer clip upwards off the shift shaft assembly. This releases its grip.
• Push to the Left: Once the clip is pushed up, push the entire retainer assembly to the left to fully release it from the shift shaft. This disconnects the linkage, allowing the lower unit to be separated. Take care not to lose this small clip, as it's vital for reassembly.

It's important to ensure this linkage is fully disconnected. If it remains partially connected, you risk bending or damaging the shift shaft when attempting to remove the lower unit.

Step 4: Locate and Remove the Lower Unit Mounting Bolts

The lower unit is secured to the mid-section of the outboard by a series of bolts. The exact number and location can vary slightly between models, but typically there are four to six bolts. On a Mercury 40HP, you'll usually find them:

• Two bolts on each side of the lower unit, accessible from the exterior.
• Potentially one or two hidden bolts, often located under the trim tab or anode at the rear of the lower unit. You may need to remove the anode to access these.

Use the appropriate sized socket and an extension bar to loosen and remove these bolts. If any bolts are stiff, apply a penetrating oil and allow it to soak in for a few minutes before attempting to loosen them again. Be careful not to strip the bolt heads. Keep track of which bolt came from where, as some might be different lengths.

Step 5: Separate the Lower Unit

With all bolts removed and the shift linkage disconnected, the lower unit should now be ready to separate from the mid-section. This step requires a bit of finesse and patience:

• Gentle Persuasion: The lower unit might be stuck due to corrosion or suction from the seals. Avoid brute force. Gently try wiggling the lower unit from side to side.
• Tapping: If it's stubborn, you can use a rubber or plastic mallet to gently tap around the seam where the lower unit meets the mid-section. Tap evenly and lightly on both sides. Avoid hitting the propeller shaft or any sensitive areas.
• Watch for Driveshaft and Water Tube: As the lower unit begins to separate, be mindful of the driveshaft and the water pump tube. The driveshaft extends up into the powerhead, and the water tube connects the water pump to the cooling system. They need to slide out cleanly.
• Support the Unit: Once it starts to come free, support the weight of the lower unit. It can be heavier than you expect. Carefully pull it straight down, ensuring the driveshaft and water tube clear their respective housings.

Once separated, place the lower unit on a clean, stable surface for inspection and servicing. Be careful not to damage the driveshaft splines or the water tube.

Post-Removal Inspection: What to Look For

With the lower unit removed, you have a prime opportunity to inspect critical components that are otherwise inaccessible. This preventative check can save you from costly repairs down the line.

Water Pump Impeller

This is arguably the most important component to inspect. The water pump impeller is responsible for circulating cooling water through your engine. Look for:

• Cracks or Tears: Even small cracks can compromise its efficiency.
• Missing Vanes: Any missing pieces mean the impeller is failing. These pieces can also block cooling passages.
• Hardened or Brittle Rubber: The impeller should be flexible. If it feels stiff or brittle, it's losing its ability to pump water effectively.
• Corrosion: Check the housing and wear plate for signs of excessive corrosion.

It's highly recommended to replace the water pump impeller and its associated gaskets (often sold as a kit) every 100 hours of operation or annually, whichever comes first, regardless of its apparent condition.

Driveshaft and Propshaft Seals

Examine the seals around the driveshaft and the propeller shaft. Look for:

• Leaks: Any signs of gear oil leaking from these areas indicate failed seals.
• Wear: Grooves or damage on the shaft where the seal rides.
• Fishing Line: This is a common culprit for propshaft seal failure. Even tiny strands of fishing line can work their way past the thrust washer and damage the seal, leading to water intrusion into the gearcase. Remove any fishing line you find.

Gearcase Condition

Give the entire gearcase a thorough visual inspection:

• Dents or Cracks: These can indicate impact damage and may compromise the integrity of the gearcase, leading to leaks.
• Corrosion: Especially around bolt holes and seams.
• Anode Condition: If present, check the sacrificial anode. If it's significantly eroded, it's doing its job and needs replacing.

Common Issues and Troubleshooting

Stuck Lower Unit

Corrosion is the primary reason a lower unit might be difficult to remove. If gentle tapping and wiggling don't work, ensure all bolts are definitely out, including any hidden ones. Apply more penetrating oil to the seam and around the driveshaft opening. Let it sit. Some mechanics use a block of wood and a larger hammer to deliver firmer (but still controlled) blows to the cavitation plate, but extreme care must be taken to avoid damage.

Water in Gear Oil

As mentioned, milky gear oil indicates water intrusion. This usually points to a failed propshaft seal, driveshaft seal, or a crack in the gearcase. Address this immediately, as water will emulsify the oil, reducing its lubricating properties and leading to rapid gear wear and corrosion.

Shift Linkage Misalignment

During reinstallation, correctly aligning the shift shaft is crucial. If the engine won't shift properly after reassembly, it's almost certainly an issue with the shift linkage. Ensure the retainer clip is correctly seated and the shaft is fully engaged.

Frequently Asked Questions (FAQs)

Q: How often should I remove my lower unit for maintenance?
A: It's generally recommended to remove your lower unit annually or every 100 hours of operation (whichever comes first) for routine maintenance, especially to inspect and replace the water pump impeller and change the gear oil.

Q: Do I need special tools to remove the lower unit?
A: While most of the tools are standard garage items (sockets, spanners, screwdrivers), a torque wrench is highly recommended for reinstallation to ensure bolts are tightened to the correct specifications. A gear oil pump is also essential for refilling the gearcase.

Q: What if I find metal shavings in my gear oil?
A: Small, very fine metallic particles can be normal wear, but larger flakes or chunks indicate significant internal wear or damage to the gears or bearings. In this case, it's highly advisable to consult a qualified marine mechanic.

Q: Can I re-use the old gaskets?
A: Absolutely not. Always use new gaskets when reinstalling the lower unit. Old, compressed gaskets will not provide an adequate seal, leading to potential leaks and water intrusion.

Q: What should I do if my lower unit is heavily corroded?
A: If corrosion is severe, especially around the mounting bolts or the mating surface, it might be challenging to remove. Apply penetrating oil liberally and allow it to soak. Gentle heat from a heat gun (not a torch!) can sometimes help expand the metal and loosen corroded parts, but proceed with extreme caution to avoid damaging seals or paint.

Reinstallation: A Quick Overview

While this guide focuses on removal, a brief understanding of reinstallation is helpful. Reassembling the lower unit is essentially the reverse of removal, but with a few critical considerations:

• New Gaskets: Always use a new lower unit gasket set.
• Grease: Apply marine grease to the driveshaft splines and the bolt threads.
• Alignment: Carefully align the driveshaft with the engine's crankshaft and the water tube with its connection point. This often requires a bit of wiggling and patience.
• Torque Specifications: Tighten all mounting bolts to the manufacturer's specified torque settings using a torque wrench. Do not overtighten.
• Shift Linkage: Reconnect the shift shaft linkage, ensuring it's properly seated and secured with the retainer clip.
• Refill Gear Oil: Fill the gearcase with the correct type and amount of marine gear oil, typically from the bottom screw hole until it overflows from the top.

By following these detailed steps, you'll be well-equipped to remove the lower unit from your Mercury 40HP four-stroke outboard, enabling you to perform crucial maintenance and keep your engine in top condition for many years of trouble-free boating.
