Brake Caliper Replacement Guide

When and Why to Replace a Brake Caliper

Your car's braking system is arguably its most critical safety feature. At the heart of the disc brake system lies the brake caliper, a component responsible for pressing the brake pads against the brake disc (rotor) to slow or stop your vehicle. Over time, and due to various factors, brake calipers can wear out or become damaged, necessitating their replacement. Understanding when and why to replace a brake caliper is crucial for maintaining optimal braking performance and ensuring your safety on the road.

Common Signs of a Failing Brake Caliper

Several indicators can signal that your brake caliper might be on its way out. Being aware of these symptoms can help you address potential issues before they escalate into more serious problems:

• Squealing or Grinding Noises: While brake pad wear is a common cause of noise, a sticking caliper can also lead to continuous contact between the pads and the disc, resulting in constant squealing or grinding sounds, even when you're not braking.
• Pulling to One Side: If your car pulls to the left or right when you apply the brakes, it often indicates that the caliper on one side is not applying the same amount of pressure as the other. This could be due to a seized piston or a problem with the brake fluid flow.
• Reduced Braking Performance: A noticeable decrease in your car's stopping power or an increased stopping distance is a serious warning sign. A malfunctioning caliper can significantly impair the effectiveness of your braking system.
• Brake Warning Light: Modern vehicles have sophisticated warning systems. If the brake warning light illuminates on your dashboard, it could be related to a caliper issue, low brake fluid, or other brake system problems.
• Fluid Leaks: Brake fluid leaks are a critical issue. If you notice puddles of brake fluid under your car, especially near the wheels, it could be a sign of a damaged caliper or brake line.
• Overheating Brakes: A caliper that remains partially engaged (seized) can cause the brake disc and pads to overheat, leading to a burning smell and reduced braking efficiency.

Pre-Replacement Checks: Ensuring a Healthy System

Before diving into the caliper replacement, it's essential to perform a few checks to ensure the rest of your braking system is in good condition. This will help prevent premature failure of the new caliper and ensure overall braking safety. The provided information highlights some crucial checks, particularly for the rear brake system:

Rear Brake Disc Thickness Check

The thickness of your brake discs is vital for their performance and longevity. Excessive wear can compromise their ability to dissipate heat and can lead to warping or cracking.

Procedure:

1. Remove Rust and Contamination: Thoroughly clean the surface of the brake disc to remove any rust, dirt, or debris. This ensures accurate measurements.
2. Measure Thickness: Use a micrometer to measure the brake disc thickness at a minimum of eight different points. These points should be evenly spaced around the disc and approximately 5mm (0.2 inches) inwards from the outer circumference.
3. Compare to Specifications: Compare your measurements to the manufacturer's specified minimum disc thickness. If any measurement falls below this limit, the brake disc must be replaced.

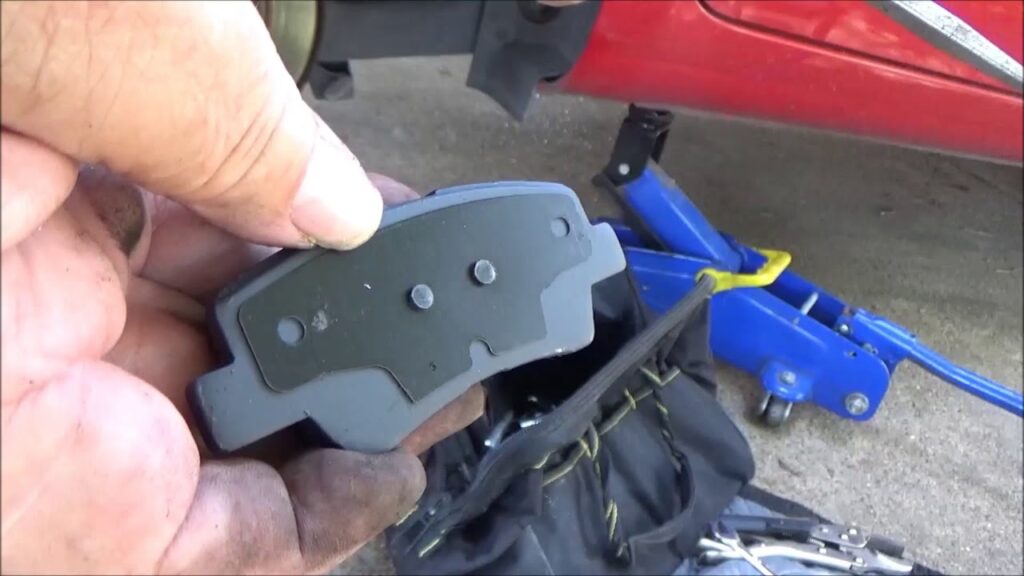

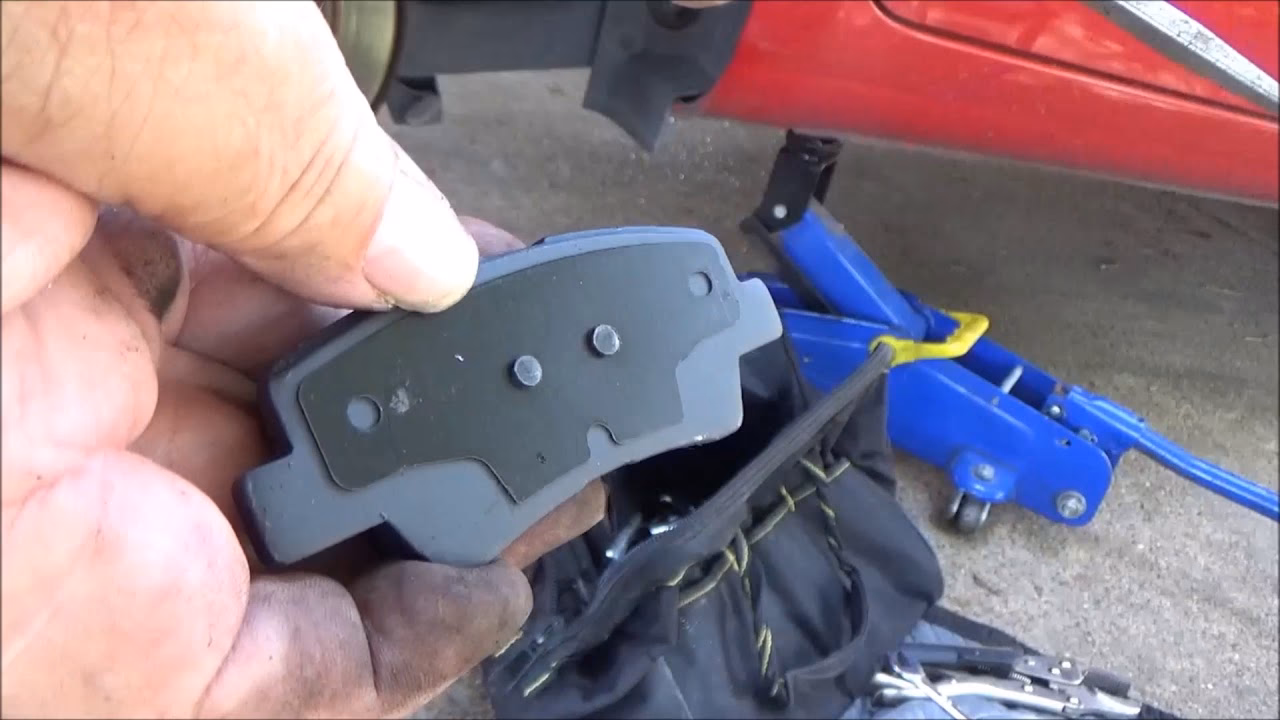

Rear Brake Pad Check

Worn brake pads are a common reason for brake noise and reduced stopping power. It's crucial to check their condition before or during caliper replacement.

Procedure:

1. Inspect Pad Wear: Visually inspect the brake pads for wear. Look for the friction material becoming significantly thinner.
2. Measure Pad Thickness: Use a caliper or a dedicated brake pad gauge to measure the thickness of the friction material.
3. Replace if Necessary: If the pad thickness is less than the manufacturer's specified minimum value, the brake pads should be replaced. It's generally recommended to replace pads in pairs (both front or both rear) for balanced braking.

Rear Brake Disc Runout Check

Brake disc runout refers to the amount of wobble or deviation from a perfectly flat surface as the disc rotates. Excessive runout can cause vibrations through the steering wheel or brake pedal, a phenomenon often referred to as 'brake judder'.

Procedure:

1. Set Up Dial Gauge: Position a dial indicator (dial gauge) approximately 5mm (0.2 inches) from the outer circumference of the brake disc.
2. Measure Runout: Slowly rotate the brake disc and observe the readings on the dial gauge. Record the maximum variation.
3. Compare to Limit: Compare the measured runout to the manufacturer's specified limit. If the runout exceeds this limit, the brake disc needs to be replaced.
4. Re-check after Replacement: After replacing a warped disc, it's good practice to measure the runout again to confirm the new disc is true.
5. Rotate and Re-check: If the runout does not exceed the limit, you can try rotating the brake disc by 180 degrees and checking the runout again. This can sometimes help identify an issue with the hub or mounting surface.

Step-by-Step Brake Caliper Replacement

Replacing a brake caliper is a task that requires some mechanical aptitude and the right tools. If you're not comfortable with brake system repairs, it's always best to consult a professional mechanic. However, if you're ready to tackle this job, here's a general guide:

Tools and Materials You'll Need:

• New brake caliper (ensure it's the correct one for your vehicle)
• New brake pads
• Brake fluid (correct type for your vehicle)
• Brake cleaner
• Wire brush
• Socket set and wrenches
• C-clamp or piston compressor tool
• Torque wrench
• Jack and jack stands
• Wheel chocks
• Safety glasses and gloves
• Bleeder wrench
• Container for old brake fluid

Replacement Procedure:

1. Safety First: Park your vehicle on a level surface, engage the parking brake, and place wheel chocks behind the wheels that will remain on the ground. Loosen the lug nuts on the wheel you'll be working on.
2. Lift and Secure: Use a jack to lift the vehicle and place jack stands securely under the designated support points. Lower the vehicle onto the jack stands. Remove the wheel.
3. Disconnect Battery: As per the provided information, it's crucial to turn the ignition switch OFF and disconnect the negative (-) battery terminal. In some more complex procedures, you might even need to remove the battery and the ECM (Engine Control Module), but for a standard caliper replacement, disconnecting the negative terminal is often sufficient to prevent electrical issues.
4. Remove the Caliper: The caliper is typically held in place by two bolts, often referred to as caliper bracket bolts or slider pins. Remove these bolts. You might need to hold the slider pin with a wrench to prevent it from spinning. Once the bolts are removed, the caliper should slide off the brake disc. If it's seized, you might need to gently pry it off. Be careful not to damage the brake hose.
5. Support the Caliper: Do not let the caliper hang by the brake hose. Use a piece of wire or a bungee cord to support it from the suspension or chassis.
6. Remove Old Brake Pads: The old brake pads should now be accessible. They usually slide out of their retaining clips or slots within the caliper bracket.
7. Compress the Caliper Piston: Before installing the new caliper, you'll need to retract the caliper piston(s) to accommodate the new, thicker brake pads. Use a C-clamp or a dedicated piston compressor tool to slowly and carefully push the piston back into the caliper bore. Watch the brake fluid reservoir under the bonnet; you may need to remove some fluid if it's near the maximum level to prevent overflow as you push the piston back.
8. Inspect and Clean: Clean the caliper bracket and mounting points with a wire brush and brake cleaner. Check the slider pins for smooth movement and lubricate them with a high-temperature brake lubricant if necessary.
9. Install New Brake Pads: Place the new brake pads into the caliper bracket, ensuring they are seated correctly.
10. Install the New Caliper: Slide the new caliper over the new brake pads and onto the brake disc. Align the bolt holes.
11. Reinstall Caliper Bolts: Reinstall the caliper bolts and tighten them to the manufacturer's specified torque. This is a critical step; over-tightening or under-tightening can lead to serious braking issues.
12. Reconnect: If you removed the battery or ECM, reinstall them now. Reconnect the negative battery terminal.
13. Refill and Bleed Brake Fluid: Check the brake fluid level in the reservoir and top it up with the correct type of brake fluid. You will likely need to bleed the brake system to remove any air that may have entered. This is a crucial step for proper brake function. The bleeding process involves opening a bleeder screw on the caliper while someone else pumps the brake pedal, then closing the screw before the pedal is released. Repeat this until no air bubbles are seen in the fluid.
14. Test Brakes: Before driving, pump the brake pedal several times until it feels firm. This ensures that the caliper pistons and pads are properly seated.
15. Lower Vehicle and Torque Lug Nuts: Carefully lower the vehicle off the jack stands. Tighten the lug nuts to the manufacturer's specified torque in a star pattern.
16. Test Drive: Conduct a slow, careful test drive in a safe area. Gradually apply the brakes to ensure they are working correctly and that there are no unusual noises or pulling.

Important Considerations for Winter Driving

The provided information mentions that severe winter conditions can lead to increased wear and other problems for your vehicle. While this is generally true for all components, it's worth noting how it might impact your braking system and caliper health:

• Corrosion: Salt and grit used on roads in winter can accelerate corrosion on brake components, including the caliper housing and slider pins. This corrosion can lead to sticking calipers.
• Moisture: Increased moisture can contribute to rust on brake discs and potentially affect brake fluid if seals are compromised.
• Snow Tires: While snow tires are primarily for traction, ensuring your entire braking system is in top condition will help you make the most of that improved traction, allowing you to stop more effectively in slippery conditions.

Regular maintenance and a thorough inspection of your brake system, especially before and after winter, are highly recommended to mitigate these risks.

Frequently Asked Questions (FAQs)

Q1: How often should brake calipers be replaced?

A1: Brake calipers don't have a fixed replacement interval. They are replaced when they fail or show signs of malfunction, such as sticking, leaking, or causing uneven braking. Regular brake inspections can help identify potential issues early.

Q2: Can I just replace the brake pads instead of the caliper?

A2: You can replace brake pads independently if the caliper is functioning correctly. However, if the caliper is seized, leaking, or causing uneven wear, replacing the pads alone won't solve the problem, and you'll likely need to replace the caliper as well.

Q3: How long does it take to replace a brake caliper?

A3: For an experienced DIYer, replacing a single brake caliper can take anywhere from 1 to 2 hours, including bleeding the brakes. For a professional mechanic, it's typically a similar timeframe. However, this can vary depending on the vehicle and any complications encountered.

Q4: What happens if I don't replace a faulty brake caliper?

A4: Ignoring a faulty brake caliper can lead to a range of problems, including significantly reduced braking performance, uneven tire wear, the potential for the caliper to seize completely (making the vehicle undrivable), brake system failure, and most importantly, a serious risk to your safety and the safety of others.

Q5: Do I need to replace brake calipers in pairs?

A5: While it's not always strictly necessary to replace calipers in pairs like brake pads or discs for balanced braking, it is often recommended, especially if there's evidence of wear or impending failure on the opposite side. Replacing them in pairs can ensure consistent braking performance and prevent future issues on the other side.

Q6: What is the purpose of bleeding the brakes after replacing a caliper?

A6: Bleeding the brakes removes any air that may have entered the brake lines during the caliper replacement. Air in the brake lines is compressible, which would result in a spongy or ineffective brake pedal. Bleeding ensures that hydraulic pressure is transmitted efficiently to the caliper for proper braking.

Q7: What does 'brake judder' mean?

A7: Brake judder refers to vibrations felt in the steering wheel or brake pedal when applying the brakes. It's often caused by unevenness or warping of the brake discs, which can be due to excessive heat, improper installation, or manufacturing defects. Excessive runout, as measured in the checks above, is a primary indicator of potential judder.

Q8: What type of brake fluid should I use?

A8: You must use the specific type of brake fluid recommended by your vehicle's manufacturer, typically DOT 3, DOT 4, or DOT 5.1. Using the wrong type can damage brake system components. Check your owner's manual or the cap on the brake fluid reservoir.

Conclusion

Replacing a brake caliper is a vital maintenance task that directly impacts your vehicle's safety. By understanding the signs of a failing caliper, performing necessary pre-replacement checks on your brake discs and pads, and following a careful replacement procedure, you can help ensure your braking system remains reliable. Remember, if you are in any doubt about your ability to perform this repair, always seek the assistance of a qualified mechanic. Safe driving starts with a well-maintained braking system.
