Mastering Your Jaguar XE EPB Service Mode

When it comes to maintaining modern vehicles, particularly sophisticated models like the Jaguar XE, even seemingly straightforward tasks such as changing brake pads can present unexpected challenges. While your initial query pertained to a Honda Accord, the detailed experiences you've shared about struggles with the Electronic Parking Brake (EPB) service mode, particularly on a MY20 Jaguar XE, offer invaluable insights into a common dilemma faced by many enthusiasts and DIY mechanics. This article will delve into the intricacies of putting your Jaguar XE's EPB into service mode, drawing directly from your experiences and offering comprehensive guidance to ensure a successful and safe brake maintenance procedure.

The Electronic Parking Brake has become a standard feature on most contemporary cars, offering convenience and a sleek cabin aesthetic by replacing the traditional handbrake lever with a simple button or switch. While undeniably modern and efficient, this technological advancement introduces a layer of complexity when it comes to routine maintenance, especially tasks involving the rear brakes. Unlike a mechanical handbrake that can be manually released, an EPB system requires specific procedures to retract the caliper pistons, often necessitating a diagnostic tool to put the system into a 'service mode' or 'maintenance mode'. This is paramount for preventing damage to the EPB motor, caliper, or even personal injury during brake pad or disc replacement.

Understanding the Electronic Parking Brake System on Your Jaguar XE

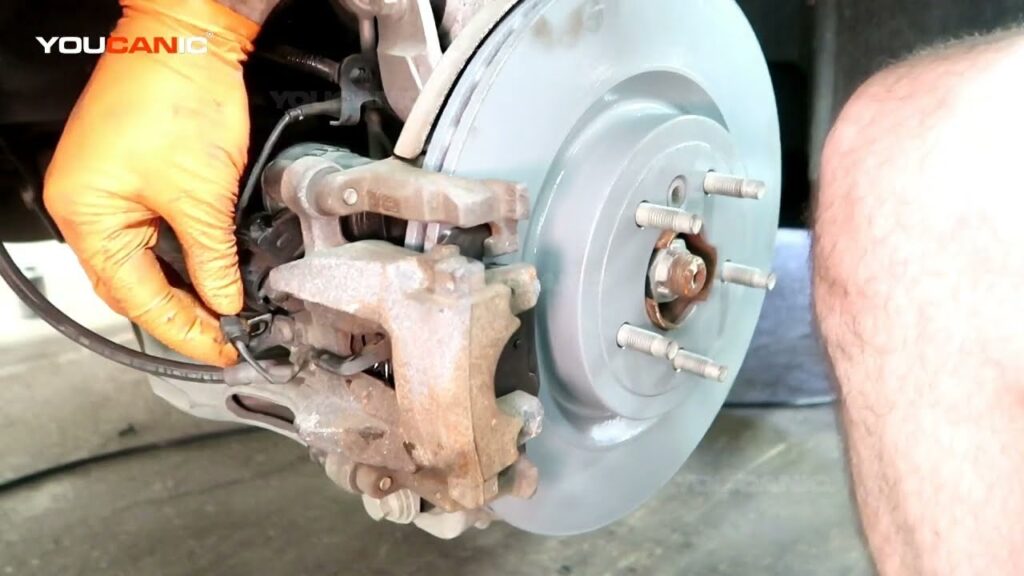

At its core, the EPB system uses an electric motor attached directly to the rear brake caliper (or integrated within it) to apply and release the parking brake. When you activate the EPB, this motor drives a mechanism that pushes the brake pads against the disc, effectively locking the wheels. When released, the motor reverses, retracting the pads. This precise electronic control offers benefits like automatic engagement when parking, hill-hold assist, and a cleaner centre console. However, this electronic precision means you cannot simply compress the caliper piston as you would on a conventional hydraulic caliper without first telling the system it's safe to do so. Failing to properly disengage the EPB before attempting to force the pistons back will inevitably lead to costly damage to the EPB motor, wiring, or the caliper itself.

Why EPB Service Mode is Non-Negotiable for Brake Maintenance

Putting the EPB into service mode is not merely a recommendation; it's an absolute necessity for any work involving the rear brakes. This mode retracts the EPB caliper pistons fully, disengaging the motors and allowing for manual compression or replacement of the caliper. Without this, you risk:

• Damaging the delicate EPB motor and its internal gears.
• Stripping the threads of the caliper piston mechanism.
• Causing electrical faults within the EPB system.
• Inaccurate brake pad wear readings or uneven braking after reassembly.
• Compromising the overall safety and functionality of your braking system.

The system is designed with safety interlocks, meaning it will actively resist attempts to force the pistons back if not in service mode, potentially leading to irreversible damage that extends beyond just the brake pads.

Decoding the Manual EPB Release Procedure: A Jaguar XE MY20 Enigma

Your experience highlights a critical point of confusion for many Jaguar XE owners, particularly those with MY20 onwards models. Traditional manual EPB service mode procedures often involve a specific sequence of pressing the brake pedal, manipulating the EPB switch (either pushing inwards or pulling outwards), and sometimes simultaneously pressing the accelerator. The key challenge you identified is the discrepancy between common forum procedures (which might apply to earlier models or other brands) and the actual operation of your MY20 XE's EPB control.

As you correctly noted, on your MY20 XE, you have to pull the EPB control outwards to release the EPB during normal operation. This is a crucial detail that contrasts with many older or different vehicle designs where pushing the button inwards might release it. This subtle but significant difference can throw off any manual service mode procedure that relies on a specific push/pull action during a combination sequence. Your attempts to try both pushing inwards and pulling outwards, without success, perfectly illustrate this frustration.

This directly leads to the conclusion that for your specific vehicle, relying solely on manual button sequences, even widely circulated ones, may no longer be a viable or accurate method for entering EPB service mode. Modern vehicle electronics are increasingly sophisticated, often requiring precise communication with specific control modules.

The Power of Diagnostics: Your Foxwell NT530 Scanner Experience

Your acquisition of a Foxwell NT530 scanner with JLR (Jaguar Land Rover) specific software was undoubtedly the correct next step, and your experience with it perfectly encapsulates why these tools are becoming indispensable for DIY automotive work. Modern EPB systems, especially on premium vehicles like the Jaguar XE, are deeply integrated with the vehicle's onboard computer network. They often require a direct command from a diagnostic tool to enter service mode, bypassing any manual button sequences that may no longer be supported or have been removed from the vehicle's firmware.

Your discovery that the Foxwell NT530's EPB service mode function was accessed via the ABS control module is another excellent example of the integrated nature of vehicle systems. The EPB system often communicates closely with the Anti-lock Braking System (ABS) and Electronic Stability Control (ESC) modules, as all these systems work in concert to manage vehicle braking and stability. Therefore, it's not uncommon for EPB-related service functions to be nested under the ABS module menu within a scanner's software.

The "failed" message you received from the scanner, despite the EPB actually releasing, is intriguing but not entirely unheard of. This could be due to several factors:

• Confirmation Protocol Mismatch: The scanner might be expecting a very specific confirmation signal from the car's ECU that isn't being sent, even though the command itself was executed successfully.
• Generic Error Message: Some scanners use generic error messages that don't always perfectly align with the specific outcome. The important thing is that the car's display indicated "EPB not working - drive cautiously to your dealer," which confirms the EPB was indeed disengaged.
• Partial Success: While the EPB released, perhaps a secondary check or status update failed, triggering the message. However, for the purpose of the brake job, the primary goal of releasing the EPB was achieved.

The message on the car's display, "EPB not working - drive cautiously to your dealer," is the vehicle's way of informing the driver that a critical system is in an abnormal state. In this context, it's a positive sign that the EPB has indeed been disengaged for service. It's the vehicle's equivalent of saying, "I'm in maintenance mode, don't rely on the parking brake."

Pre-Brake Job Precautions and Verification

Your cautious approach of letting the vehicle sit for 24 hours after putting the EPB into service mode is an exceptionally sensible precaution. This allows you to verify that the EPB remains disengaged and doesn't spontaneously re-engage, which could lead to significant issues mid-job. To further confirm the EPB is truly disengaged and safe to work on, consider these checks:

• Listen for Motor Sounds: After the scanner procedure, listen carefully for any sounds from the rear calipers. There should be no whirring or clicking sounds indicating the motor trying to engage or disengage.
• Attempt to Push Piston: With the car safely jacked up and wheels removed, gently attempt to push the caliper piston back using a brake caliper tool. If it moves relatively freely (considering it's still a hydraulic system), it's a good sign the EPB motor is retracted. If it's rock solid, the EPB is still engaged.
• Visual Inspection: Look for any signs of the EPB motor engaging the piston. This might be difficult without disassembling, but if you can see the mechanism, ensure it appears fully retracted.

If, during your 24-hour waiting period, the EPB does re-engage, you will need to repeat the scanner procedure. This could indicate a minor glitch or perhaps a timeout feature within the EPB module, though typically, once in service mode, it should remain there until explicitly told to exit.

Troubleshooting Common EPB Service Mode Issues

Even with a capable diagnostic tool, sometimes things don't go as planned. Here are some common troubleshooting steps if you encounter difficulties:

• Battery Voltage: Ensure your car's battery is fully charged. Low voltage can cause modules to behave erratically and prevent successful communication or execution of commands. Consider connecting a battery maintainer during the process.
• Scanner Software Updates: Make sure your Foxwell NT530's JLR software is completely up-to-date. Manufacturers frequently release software updates for their vehicles, and scanner manufacturers must keep pace to ensure compatibility with the latest firmware.
• Correct Procedure Within Scanner: Double-check that you're selecting the exact correct function within the scanner. As you noted, it was under the ABS module, but sometimes there are multiple options (e.g., 'EPB Deactivate', 'Service Mode', 'Caliper Release').
• Vehicle Requirements: Ensure all vehicle requirements are met: ignition on (but engine off), doors closed, parking brake initially engaged (if required by procedure), brake pedal pressed (if required).
• Clear Fault Codes: Sometimes, existing fault codes in the system can prevent new commands from executing. Try scanning for and clearing any related codes before attempting the service mode procedure again.
• Check Fuses: While less likely if the EPB works normally, a blown fuse related to the EPB or ABS module could prevent the service mode command from executing.

Re-engaging the EPB After Brake Service

Once your rear brake maintenance is complete, you'll need to take the EPB out of service mode. This is typically done through a similar diagnostic tool function. Your Foxwell NT530 should have an option to 'Exit Service Mode' or 'EPB Re-enable'. Follow the scanner's prompts, which may involve pressing the brake pedal or the EPB switch. After exiting service mode, it's crucial to:

• Pump the Brake Pedal: Pump the brake pedal several times to ensure the caliper pistons are properly seated against the new pads and the brake pedal feels firm.
• Check EPB Operation: Engage and disengage the EPB a few times while the vehicle is stationary to confirm it's operating normally and the dashboard warning light has extinguished.
• Test Drive: Perform a slow, cautious test drive in a safe area to confirm proper braking function and EPB operation before normal driving.

When Professional Intervention Becomes Necessary

While diagnostic tools have made many tasks accessible to the DIY mechanic, there are instances where professional intervention is the safest and most efficient path. If you've tried all the above steps, your scanner isn't communicating, or you're still uncomfortable with the EPB status, it's always best to consult a qualified Jaguar specialist. They have advanced diagnostic equipment and specific training that can quickly resolve complex issues, ensuring your vehicle's braking system is in perfect working order.

Conclusion

The journey to successfully put your Jaguar XE's Electronic Parking Brake into service mode, as highlighted by your experience, underscores the evolving nature of vehicle maintenance. While traditional manual methods may suffice for older models, modern cars, particularly premium ones like the Jaguar XE (especially MY20 onwards), frequently demand the precision and direct communication offered by a dedicated diagnostic tool. Your persistence with the Foxwell NT530, despite initial cryptic messages, ultimately led to the desired outcome – a disengaged EPB ready for brake service. By understanding the intricacies of your vehicle's systems and leveraging the right tools, you can confidently tackle complex maintenance tasks, ensuring both the longevity of your vehicle and your personal safety.

Frequently Asked Questions (FAQs)

Q1: Can I change my rear brakes on a Jaguar XE without putting the EPB in service mode?

Absolutely not. Attempting to change rear brake pads or discs on a Jaguar XE with an Electronic Parking Brake without first putting the system into service mode will almost certainly result in damage to the EPB motor, the caliper, or both. The EPB motor actively holds the piston, and forcing it back will strip gears or damage the electronic components. Always use the proper procedure or a diagnostic tool.

Q2: Why did my scanner say "failed" but the EPB still released?

This can occur due to a few reasons. The scanner might be expecting a very specific confirmation signal from the vehicle's ECU that isn't being sent, even though the command to release the EPB was successfully executed. It could also be a generic error message from the scanner's software, or a minor communication glitch that doesn't affect the primary function. The crucial indicator is the vehicle's own display message (e.g., "EPB not working"), which confirms the EPB's state. As long as the EPB has clearly disengaged, you can proceed with caution.

Q3: Is it safe to drive with the "EPB not working" message after putting it in service mode?

The message "EPB not working - drive cautiously to your dealer" indicates that the parking brake system is intentionally disabled for service. While the main hydraulic braking system for stopping the car should still function, you will not have a working parking brake. Therefore, it is safe to drive the car *very cautiously* for a short distance (e.g., to move it within a garage or to a safe working area), but it is not recommended for regular driving. Ensure you use wheel chocks when parked, as the parking brake will not hold the vehicle.

Q4: What's the difference between MY19 and MY20+ EPB controls on Jaguar XE?

As highlighted by your experience, there appears to be a subtle but significant change in the operation of the EPB control switch on MY20 onwards Jaguar XE models. While earlier models or other JLR vehicles might have required pushing the switch inwards to release the EPB (and thus potentially for service mode), your MY20 XE requires pulling the switch outwards for normal release. This change in physical operation can invalidate older manual service mode procedures that rely on the specific push/pull action, making a diagnostic tool even more essential for these newer models.

Q5: How do I re-engage the EPB after completing the rear brake service?

After you have completed your brake work and everything is reassembled, you will typically use your diagnostic tool (e.g., Foxwell NT530) to exit the EPB service mode. Look for options like "Exit Service Mode," "EPB Re-enable," or "EPB Calibration." The scanner will guide you through any necessary steps, which might include pressing the brake pedal or the EPB switch. Once completed, pump the foot brake pedal several times until it feels firm, then engage and disengage the EPB a few times to confirm its normal operation and that any warning lights have cleared from the dashboard. A short, cautious test drive is recommended thereafter.
