Spotting a Leaking Timing Belt Seal

The timing belt is an unsung hero within your vehicle's engine, orchestrating the precise dance between the crankshaft and camshaft(s) to ensure the engine's valves open and close at exactly the right moment. It's a critical component, and its failure can lead to catastrophic engine damage. However, before a complete failure, a more insidious problem can emerge: a leaking timing belt seal. These small, often overlooked seals play a vital role in keeping oil contained within the engine, preventing it from escaping and potentially contaminating the timing belt itself. Identifying a leak early can save you from significant repair bills and ensure the longevity of your engine.

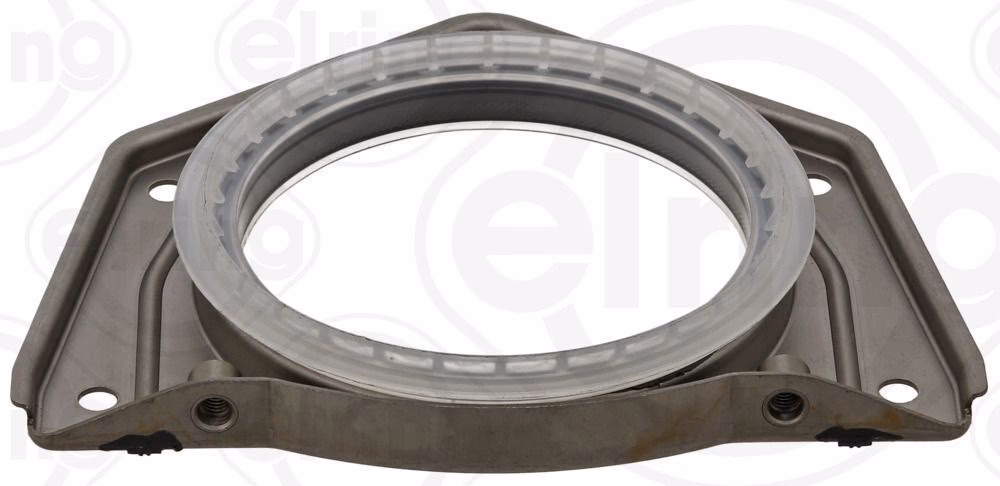

Understanding the location and function of these seals is the first step in diagnosing a leak. There are typically two main seals associated with the timing belt area that can leak: the crankshaft front seal and, depending on the engine design, camshaft seals. The crankshaft front seal is commonly found behind the crankshaft sprocket, which is located at the front of the engine where the timing belt resides. The other, less common, seal leak in this area might be from the camshaft seals, which seal the camshafts where they pass through the cylinder head, also often behind the timing belt.

The Tell-Tale Signs of a Leaking Timing Belt Seal

While any oil leak can be concerning, a leaking timing belt seal often presents with distinctive symptoms that can help you pinpoint the issue. The most common and clearest indicator is a steady stream of oil. You would typically observe this oil running down the engine's sump (oil pan) below the crankshaft pulley. This occurs because gravity pulls the escaping oil downwards, and the rotational forces of the crankshaft can also help to spread it around the immediate area.

• Visible Oil Drips or Puddles: You might notice fresh oil spots on your driveway or garage floor, typically towards the front of the vehicle.
• Oil on Engine Components: The escaped oil can coat the lower part of the engine, especially around the crankshaft pulley, auxiliary belts, and the timing belt cover itself. This accumulation can also attract dirt and grime, creating a greasy, dirty mess.
• Burning Oil Smell: If oil leaks onto hot exhaust components or other engine parts, you might detect a distinct burning oil smell, especially after the engine has warmed up.
• Decreasing Oil Level: Over time, a persistent leak will lead to a noticeable drop in your engine's oil level, requiring more frequent top-ups. While this symptom is common to all oil leaks, combined with the other signs, it can help confirm the timing belt seal as the culprit.
• Contaminated Timing Belt: This is perhaps the most serious consequence. If oil saturates the timing belt, it can cause the rubber material to degrade prematurely, weakening its integrity. A weakened belt is prone to slipping or snapping, which can result in severe internal engine damage, including bent valves or damaged pistons.

Gaining Access for a Closer Inspection

Confirming a timing belt seal leak often requires getting a better view of the area, which means removing some components. This isn't always a straightforward task and typically involves the following steps:

1. Safety First: Ensure the vehicle is parked on a level surface, the engine is cool, and the parking brake is engaged. For added safety, disconnect the negative terminal of the battery to prevent accidental starting or electrical shorts.
2. Locate the Timing Belt Cover: The timing belt is usually encased within protective plastic covers at the front or side of the engine. There's typically an upper and a lower cover.
3. Remove the Upper Timing Belt Cover: This usually involves unscrewing a few bolts or clips. Once removed, you'll have a partial view of the timing belt and some of its associated components.
4. Remove the Auxiliary Belt: To access the lower timing belt cover and the crankshaft pulley, you will almost certainly need to remove the auxiliary belt (also known as the serpentine belt). This belt drives components like the alternator, power steering pump, and air conditioning compressor. You'll need to release the tensioner to remove it.
5. Remove the Crankshaft Pulley: This large pulley is bolted to the end of the crankshaft and is often quite tight. You might need a special tool to hold the crankshaft steady while loosening the bolt. Once the crankshaft pulley is off, you'll have much better access to the lower timing belt cover.
6. Remove the Lower Timing Belt Cover: With the auxiliary belt and crankshaft pulley out of the way, you can now remove the lower timing belt cover. This will expose the crankshaft sprocket and the crankshaft front seal, allowing for a clear visual inspection for oil leaks originating from this area.
7. Inspect Thoroughly: Look for fresh oil around the crankshaft, behind the sprocket, and on the inside of the timing belt covers. If you see oil here, especially if it's running down towards the sump, it's a strong indication of a leaking crankshaft front seal. Also, inspect the camshaft seals if they are visible in this area.

This process can be complex and requires a good understanding of engine mechanics and specific tools. If you're not comfortable with these steps, it's always best to consult a professional mechanic.

Differentiating Between Oil Leaks

It's important to accurately diagnose the source of an oil leak, as many different components can be responsible for similar symptoms. While a timing belt seal leak often manifests with oil below the crankshaft pulley, other leaks can also produce drips in the same general area. Here's a table to help differentiate:

Do I Need to Change the Oil Pump Seal?

This is a very pertinent question, especially when you're already addressing a timing belt seal leak. The answer is often yes, or at least, it's highly recommended to consider it. When the front of the engine is disassembled to access the timing belt and its associated seals (like the crankshaft front seal and camshaft seals), the oil pump is often either directly accessible or very close by, sometimes even integrated into the front engine cover. Many engines have an oil pump seal or an O-ring that seals the oil pump to the engine block or front cover.

Given the significant labour involved in removing the timing belt, auxiliary belt, crankshaft pulley, and timing belt covers, it makes sound economic and practical sense to replace any other seals in the immediate vicinity that are known to fail or are easily accessible. The oil pump seal is a common candidate for replacement during a timing belt service because:

• Accessibility: Once the timing belt is off, the oil pump seal (if present and separate) is usually right there, making its replacement a relatively minor additional step in terms of labour.
• Preventative Maintenance: Seals are wear items. If one seal in the area (like the crankshaft seal) has failed, other seals of similar age and material might not be far behind. Replacing them all at once saves you from having to repeat the extensive disassembly process for another leak down the line.
• Cost-Effectiveness: The cost of the seal itself is minimal compared to the labour required to get to it. Combining these jobs significantly reduces overall expense.

Therefore, while not strictly part of the "timing belt seal" in the same way as the crankshaft or camshaft seals, it is highly advisable to discuss the replacement of the oil pump seal with your mechanic when undertaking repairs in this area. It's often included as part of a comprehensive timing belt service kit, which typically includes the belt, tensioners, idlers, and all relevant seals.

The Importance of Addressing the Leak Promptly

Ignoring a leaking timing belt seal can lead to far more severe consequences than just a messy engine bay or a dropping oil level. The primary concern is the potential for oil to saturate the timing belt itself. Oil is corrosive to the rubber compounds used in timing belts. Over time, exposure to oil will cause the belt to degrade, soften, and weaken. This degradation can lead to:

• Premature Belt Wear: The belt may stretch, fray, or develop cracks, reducing its lifespan significantly.
• Belt Slippage: Oil on the belt can reduce its grip on the sprockets, causing it to slip. Even a slight slip can throw off engine timing, leading to rough running, reduced power, or misfires.
• Catastrophic Engine Failure: The worst-case scenario is a complete failure of the timing belt. If the belt snaps or loses teeth, the crankshaft and camshafts will no longer be synchronised. In interference engines (where the valves and pistons occupy the same space at different times), this will result in the pistons colliding with open valves, causing extensive and often irreparable damage to the engine's internal components. This type of repair can easily cost thousands of pounds and often leads to engine replacement.

Given these risks, addressing a timing belt seal leak should be considered a high-priority repair. It's not merely about tidiness; it's about safeguarding the very heart of your vehicle.

DIY vs. Professional Repair

While identifying the leak can be done by a knowledgeable DIY enthusiast, the actual repair of a timing belt seal is a complex job that should generally be left to experienced mechanics. The process involves:

• Specialised tools for holding pulleys and tensioning the timing belt.
• Precise knowledge of engine timing marks and procedures.
• Experience in correctly installing new seals without damaging them.
• Understanding torque specifications for various bolts.

Incorrect installation of the timing belt can lead to serious engine damage, even if the seals are replaced correctly. Therefore, unless you have extensive experience with engine timing and seal replacement, it is strongly recommended to seek professional assistance.

Frequently Asked Questions (FAQs)

What causes timing belt seals to leak?

Timing belt seals are typically made of rubber or similar elastomeric materials. Over time, these materials can harden, crack, or become brittle due to exposure to engine heat, oil, and general wear and tear. High mileage, age, and sometimes even incorrect installation or excessive crankcase pressure can accelerate their degradation, leading to leaks.

How serious is a timing belt seal leak?

It's very serious. While a small drip might seem minor, the primary danger is the oil contaminating the timing belt. This can cause the belt to degrade and fail prematurely, leading to catastrophic engine damage in many modern vehicles. It's not a leak that should be ignored.

Can I drive with a leaking timing belt seal?

It is not recommended to drive with a known timing belt seal leak for an extended period. The risk of the timing belt becoming compromised and failing increases with every mile driven. While a slow leak might not cause immediate issues, the longer it's left, the higher the chance of significant engine damage.

How much does it cost to fix a timing belt seal leak?

The cost can vary significantly depending on the make and model of your vehicle, the specific seal leaking (crankshaft vs. camshaft), and labour rates in your area. Because the job often requires removing the timing belt, it's common practice to replace the timing belt, tensioners, and idlers at the same time, as the labour overlap is substantial. This can push the total cost into the hundreds of pounds, but it's far less expensive than repairing an engine after a timing belt failure.

Is an oil pump seal leak related to a timing belt seal leak?

Yes, they are often related in terms of repair convenience. While the oil pump seal is a distinct component from the crankshaft or camshaft timing belt seals, it's often located in the same general area behind the timing belt covers. When a mechanic is already undertaking the extensive labour to access the timing belt and its seals, it's highly advisable to replace the oil pump seal (if applicable to your engine design) as a preventative measure. This saves future labour costs should the oil pump seal start leaking later.

In conclusion, a leaking timing belt seal is a serious issue that demands prompt attention. By understanding the signs, knowing how to inspect the area, and appreciating the potential consequences, you can take the necessary steps to protect your engine and ensure your vehicle remains reliable on the road.
