IDG Oil Servicing: A Comprehensive Guide

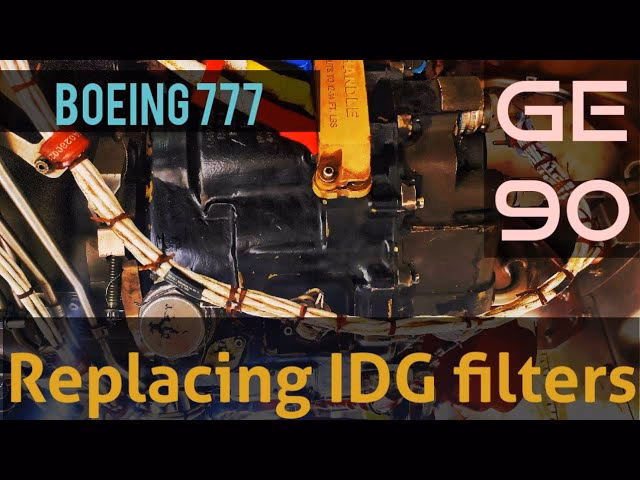

The Integrated Drive Generator (IDG) is a critical component in modern aircraft, responsible for providing electrical power derived from the engine's accessory gearbox. At its heart, the IDG comprises a Constant Speed Drive (CSD) and an AC generator integrated into a single housing. The CSD's ingenious design ensures a constant output speed for the generator, irrespective of the engine's varying rotational speeds. Given its pivotal role in powering numerous aircraft systems, the reliability of the IDG is paramount. This article delves into the intricacies of the IDG system, how it functions, and, most importantly, the correct procedures for its oil servicing.

Understanding the IDG Oil System

Hydraulic fluids, specifically specialised oils, are the lifeblood of the IDG. These oils serve a dual purpose: lubrication and cooling. However, their function extends beyond mere mechanical support. Within the CSD, the oil plays an active role in mechanically controlling the rotational speed of the generator, a process crucial for maintaining a stable electrical output. The IDG is driven by the aircraft engine's accessory gearbox, typically accessed from the engine nacelle. The overall effectiveness and lifespan of an IDG are significantly influenced by the quality, cleanliness, and, crucially, the correct quantity of oil it contains.

The oil level within the IDG is traditionally monitored via a sight glass. This transparent tube-shaped sensor allows visual inspection of the oil level. However, the methods for maintaining oil cleanliness can vary between different aircraft models and operator procedures. Therefore, consulting the specific aircraft's Maintenance Manual is always a valuable and recommended practice. Contamination of the IDG oil can lead to premature filter failure, increased wear on internal components, and, ultimately, overheating of the IDG. To mitigate these risks, it is advised that oil cans and servicing tools be stored in a clean, dry environment, and the use of a new, unopened can of oil for each servicing is highly recommended.

The IDG oil system is not a standalone unit; it integrates with external cooling components. The system typically consists of the IDG itself, an external cooling unit, and the IDG oil cooler. During operation, oil is circulated away from the IDG, passing through a pressure fill port and a filter before entering the external cooling circuit. From there, the oil flows into the oil cooler, where it is cooled before being returned to the IDG via the same path. Like all aircraft components, the IDG requires regular servicing. Common reasons for IDG servicing include refilling the oil, filling a newly installed unit, adjusting the oil level, replacing the filter element, or servicing the cooling system.

Safety First: Essential Precautions Before Servicing

Before embarking on any IDG servicing, it is imperative to adhere to strict safety protocols. Working on engine components, particularly shortly after engine shutdown, requires extreme caution. Engine components, including the IDG, can retain significant heat for up to an hour after the engine has been turned off. This residual heat not only affects the metal components but also makes the oil scalding hot. Therefore, always wear appropriate personal protective equipment (PPE), including safety goggles, insulated gloves, and other protective clothing. Contact with extremely hot oil can cause severe burns to the eyes or skin, necessitating immediate and professional medical attention.

Furthermore, there are critical operational safety considerations for the IDG. Operating the IDG with either too much or too little oil can lead to serious and irreparable damage to the unit. When filling or topping off the IDG oil, it is crucial to use only new, uncontaminated oil. Open oil cans are susceptible to contamination, which can accelerate the degradation of the IDG's internal components.

The Correct Procedure for IDG Oil Servicing

Servicing the IDG oil level is a precise task that, if performed incorrectly, can lead to significant operational issues and component damage. The following steps outline the generally accepted procedure, based on common aircraft maintenance manual guidelines. However, always refer to the specific aircraft's Aircraft Maintenance Manual (AMM) for definitive procedures and specifications.

Step-by-Step Oil Filling Process:

1. Preparation: Ensure the IDG has been properly secured and is at the correct temperature for servicing, as per the AMM. The engine may need to be shut down for a specified period.
2. Access and Connection: Locate the IDG pressure fill port and the overflow drain hose connection. Ensure a suitable container is positioned to catch any draining oil.
3. Connecting Service Equipment: Attach the oil service equipment hose to the IDG pressure fill coupling. Use a pump designed for oil servicing, ensuring it is clean and in good working order.
4. Pumping Oil: Begin pumping the specified type of oil (e.g., Mobil Jet Oil II is commonly used, but always verify the correct specification in your AMM) into the IDG. The pumping pressure should not exceed a maximum of 40 psi (276 kPa).
5. Monitoring the Overflow: As oil is pumped into the IDG, it may begin to flow from the overflow drain hose. This initial flow does not necessarily indicate that the IDG is full.
6. Determining the Correct Level: Continue pumping oil until approximately one quart (one litre) of oil has flowed from the overflow drain hose into the collection container. This is a critical indicator of the correct oil level. It's important to note that this measured quantity does not include any oil that may have initially drained when the overflow hose was connected to ensure the system was properly prepared for filling.
7. Disconnecting Service Equipment: Once the specified amount of oil has overflowed, stop pumping and disconnect the oil service equipment hose from the IDG pressure fill coupling.
8. Securing the Fill Port: Immediately install the protective cover onto the pressure fill coupling to prevent contamination.
9. Crucial Draining Period:DO NOT REMOVE THE OVERFLOW DRAIN HOSE FROM THE IDG UNTIL TWO MINUTES AFTER THE OIL FLOW HAS DECREASED TO DRIPS. This waiting period is vital. Failure to allow sufficient drainage can result in overfilling the IDG. Overfilling can lead to an immediate overheat condition and cause significant damage to the IDG.
10. Final Overflow Hose Removal: When the oil flow from the overflow drain hose has reduced to mere drips, wait for an additional two minutes before carefully removing the overflow drain hose.
11. Securing the Overflow Port: Install the protective cover onto the IDG overflow drain coupling.

Common Misconceptions and Best Practices

There are several common misconceptions regarding IDG oil level checks and servicing. One prevalent misunderstanding is that a sight glass is the sole or primary method for determining the correct oil level. While sight glasses provide a visual reference, their accuracy can be compromised by oil contamination, residue, or even deliberate obscuration by some maintenance teams to enforce a specific servicing procedure. As highlighted in user discussions, many operators have found that the most reliable method to ensure the correct oil level is through the servicing process itself, specifically by allowing the prescribed amount of oil to overflow.

Another critical point is the method of checking the oil level. Simply looking at a sight glass without performing the proper fill and overflow procedure does not guarantee the correct oil quantity. The overflow method, by ensuring a precise volume is added until excess drains, is designed to achieve the optimal level. This process inherently accounts for internal component fill and ensures that the oil level is correct, rather than relying on a potentially misleading visual gauge.

Table: IDG Oil Servicing Key Parameters

Frequently Asked Questions (FAQs)

Q1: Can I check the IDG oil level just by looking at the sight glass?

A1: While the sight glass provides a visual indication, it is not the definitive method for confirming the correct oil level. The most reliable way to ensure the correct quantity is by following the proper servicing procedure, which includes allowing a specific amount of oil to overflow.

Q2: What happens if I overfill the IDG with oil?

A2: Overfilling the IDG can lead to an immediate overheat condition and cause significant damage to the unit. This is why the precise draining period after filling is crucial.

Q3: What type of oil should I use for the IDG?

A3: Always refer to the specific aircraft's Aircraft Maintenance Manual (AMM) for the correct oil specification. Mobil Jet Oil II is commonly used, but variations exist.

Q4: Is it okay to use oil from a partially used can?

A4: It is strongly recommended to use only new, unopened cans of oil. Partially used cans are more susceptible to contamination, which can negatively impact the IDG's performance and lifespan.

Q5: Why is there a waiting period before removing the overflow hose?

A5: The waiting period ensures that all excess oil has had a chance to drain out, preventing overfilling. This is a critical step to avoid potential damage to the IDG.

In conclusion, the proper servicing of an aircraft's Integrated Drive Generator is a task that demands precision, adherence to safety protocols, and a thorough understanding of the system's operational requirements. By following the outlined procedures and prioritising safety, maintenance personnel can ensure the continued reliability and optimal performance of this vital aircraft component.
