The Massey Ferguson MF 135 is more than just a tractor; it’s a legend of agricultural engineering, renowned for its reliability, durability, and straightforward design. Many of these workhorses are still in active service today, a testament to their robust construction. However, even the most resilient machinery requires diligent care and precise maintenance to ensure its longevity and optimal performance. This is where the Massey Ferguson MF 135 Service Manual becomes an indispensable tool, providing the detailed knowledge needed to keep these iconic machines in peak condition. Understanding and utilising this manual is crucial for anyone involved in the upkeep of an MF 135, from seasoned mechanics to dedicated owner-operators.
A service manual isn't merely a collection of pages; it's a meticulously compiled guide that offers a deep dive into every aspect of the tractor. It translates complex engineering into actionable steps, ensuring that maintenance and repair tasks are performed correctly and efficiently. For a tractor like the MF 135, which may have seen decades of hard work, having access to accurate, manufacturer-approved information is the cornerstone of effective servicing. It empowers you to tackle everything from routine oil changes to more complex engine diagnostics, significantly extending the life and efficiency of your beloved tractor.
The Massey Ferguson MF 135 Service Manual: A Deep Dive
The Massey Ferguson MF 135 Service Manual is a comprehensive resource, typically presented in PDF format for easy accessibility, often spanning around 100 pages of detailed diagrams, instructions, and specifications. It is structured logically to guide the user through various aspects of tractor maintenance and repair, ensuring that no stone is left unturned when it comes to keeping your MF 135 in top shape. Let's explore its typical chapters:
Chapter 1: Tractor Overview
This introductory chapter lays the groundwork for understanding the MF 135. It provides a fundamental overview of the tractor's key systems and components. You'll find detailed specifications for the engine, including its power output, displacement, and fuel system characteristics. Furthermore, it outlines the intricacies of the drivetrain components, such as the clutch, gearbox, and differential, explaining how power is transmitted efficiently to the wheels. The hydraulic system, vital for operating implements, is also thoroughly described, detailing pump types, control valves, and lift capacity. Familiarising yourself with these core components and their functions is the first step towards accurate and effective servicing. It helps in understanding the interconnectedness of various parts and how they contribute to the tractor's overall operation.

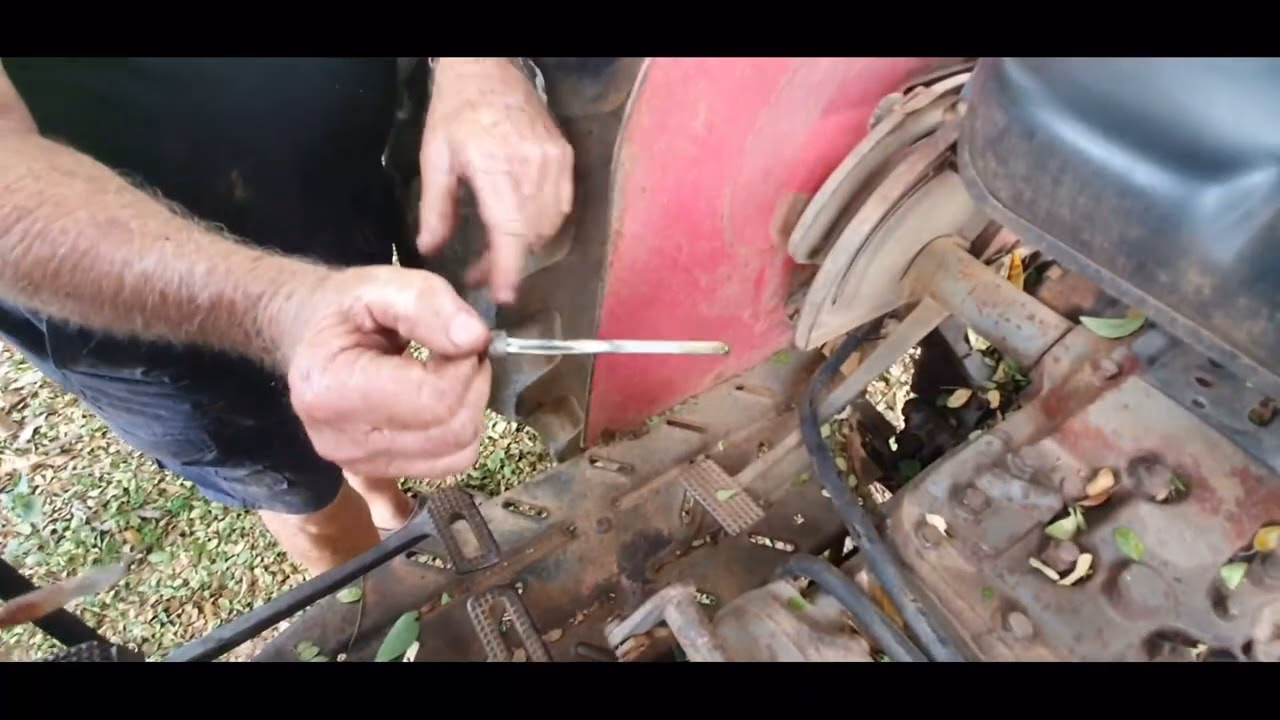

Chapter 2: Maintenance Procedures
Perhaps the most frequently referenced section, this chapter is the backbone of routine tractor care. It meticulously details all necessary maintenance procedures designed to ensure the MF 135's reliability and optimal performance. This includes step-by-step instructions for essential fluid changes, such as engine oil, transmission oil, and hydraulic fluid, along with recommended intervals and fluid specifications. Filter replacements – air, fuel, and oil filters – are covered in detail, emphasising their critical role in protecting the engine and systems from contaminants. Belt adjustments, particularly for the fan and alternator, are explained to prevent slippage and ensure proper tension. Furthermore, it highlights all critical greasing points across the chassis, steering, and linkage, providing guidance on lubricants and frequency. Adhering to these procedures is not just good practice; it's vital for preventing premature wear and costly breakdowns.
Chapter 3: Troubleshooting and Diagnostics
When an issue arises, this chapter becomes invaluable. It provides a systematic approach to troubleshooting and diagnostics, enabling users to identify and resolve problems efficiently. The manual offers comprehensive troubleshooting guides for common symptoms, directing you to potential causes based on observed issues. Diagnostic procedures are outlined for various systems, from engine performance problems to hydraulic malfunctions. It often includes flowcharts and decision trees to help pinpoint the root cause of a fault. Common problem scenarios, such as starting difficulties, overheating, or loss of power, are addressed with practical solutions. Accurate troubleshooting minimises downtime and prevents unnecessary component replacement, saving both time and money.
Chapter 4: Repair and Replacement
For more significant issues, the repair and replacement chapter provides the necessary guidance. This section delves into the practical aspects of rectifying faulty components. It offers detailed instructions for component removal, ensuring that parts are safely and correctly detached without causing further damage. Disassembly procedures are outlined for various assemblies, breaking down complex components into their constituent parts for inspection and repair. Repair techniques, such as honing cylinders or adjusting valve clearances, are explained with precision. Finally, reassembly instructions are provided in reverse order of disassembly, complete with torque specifications for fasteners, ensuring that components are put back together correctly and securely. Proper repair and replacement procedures are essential for restoring the tractor's full functionality and ensuring its safe operation.
Chapter 5: Electrical System
Modern and classic tractors alike rely heavily on their electrical systems, and the MF 135 is no exception. This chapter demystifies the tractor's electrical components, providing essential information for diagnosing and repairing electrical faults. It includes detailed wiring diagrams, illustrating the complete electrical circuit from the battery to every switch, light, and sensor. Electrical component locations are clearly mapped out, making it easy to find specific relays, fuses, or sensors. Troubleshooting tips for common electrical issues, such as charging problems, starting circuit faults, or lighting malfunctions, are also provided. A solid understanding of the electrical system is crucial for ensuring the reliable operation of the tractor's various functions.
The Dreaded Water in the Sump: Causes and Solutions for Your MF 135
One of the most concerning issues an MF 135 owner might encounter is the presence of water in the engine sump. This is a serious problem that can lead to catastrophic engine damage if not addressed promptly. Water mixing with engine oil creates a milky, emulsified substance that significantly reduces the oil's lubricating properties. This can lead to excessive wear on bearings, camshafts, crankshafts, and cylinder walls, ultimately resulting in engine failure. Identifying the source of water ingress is critical.
Symptoms of Water in the Sump
- Milky or Frothy Oil: The most obvious sign is when the engine oil on the dipstick appears milky, frothy, or like a light brown milkshake.
- Low Coolant Level: If coolant is leaking into the engine, the coolant reservoir or radiator level will drop over time without an external leak.
- White Smoke from Exhaust: If water is entering the combustion chambers, it can produce white steam from the exhaust, especially when the engine is cold.
- Overheating: A compromised cooling system due to leaks can lead to the engine overheating.
- Rough Running/Misfires: Water in the combustion chamber can cause misfires or rough engine operation.
- Sweet Smell from Exhaust: The burning of antifreeze (ethylene glycol) can produce a distinct sweet smell.
Common Causes of Water in the MF 135 Sump
The MF 135, like many tractors of its era, often uses a 'wet liner' engine design, where the cylinder liners are directly surrounded by coolant. This design makes certain failure points more common.
- Failed Head Gasket: This is arguably the most common culprit. The head gasket seals the combustion chambers and prevents coolant and oil from mixing. Over time, or due to overheating, the gasket can degrade or blow, allowing coolant to seep into the oil passages or combustion chambers, eventually making its way to the sump.
- Perished Cylinder Liner 'O' Rings: This is highly probable for an MF 135. The wet cylinder liners in these engines are sealed at the bottom by rubber 'O' rings to prevent coolant from leaking into the crankcase. With age and heat cycles, these 'O' rings can harden, crack, or lose their sealing ability, allowing coolant to drip directly into the sump. This often manifests as a slow, persistent loss of coolant and milky oil.
- Cracked Cylinder Head or Block: Less common but more severe, cracks in the cylinder head or engine block can allow coolant to enter the oil system. These cracks can be caused by severe overheating, freezing without adequate antifreeze, or manufacturing defects.
- Leaking Water Pump Seal: While less likely to send water directly into the sump, a severely leaking water pump could potentially allow coolant to run down the front of the engine and find its way into the sump through a compromised seal, though external leaks are far more common with this issue.
- Oil Cooler Leak (If Fitted): Some engines incorporate an oil cooler that uses engine coolant to regulate oil temperature. If this cooler develops an internal leak, coolant can mix directly with the engine oil. While less common on simpler MF 135 setups, it's worth considering for variants that might have one.
- Condensation: In very cold climates or during periods of infrequent use, condensation can build up inside the engine, especially if the oil isn't allowed to reach operating temperature to evaporate the moisture. While this typically results in minor moisture, it can contribute to a milky appearance in the oil over a long period. However, it rarely causes significant water contamination like the other issues.
Diagnosing and Resolving Water in the Sump
Diagnosing the exact cause requires a systematic approach:
- Oil Examination: Drain a small amount of oil. If it's milky, water is present.
- Coolant System Pressure Test: Use a pressure tester to pressurise the cooling system while the engine is cold. Look for external leaks, and also check the oil dipstick and drain plug for signs of coolant entering the engine. A sustained drop in pressure without external leaks strongly suggests an internal leak.
- Cylinder Leak-Down Test: This can help identify a blown head gasket or cracked head by checking if air leaks into the cooling system or adjacent cylinders.
- Dye Test: Some technicians use UV dye in the coolant system to help pinpoint leaks.
- Sump Drain and Inspection: Draining the oil completely and examining the drained fluid can sometimes reveal the source of the leak, especially if it's significant.
Once the cause is identified, the repair will involve replacing the faulty component. For a blown head gasket, it's a matter of removing the cylinder head, replacing the gasket, and carefully reassembling with correct torque settings. For perished cylinder liners 'O' rings, the engine often needs to be partially disassembled to remove the liners and replace the seals. This is a more involved job, often requiring specialist tools and knowledge. Cracked blocks or heads usually necessitate replacement of the component, which can be costly.
Table: Common Causes & Solutions for Water in MF 135 Sump
| Cause | Symptoms | Likely Repair | Complexity |
|---|---|---|---|
| Head Gasket Failure | Milky oil, coolant loss, white smoke, overheating | Replace head gasket, check head flatness | Medium |
| Cylinder Liner 'O' Rings | Milky oil, coolant loss (often slow), no external leak | Remove liners, replace 'O' rings | High (Engine disassembly) |
| Cracked Cylinder Head | Milky oil, coolant loss, misfires, overheating | Replace cylinder head | High |
| Cracked Engine Block | Milky oil, significant coolant loss, severe overheating | Engine block replacement (major overhaul) | Very High |
| Oil Cooler Leak | Milky oil, coolant loss (if fitted) | Replace oil cooler | Medium |
The Importance of Regular Maintenance and the Service Manual
The Massey Ferguson MF 135 Service Manual is more than just a repair guide; it's a blueprint for proactive care. By following the prescribed maintenance schedules and procedures, owners can significantly reduce the likelihood of encountering serious issues like water in the sump. Regular oil changes, coolant system checks, and general inspections can flag potential problems before they escalate. For instance, consistently monitoring coolant levels can alert you to a slow leak from 'O' rings before it causes extensive damage.
Furthermore, understanding the tractor's systems through the manual allows for more accurate interpretation of symptoms. If your MF 135 starts to show signs of trouble, the manual provides the context and diagnostic steps needed to pinpoint the problem efficiently. This avoids guesswork and ensures that repairs are targeted and effective, saving both time and money in the long run. Investing time in reading and understanding this manual is an investment in the longevity and reliability of your Massey Ferguson MF 135.
Frequently Asked Questions (FAQs)
Q: Is the Massey Ferguson MF 135 Service Manual available in print?
A: While many are now available as digital PDFs, original print versions were produced. You might find reprints or digital copies from various online suppliers specialising in tractor manuals.
Q: How often should I change the engine oil on my MF 135?
A: The service manual will provide the precise interval, but typically, for a tractor of this age and usage, it's recommended every 100-200 hours of operation or at least once a year, whichever comes first, using the correct specification of oil.
Q: Can I fix water in the sump myself, or do I need a professional?
A: Minor condensation issues might be resolved with regular use and full engine warm-ups. However, if the oil is significantly milky, indicating a serious leak like a head gasket or liner 'O' rings, it's a complex job. While some experienced DIY mechanics might tackle it, it often requires specialised tools, precise torque settings, and considerable mechanical knowledge. If in doubt, consult a professional.
Q: What tools do I need for basic MF 135 maintenance?
A: A good set of spanners (wrenches), sockets, screwdrivers, a torque wrench, an oil filter wrench, and a drain pan are essential. For more advanced repairs, you might need specialised pullers, a cylinder head lifting tool, and engine specific gauges.
Q: How can I prevent water from entering the sump?
A: Regular maintenance is key. Ensure your cooling system has the correct antifreeze mixture (to prevent freezing and corrosion), change oil and filters at recommended intervals, and always address any signs of coolant loss or overheating promptly. Allowing the engine to reach full operating temperature during use also helps evaporate minor condensation.
The Massey Ferguson MF 135 Service Manual is truly an invaluable asset for anyone committed to the care and maintenance of this classic tractor. From providing a detailed overview of its components and systems to offering meticulous instructions for routine maintenance and complex repairs, it covers every aspect. Crucially, it equips owners and mechanics with the knowledge to diagnose and effectively resolve critical issues such as water ingress into the engine sump – a problem that, if ignored, can lead to severe damage. By leveraging the comprehensive information contained within this manual and adhering to its guidelines, you can ensure your Massey Ferguson MF 135 continues to operate reliably and efficiently for many more years to come, preserving the legacy of a truly remarkable machine.
